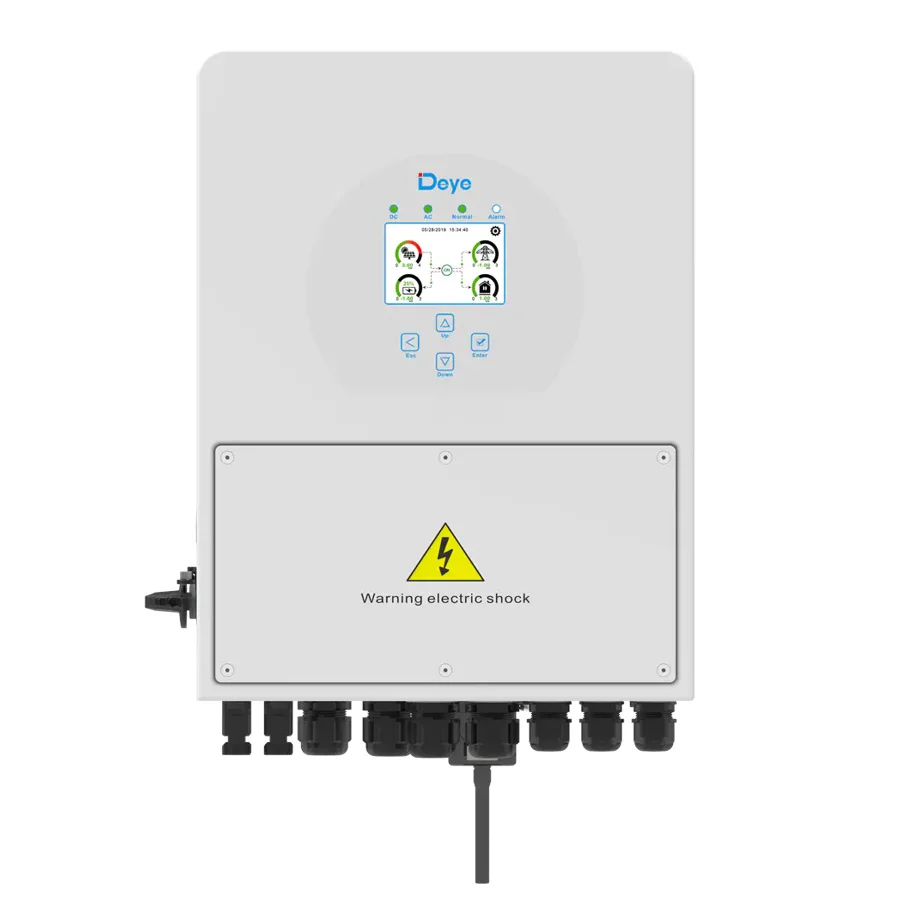

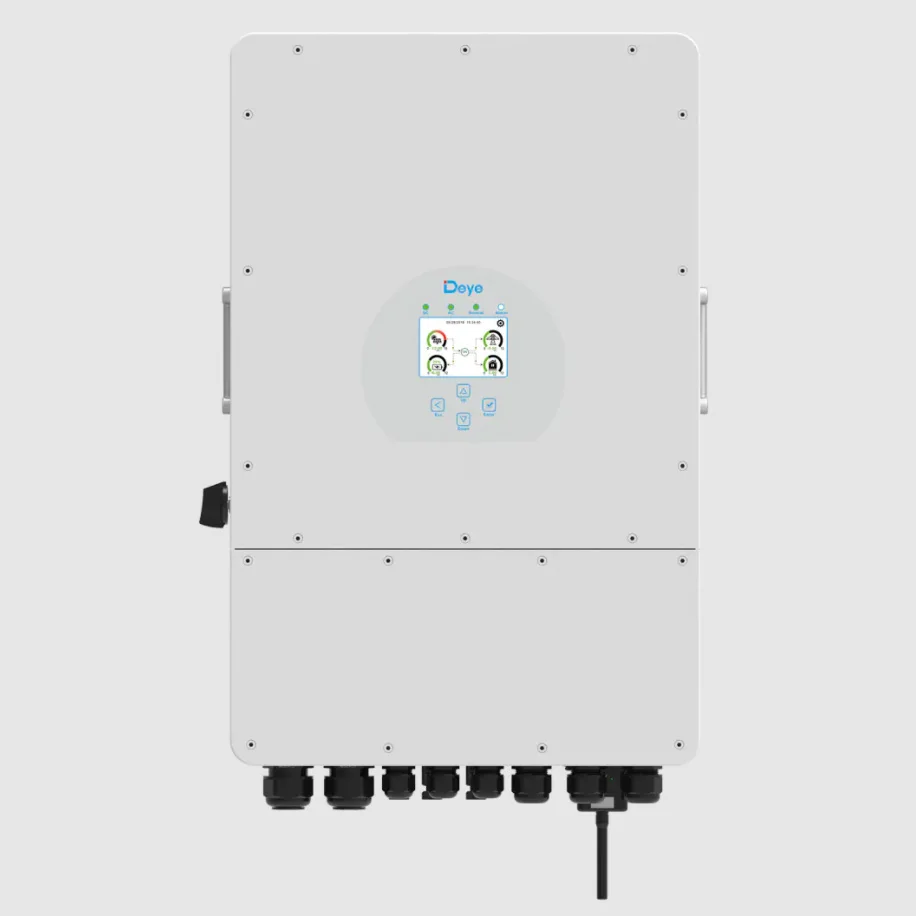

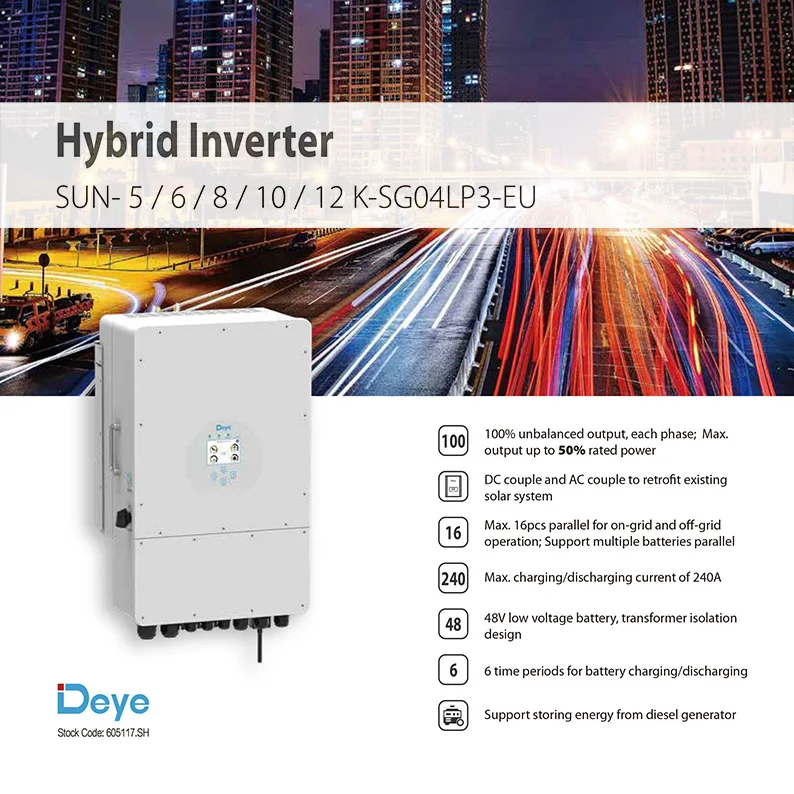

12kw Deye hybrid inverter 8kw solar inverter power charger system 10kw 3 phase inverter solar
- Category: Solar Energy Products >>>
- Supplier: Yichun Dawnice Manufacture & Trade Co. Ltd.
Share on (1600499482042):
Product Overview
Description

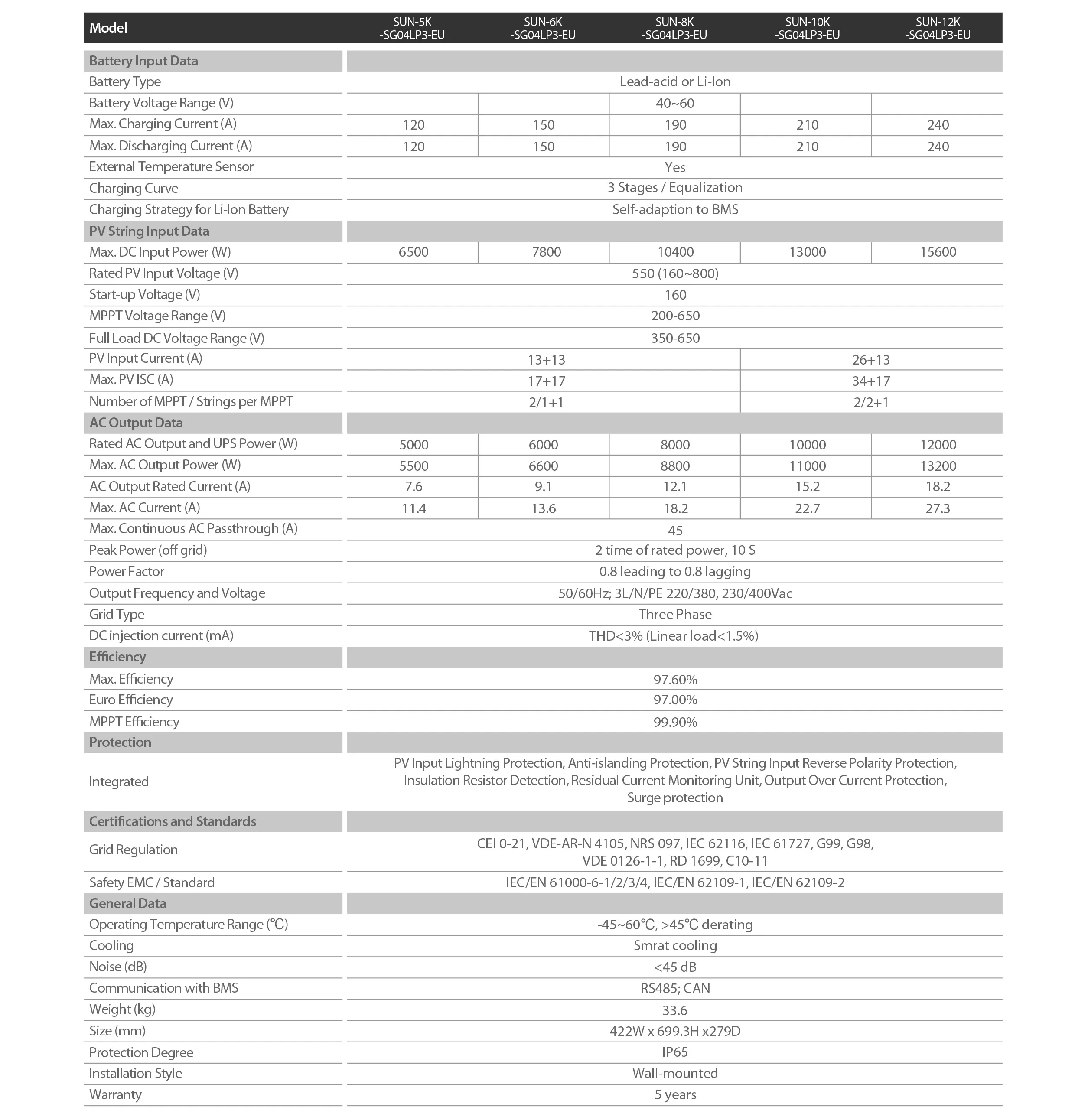

Product Paramenters
Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU | ||||
Battery Input Data | |||||||||
Battery Type | Lead-acid or Li-lon | ||||||||
Battery Voltage Range (V) | 40~60 | ||||||||
Max. Charging Current (A) | 120 | 150 | 190 | 210 | 240 | ||||
Max. Discharging Current (A) | 120 | 150 | 190 | 210 | 240 | ||||
External Temperature Sensor | Yes | ||||||||
Charging Curve | 3 Stages / Equalization | ||||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||||||||
PV String Input Data | |||||||||
Max. DC Input Power (W) | 6500 | 7800 | 10400 | 13000 | 15600 | ||||
Rated PV Input Voltage (V) | 550 (160~800) | ||||||||
Start-up Voltage (V) | 160 | ||||||||
MPPT Voltage Range (V) | 200-650 | ||||||||
Full Load DC Voltage Range (V) | 350-650 | ||||||||
PV Input Current (A) | 13+13 | 26+13 | |||||||
Max. PV ISC (A) | 17+17 | 34+17 | |||||||
Number of MPPT / Strings per MPPT | 2/1+1 | 2/2+1 | |||||||
AC Output Data | |||||||||
Rated AC Output and UPS Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | ||||
Max. AC Output Power (W) | 5500 | 6600 | 8800 | 11000 | 13200 | ||||
AC Output Rated Current (A) | 7.6 | 9.1 | 12.1 | 15.2 | 18.2 | ||||
Max. AC Current (A) | 11.4 | 13.6 | 18.2 | 22.7 | 27.3 | ||||
Max. Continuous AC Passthrough (A) | 45 | 45 | |||||||
Peak Power (off grid) | 2 time of rated power, 10 S | 2 time of rated power, 10 S | |||||||
Power Factor | 0.8 leading to 0.8 lagging | ||||||||
Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | ||||||||
Grid Type | Three Phase | ||||||||
DC injection current (mA) | THD<3% (Linear load<1.5%) | ||||||||
Efficiency | |||||||||
Max. Efficiency | 97.60% | ||||||||
Euro Efficiency | 97.60% | 97.00% | |||||||
MPPT Efficiency | 97.60% | 99.90% | |||||||
Protection | |||||||||
Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,Surge protection | ||||||||
Certifications and Standards | |||||||||
Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98,VDE 0126-1-1, RD 1699, C10-11 | ||||||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||||
General Data | |||||||||
Operating Temperature Range (℃) | -45~60℃, >45℃ derating | ||||||||
Cooling | Smrat cooling | ||||||||
Noise (dB) | <45 dB | ||||||||
Communication with BMS | RS485; CAN | ||||||||
Weight (kg) | 33.6 | ||||||||
Size (mm) | 422W x 699.3H x279D | ||||||||
Protection Degree | IP65 | ||||||||
Installation Style | Wall-mounted | ||||||||
Warranty | 5 years | ||||||||
Products Description
This series inverter is specially designed for 127/220Vac three-phase system, especially suits for South American areas. With compactness design, easy to install and operate. It supports wide AC output voltage to adapt to poor grid, extending the inverter working hours.

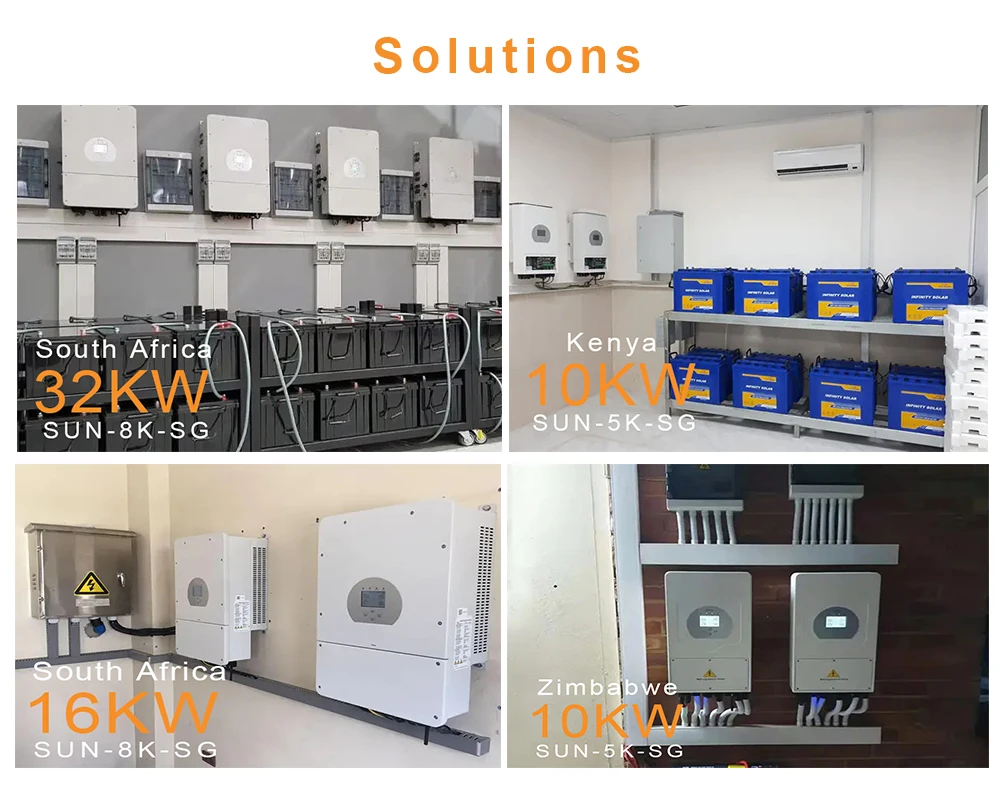

Projects

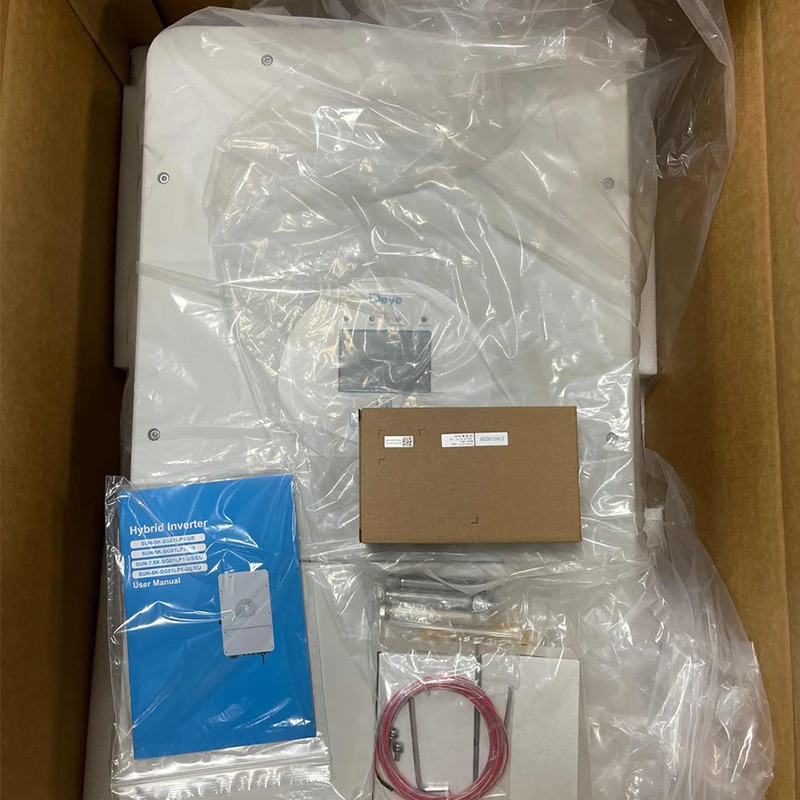

Product packaging
