Bottom Price Free shipping Vertical Basket Centrifuge
Introduction
Flat bag lifting centrifuge is kind of bag lifting top discharging and intermittent operation centrifugal filtration equipment with standard design and high-performance according to GB/T 13756-92.

Application
It is suitable for the solid and liquid separation and the suspension is available with high loosen solid , moderate particle
size, need washed and low viscosity of liquid.It is not only suitable for the separation of many kinds of materials in small
batch, but also suitable for mass production. It is widely used in medicine, chemical industry, light industry, food, national
defense and other industrial fields.

Operation Model
The machine adopts energy consumption with inverter speed control system and m
anual batch operation

Processing parameters
Average particle size : > 2 um
Feed solid concentration > 5% by weight
Solid throughput : up to 3 t/h
Basket volume : 81-914 liters

Model
PD800-N, PD630-N ,PD800-N, PD1000-N PD1250-N, PD1500-N ,PD1800-N.


FEATURES AT A GLANCE



Start model : stable variable starting be more less energy consumption
Shockproof
: with eslatic damper instead of the traditional three column type support
Thoroughgoing discharge : Bag lifting discharging instead of labor
CIP/SIP cleaning : make it clean up to grade A
Without foundation : Equipped with damper without foundation

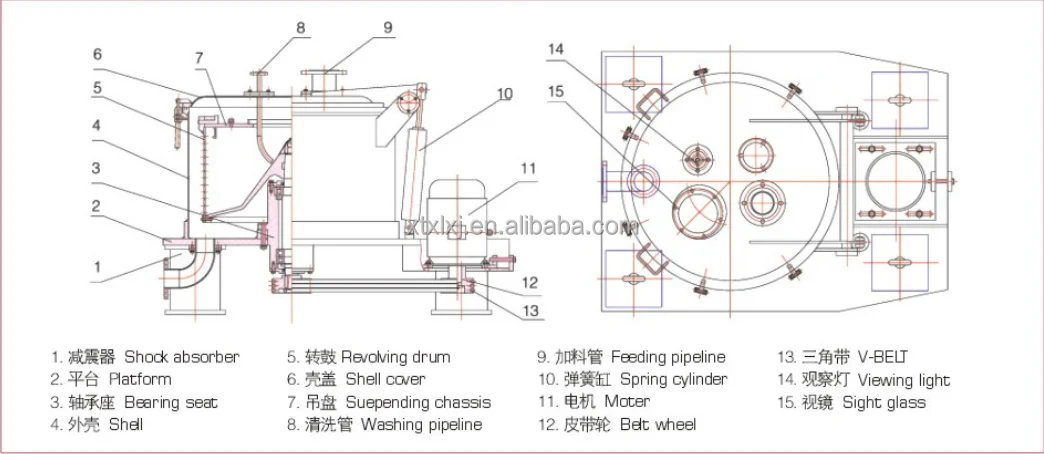

Right elevation
Back elevation
Left elevation


Working Principle
When the basket (drum) is at rest or spinning at normal speed for feeding, open the valve of the feed inlet, the suspension via the inlet fed to the wall of the basket .When the suspension is full of the effective space of the basket ,close the feed valve and start the motor (if feed at rest state) to make the machine at the separation stage, meanwhile the suspension is in a state of filtration separation, the liquid phase goes through the filter medium and the wall of the basket under the action of centrifugal force ,collected by the inner wall of the casing and the chassis , then moves out of the machine from the liquid outlet. While the solid phase stays on the filter medium . After dry ,stop the basket by the braking system of the frequency converter and open the lid ,lift the overflow board and bag out together to discharge place , then loosen the nylon rope at the mouth of the bag,so as to achieve the purpose of discharging, reset the overflow board and bag ,and back to the next cycle.


PRODUCT SPECIFICATIONS


Model
PD800-N
PD1000-N
PD1250-N
PD1500-N
PD1800-N
Dia of basket   mm
800
1000
1250
1500
1800
Speed  rpm
1500
1200
1000
850
800
Work Volume   l
81
146
296
550
916
Dry solid load  kg
150
195
350
800
1400
G.force
1008
806
700
607
494
Motor  kw
7.5/11
11/15
15/18.5
22/30
45
Dimensions  mm
1750*1250*1180
1950*1500*1350
2200*1700*1500
2560*2050*1700
3280*2360*2725
Weight   kg
1500
2600
3400
4600
8200


PRODUCT CONFIGURATION


Machine lid
It is equipped with the lamp,sight glass, feed pipe,wash pipe,mechanical adjustable device of material level.Non-toxic silicone rubber sealing ring is embedded between the lid and the casing, which can guarantee the air right requirements of the machine.
Basket
The basket is the vital part of the machine . it is necessary to do dynamic balanced test before installed. there will be also installed a filter bag/cloth on the basket wall.
Motor
Motor is high efficiency one , explosion proof or regular are both available . and installed in a protection cover made of stainless steel .



Damper
Stand by the overall structure of the thick plate as the main body,stand far away from the center of the four corners,fixed with four elastic oil dampers which stand the dynamic and static load generated by the operation of the centrifuge and absorb the vibration.
Machine casing .
The casing is welded by flange and the machine body. Welded to the base of machine by flange.The casing plays the role of protecting and collecting the liquid , at the same time, the basket is running in the casing to ensure safety.
Liquid outlet .
A liquid discharge pipe is installed below where the clear liquid phase flows out.


Finished product
Finished product .

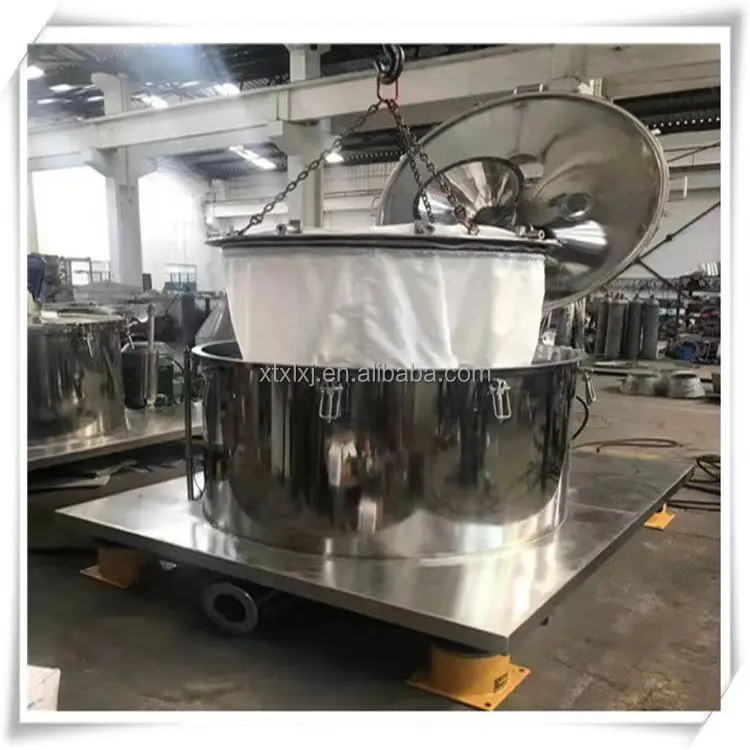

Material in basket on site
Discharging on site
.


Packing
Packing finished


FAQ


1. All technical parameters are subject to the instruction manual.

2. Please inform the material characteristics and working conditions requirements when consulting.

3. According to customer requirements, our company can take personalized design and manufacture.

4. Part of the material in contact with the solution can also be customized according to customer requirements.
