Product Overview

Description

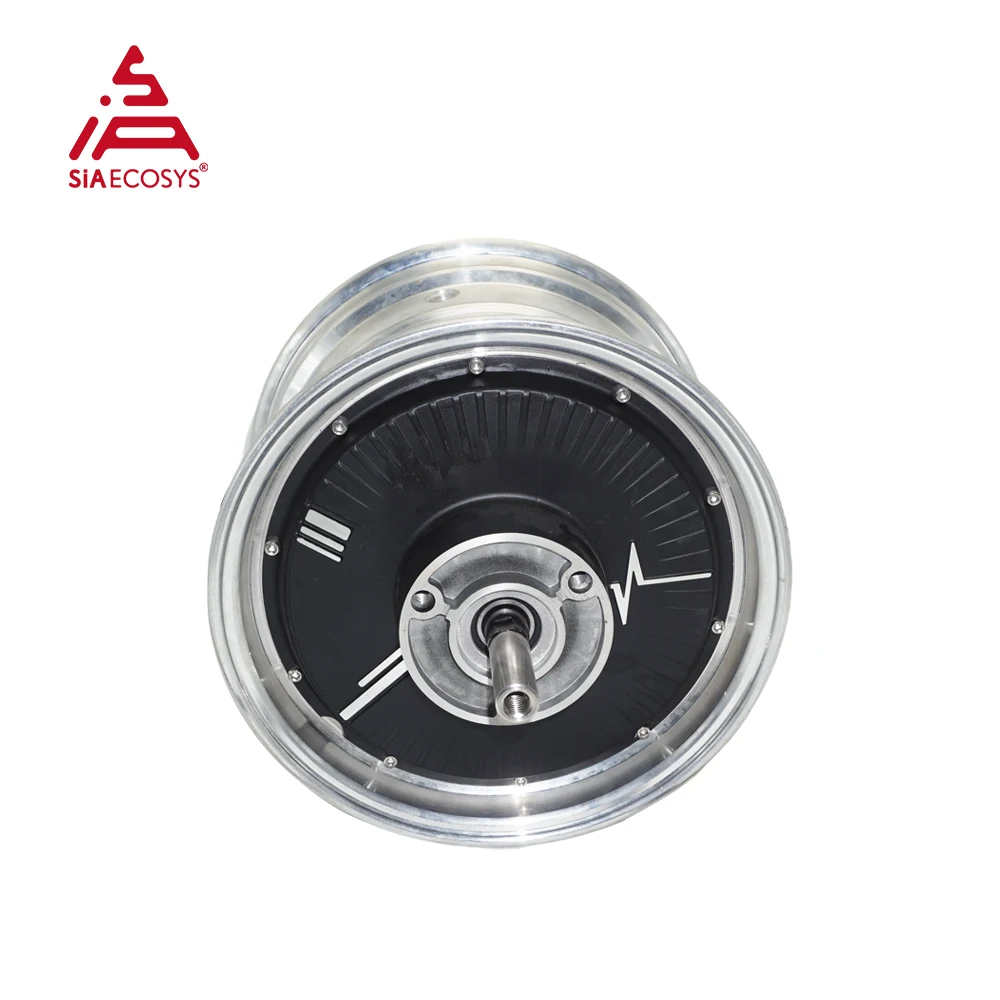

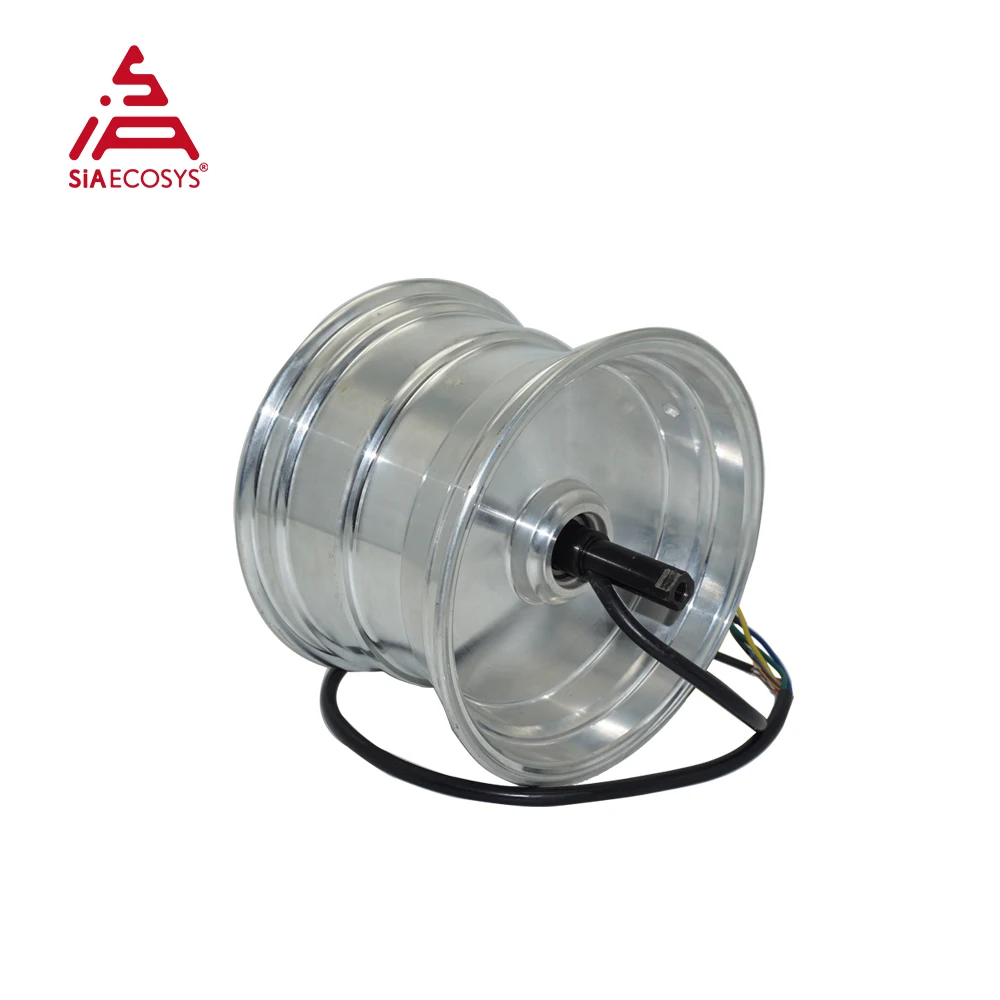

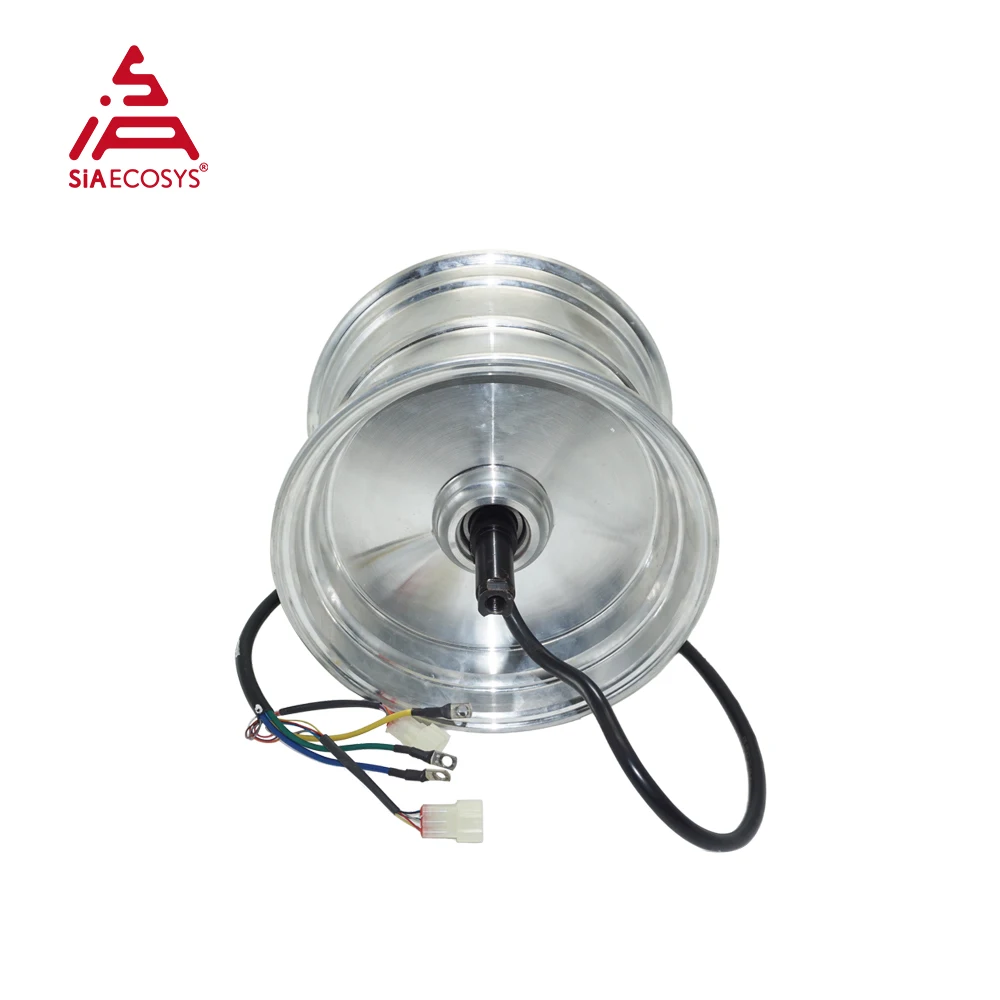

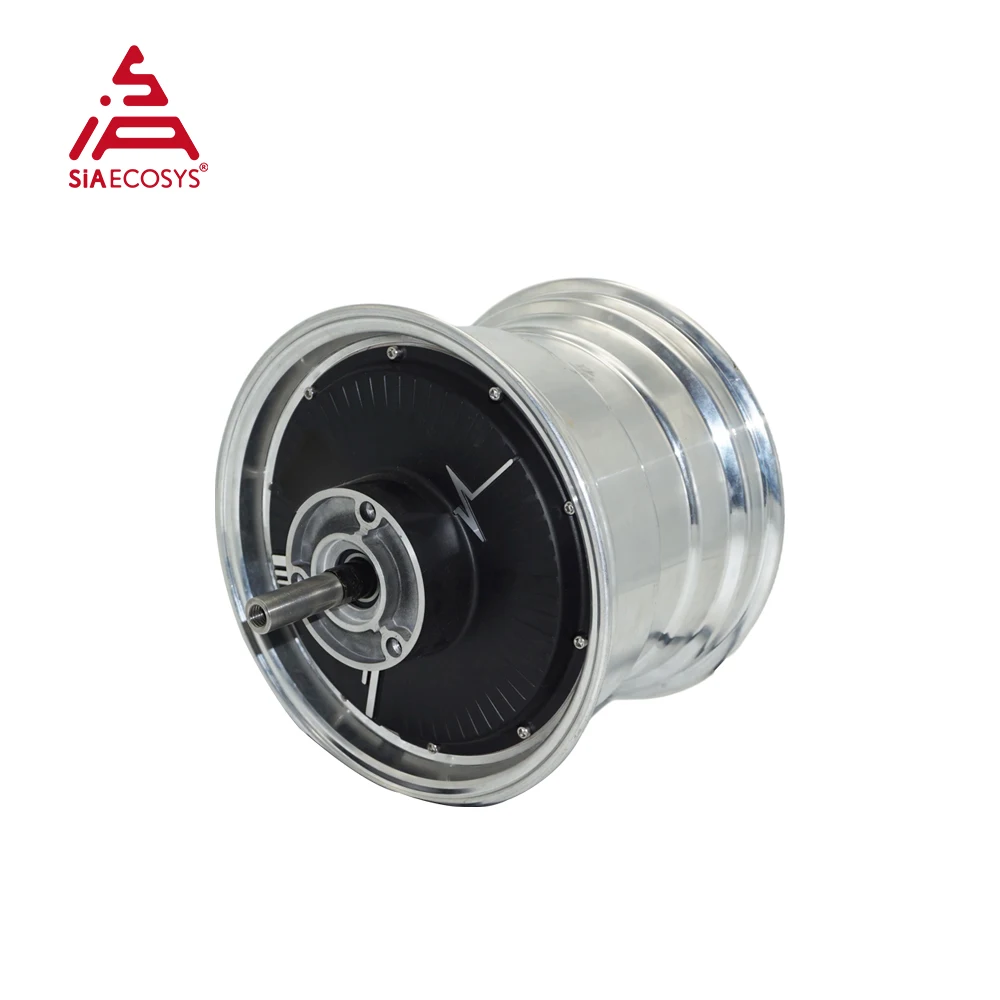

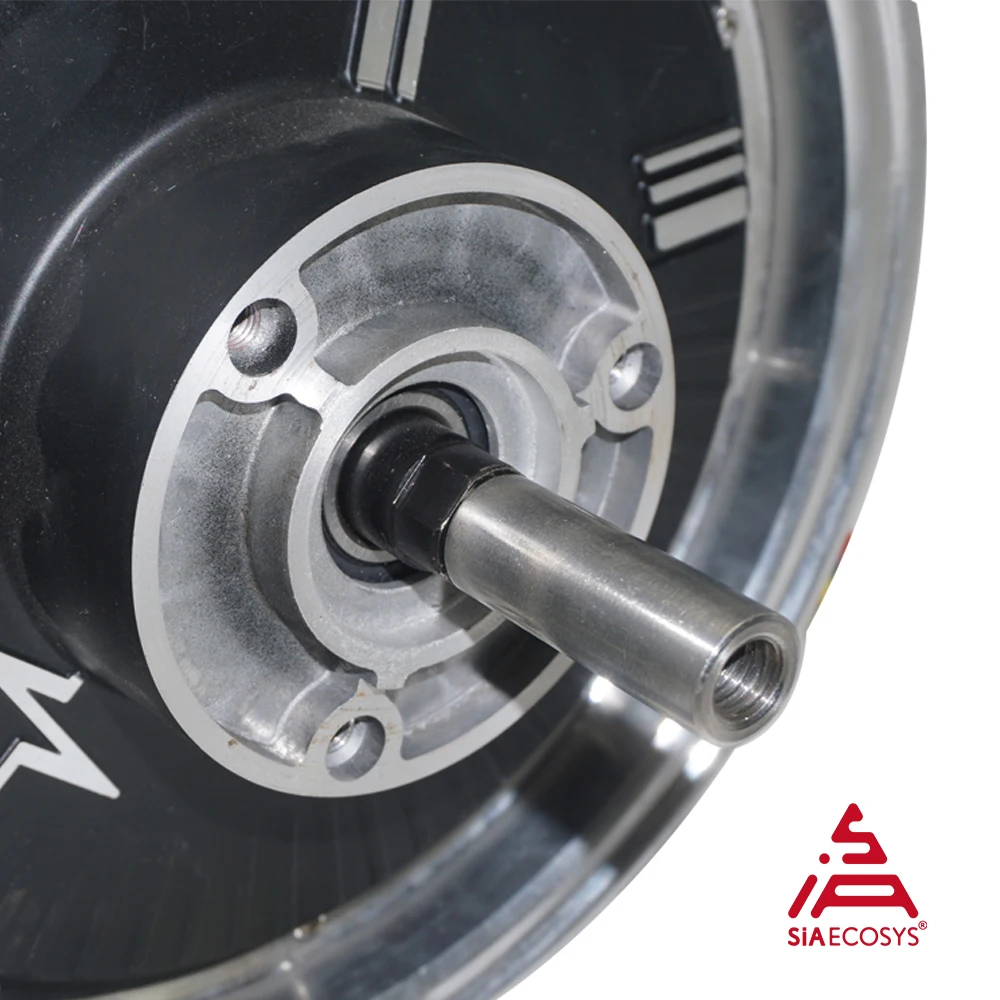

QS Motor High Power 212 10x7.0 2000W V1.1 72V 45kph Hub Motor for Electric Scooter

For 212 E-bicycle hub motor, it could be used for electric scooter

e.g. Electric Scooter

E-Scooter weight, approx 120kg+80kg

Speed: 72V 45km/h

Climbing slope: 12°@200kg 20kph

Key Features

1). Simplify to make a electric-bicycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%





Product Description

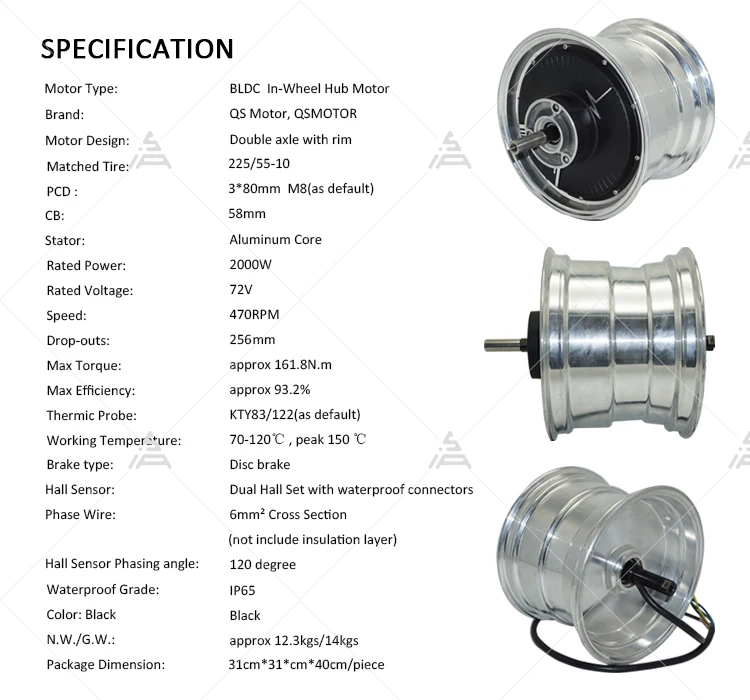

 QSMOTOR 212 10x7.0inch 2000W V1.1 hub motor

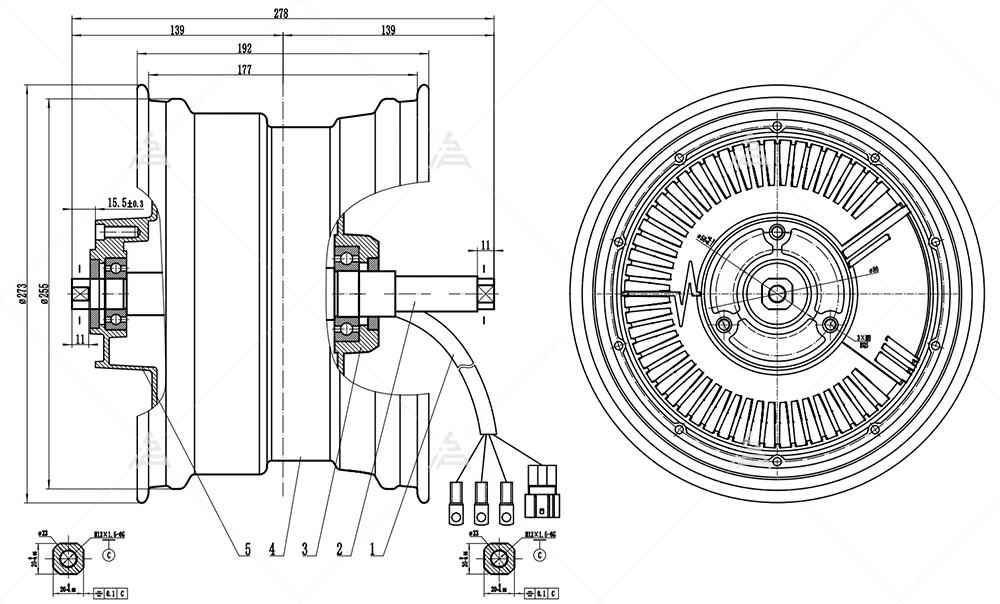

Drawing

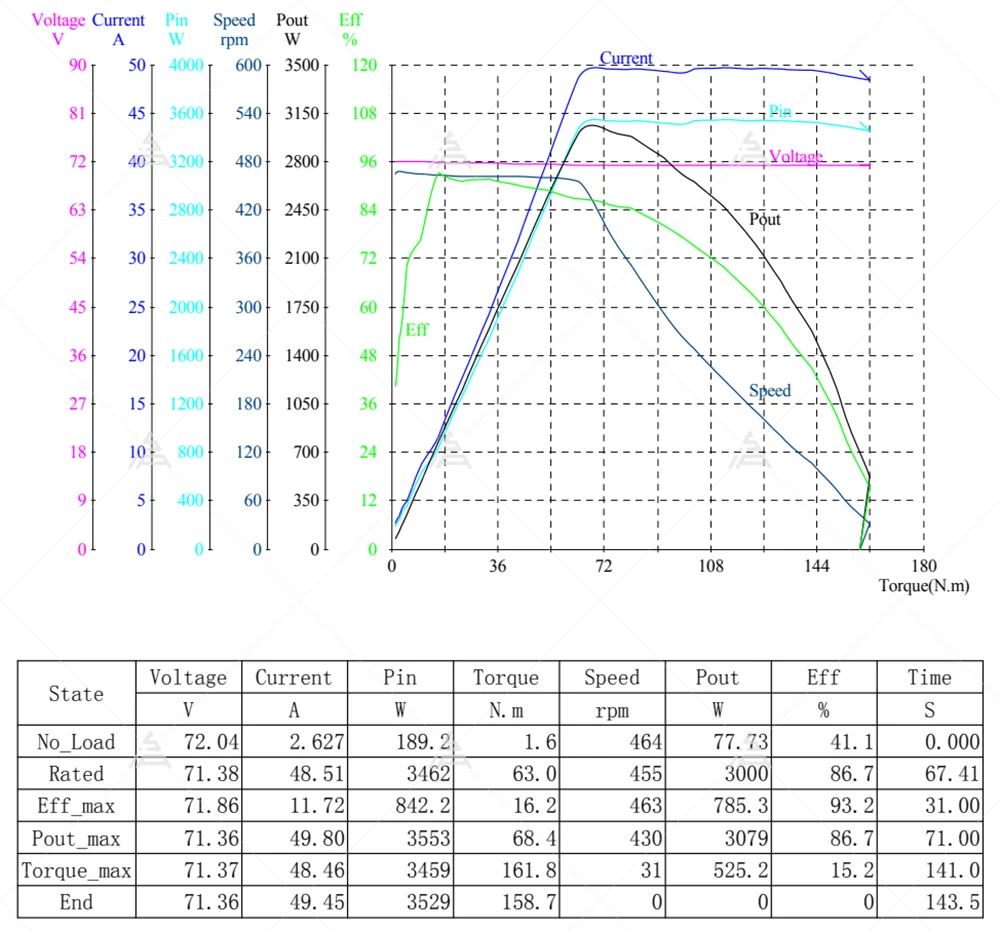

Test Report(for reference)

212 10x7.0inch 2000W V1.1 hub motor with EM50sp

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

We're able to supply adaptable more motor kits, e.g. speedometer, throttle. Please contact with us for details.



Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
