Новинка QS138 90H V3 4 кВт 7200 об/мин с коробкой передач 1:2.35 комплекты двигателей среднего привода контроллер ND96680 330A 680A линейная связь

Product Overview

Description

New QS138 90H V3 4KW 7200rpm with 1:2.35 gear box Mid Drive Motor Kits with ND96680 Controller 330A 680A Line Communication for E-Motorcycle

For 138 4000W V3 motor powertrain kits, it could be used for electric motorcycle, which could be 96V120KPH.

e.g. E-Motorcycle

E-motorcycle weight, approx 180kg+1*70kg

Speed: peak 120km/h

Gear ratio: 1:2.46

Climbing slope: 20°@30kph@250kg

Tire: 100/70-19

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

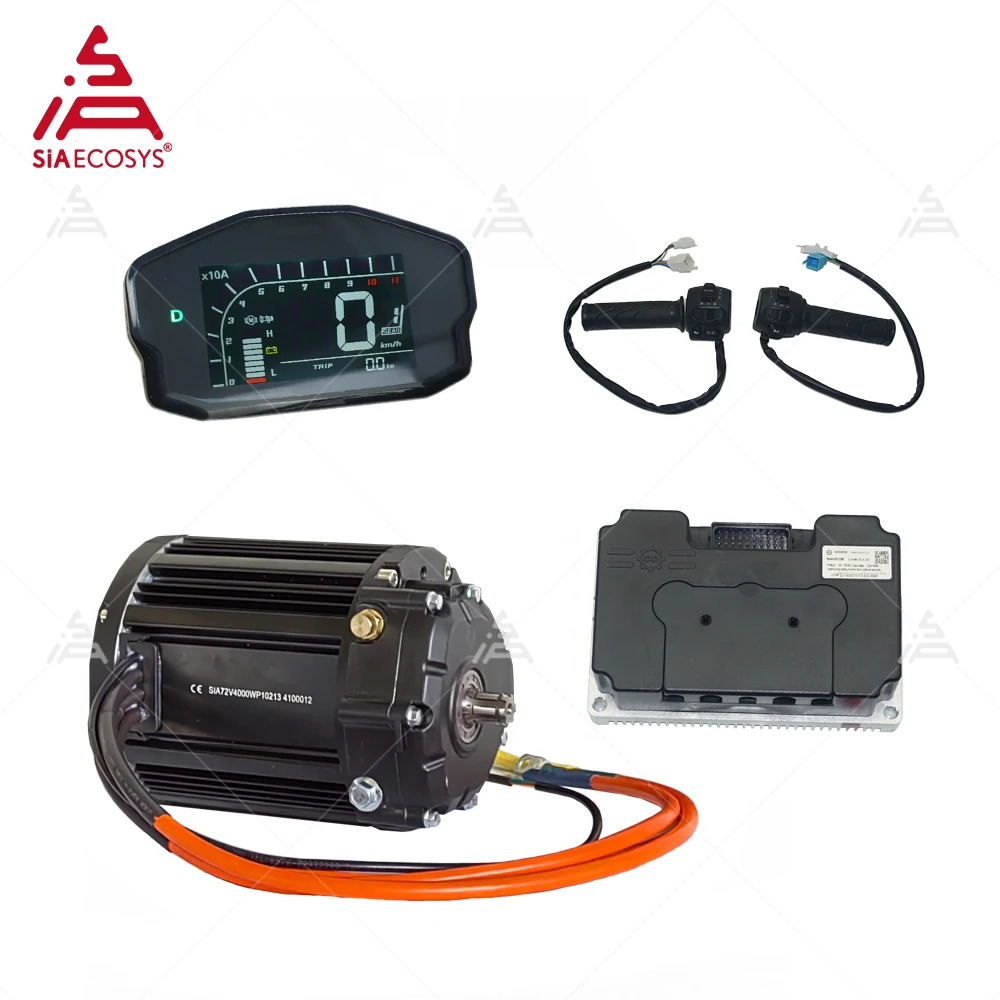

One set including below kits:

Combo1

1. 1pcs X QS138 4000W V3 1:2.35 gear ratio Mid Drive Motor with 15T sprocket

2. 1pcs X ND96680 Controller

3. 1pcs X USB Cable

4. 1pcs X DKD LCD Speedometer

5. 1pcs X YY V3 Throttle

Combo2

1. 1pcs X QS138 4000W V3 1:2.35 gear ratio Mid Drive Motor with 15T sprocket

2. 1pcs X ND96680 Controller

3. 1pcs X Bluetooth

4. 1pcs X DKD LCD Speedometer

5. 1pcs X YY V3 Throttle

Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~90%

Product Description

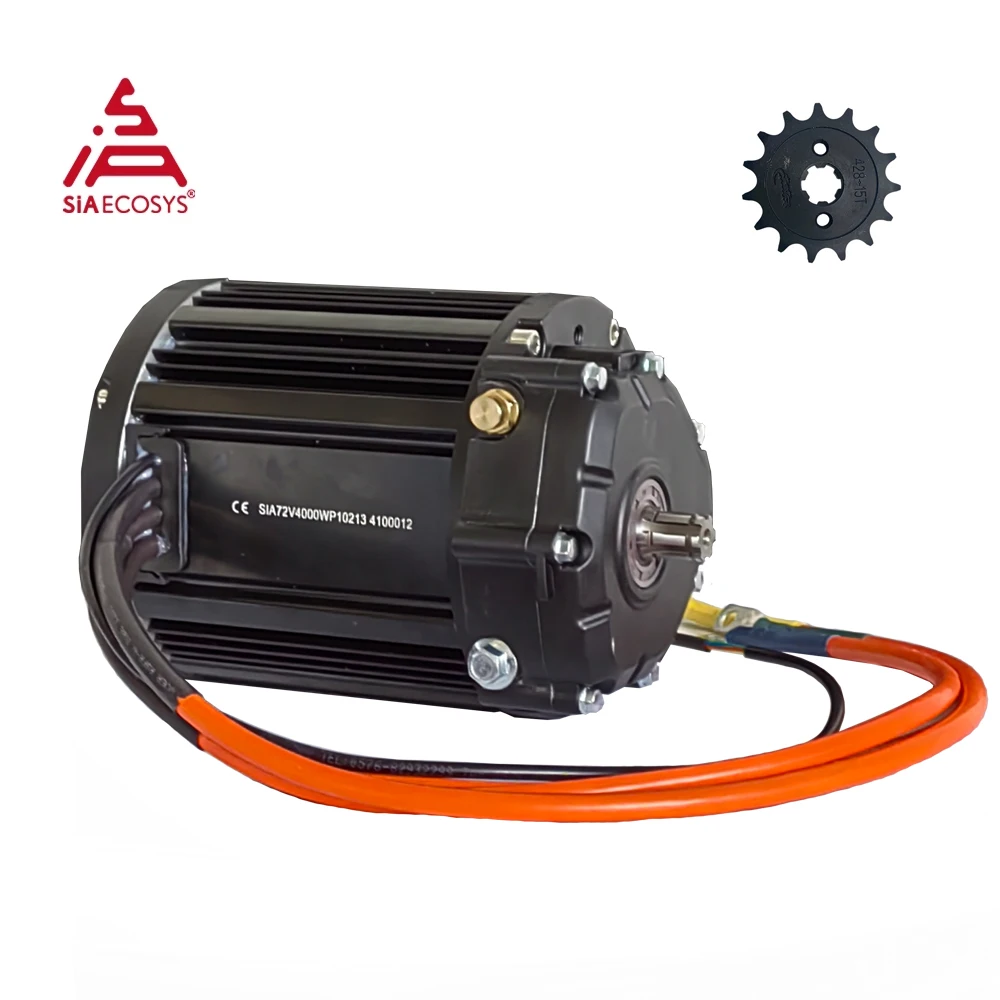

1. QS138 4kw V3 Mid Drive Motor

Spec

Drawing

Test Report

To be determined

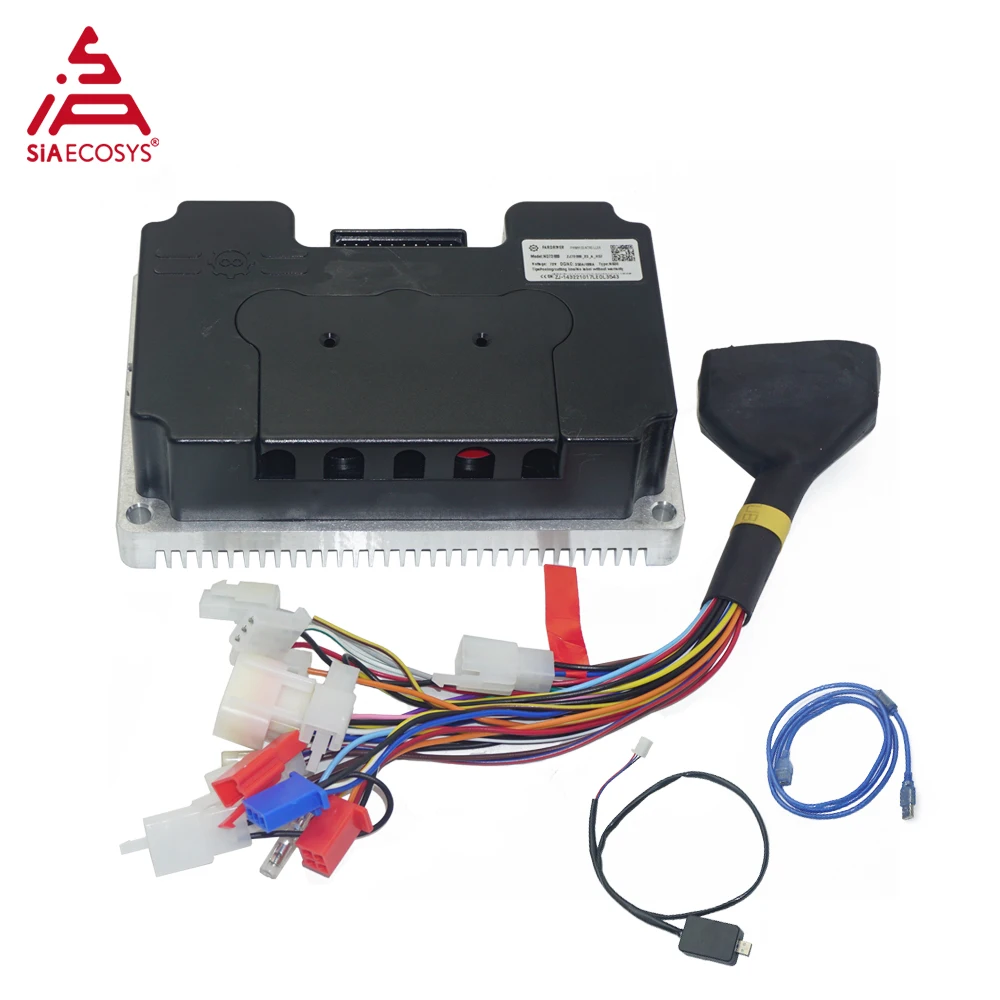

ND96680 Controller

Spec

Drawing

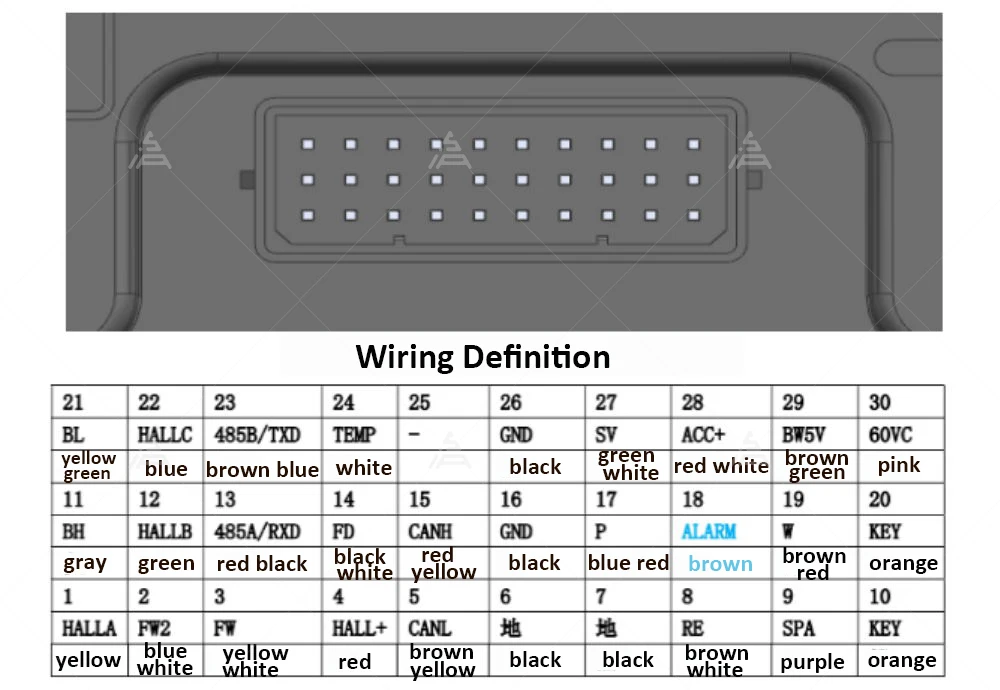

Harness definition

USB Cable

Software Display(PC)

Bluetooth

Software Display(APP)

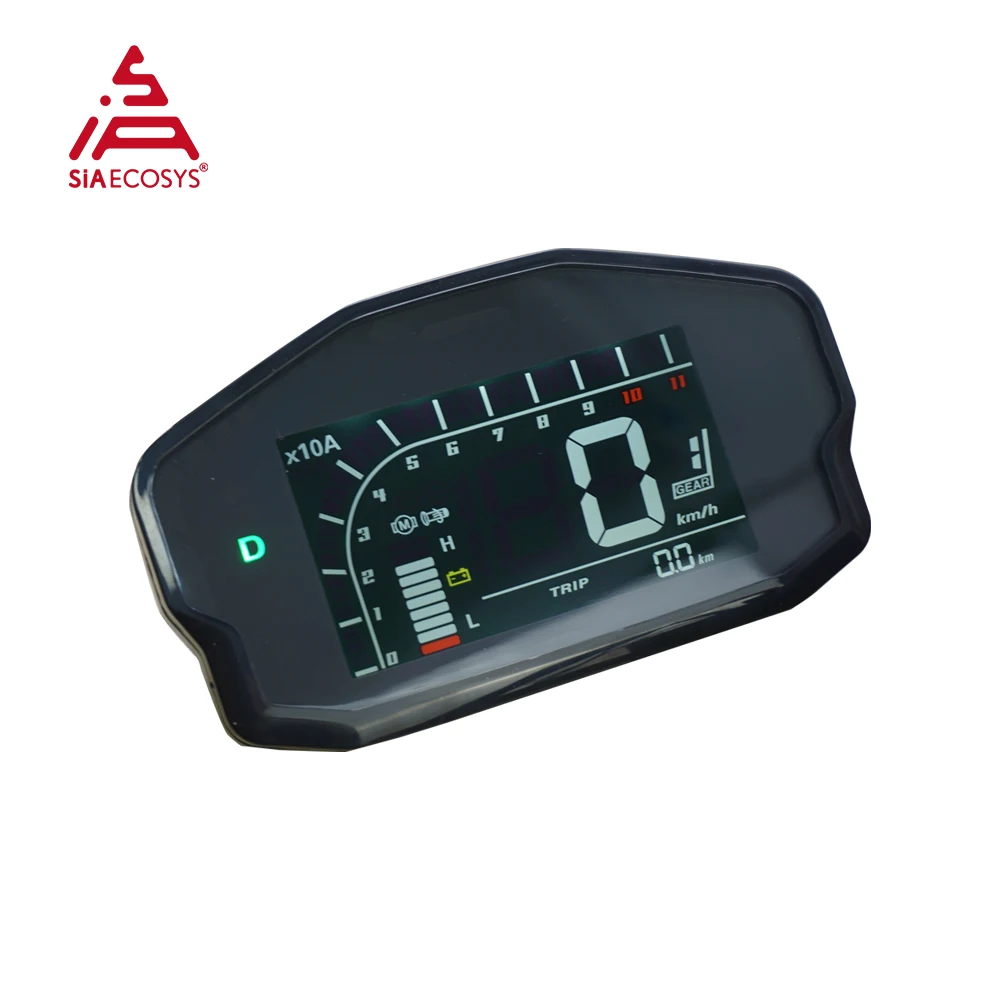

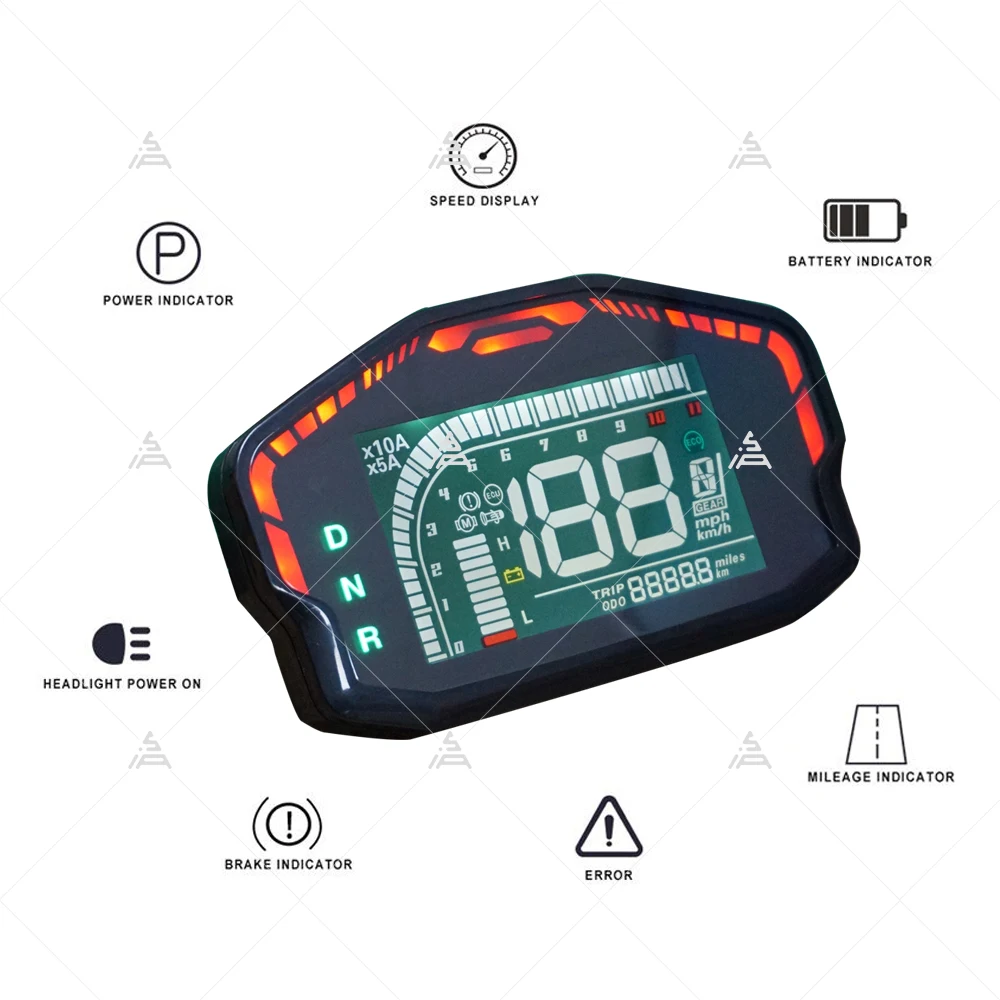

2. DKD Speedometer

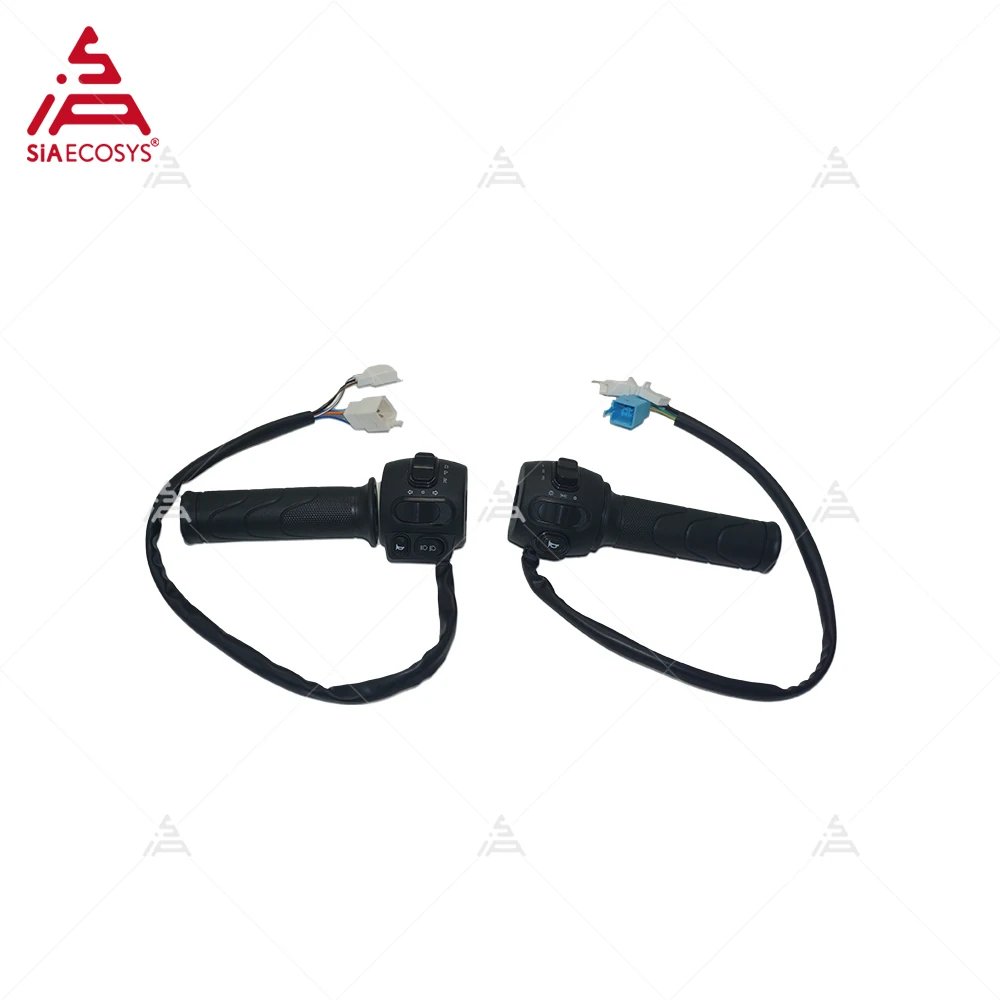

3. YY V3 Throttle

Application
