Product Overview

Description





EASUN POWER Three 3 Phase 15000W Invertor 400V DC to AC 15Kw On Off Grid Tie Hybrid Solar Inverter Run With No Battery


Design with ac input /output 380vac 3 Phase only.

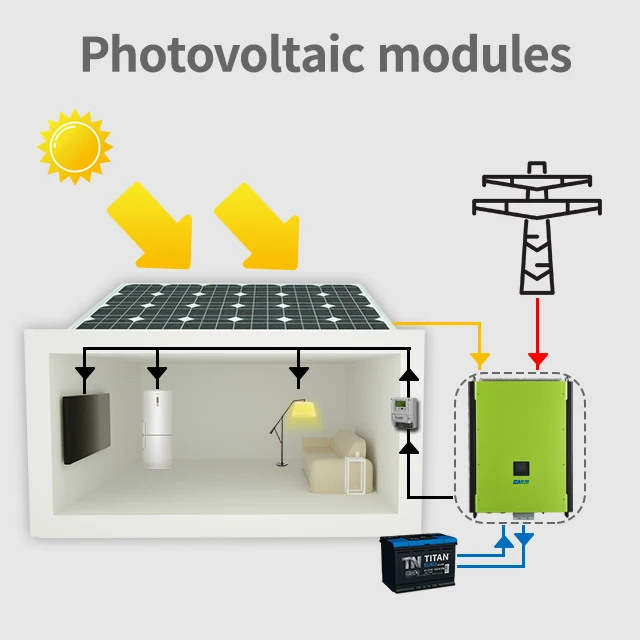

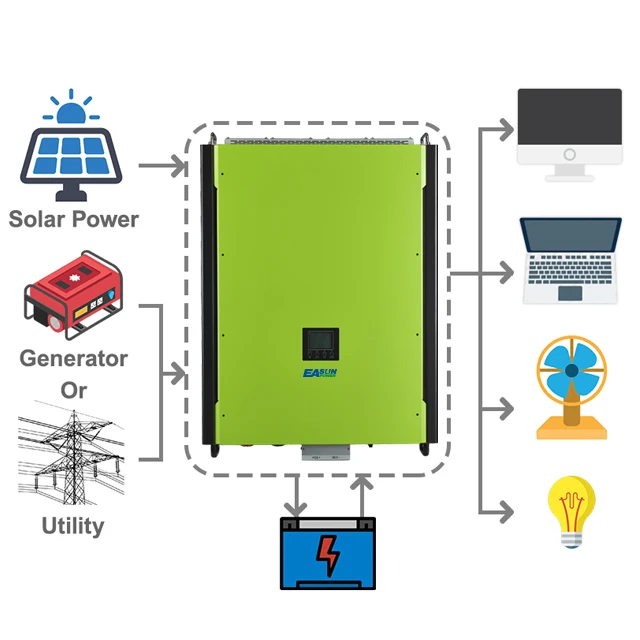

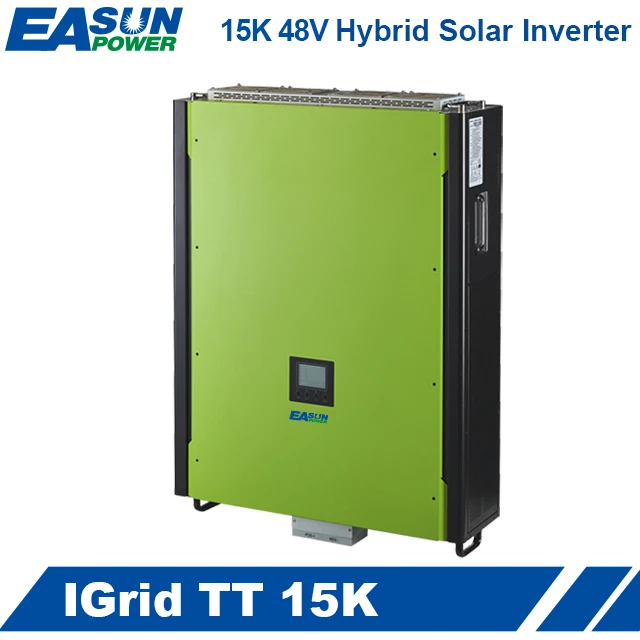

IGrid TT 15KW is a 3 Phase 15000w 48Vdc On & Off Grid Solar Power Inverter With Max MPPT 22500W Solar Inverter Pure Sine Wave
Inverter ,it can feedback to Grid and make energy storage in to Battery bank. This 15KW hybrid Solar Inverter have 3 Operation
Modes: Grid-tied, Off-Grid, On & Off Grid.


Product Main Features

 * Self-consumption and feed-in to the grid
* Programmable supply priority for PV, Battery or Grid
* User-adjustable battery charging current suits different types of batteries
* Programmable multiple operations modes:Grid tie,on and off grid, and grid-tie with backup
* Built-in Timer for various mode of on and off operation
* Multiple communication for USB, RS-232, Modbus and SNMP
* Monitoring software for real time status display and control
* Custom-made fifirmware by ODM contract
* Supports Parallel Function up to 6 units Max, built-in parallel board


Specification


MODEL
IGrid TT 15KW
Phase
3-phase in / 3-phase out
Maximum PV input power
22500 W
Rated output power
15000 W
Maximum charging power
15000 W
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage
Maximum
720 VDC / 900 VDC
Start-up Voltage lnitial
Feeding
320 VDC / 350 VDC
MPP Voltage Range
400 VDC ~ 800 VDC
Number of MPP Trackers
Maximum lnput Current
2 / A: 37.65A;B:18.6A
GRID OUTPUT(AC)
Nominal Output Voltage
230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range
184-264.5 VAC* per phase
Nominal Output Current
21.7A per phase
Power Factor
> 0.99
EFFICIENCY
Maximum Conversion
Efficiency (DC/AC)
96%
European
Efficiency@Vnominal
95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage Auto
Restart Voltage
120 - 140 VAC per phase / 180
VAC per phase
Acceptable lnput Voltage
Range
170 - 280 VAC per phase
Maximum AC lnput Current
40 A
PV INPUT(DC)
Maximum CD Voltage
900 VDC
MPP Voltage Range
350 VDC ~ 800 VDC
Number of MPP Trackers
Maximum lnput Current
2 / A: 37.65A;B:18.6A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
230 VAC (P-N) / 400 VAC (P-P)
Output Waveform
Pure Sinewave
Efffficiency (DC to AC)
91%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage
Maaximum DC Voltage
720 VDC / 900 VDC
Start-up Voltage
lNitial Feeding Voltage
320 VDC / 350 VDC
MPP Voltage Range
400 VDC ~ 800 VDC
Number of MPP Trackers
Maximumm lnput Current
2 / A: 37.65A;B:18.6A
GRID OUTPUT (AC)
Nominal Output Voltage
230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range
184-264.5 VAC* per phase
Nominal Output Current
21.7 A per phase
AC INPUT
AC Start-up Voltage Auto
Restart Voltage
120 - 140 VAC per phase / 180
VAC per phase
Acceptable lnput Current
170 - 280 VAC per phase
Maximum AC lnput Current
40 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
230 VAC (P-N) / 400 VAC (P-P)
Efficiency (DC to AC)
91%
BATTERY & CHARGER
Nominal DC Voltage
48 VDC
Maximum Charging Current
Default 60A, 5A - 300A
(Adjustable)
GENERAL
PHYSICAL
Dimension,D X W X H (mm)
219 x 650 x 820
Net Weight (kgs)
62
INTERFACE
Communicaltion Port
RS-232/USB and CAN Interface
lntelligent Slot
Optional SNMP, Modbus and AS-400 cards available
ENVIRONMENT
Humidity
0 ~ 90% RH (No condensing)
Operating Temperature
-10 to 55°C
Altitude
0 ~ 1000 m**


Product Description

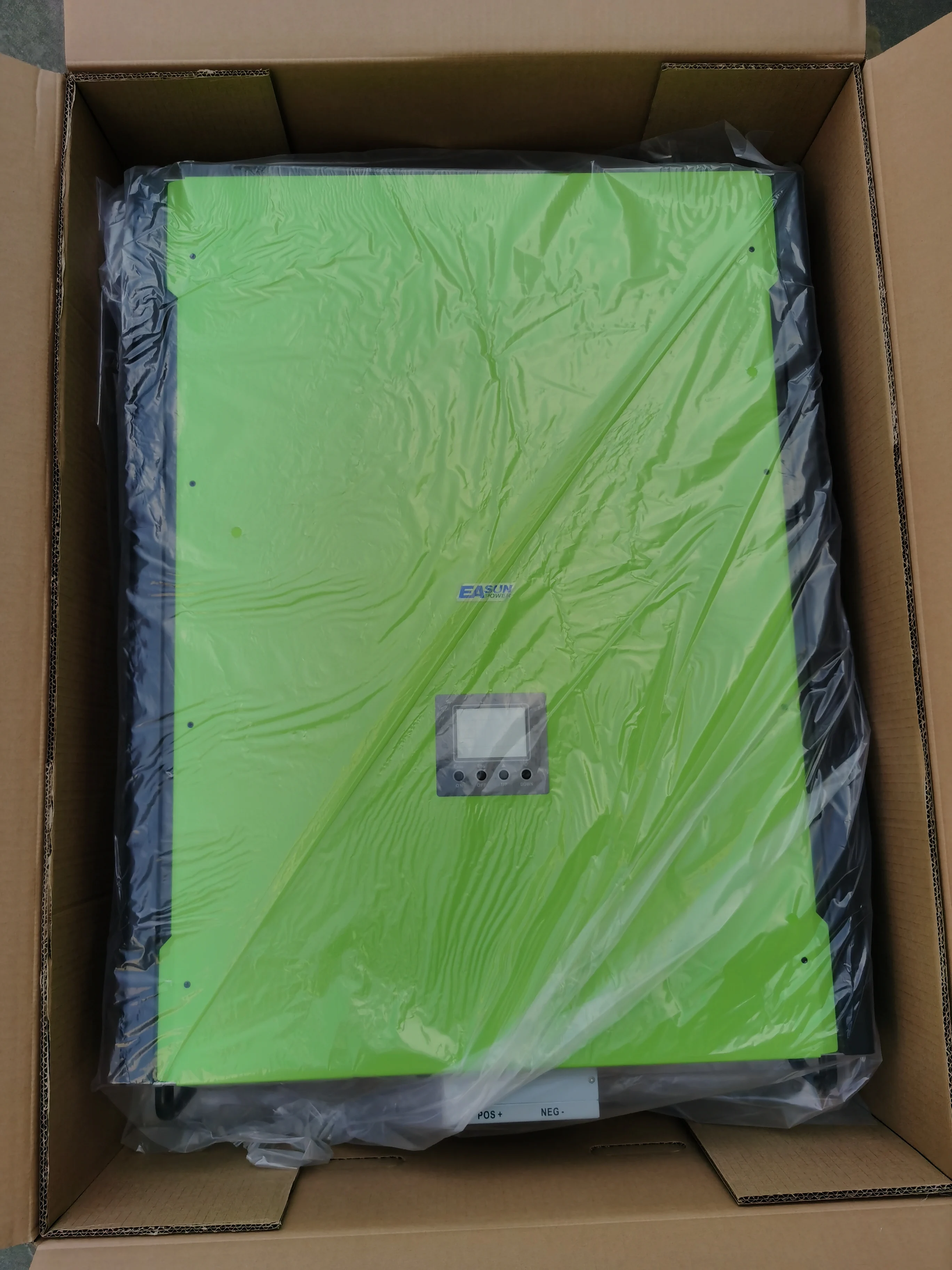

Packing & Delivery




1pc/carton, 400pcs for 20ft container or according to clients' needs.
