The critical importance of electrical power in today's society necessitates daily maintenance and management to ensure that problem's don't occur. When they do, for example due to an equipment failure or abrupt surge in demand, engineers face the need to analyze the cause quickly.

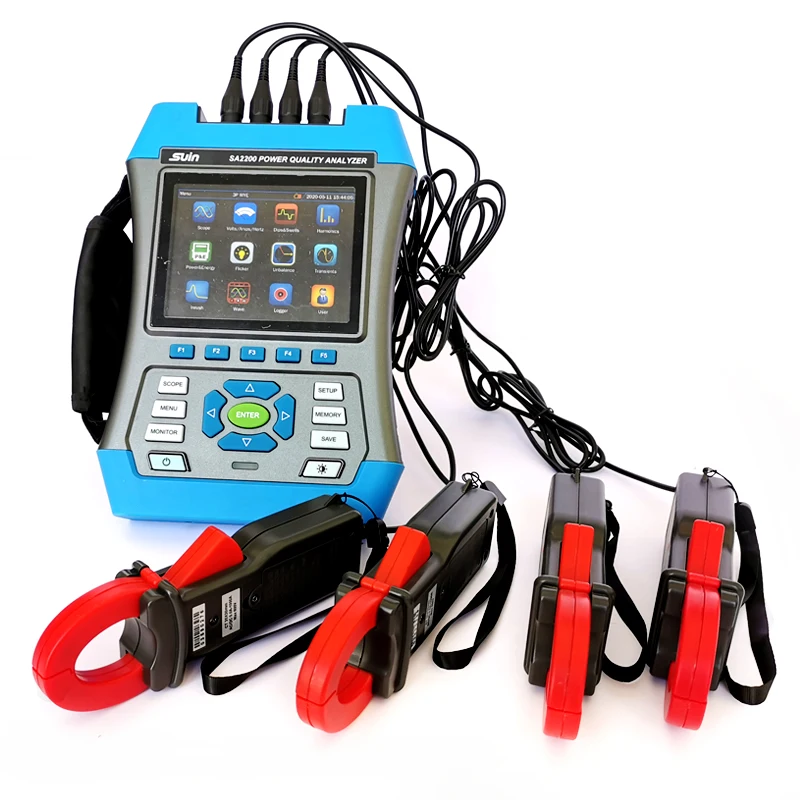

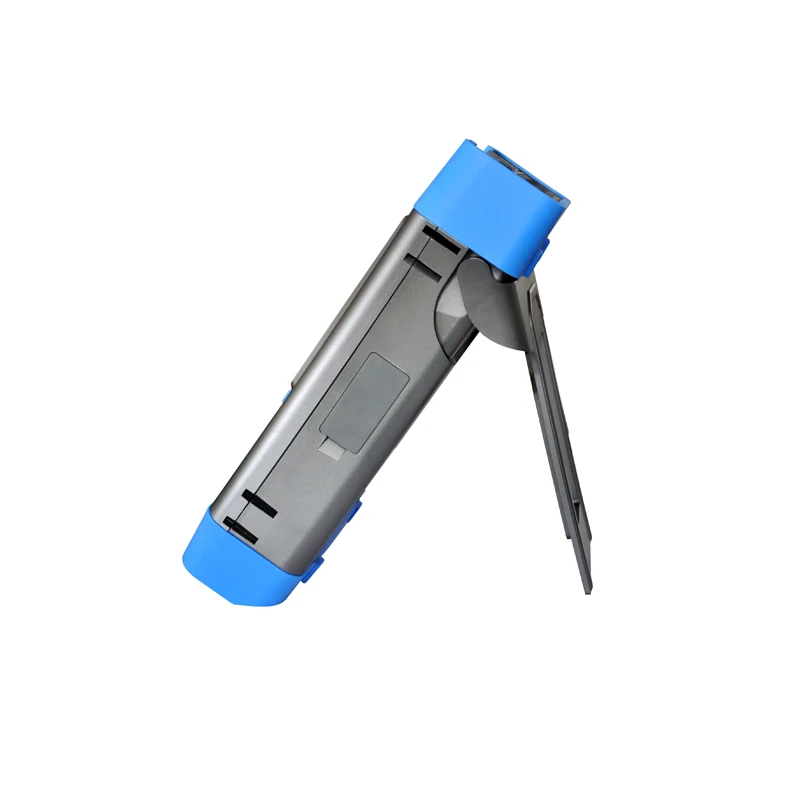

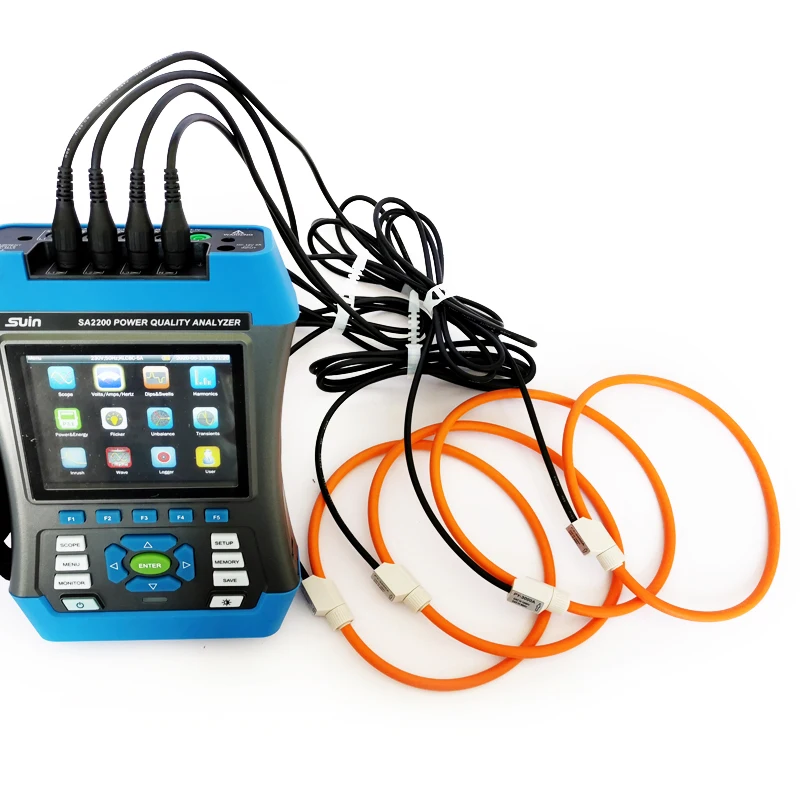

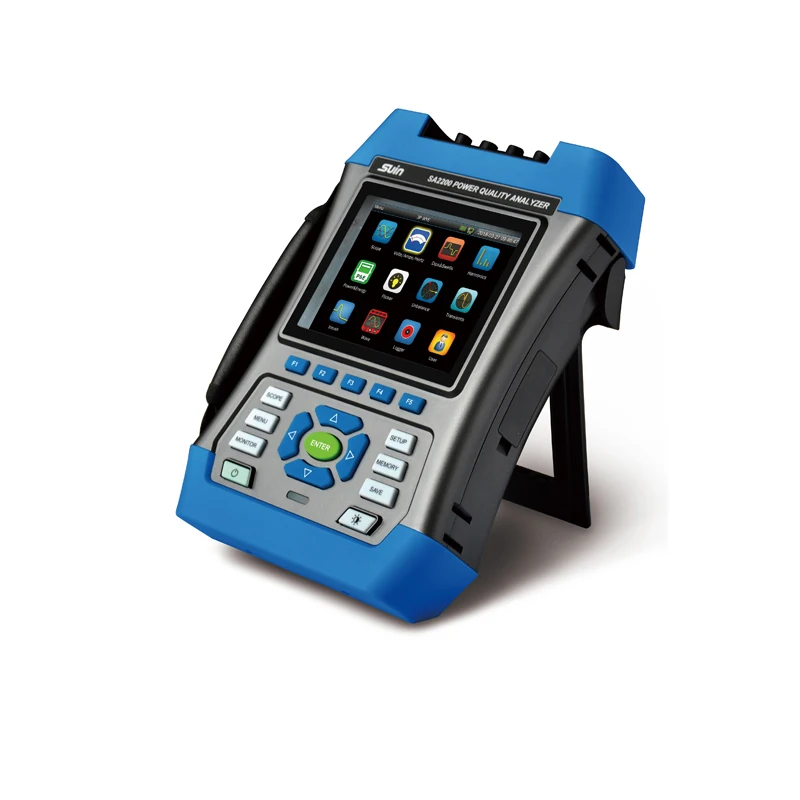

The Suin SA2100 and SA2200 help troubleshoot power quality problems in three- and single-phase power distribution systems. Especially the SA2200 can conduct tests according to the international IEC 61000-4-30 Class A standard.


Design Features
Class A compliance under international standards
Basic voltage measurement accuracy of±0.1%
Special waveform record function
200kS/s sample rate
Support multi language
32GB micro SD card
GPS time synchronization


Specification


Standard compliance
IEC61000-4-30 Class A Ed.3
Channel(Voltage/Current)
4/4
Voltage Range
1-1000Vrms, 6000V transient voltage
PC software analysis
Yes
Micro SD card(bulid-in)
32GB
Battery
Lithium ion, 5200mAh/>8h
Time Synchronization
GPS/Beidou(option)
interface
USB Host, LAN, WIFI
WIFI App
(option)
Screen
5.6'' TFT LCD with resolution 640*480
Language
14-Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese(Brazil/Portugal), Russian, Spanish
(Latin/Spain), Turkish
Dimension/Weight
270*190*66mm/2.0kg
Wire Combinatios
1Ø+NEUTRAL,1Ø SPLIT PHASE,1Ø IT NO NEUTRAL,3Ø WYE,
3Ø DELTA, 3Ø IT, 3Ø HIGH LEG, 3Ø OPEN LEG,
2-ELEMENT, 2 1/2-ELEMENT
Electrical Safety
IEC61010-1 ,Safety Degree: 600V CAT IV 1000V CAT III


Measurement


Measurement Range
Resolution
Accuracy
Voltage/Current/Frequency
Vrms(AC+DC)
1 ~ 120Vrms
0.001Vrms
Vnom>100V：
±(Vnom×0.1%)
Vnom<100V:
±0.1V
Vrms(AC+DC)
120Vrms~400Vrms
0.01Vrms
400Vrms~1000Vrms
0.1Vrms
Vpk
1 ~ 1400Vpk
0.01Vpk
±0.5% of nominal voltage
V(Crest Factor)
1.0 ~ >2.8
0.01
±5%

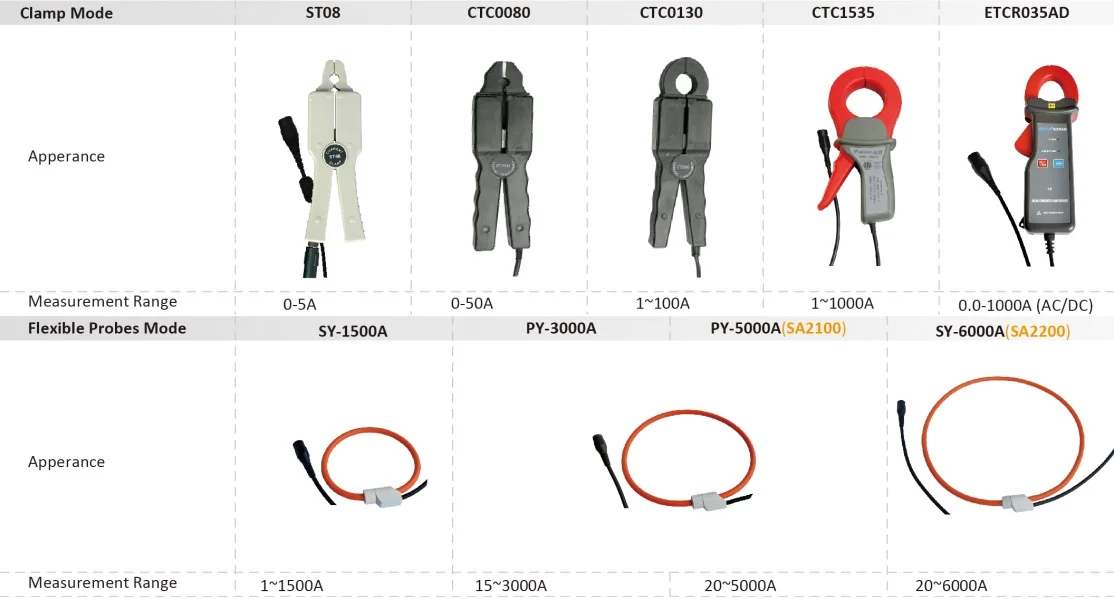

Arms(AC)
10mV/A
0~150A
0.1A
±0.1%±0.5A
1mV/A
1~2000A
1A
±0.1%±5A
65mV/1000A
10~6000A
0.01kA
±0.1%±50A
A(Crest Factor)
1 ~ 10
0.01
±5%
Frequency

42.5~57.5(50Hz nominal)
0.01Hz
±0.01Hz
51~69(60Hz nominal)
0.01Hz
±0.01Hz
320~480(400Hz nominal)
0.01Hz
±0.01Hz
Dips & Swells
Vrms1/2
0 ~ 200% of nominal voltage
0.01Vrms
±0.2%
Arms1/2
depends on current clamps
Refers to Arms
±1%±5counts
Harmonic (IEC61000-4-7)
Harmonic Number
1 ~ 100(50/60Hz) (IEC61000-4-7) 1~12(400Hz)
Harmonic Voltage %f
0.0 ~ 100.0%
0.01%
±0.1% ± nx0.1%
Harmonic Current %f
0.0 ~ 100.0%
0.01%
±0.1% ± nx0.1%
THD
0.0 ~ 100.0%
0.01%
±2.5%
Phase
-180° ~180°
0.1°
± nx0.1°
Power and Energy
P, S, Q1
Max. 6000MW
0.1kW
±1%±10 digits
PF & cosФ
0-1
0.01
±0.01
kWh, kVAh, kvarh
depends on nominal voltage and current clamps
±1%±10 digits
Flicker (IEC61000-4-15)
Pst(10min)/Plt (2 hrs)
0.00 ~ 20.00
0.01
±5%
Unbalance
Voltage
0.0 ~ 20.0%
0.1%
±0.1%
Current
0.0 ~ 20.0%
0.1%
±1%
Voltage Phase
-360° ~ 0°
0.1°
±0.1°
Current Phase
360° ~ 0°
0.1°
±0.5°
Voltage Transient
Vpk
±6000Vpk
0.01V
±15%
Vrms
10 ~ 1000Vrms
0.01V
±2.5%
Min. Test Time
5us
Inrush Current
Arms
depends on current clamps
Refers to Arms
±1% ± 5digits
Inrush Duration
1 ~ 32min selectable
10ms
±20ms
Mains Signaling
Signaling Frequency
60-3000Hz
0.1Hz
Relative V%
0%-100%
0.10%
±0.4%
Absolute V3s (3s average)
0.0-1000V
0.1V
±5% of Nominal voltage
Logger
Recording
user-defined parameters for 4 phases at the same time
Memory
Data stored in Micro SD card, 32GB
Duration Time
2 hrs to 1 year, depends on the recording items and time interval
Interval
1s to 60 minutes
Monitor
Support EN50160 in default or user-defined standard




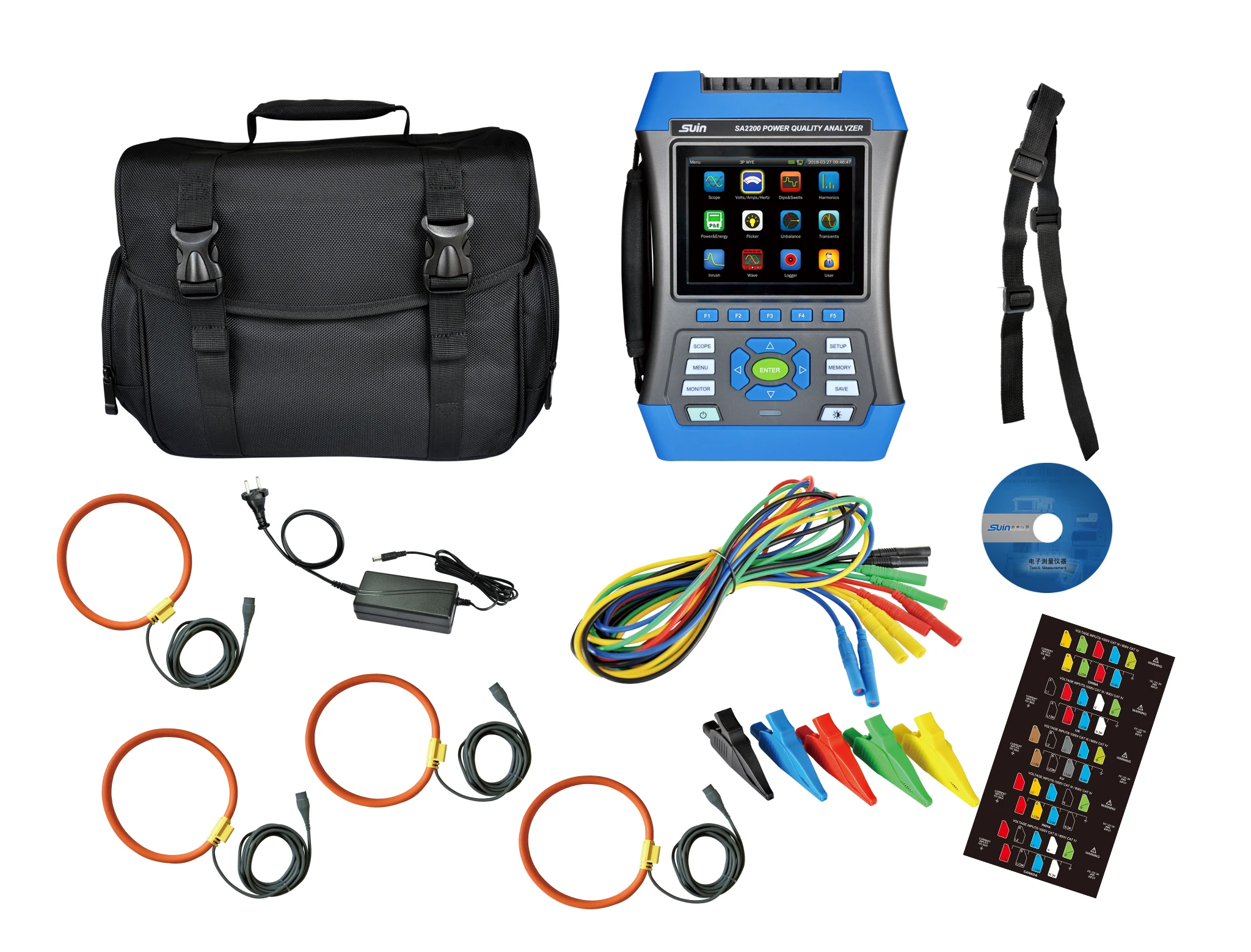

Packing & Delivery






Company Profile




Company Profile
SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test &
measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry.

Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000
square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.

Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.


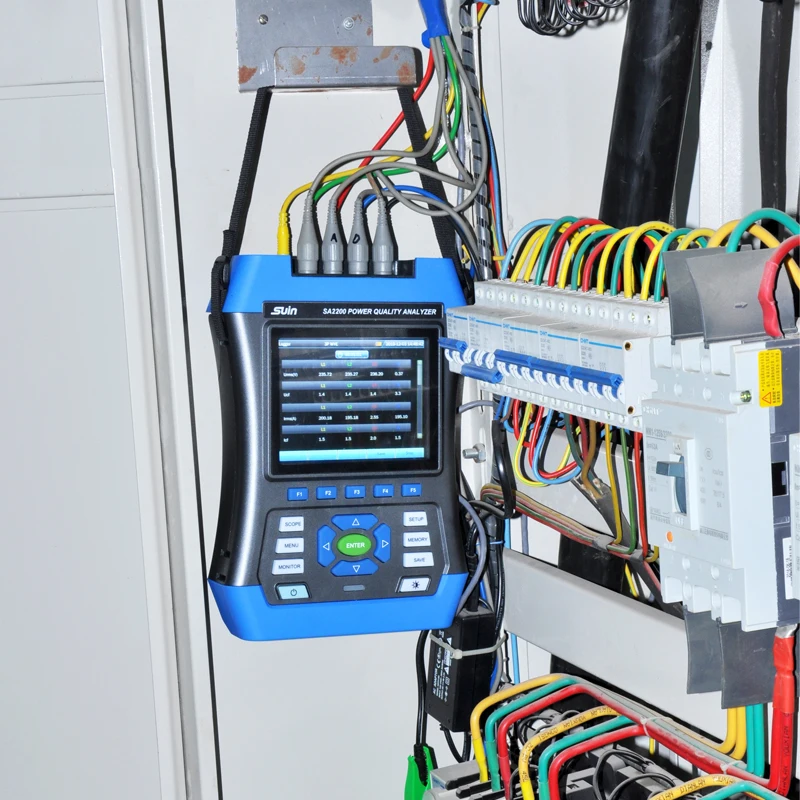

Customer Photos




Exhibition




Quality Control




FAQ


Q: What are Class A power quality analyzers?
A: Class A Power Quality Analysers that must meet Class A performance requirements of IEC61000-4-30 international standard, when instruments are connected to the same signals will produce the same results. Class A instruments must meet the highest performance and accuracy requirements in this standard.
Class A defines the measurement time accuracy (better than +/- 0.3 sec/day) for parameters such as voltage, current and harmonics. With defined methods and measurement uncertainties for Power Supply Voltage, Flicker, Voltage Unbalance, Voltage and Current Harmonic.
Suin SA2200 power quality analyzer complies with the IEC61000-4-30 Ed. 3 Class A standard. So far, the certified by IEC62856-2 is being prepared and will made public once get this certification.

Q: What’s function of THD? Which measurement version that SA2200 adopts and how to display it?
A: Total Harmonic Distortion (THD) is used to measure waveform distortion. Method THDF - total harmonic distortion referred to fundamental component was used on SA2200 and result will be expressed as a percentage.
