QSMOTOR 138 3000W V1 70H 72V 100KPH Mid drive Motor conversion kit with SIAYQ72180 Controller

Product Overview

Description

QSMOTOR 138 3000W 70H 6000W Max continuous 72V 100KPH Mid drive Motor conversion kit with SIAYQ72180 Controller

For 138 70H motor powertrain kits, it could be used for electric motorcycle, which could be 72V 100KPH.

e.g. Dirt bike

E-motorcycle weight, approx 130kg+2*80kg

Speed: continuous 100km/h

Gear ratio: 1:2.3*3 (double steps transmission )

Climbing slope: 30°@208kg

Battery: 72V52h

Tire: 0.6138 130/70-17

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

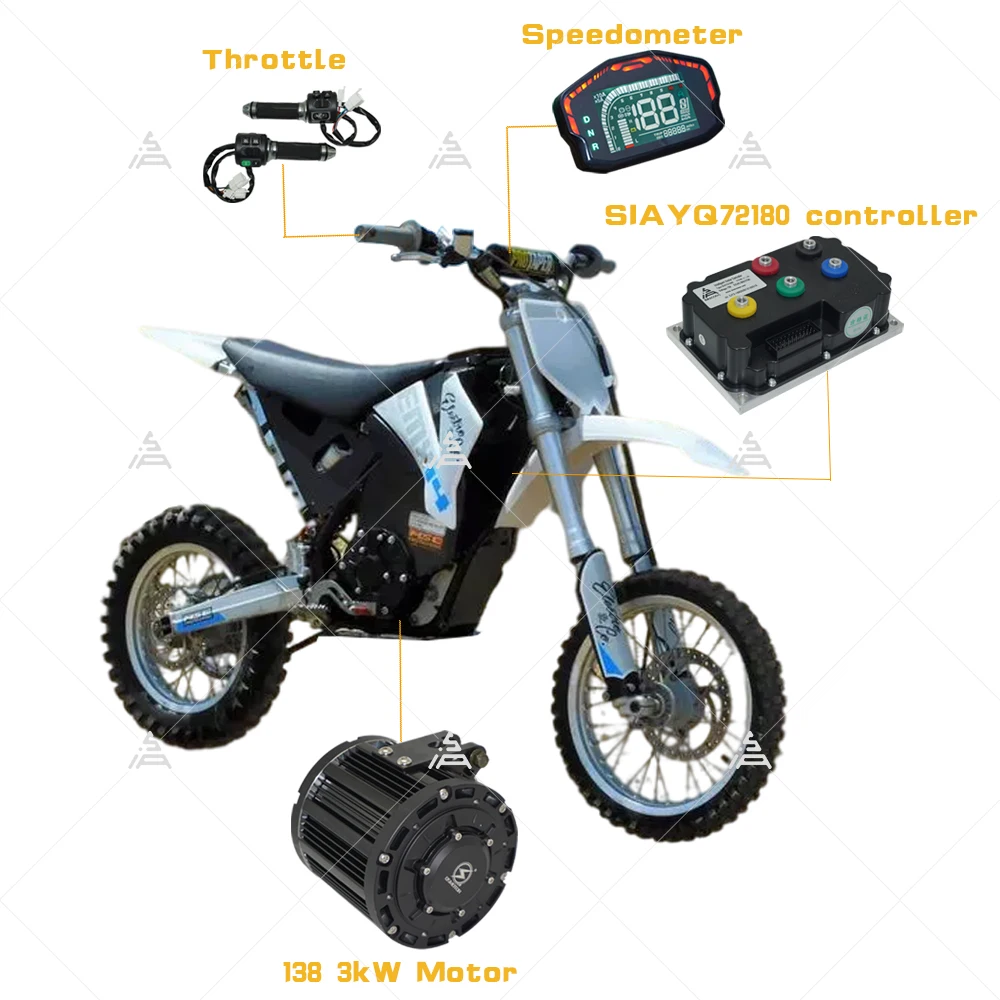

One set including below kits

Combo1.

1. 1pc X QS 138 3kW Mid drive motor with sprocket design

2. 1pcs X SIAYQ72180 sine wave motor controller with LIN

3. 1pcs X SIAYQ Dongle

4. 1pcs X DKD LCD speedometer with LIN

5. 1pcs X Z6 throttle with combination switch



Combo2.

1. 1pc X QS 138 3kW Mid drive motor with belt

2. 1pcs X SIAYQ72180 sine wave motor controller with LIN

3. 1pcs X SIAYQ Dongle

4. 1pcs X DKD LCD speedometer with LIN

5. 1pcs X Z6 throttle with combination switch





Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%



Product Description

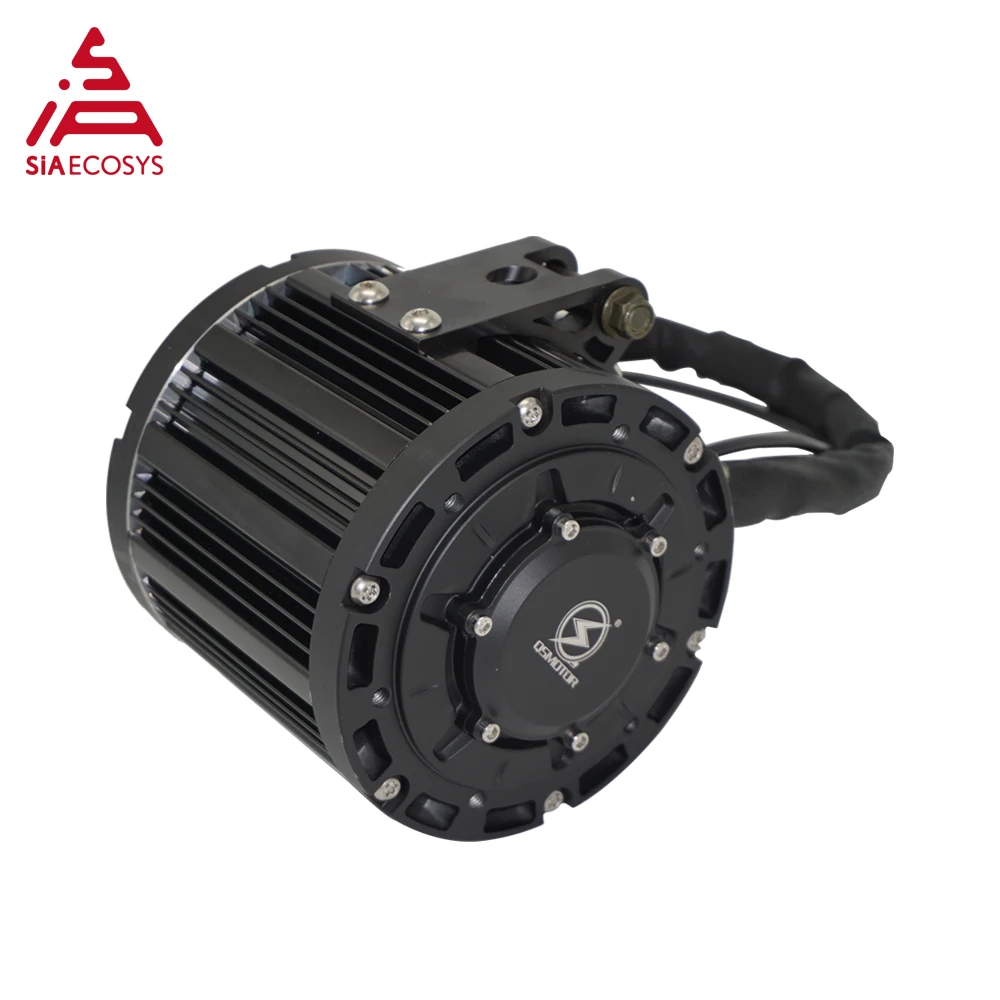

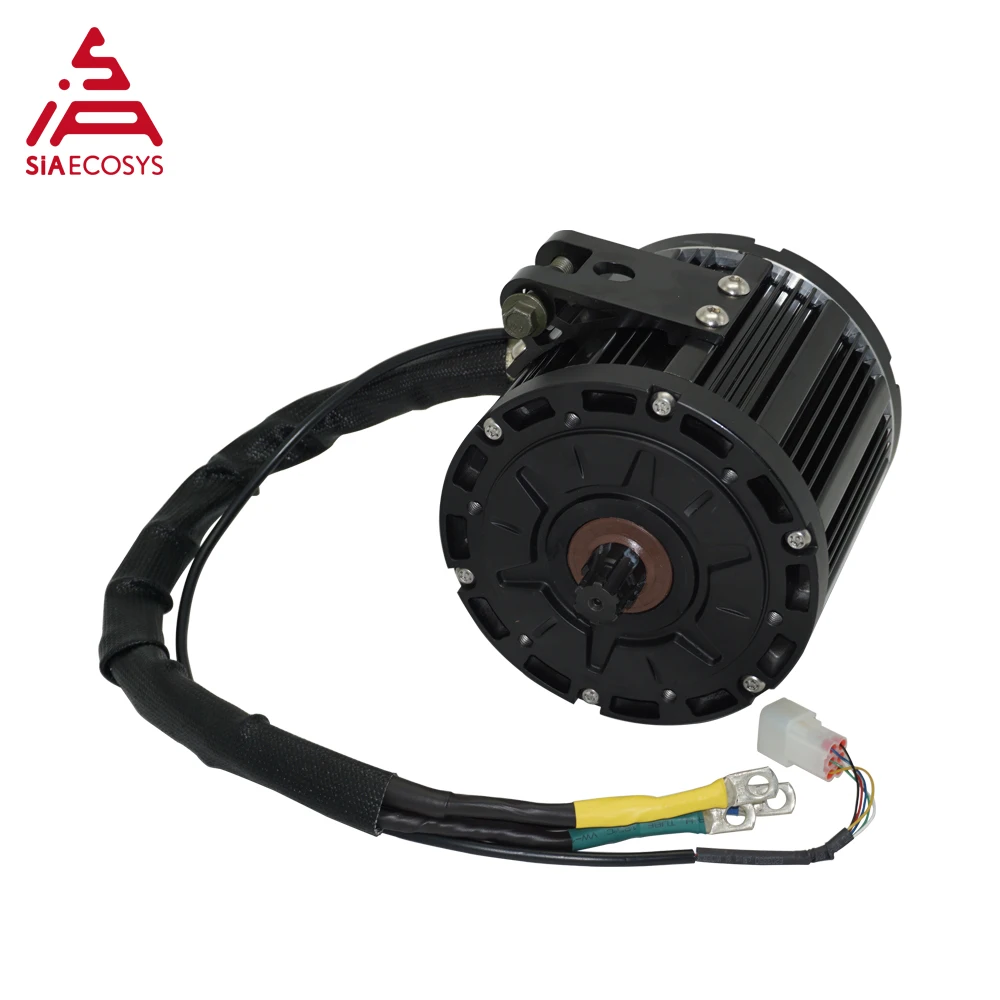

1. QSMOTOR 138 3000W Mid drive motor

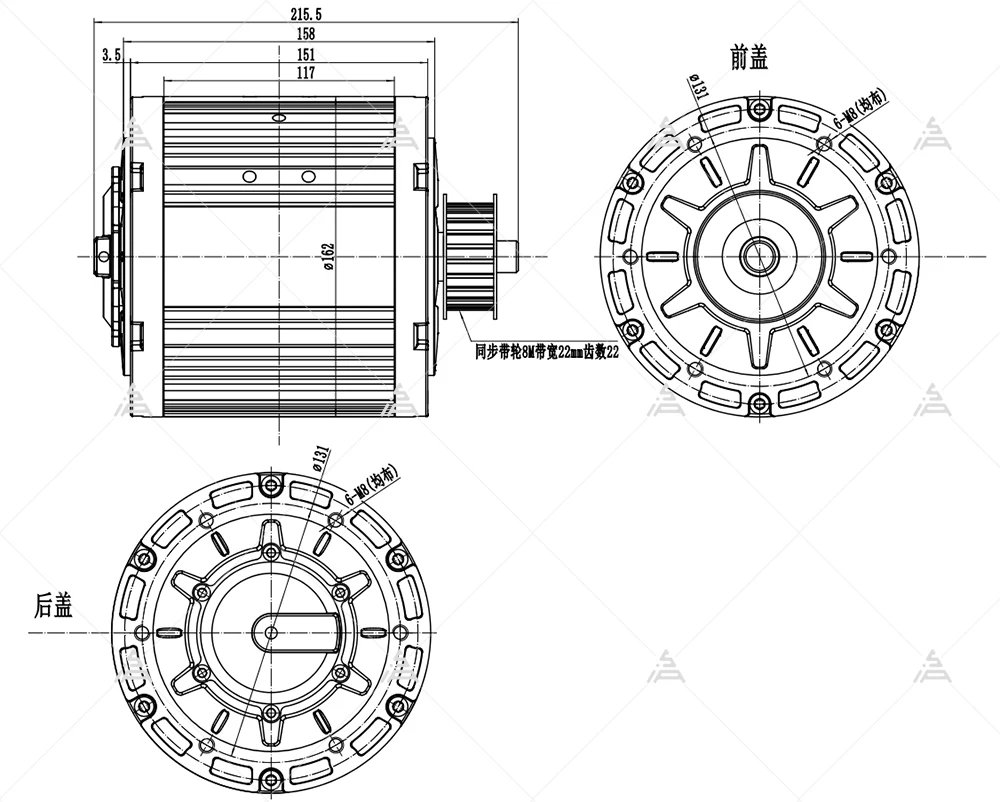

Drawing

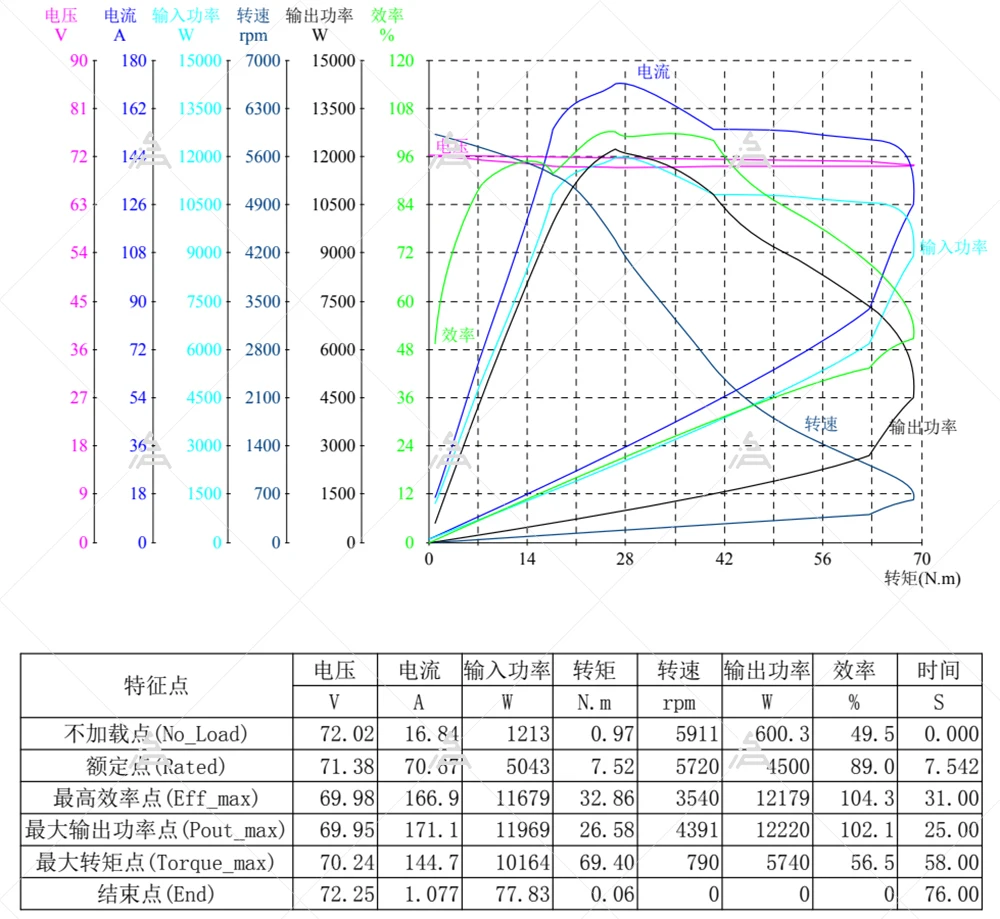

Test Report

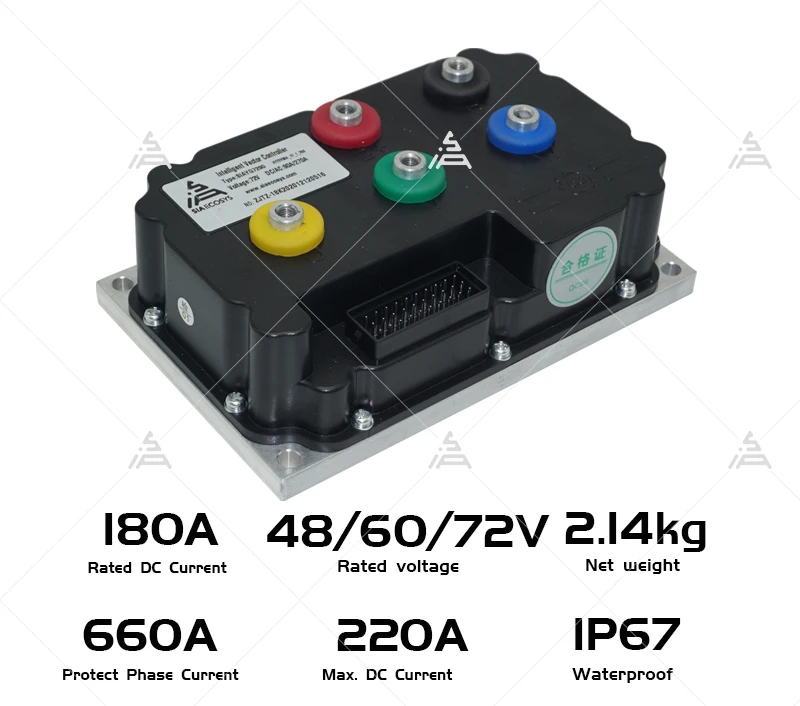

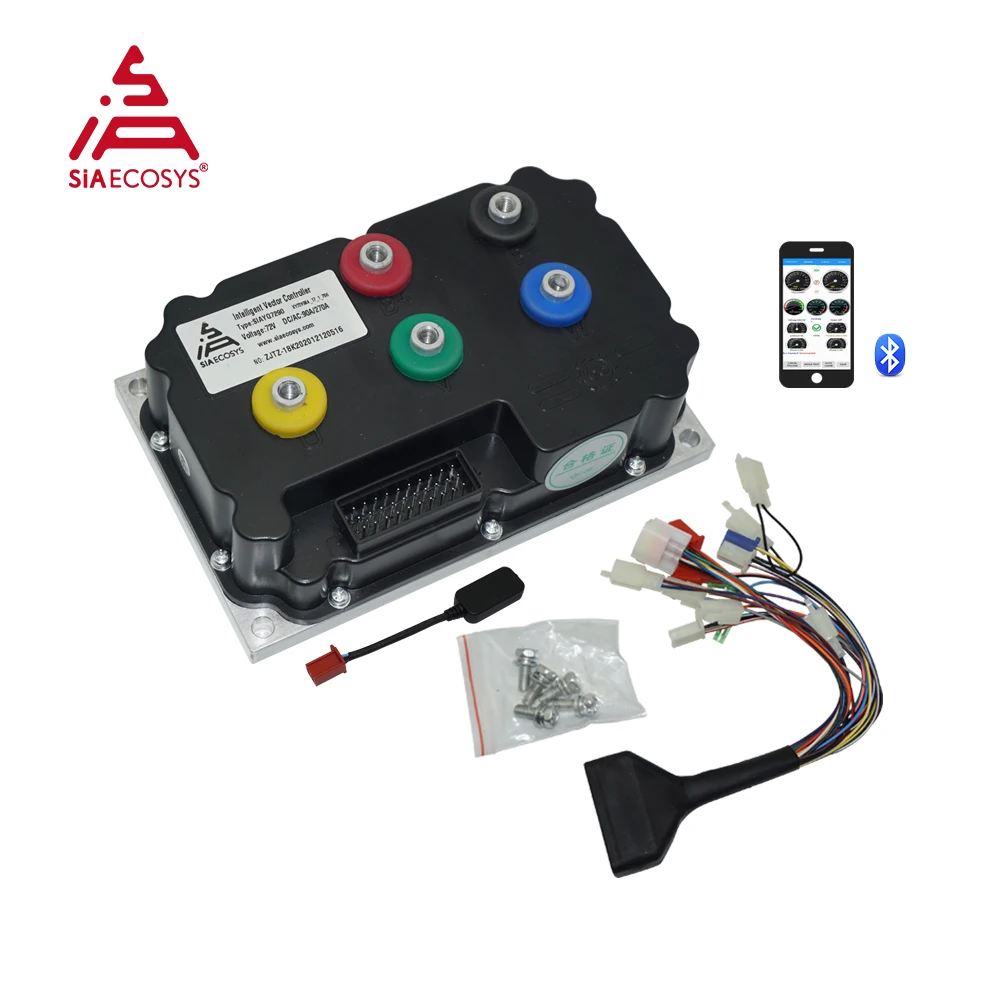

2.  SIAYQ72180 sine wave motor controller with LIN

SIAYQ series controller is sine wave type controller, which is brushless DC controller with self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.



Drawing for SIAYQ72180 Controller



Controller Software Interface

Adapter Cable

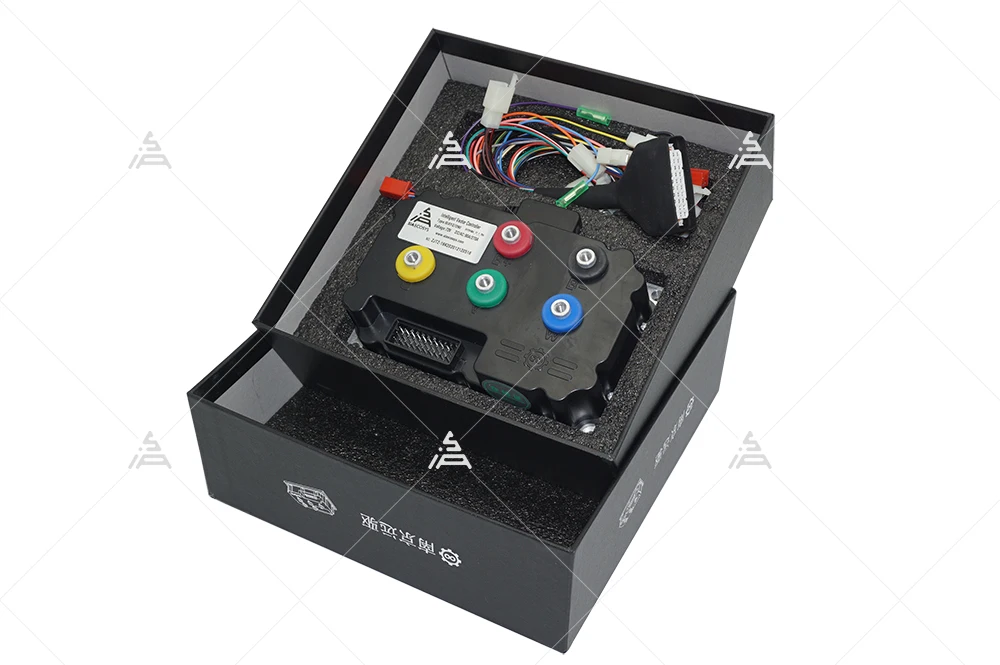

Package

Dongle

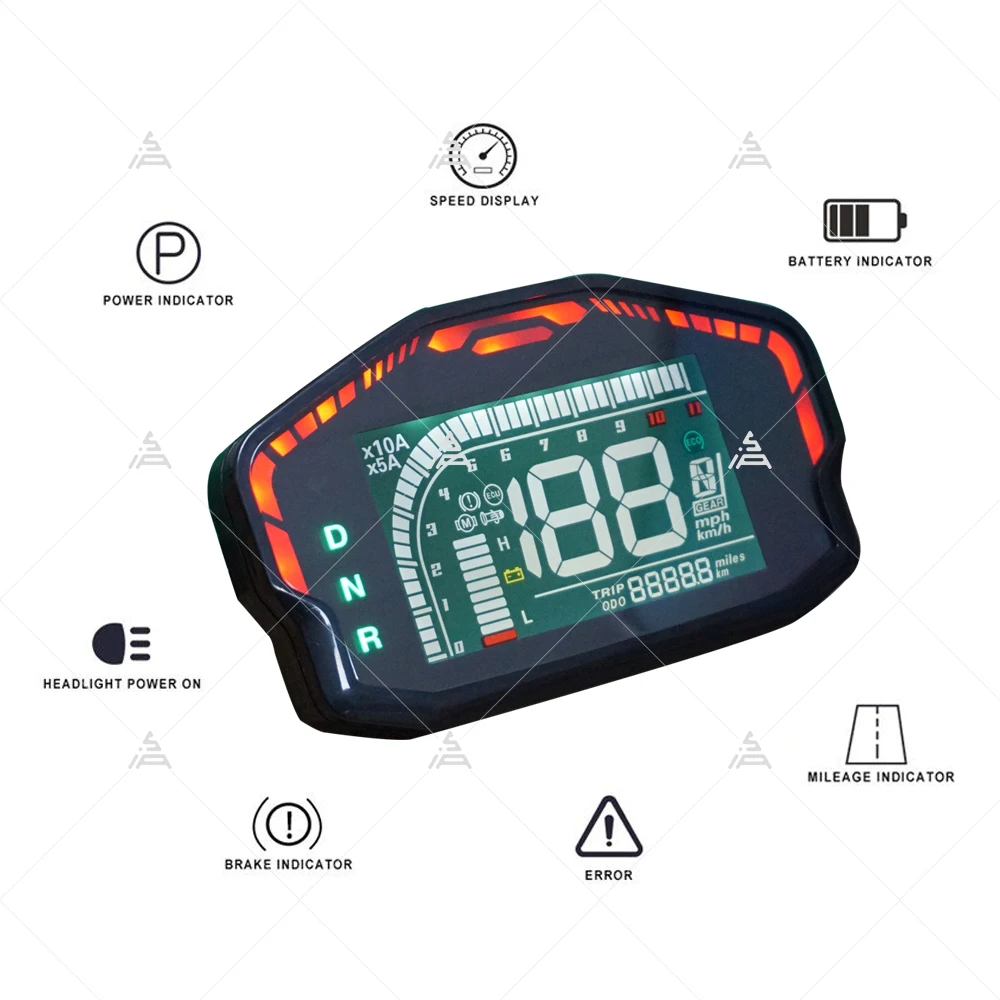

2. DKD LCD speedometer, can-bus(optional, LIN as default)

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

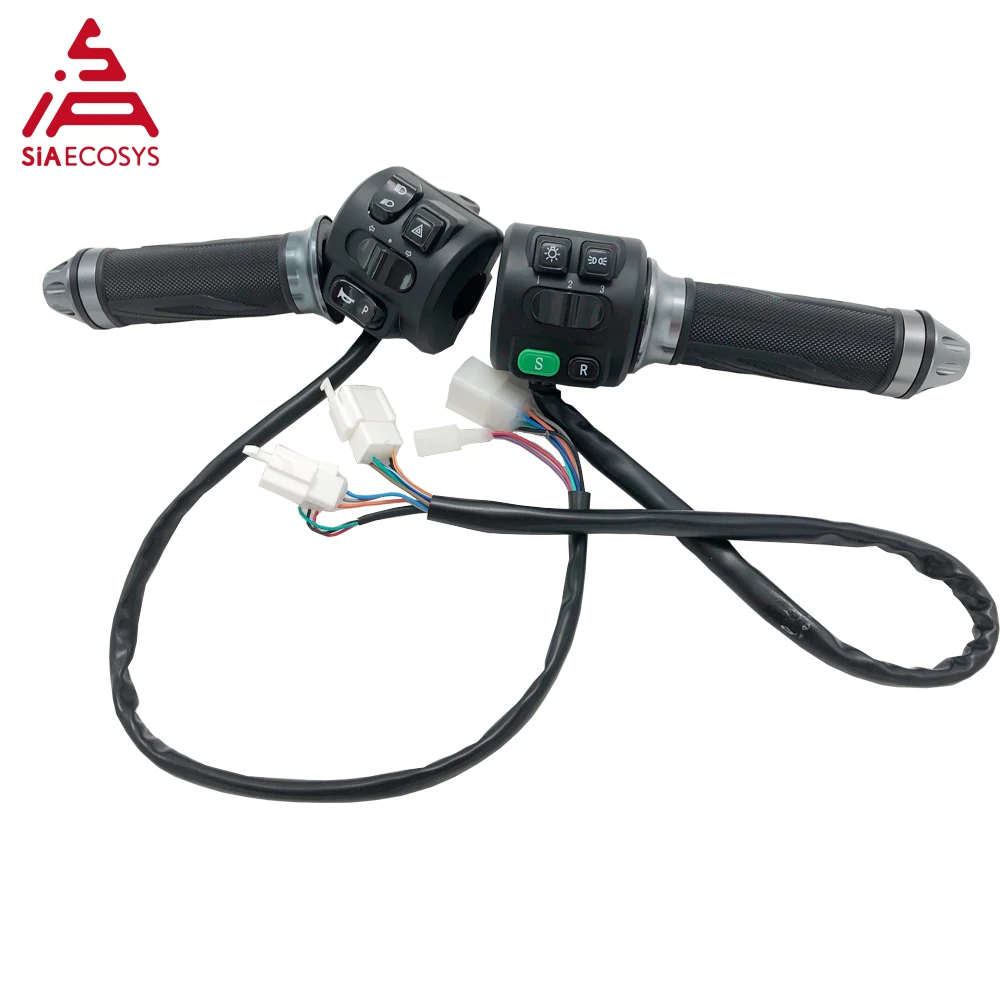

3. Z6 throttle with combination switch



With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with controller well.
