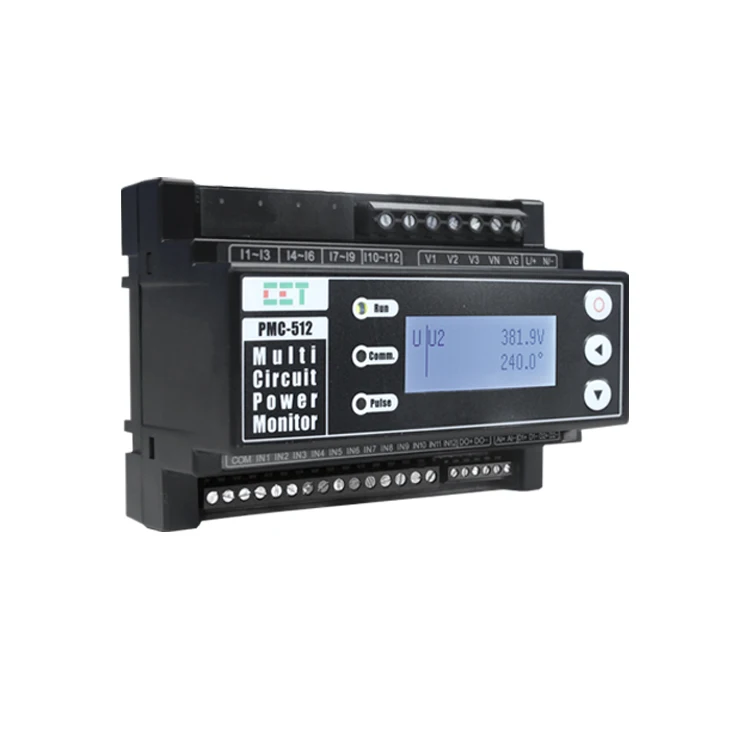

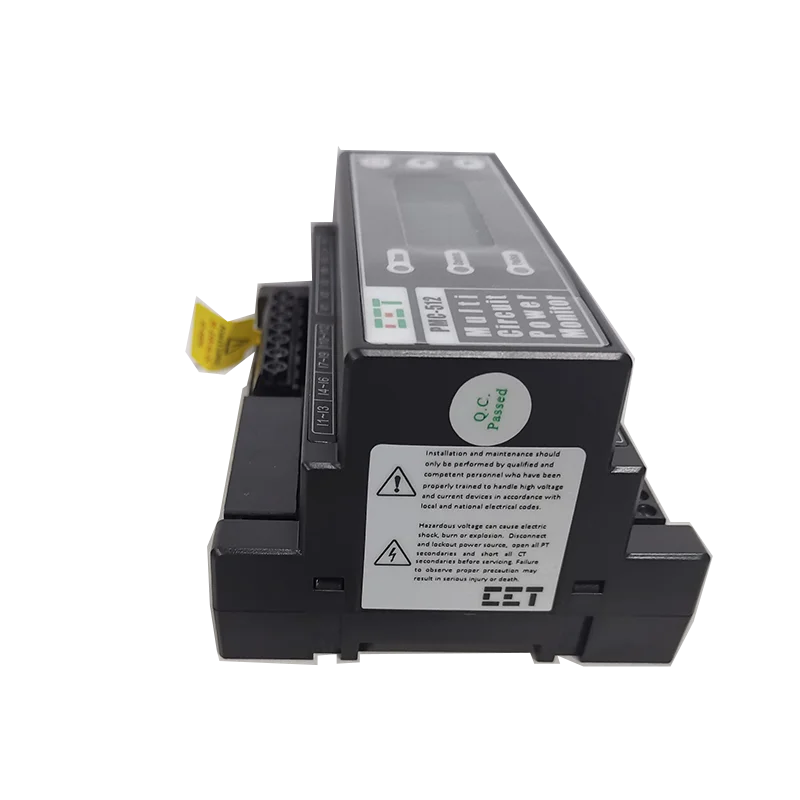

CET PMC 512 D 12 Branch DC Energy Meter Modbus DC Multi Circuit Power Meter in Data Center
- Category: Energy Meters >>>
- Supplier: CET Electric Technology Inc.
Share on (1600525864419):
Product Overview
Description
Products Description

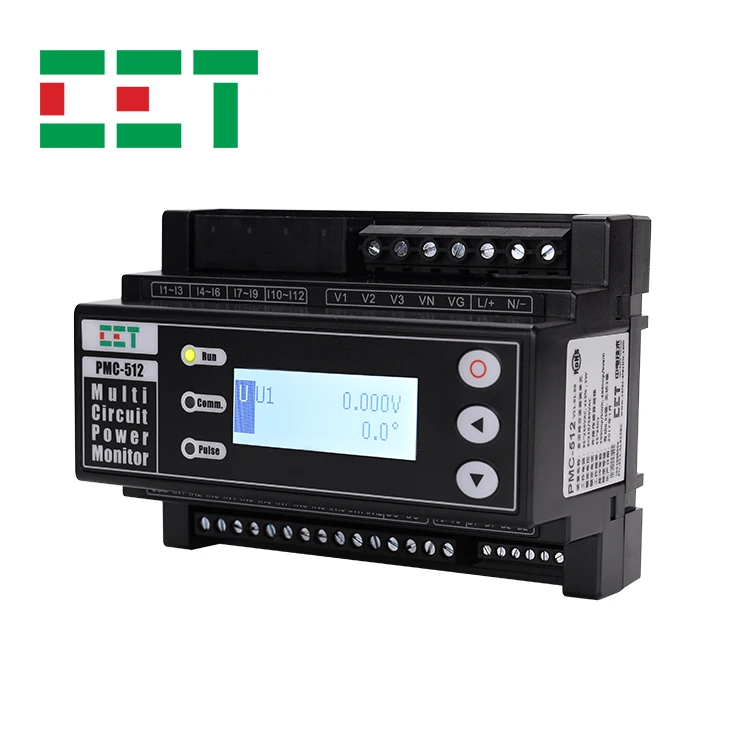

PMC-512-D
* DC Multi-Circuit Power Monitor
* Class 0.5 (Main Unit only), Class 1.0 (Hall Effect CT)
* 126x90x65mm
* LED Indicators, Optional Touch Screen HMI
* One Mains, 12 Branches
* Demands, Data Recorder and Event Log
* Modbus RTU
* 2xRS-485

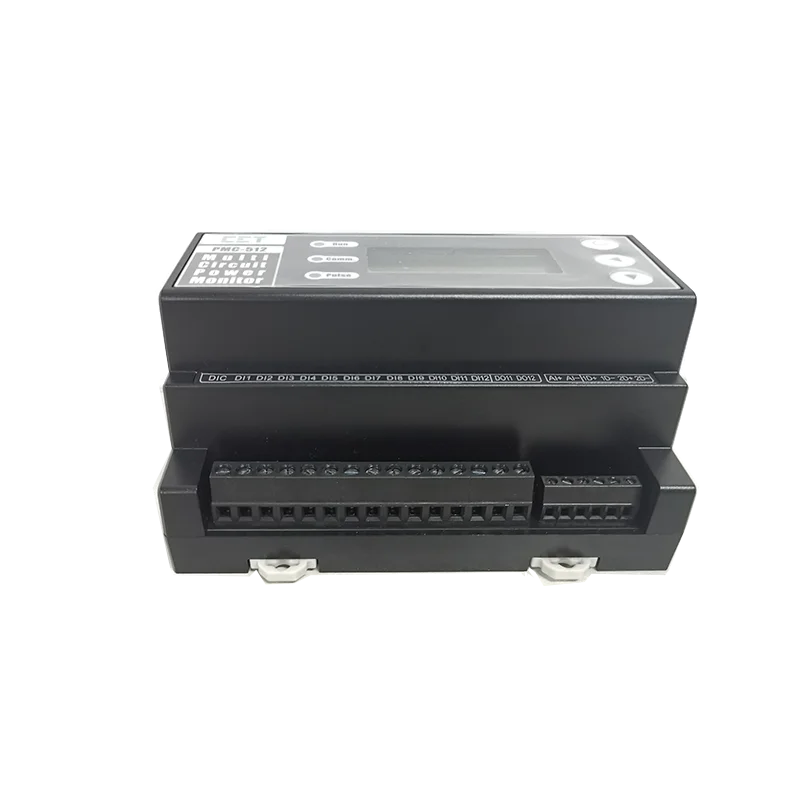

* 13xDI, 1xDO, 1xAI
* Class 0.5 (Main Unit only), Class 1.0 (Hall Effect CT)
* 126x90x65mm
* LED Indicators, Optional Touch Screen HMI
* One Mains, 12 Branches
* Demands, Data Recorder and Event Log
* Modbus RTU
* 2xRS-485
* 13xDI, 1xDO, 1xAI

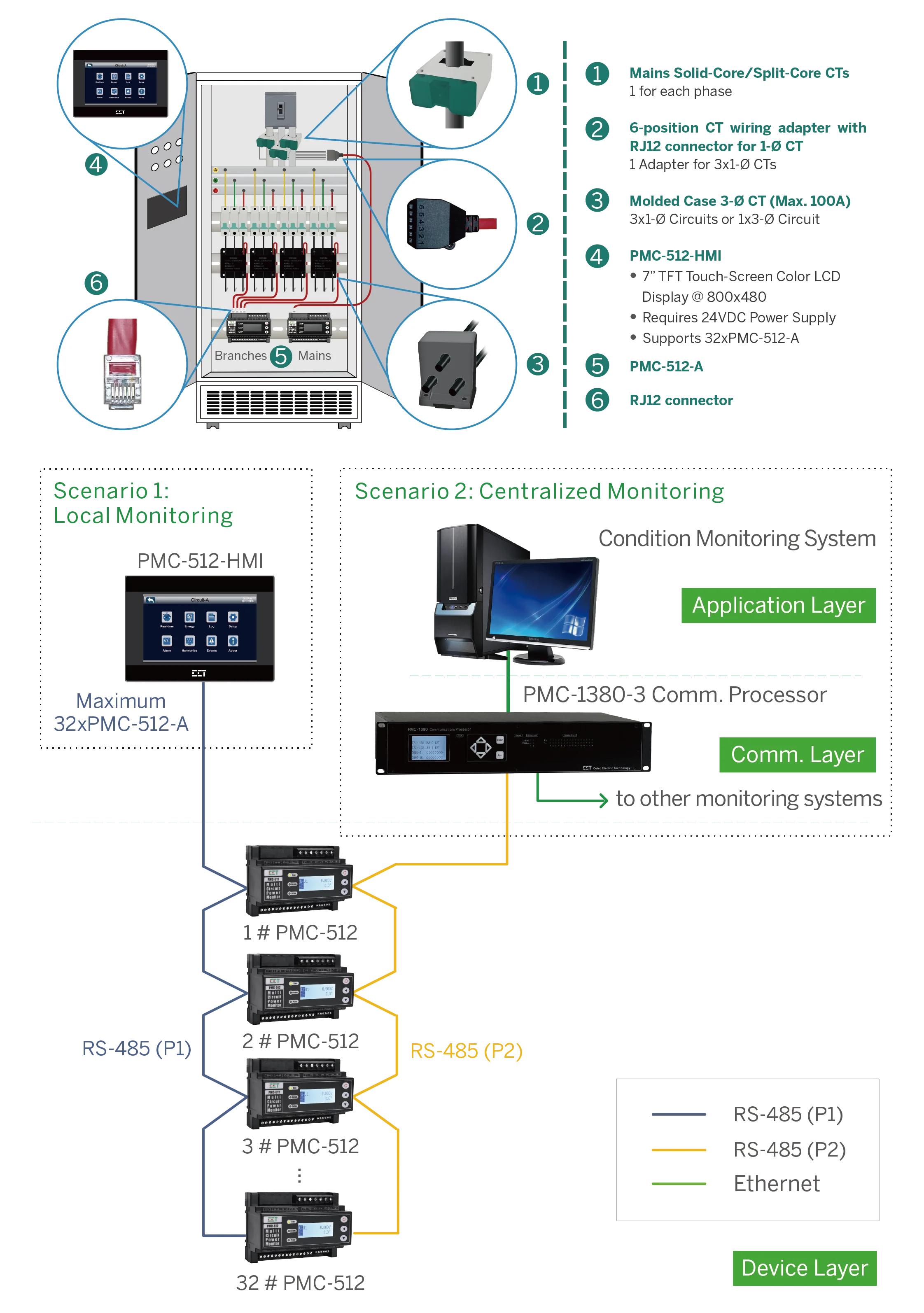

PMC-512-D DC Multi-Circuit Power Monitor is CET’s latest offer for Telecom Base Station, Renewable Energy, Commercial Building and Industrial Automation applications that require Direct Current (DC) multi-circuit monitoring. Housed in compact metal enclosure,the PMC-512-D is perfectly suited for applications that have high density metering requirements. The PMC-512-D features quality construction with multifunction and high-accuracy measurements, one Mains Input, up to 12 Branch Circuit Inputs and an optional color touch-screen HMI. The PMC-512-D comes standard with 13 Digital Inputs for status monitoring, one Relay Output for control or alarming as well as one Analogue Input for temperature measurement or other analogue input applications. The standard SOE Log records all setup changes, alarms and DI/DO operations in 1ms resolution. With dual RS-485 as standard feature supporting Modbus RTU the PMC-512-D can easily be deployed in a stand-alone system with its Touch Screen HMI or simultaneously with a centralized monitoring and control system, such as PecStar® iEMS Integrated Energy Management System, for a DC power distribution network.

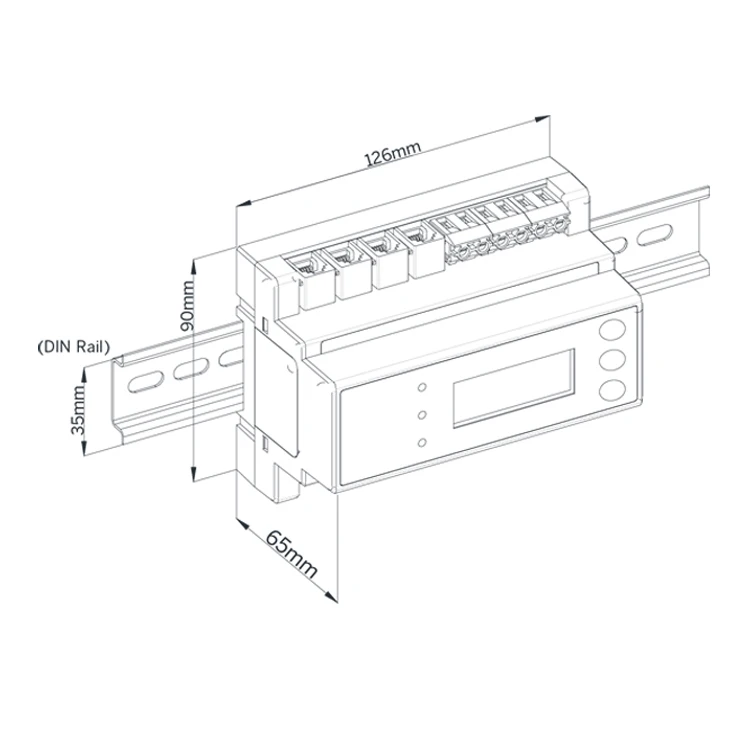

Dimension&Applications
Company Profile
Delivery & Packing
FAQ
Q1:Are you a trade company or a factory?
A：CET are factory with 29 years production exporting experience.If you need OEM/ODM service,please send us inquiry.
Q2:Can I ask for samples for test?
A:Yes,We are glad to offer you samples for test.Leave us message of the item you want and your address.
Q3: what’s your lead time?
A:3~5 days for sample order,10~20 for bulk order
Q4: Do your digital meter have certificates?
A: we have CE, UL,FCC,RoHS, CCC, CQC, ISO9001,ISO14001:2015 Certification.
Q5:Can CET meters support wireless Communication?
A: yes,our meter support 4G,GPRS,Lora,Lorawan,NB-IoT,Zigbee
Q2:Can I ask for samples for test?
A:Yes,We are glad to offer you samples for test.Leave us message of the item you want and your address.
Q3: what’s your lead time?
A:3~5 days for sample order,10~20 for bulk order
Q4: Do your digital meter have certificates?
A: we have CE, UL,FCC,RoHS, CCC, CQC, ISO9001,ISO14001:2015 Certification.
Q5:Can CET meters support wireless Communication?
A: yes,our meter support 4G,GPRS,Lora,Lorawan,NB-IoT,Zigbee
Q6:How about the MOQ, Payment term, Delivery port,and Delivery method?
A:1)MOQ: 1 pcs/item
A:1)MOQ: 1 pcs/item
2)100%T/T
3)Shenzhen Port
4)Air freight
3)Shenzhen Port
4)Air freight
