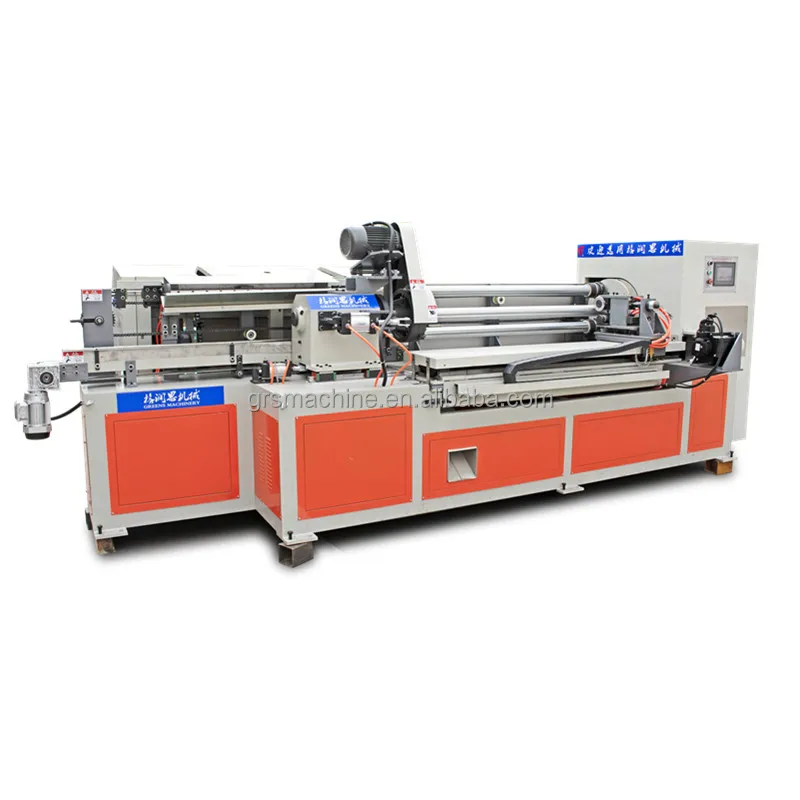

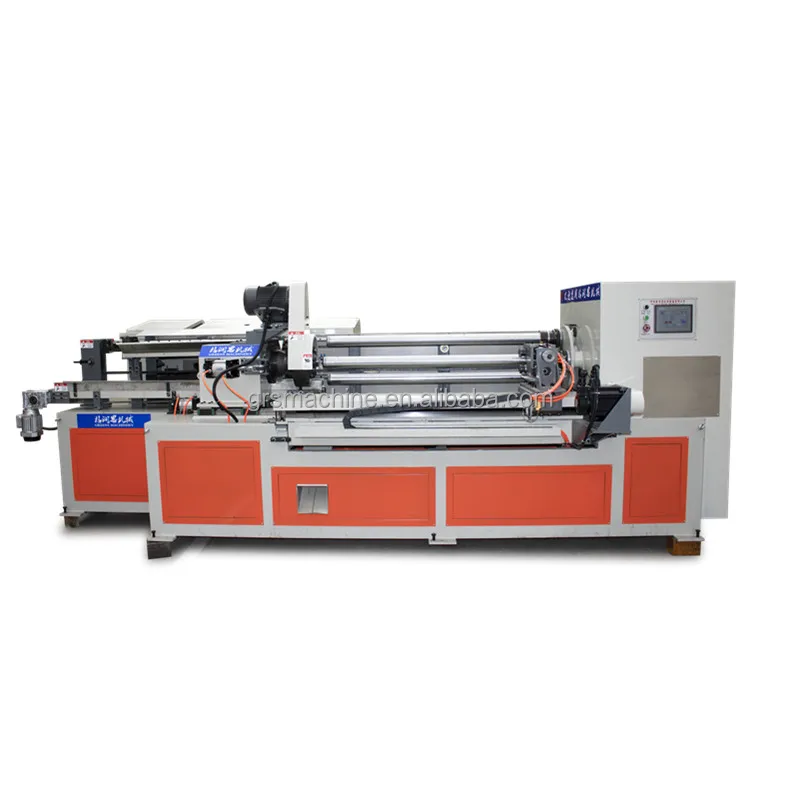

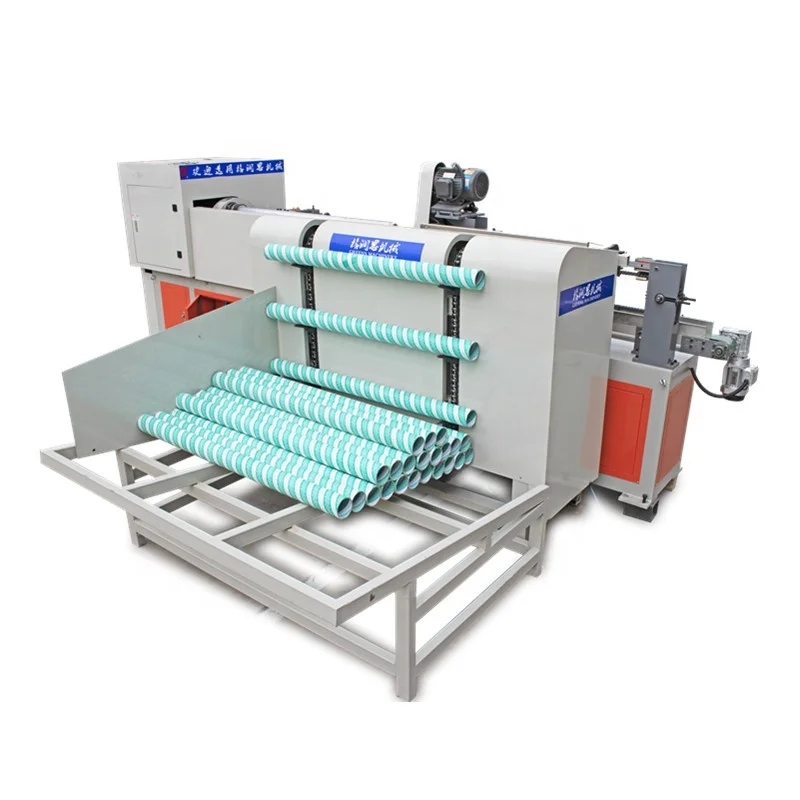

3 Shaft Auto Paper Core Cutting Machine


Feature:

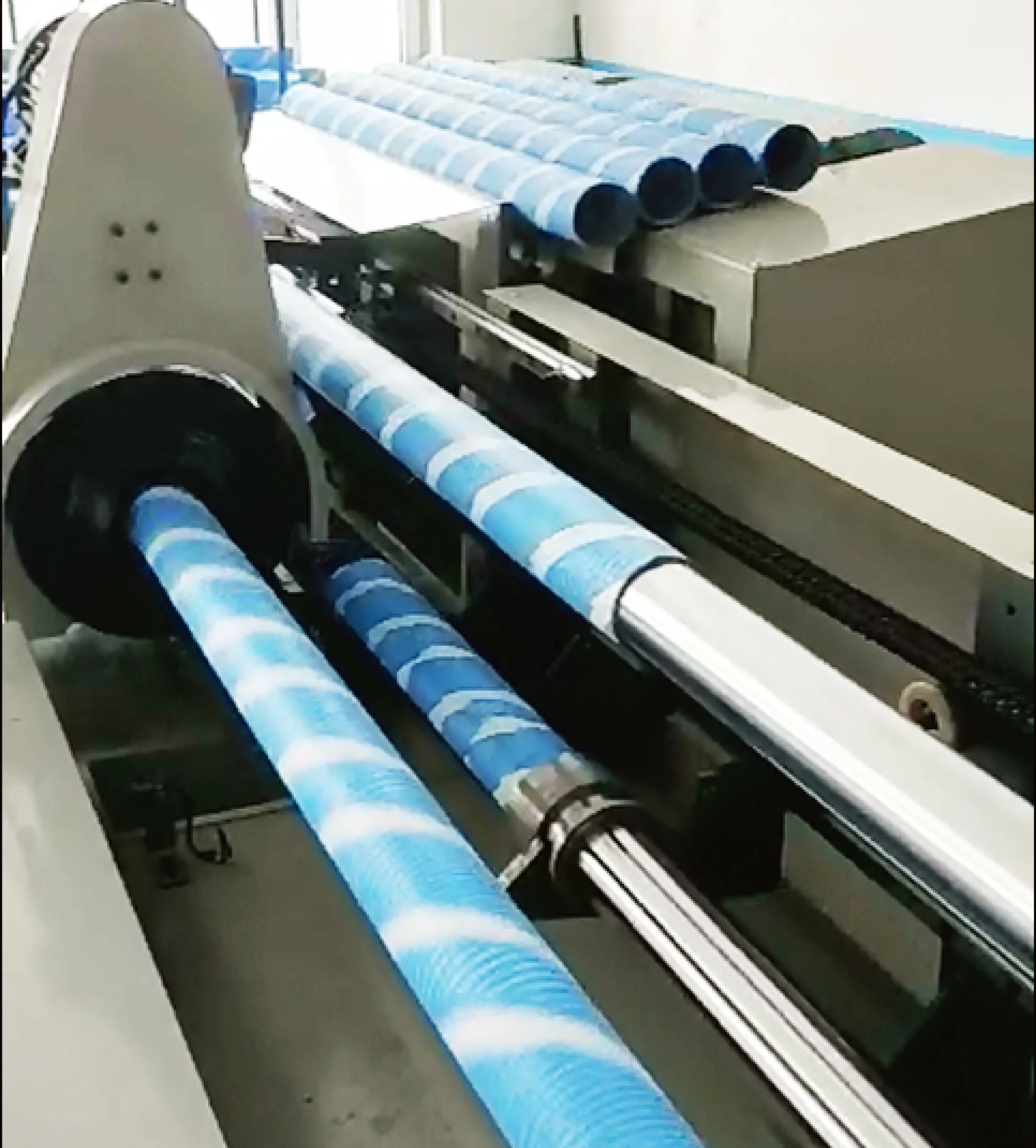

The 3 shaft auto paper core cutting machine is equipped with a three-shaft indexing mechanism to simultaneously complete the feeding, cutting and unloading processes in different stations. Compared with the ordinary single-shaft paper core cutting machine, the work efficiency is greatly improved. The micro-displacement design ensures that the cutting spindle will not be damaged by the cutter, and improves the cutting efficiency. Fully automatic, improving operational safety.





Parameter:





























paper core diameter76-85mm
paper tube thickness2-15mm
length of cut pipe20-1350mm
motor power

main motor: 3.0kw


servo motor: 3.0kw+1.5kw*2


conveyor motor: 0.37kw


feeding motor: 0.75kw


main engine speed1400r/min
main machine's size4900mm*1500mm*1600mm




Picture:
