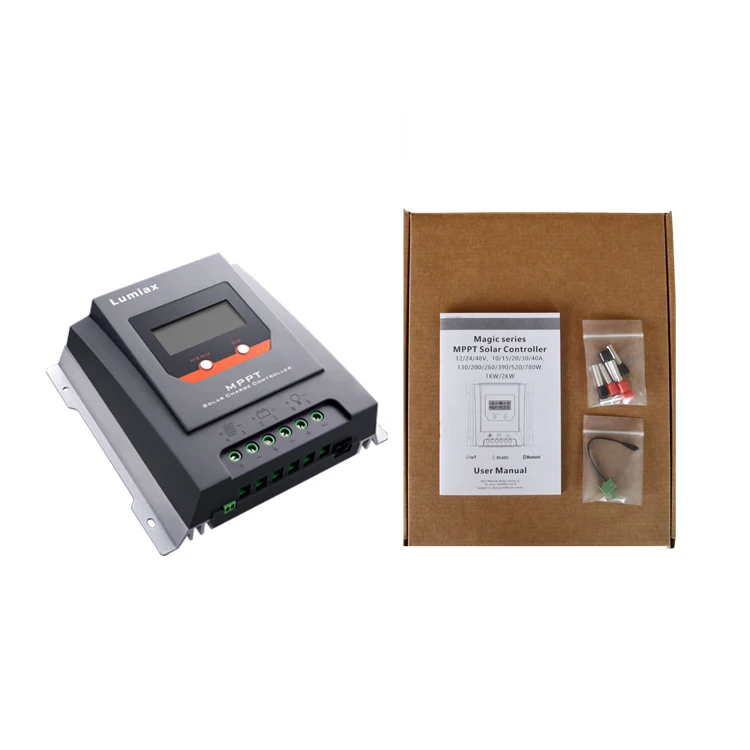

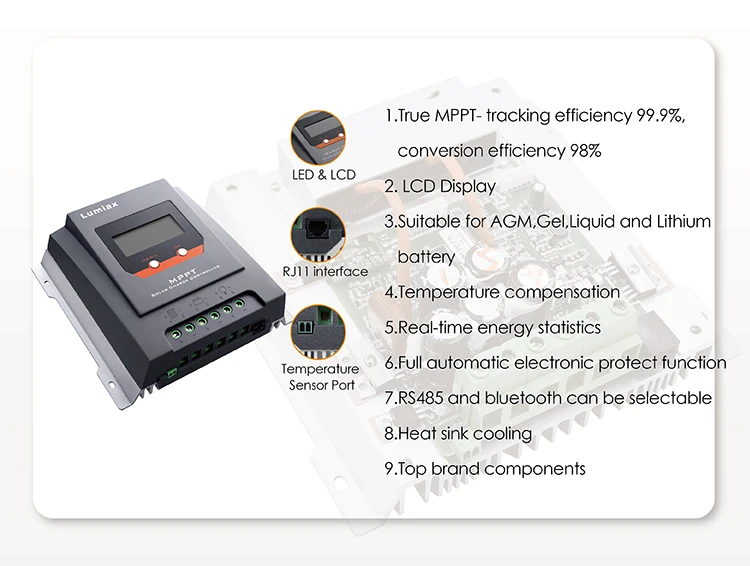

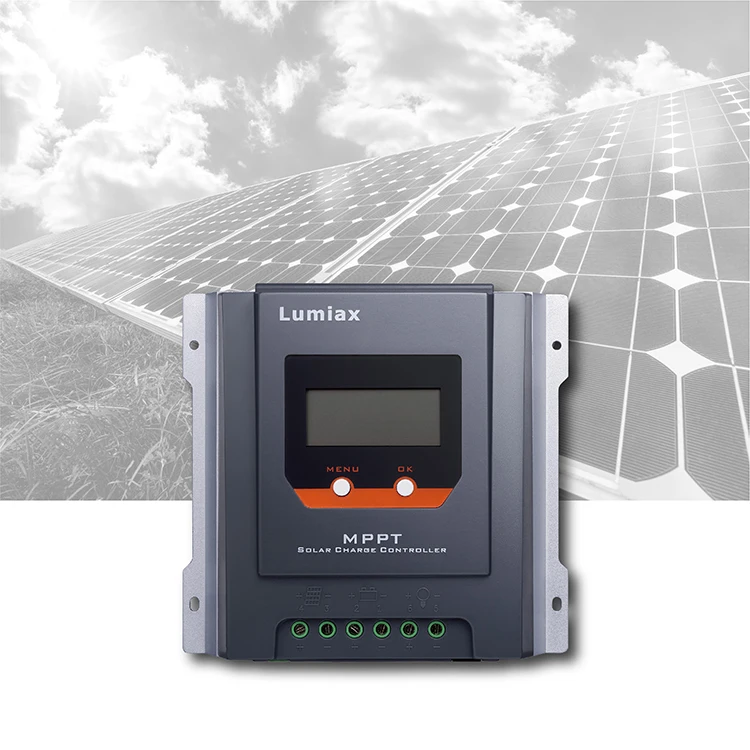

12V 24V 30a charge solar controller mppt solar charge controller for regulateur solar panel system with OEM ODM
- Category: Solar Energy Products >>>
- Supplier: Qingdao Skywise Technology Co. Ltd.
Share on (1600529305107):
Product Overview
Description
Products Description
Solar Charge Contrroller Parameters
Type | MT3075 | MT3075-BT | |
System Voltage | 12V/24V automatical recognization | ||
Max Charging Current | 30A | 30A with Bluetooth | |
MPPT Charging Voltage | before boost or equal charging stage | ||
Boost Voltage | 14.0~14.8V/28.0~29.6V@25℃（default:14.5/29V） | ||
Equal voltage | 14.0~15.0V/28.0~30.0V@25℃（default:14.8/29.6V）Liquid,AGM） | ||
Float Voltage | 13.0~14.5V/26.0~29.0V@25℃（default:13.7/27.4V） | ||
Low Volt. Disconnect | 10.8~11.8V/21.6~23.6V,SOC1~5（default:11.2/22.4V） | ||
Reconnect Voltage | 11.4~12.8V/22.8~25.6V@25℃（default:12.0/24.0V） | ||
Overcharge Protect | 15.8/31.3V | ||
Max volt on Bat. terminal | 35V | ||
Temp. Compensation | -4.17mV/K per cell (Boost, Equal)， -3.33mV/K per cell (Float) | ||
Battery Type | Liquid, Gel, AGM,Lithium | ||
Max volt on PV terminal | 55V | ||
Max input power | 390/780W | ||
Dusk/Dawn detect volt. | 8.0/16.0V | ||
MPPT tracking range | （Battery Voltage + 1.0V）~ Voc*0.9 | ||
Output Current | 30A | ||
Work mode | Always on, Street lamp, User-defined mode | ||
Max tracking efficiency | >99.9% | ||
Max charge conversion | 98.00% | ||
Dimensions(mm) | 189*182*64 | ||
Weight | 1300g | ||
Ambient temperature | -20 ~ +55℃ | ||
Ambient humidity | 0 ~ 100%RH | ||
Protection degree | IP32 | ||
Max Altitude | 4000m | ||
Certifications
Our Advantages
Company&Factory
Customer Feedback
Shipping and payment
Lumiax solar chanrge controller, your best choice. Consult customers to get discounts.
