SiAECOSYS QSMOTOR 12inch 3000W 48V 74kph Hub Motor with EM100SP controller and kits for electric scooter

Product Overview

Description

SiAECOSYS QSMOTOR 12inch 3000W 48V 74kph Hub Motor with EM100SP controller and kits for electric scooter

For 3000W motor kits, it could be used for electric scooter, which could be 48V 74KPH.

e.g. Electric E-scooter

E-Scooter weight, approx 110kg+80kg

Speed: peak 74km/h @ fully charged

Climbing slope: 15 degree@190kg

Tire: 130/70-12

Battery: 48V60Ah

One set including below kits

Combo1.

1. 1pcs X QSMOTOR 12X3.5inch 3000W 260 V1.3 Electric Hub Motor

2. 1pcs X EM100SP sine wave motor controller with standard CAN-BUS

3. 1pcs X 1.8kW 48V 20A EV charger with CAN BUS (disable CAN as default)

4. 1pcs X DKD LCD speedometer with CAN (disable CAN as default)

5. 1pcs X Z6 throttle with combination switch

Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product Description

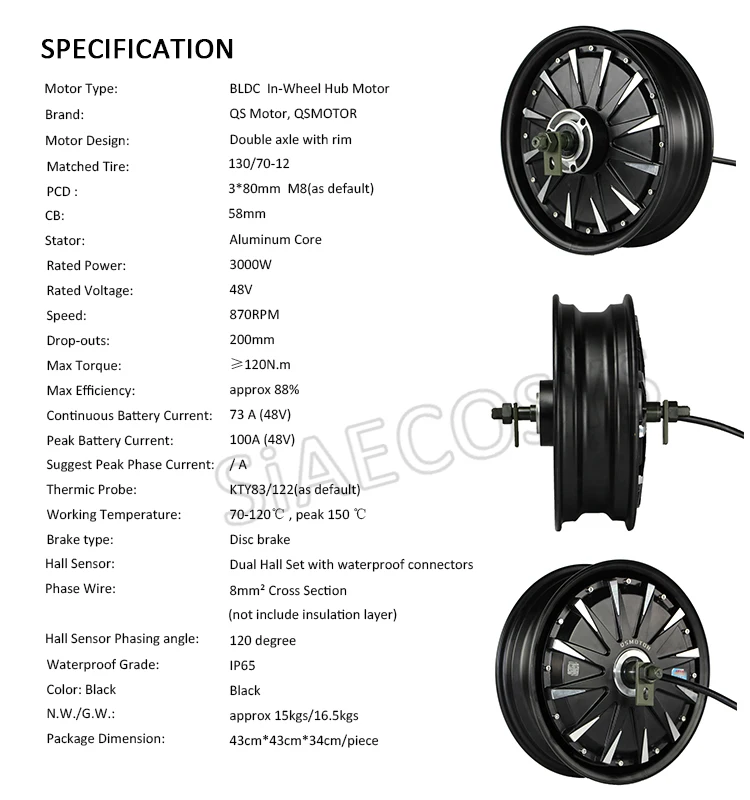

1. QSMOTOR 12X3.5inch 3000W 260 V1.3 Electric Hub Motor

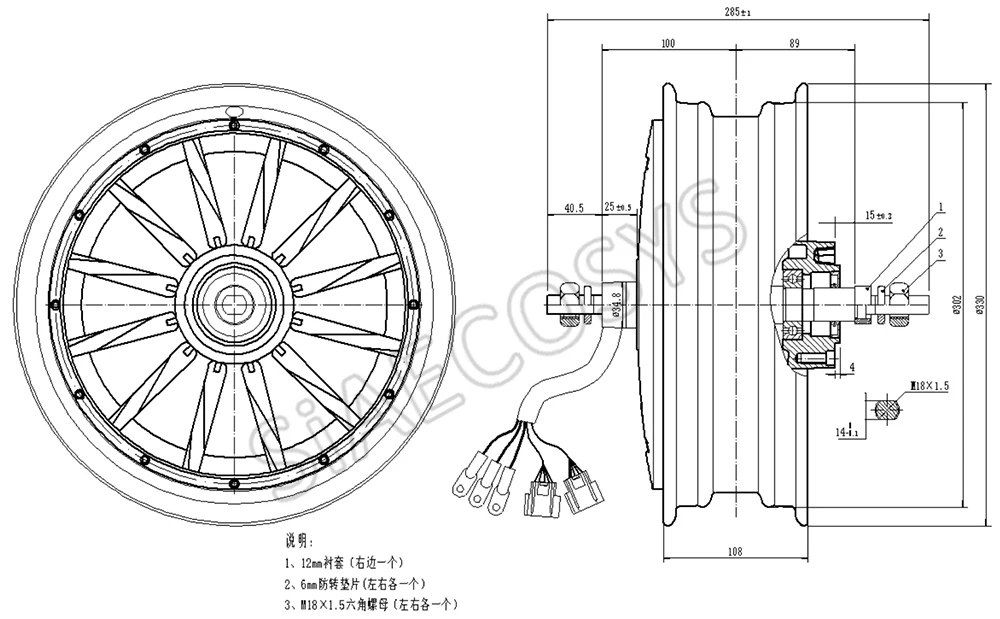

Drawing

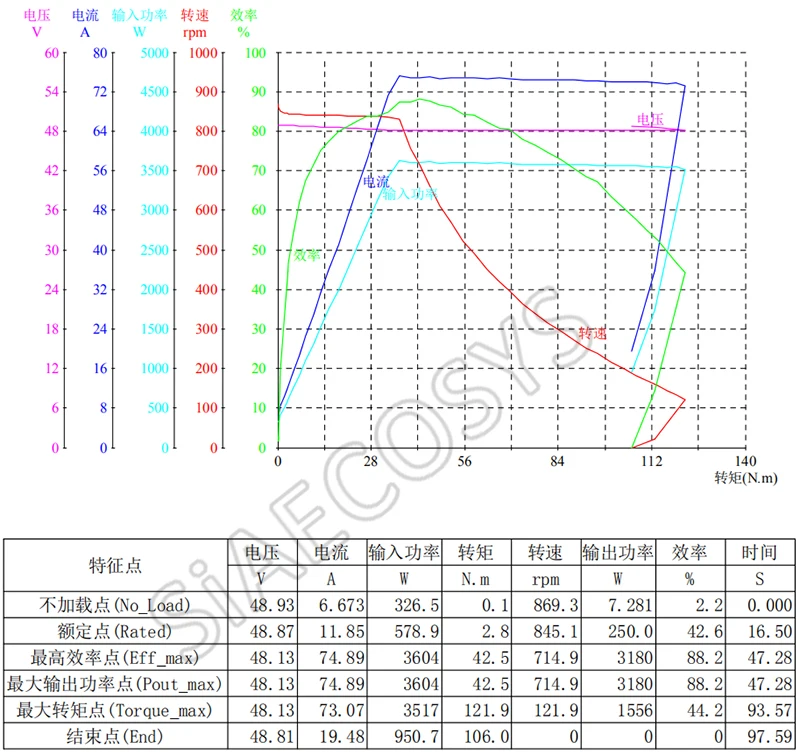

Test Report

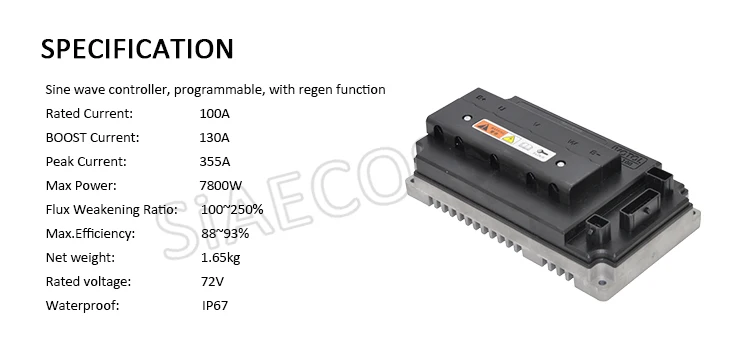

2.  EM100SP sine wave motor controller with standard CAN-BUS

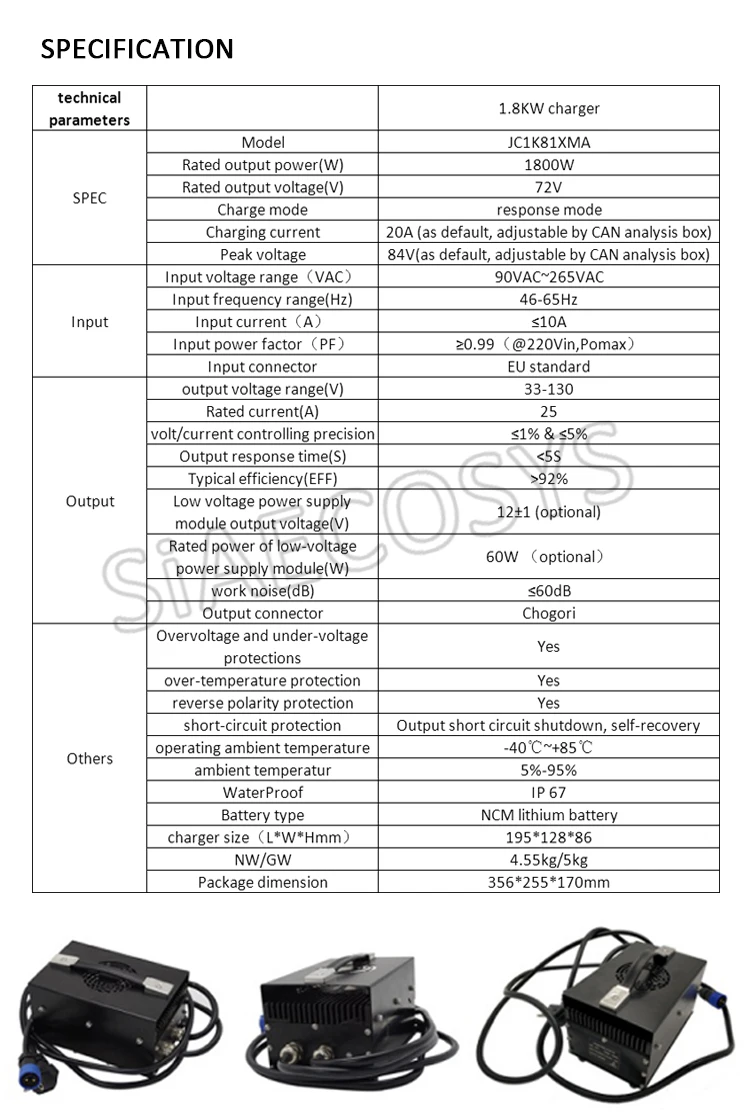

3. 1.8kW 48V 20A EV charger with CAN BUS (disable CAN as default)

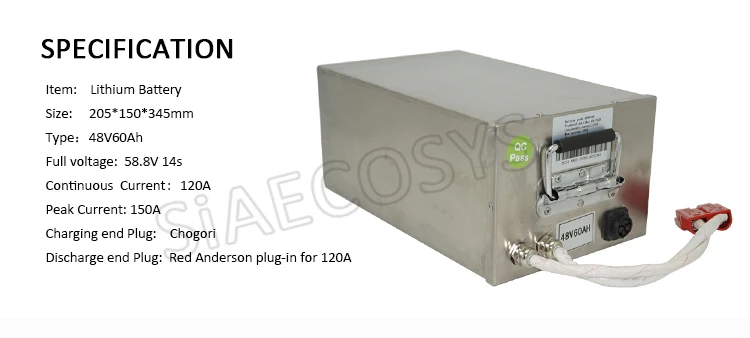

4. 48V 60Ah NCM Lithium

 (ps :The battery is difficult to transport, please communicate offline)

5. DKD LCD speedometer, can-bus(optional, LIN as default)

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

6. Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.
