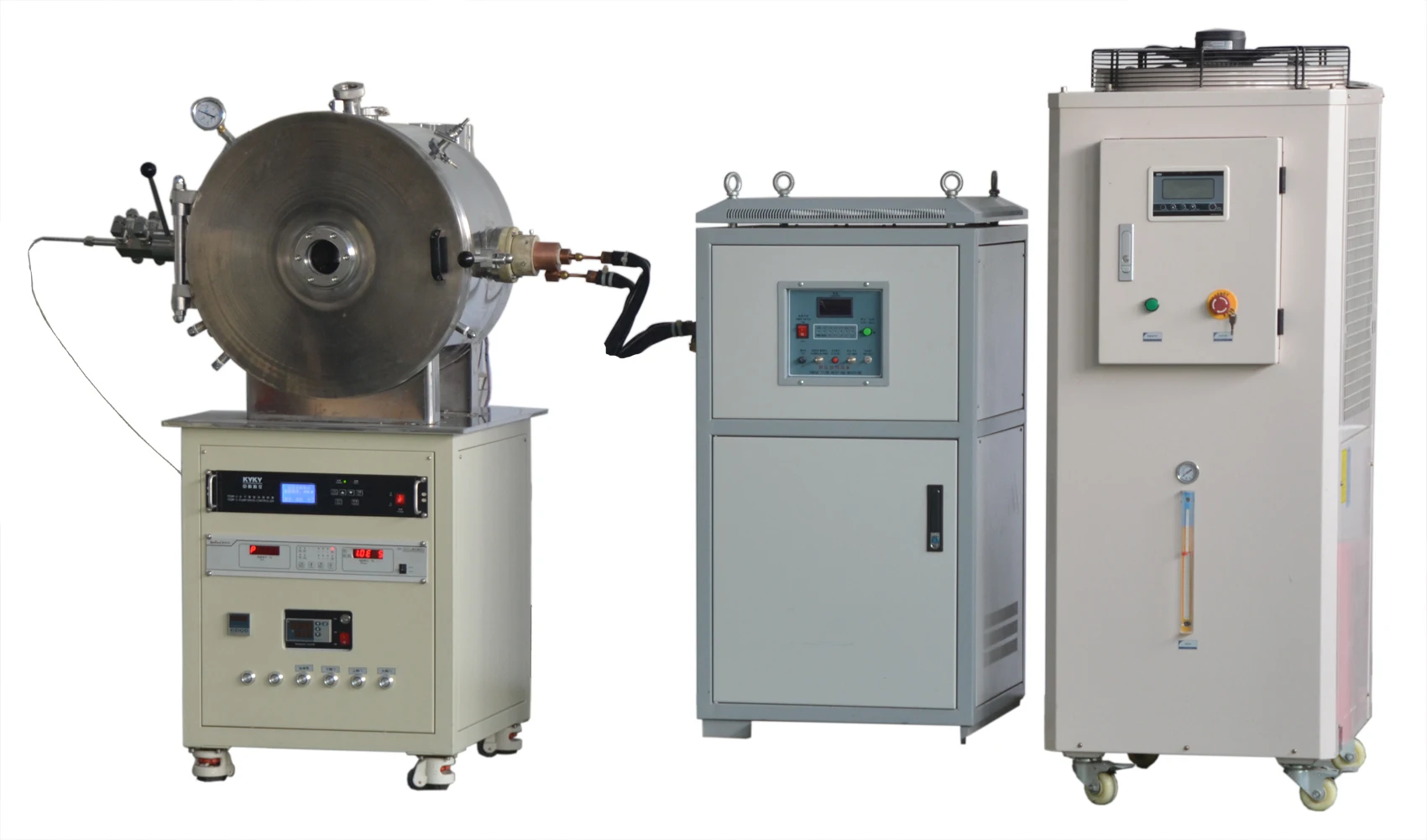

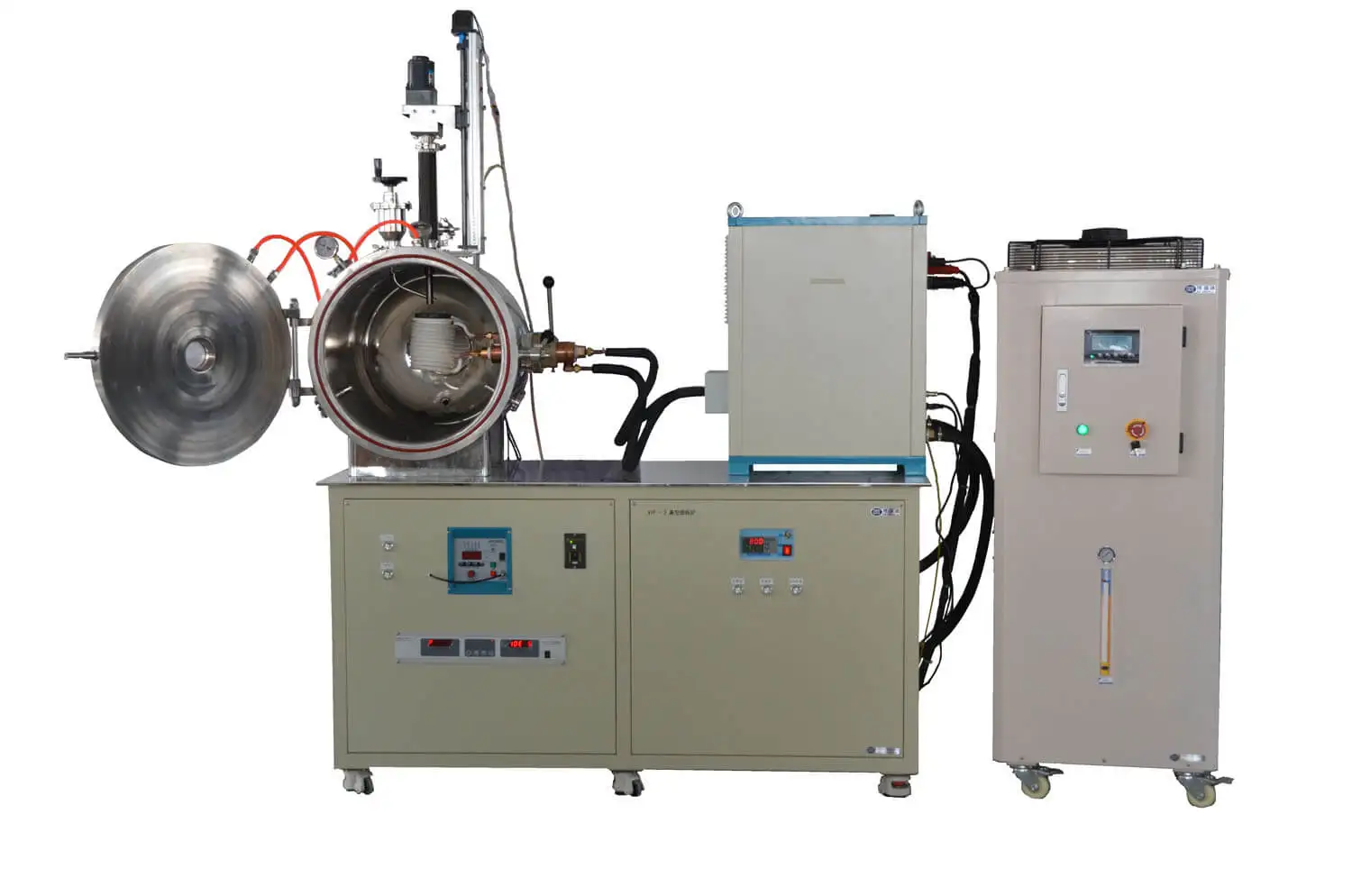

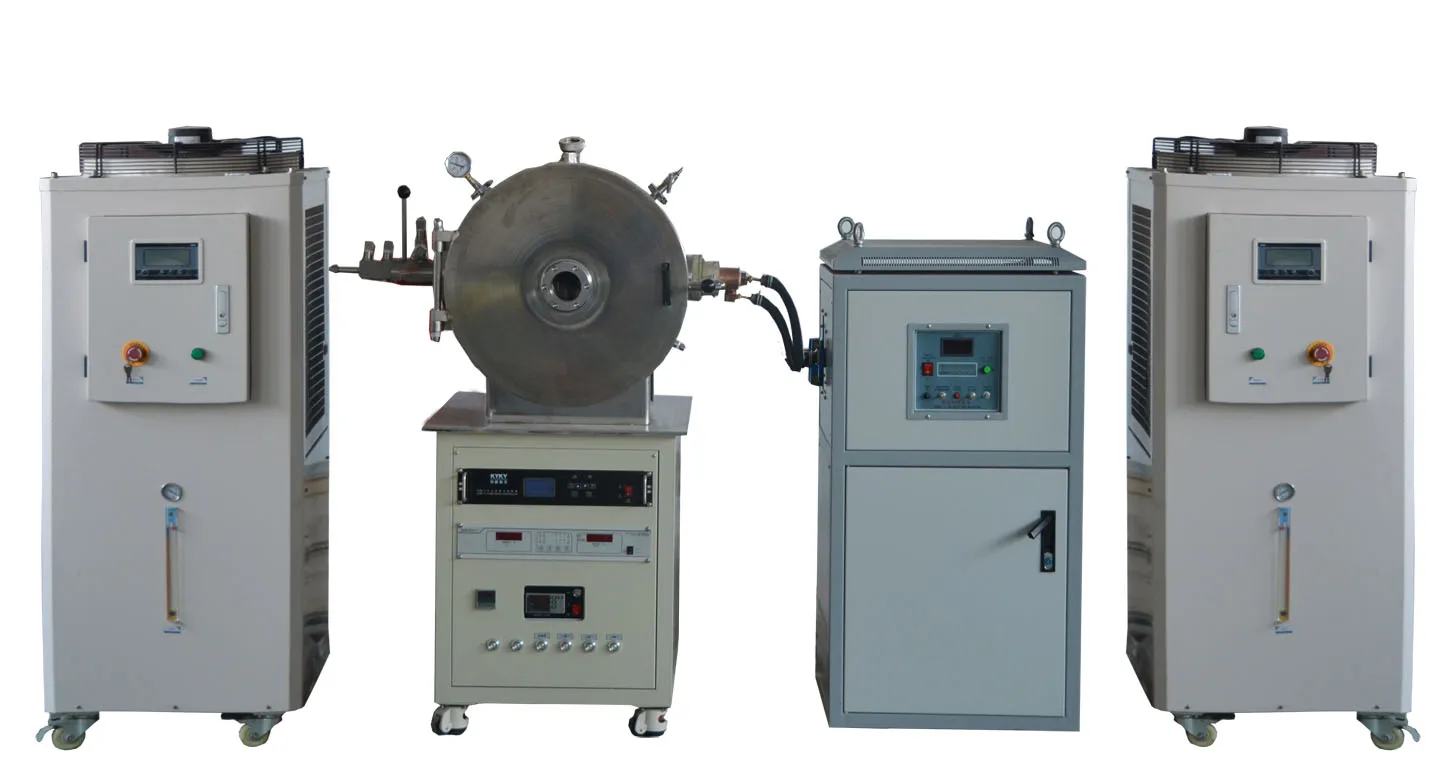

1KG 2 KG Small Capacity Mini Size Lab Application Induction Vacuum Melting Furnace


Lab Application Induction Vacuum Melting Furnace is a vacuum melting furnace independently developed by our company. Almost all stainless steels, heat-resistant steels, ultra-high strength steels, tool steels, bearing steels, magnetic materials, elastic alloys, expansion alloys, etc. are melted in vacuum induction furnaces. During smelting, the whole process is in a vacuum state, and the metal will not be lost due to oxidation. At the same time, the heating system of this machine is induction heating. Compared with the traditional heating method, the energy is transmitted in the form of electromagnetic wave, which has less external influence and less energy diffusion, improving the heating efficiency


Feature:
1. Vacuum Melting Furnace has fashionable appearance and compact structure, covering an area of less than 2 square meters
2. The Vacuum Melting Furnace can be designed as a side door opening structure, which is convenient for taking and placing materials.
4. The furnace shell adopts double-layer water cooling structure, and the surface temperature does not exceed 40 ℃, which is more safe and reliable.
5. An observation window is arranged on the furnace cover to facilitate the observation of material melting. Gas inlet and outlet are installed on the furnace body, and multiple KF interfaces are reserved to facilitate connection to other devices.
6. The electrode can rotate.
7. Equipped with a secondary feeding device, other elements can be added in the smelting process to make various alloy materials.
8. IGBT special power supply and all digital circuit are adopted. The electrical system is equipped with overcurrent, overvoltage feedback and protection circuit. The electric control panel box is made according to Siemens standard, with high temperature control accuracy and convenient operation.
9. Vacuum Melting Furnace can adopt two-stage pump, that is, mechanical pump and molecular pump, and the vacuum degree can reach 8 × 10-4P.

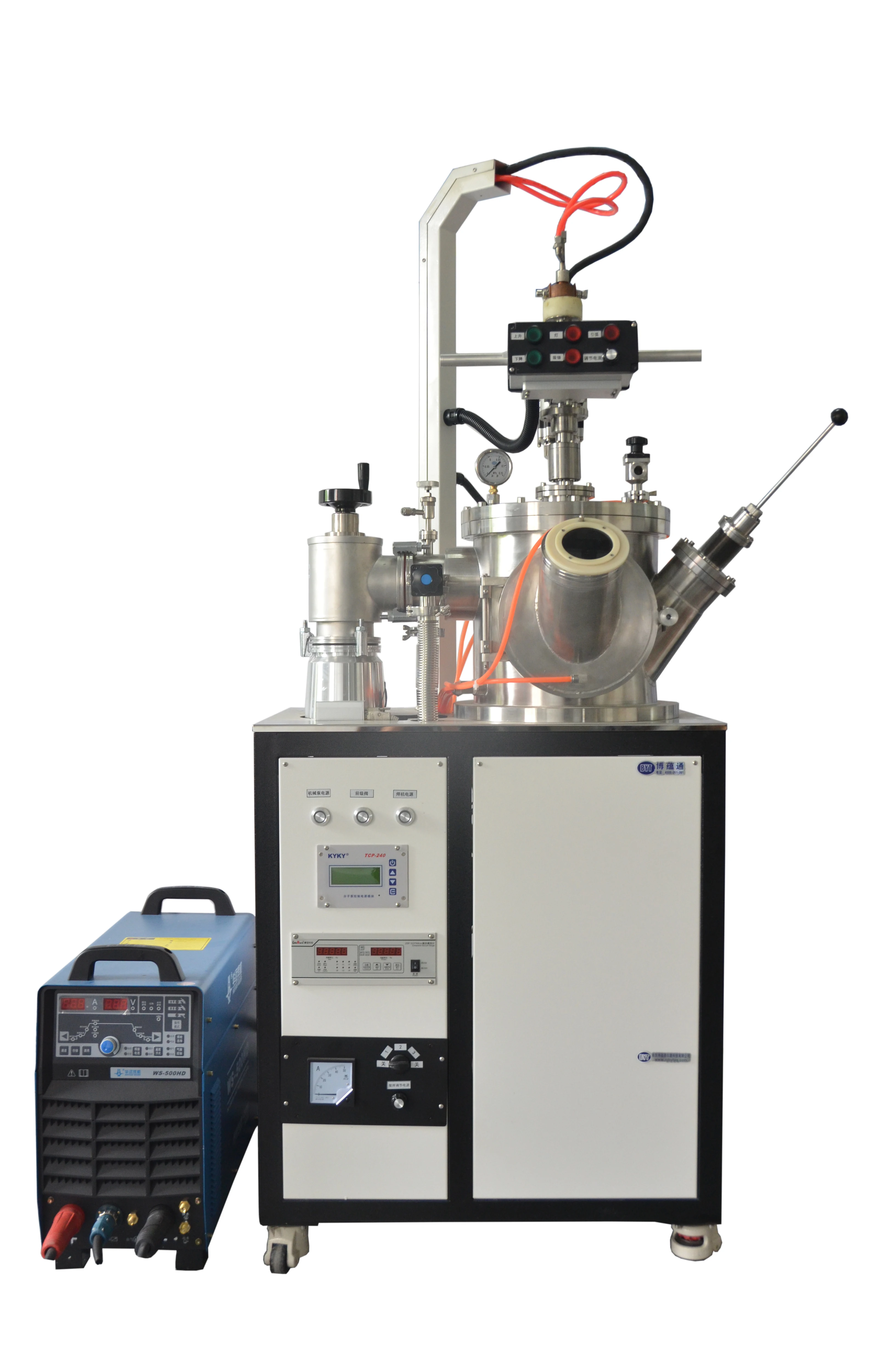

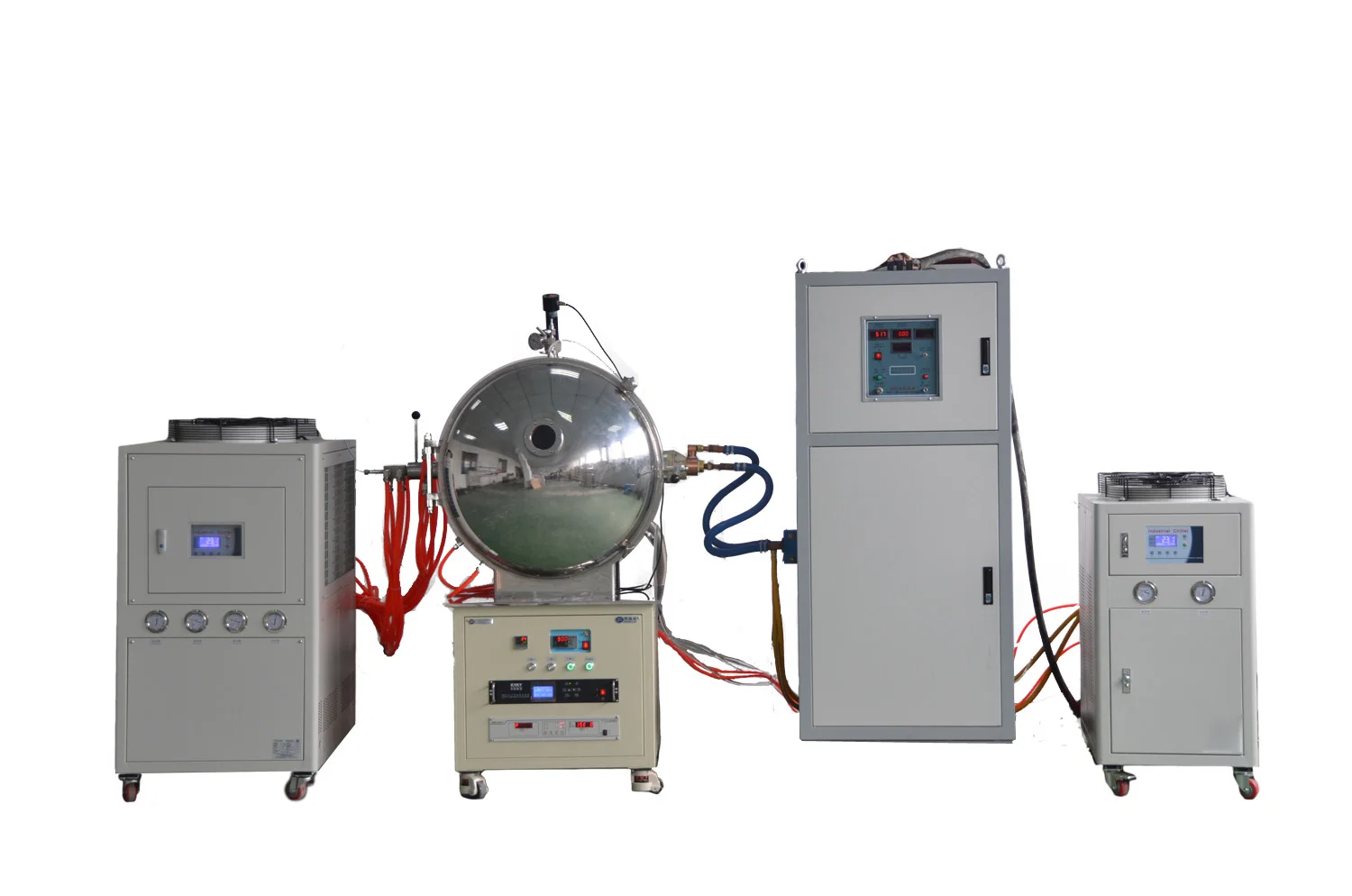

1-2Kg Small Lab Induction Vacuum Melting Furnace

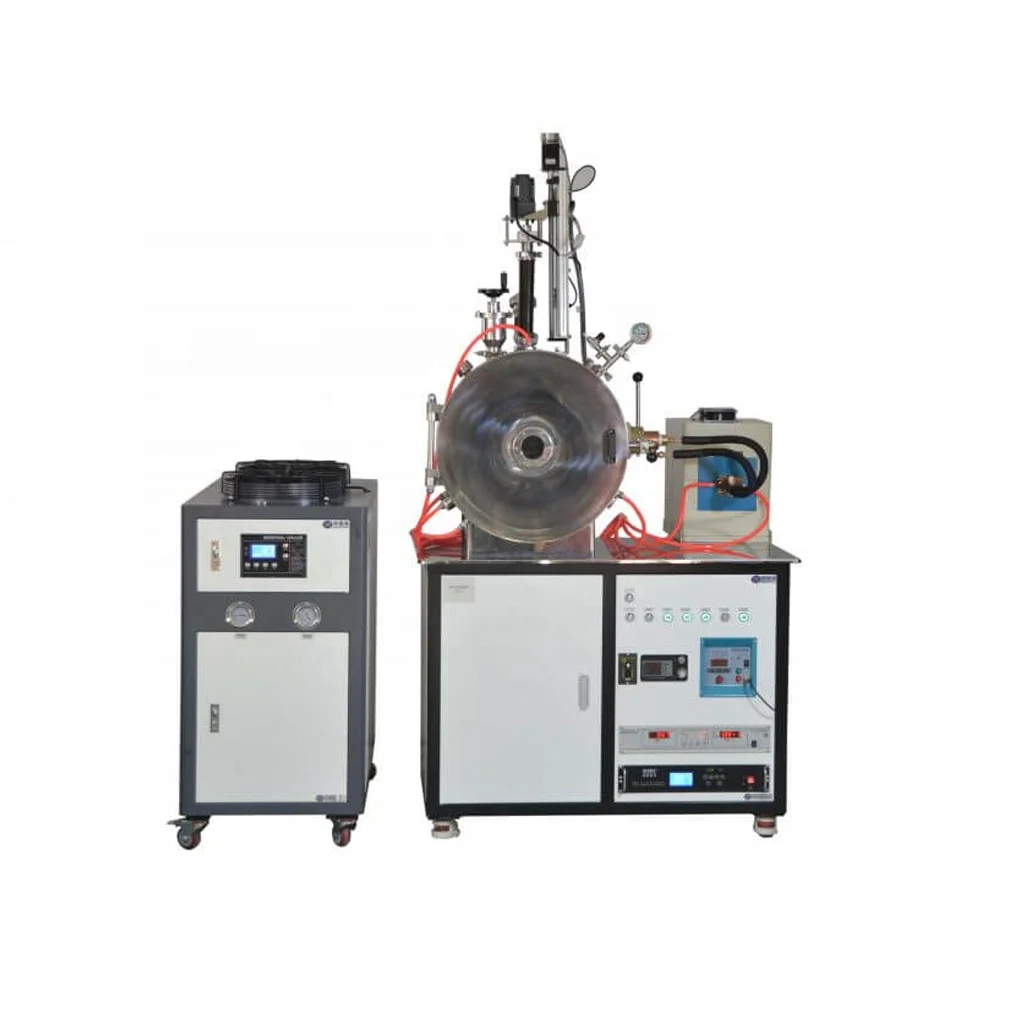

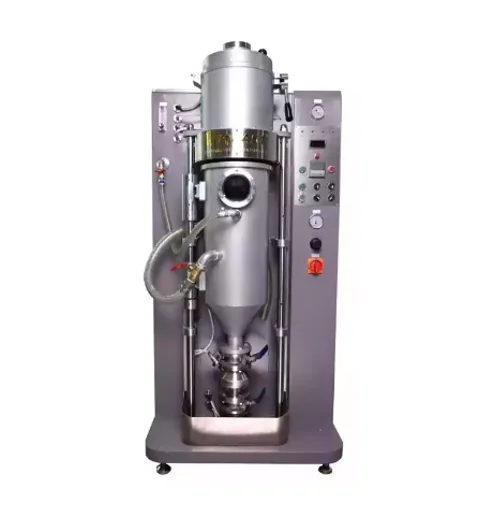

10Kg Small Lab Induction Vacuum Melting Furnace

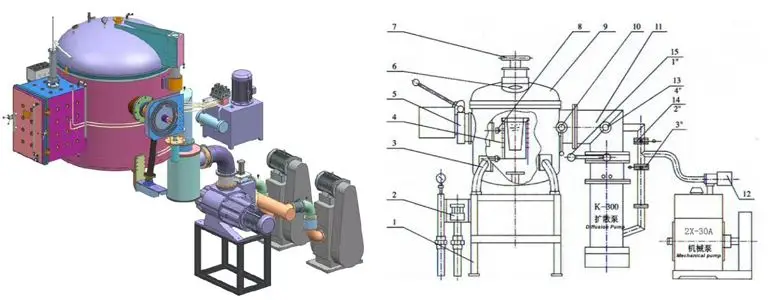

1,Support frame; 2, cooling system; 3, Furnace body; 4, Inductor; 5, Seal Sewing Bearing; 6, Inspecion window; 7, Feeder; 8,Electrode ; 9, Furnace Cover;10, Temperature measuring device; 11, Vacuum system; 12, Electromagnetism Vacuum inflation valve; 13,deflation valve;14, Dia 50 vacuum valve, 15, diameter 300


Model number
VIF-1
VIF-2
VIF-3
VIF-5
VIF-10
VIF-25
Max melting weight (calculated by molten iron)
1KG
2KG
3KG
5KG
10KG
25KG
Max heating temperature ℃
1900℃
1900℃
1700℃
1700℃
1700℃
1700℃
Power supply
HF induction power supply
IF induction power supply
Oscillation frequency
30-80KHZ
30-80KHZ
30-80KHZ
1-20KHZ
1-20KHZ
1-20KHZ
Maximum input power
15KW
15KW
35KW
45KW
60KW (can be changed according to material)
80KW (can be changed according to material)
Heating current
2-50A
2-52A
12-70A
15-95A
10~90A
20~130A
Cooling water requirements
≥0.2MPa ≥6L/min
10P (Change according to different requirements)
Power supply weight
35KG
35KG
68KG
45KG
70KG
80KG
Input voltage
3P 380V 50/60HZ


Related Products


Click the picture for more details!(Vacuum series)

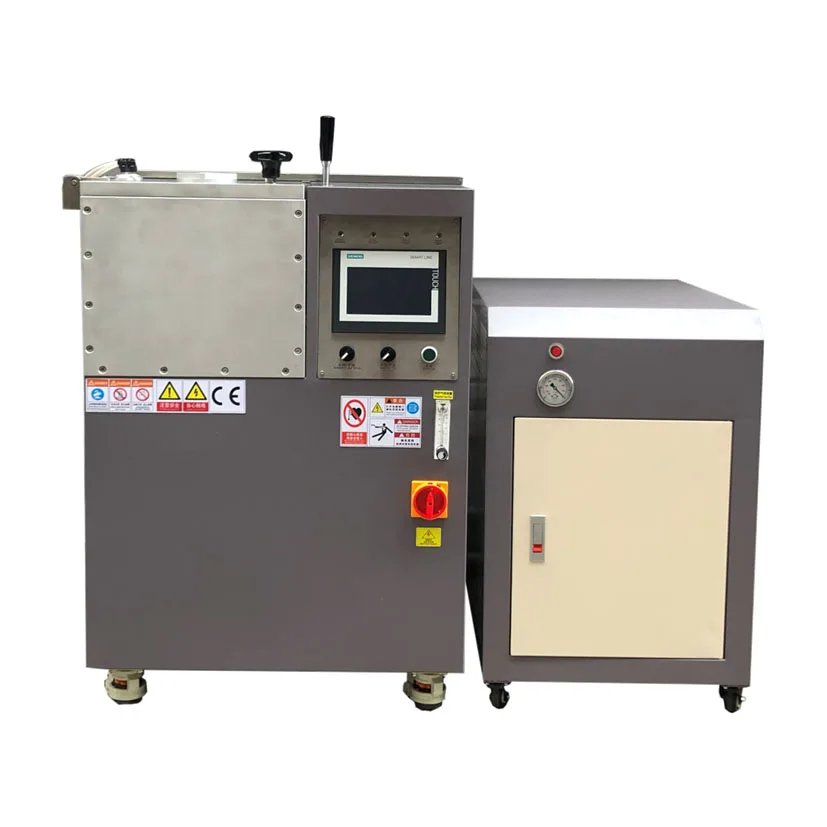

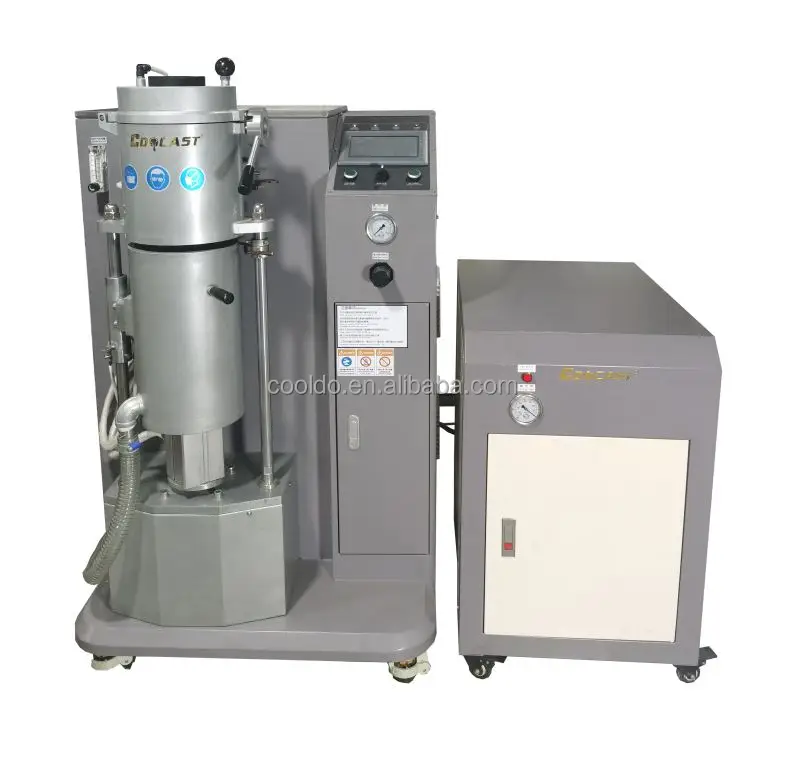

Vacuum Jewelry Castng Machine Vacuum Bullion Making Machine Vacuum Powder Making Machine




Packing & Delivery

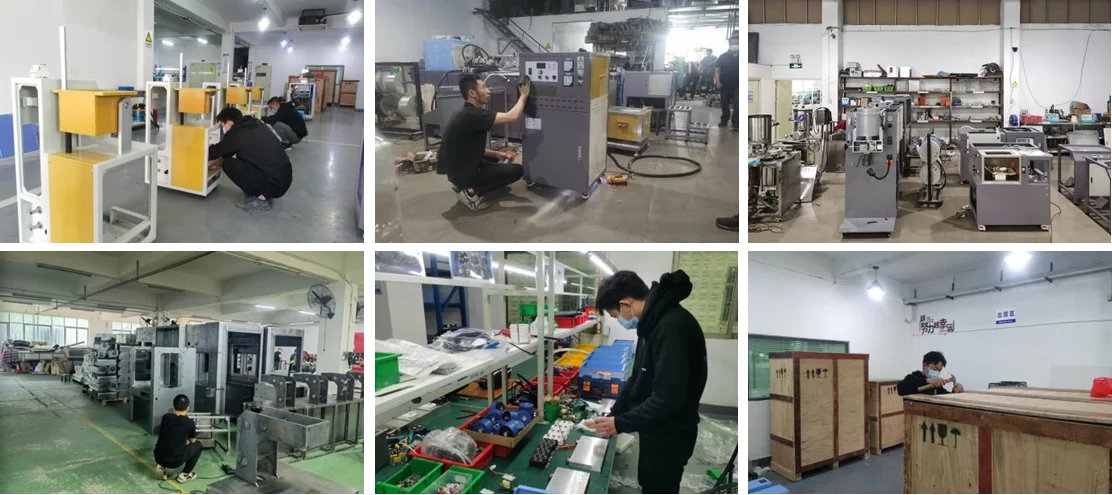

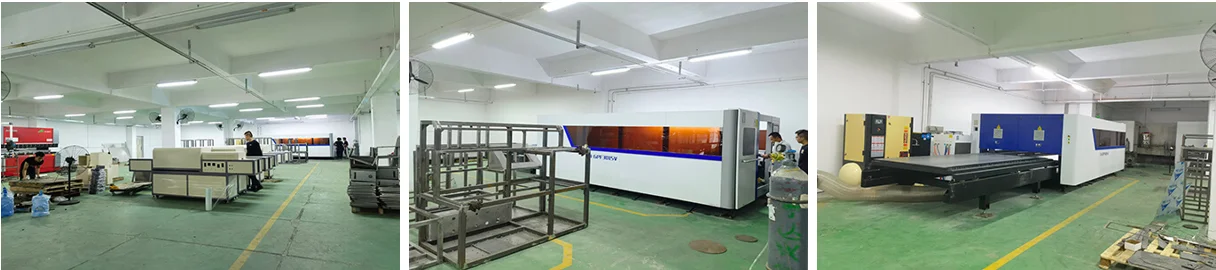

Factory






Customer Photos










FAQ


1. What is your advantage to compared to others?
① We provided turnkey solution, cost-effective, highly efficient, durable and easy-to operate machine is what we deliver.
② We have strict quality control system, before being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.

2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video
how the machine is broken,we will find out which part of the machine is broken and then we will send you the broken part By DHL.

3. What is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In warranty period,we will provide you the spare parts for free. Our engineer will help you do the after sales through our remote control system.When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
