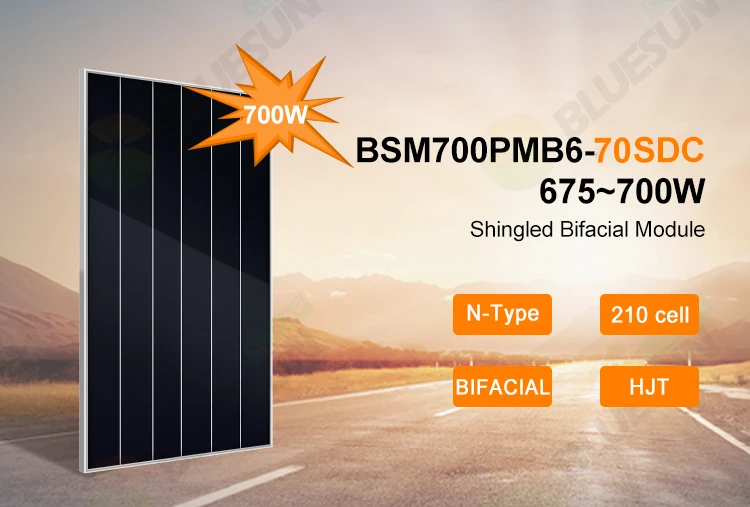

Bluesun HJT 700w monocrystalline solar panel tier 1 solar panel 700w hjt cells solar panel
Bluesun HJT 700w monocrystalline solar panel tier 1 solar panel 700w hjt cells solar panel
Bluesun HJT 700w monocrystalline solar panel tier 1 solar panel 700w hjt cells solar panel
Bluesun HJT 700w monocrystalline solar panel tier 1 solar panel 700w hjt cells solar panel
Bluesun HJT 700w monocrystalline solar panel tier 1 solar panel 700w hjt cells solar panel
Bluesun HJT 700w monocrystalline solar panel tier 1 solar panel 700w hjt cells solar panel
Bluesun HJT 700w monocrystalline solar panel tier 1 solar panel 700w hjt cells solar panel

Bluesun HJT 700w monocrystalline solar panel tier 1 solar panel 700w hjt cells solar panel

Share on (1600535845700):


Price:$0.24 - $0.26

Quantity:


Product Overview

Description



Products Description






SPECIFICATIONS
Module Type
BSM685PMB6-70SDC
BSM690PMB6-70SDC
BSM695PMB6-70SDC
BSM700PMB6-70SDC

STC
STC
STC
STC
Maximum Power (Pmax/W)
685
690
695
700
Operating Voltage (Vmp/V)
39.40
39.50
39.60
39.60
Operating Current (Imp/A)
17.41
17.49
17.57
17.68
Open-Circuit Voltage (Voc/V)
47.40
47.50
47.60
47.70
Short-Circuit Current (Isc/A)
18.50
18.59
18.68
18.80
Module Efficiency (%)
22.30
22.50
22.60
22.81
STC: Irradiance 1000W/㎡, Cell Temperature 25°C, Air Mass AM1.5
More Details Please Send Inquiry to Us


Electrical characteristics with different rear side power gain(refer to700W front)
Pmax gain
Pmax/W
Vmpp/V
Impp/A
Voc/V
Isc/A
5%
735
39.6
18.56
47.7
19.74
10%
770
39.6
19.45
47.7
20.68
15%
805
39.6
20.33
47.7
21.62
20%
840
39.6
21.22
47.8
22.56
25%
875
39.6
22.10
47.8
23.50


Advantages Of Shingled Module

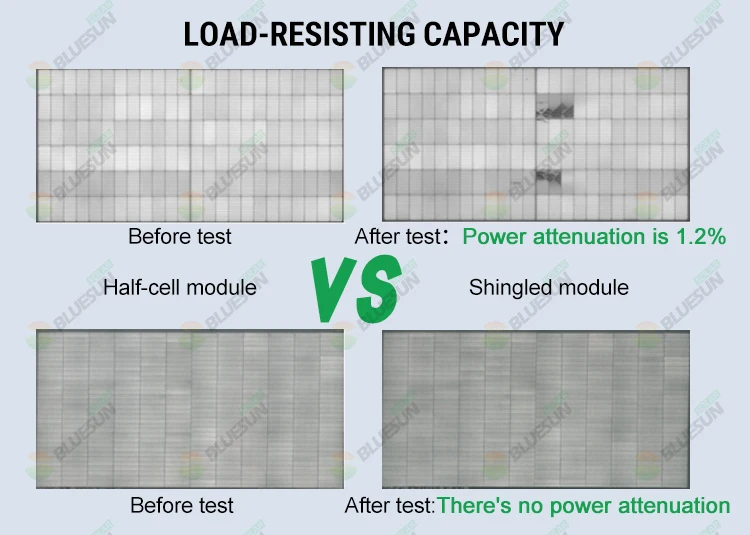

*Under the load of IEC 5400Pa, shingled has no new micro-cracks, although both shingled module and half-cell module passed the test(attenuation < 5%).
*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.






Certifications




Payment







Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container


We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
