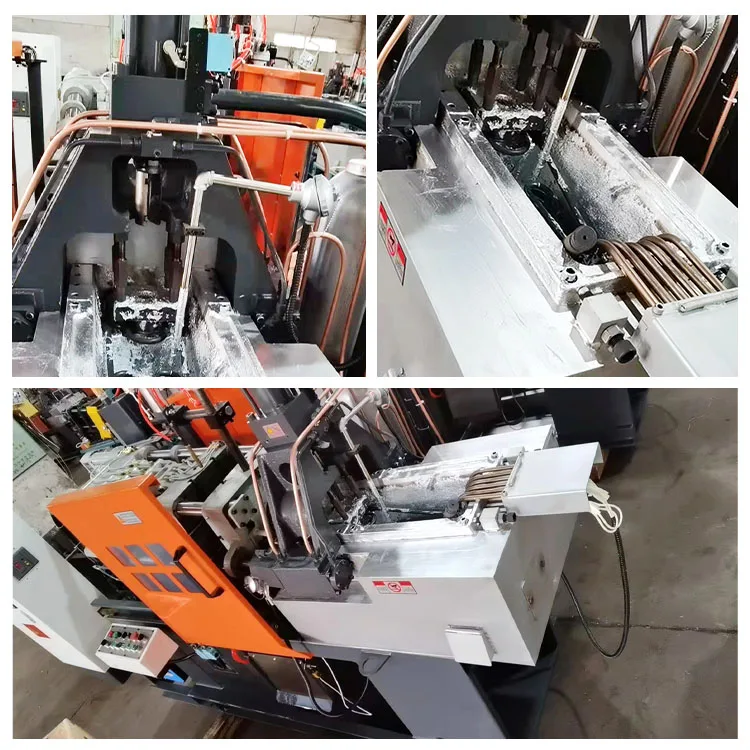

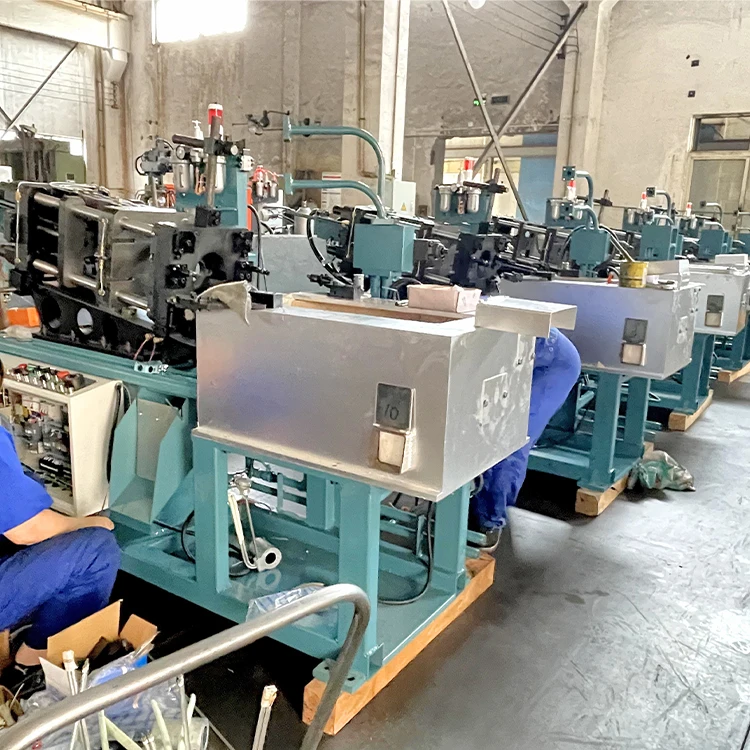

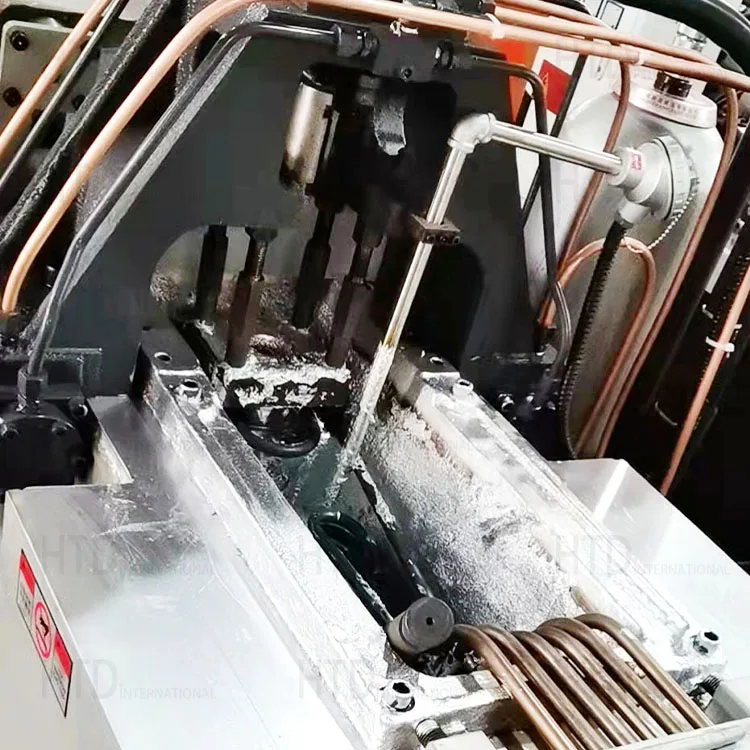

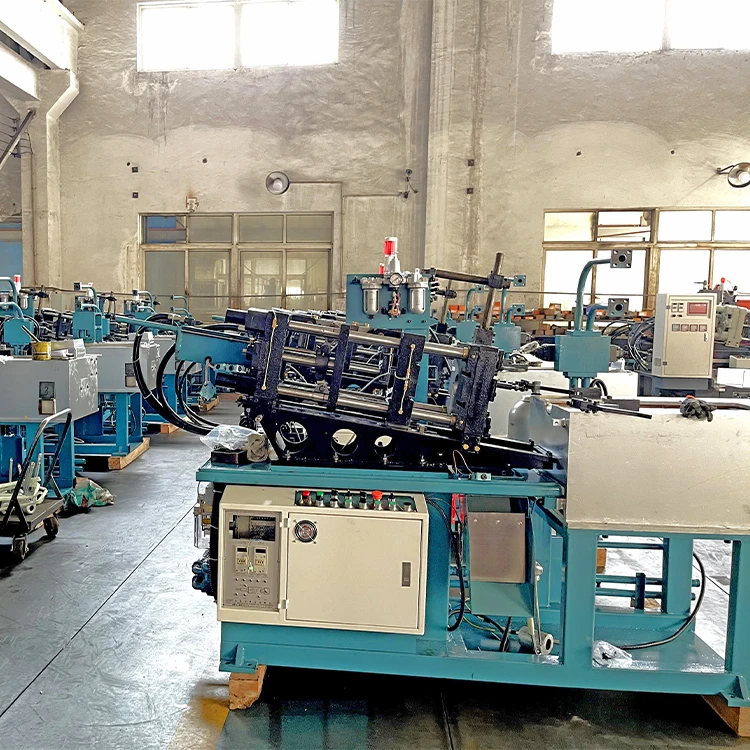

Lida Factory Price Metal Hot Chamber 18 T Die casting machine for slider making
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Guangzhou HTD International Trading Co. Ltd.
Share on (1600544229142):
Product Overview
Description
Product Specification

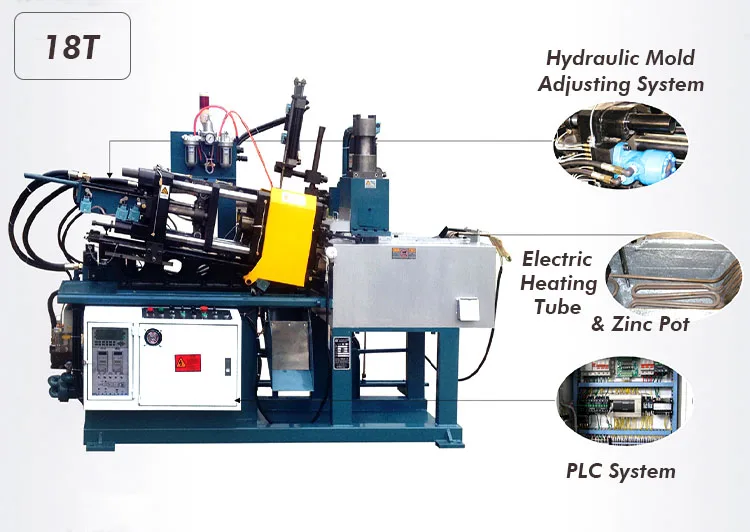

Model Name: 18T Fully Automatic Die Casting Machine
- Fully automatic die casting with high speed
- Automatic mold adjusting
- Electric heating or oil heating
- With PLC control system
Model Application:

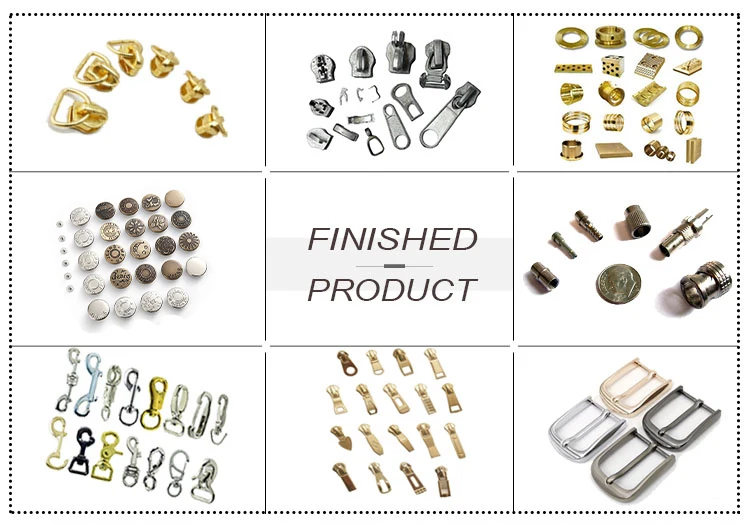

- For complex-shaped zipper sliders, buttons and various hardware fittings and accessories
SPECIFICATION | |
MODEL | 18T |
Clamping force | 180 KN |
Diameter of pull-rod | 40 mm |
Inner space between pull-rods | 220*205 mm |
Thickness range of mould | 120~200 mm |
Diameter of stuff | 32~38 mm |
Injection force | 19 KN |
Effcetive injection | 150~250 mm |
Hydraulic top-Output | 19 KN |
Hydraulic Ejector Stroke | 25 mm |
Sweeping position | 200 mm |
Oil pump flux | 31 L/min |
Nozzle electric heated power | 1.2 KW |
Melt electric heated power | 9 KW |
Melt fuel dosage | 1.5 kg/h |
Motor power | 5.5 KW |
Working oill pressure | 7~10 Mpa |
Weight of machine | 1.5 ton |
Appearance size of machine | 2491x 1038x 1795 mm |

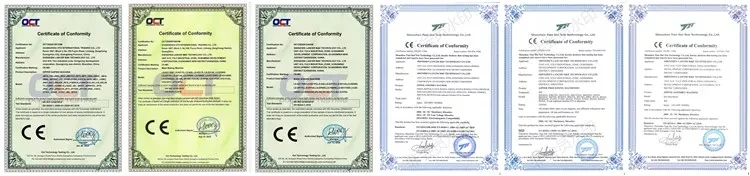

Certifications
Our Advantages
Contact Us
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional machinery manufacturer with experience for more than 11 years.
Q2: Do we have any risk of payment?
A2: We are a standard company with the right to export and import. If you have doubts, we suggest making the order via Alibaba. And we can do LC at sight as well as
Q3: How’s your machines’ quality?
A3: Our machines are all made under strict standards of ISO, CCC, and CE. Keep producing good quality products are our daily task and aim.

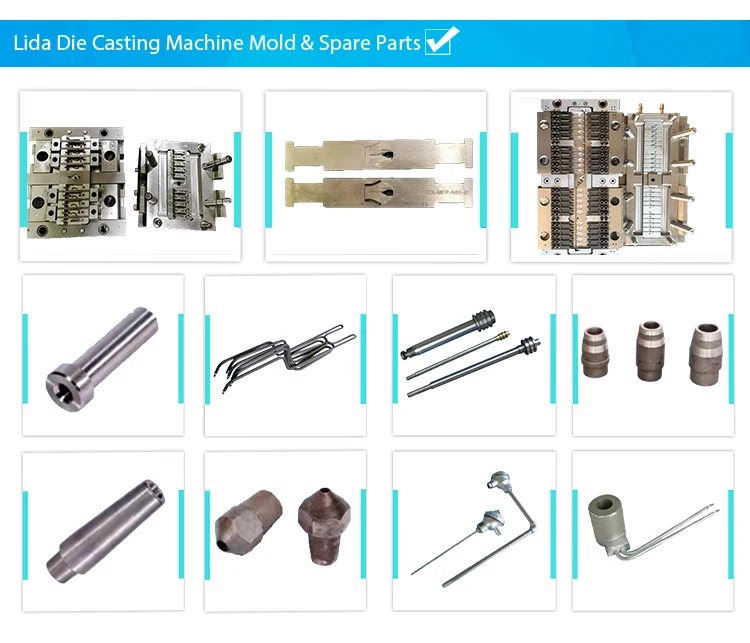

Q4: Is there any spare part equipped with machines?
A4: Yes, some wearing spare parts will be provided together with machines.
Q5: Can your technicians come to our factory for installation and training?
A5: Yes, we will arrange our technicians to visit your factory for training and installing according to requirements.
A1: We are a professional machinery manufacturer with experience for more than 11 years.
Q2: Do we have any risk of payment?
A2: We are a standard company with the right to export and import. If you have doubts, we suggest making the order via Alibaba. And we can do LC at sight as well as
Q3: How’s your machines’ quality?
A3: Our machines are all made under strict standards of ISO, CCC, and CE. Keep producing good quality products are our daily task and aim.
Q4: Is there any spare part equipped with machines?
A4: Yes, some wearing spare parts will be provided together with machines.
Q5: Can your technicians come to our factory for installation and training?
A5: Yes, we will arrange our technicians to visit your factory for training and installing according to requirements.
