FM DAB Digital Radio Signal Booster Amplifier Car Radio Amplifier
- Category: Amplifiers >>>
- Supplier: Zhejiang JC Antenna Co. Ltd.
Share on (1600549028705):
Product Overview
Description

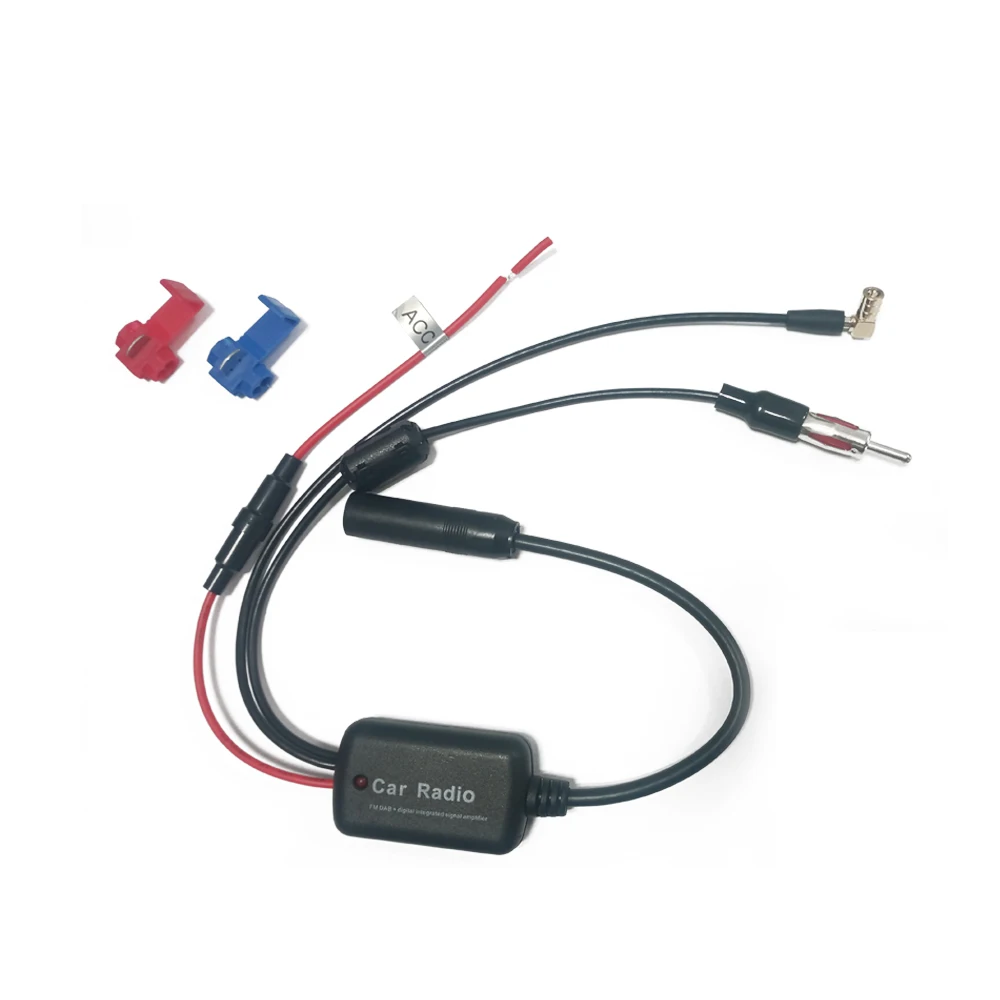

FM DAB Digital Radio Signal Booster Amplifier Car Radio Amplifier
Product Description

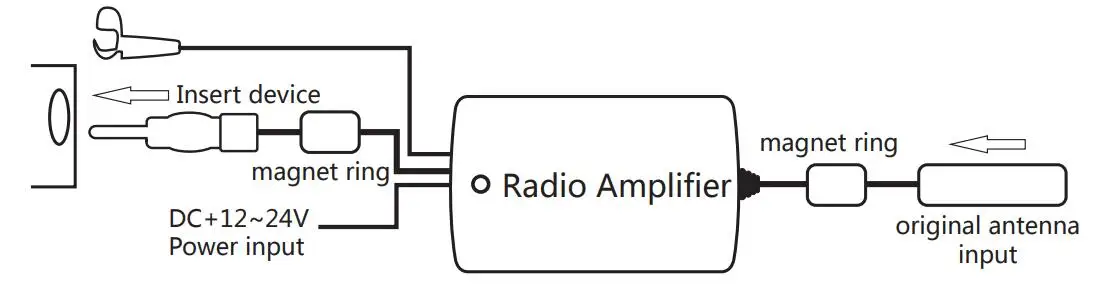

Installation and Connection :
1. Install it behind the car audio like the DVD or radio.

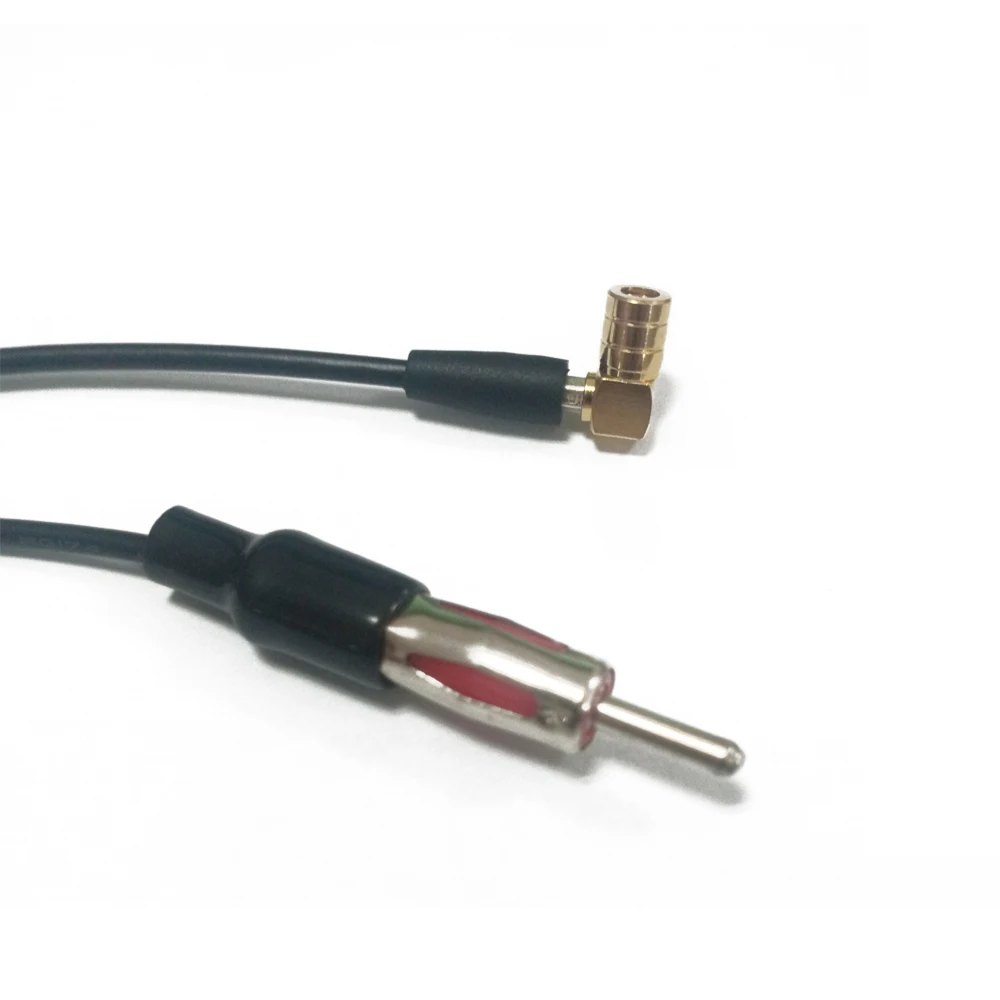

2. Insert the Radio antenna into the FM-DAB01 amplifier's female port, then insert the amplifier's male
2. Insert the Radio antenna into the FM-DAB01 amplifier's female port, then insert the amplifier's male
connector into the original car radio's antenna port.
3. Connect the power cord to the original car ACC for power supply.
3. Connect the power cord to the original car ACC for power supply.
Specification
Frequency Range | 88 -108MHz 170-240MHz |
Amplified gain | 22+3dB |
Output Impedance | 750 |
SWR | <2.5 |
Noise figure | ≤6dB |
Maximum output level | 108dBμV |
Voltage | DC +12~ 24V |
Current | ≤70mA |
Company Profile

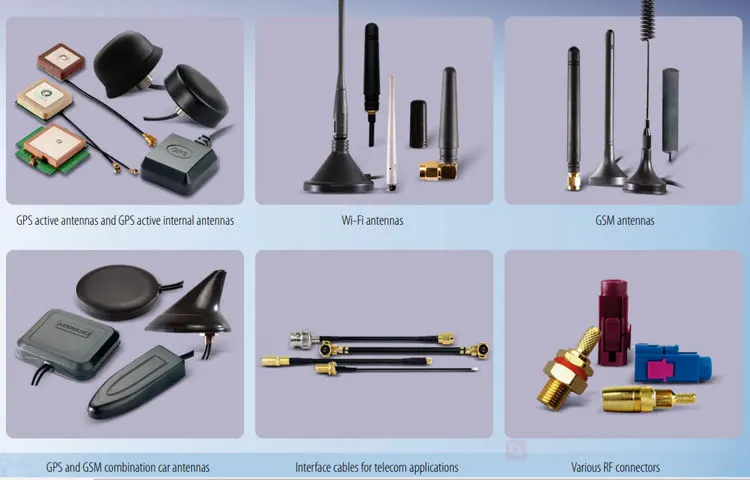

Engaged in the R & D, design, manufacture, and sale of 88MHz-5.8GHz antennas
Certifications
Why Choose Us
Advantage：
1、Quality advantage：100% test, 5 test process during production, FA,singl time pass rate 99%,
2、Technical advantage：high gain, low attenuation, signal receiving ability 30 engineers have helped us develop our current selection and trained our 200 production workers to ensure they stay on top of the latest technology.
OEM＆ODM
1、R & D, design, Packing, size, color
2、Magnetic, adhesive, or screwing mouting as per customer’s installation requirement.
3、Can meet your unique requirement, for example waterproof, salt spray proofing, UV protect and so on.
3、Can meet your unique requirement, for example waterproof, salt spray proofing, UV protect and so on.
Fast dilivery
1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Repairing and maintanance:
Replacement or maintanance for 1 year as quality guarantee.
FAQ
Q: Are you a manufacturer or a trading company?
A: We have been professional antenna manufacturer for 20 years.
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you up with no delay.
Q: How long of the warraty?
A: One year and can repair for the whole life.
A: We have been professional antenna manufacturer for 20 years.
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you up with no delay.
Q: How long of the warraty?
A: One year and can repair for the whole life.
