PSVANE Valve Tube KT120 for Tube Amplifiers (60686143619)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


PSVANE Valve Tube KT120 for Tube Amplifier

Product Description







HIFI PSVANE KT120 Audio Vacuum Tube

One piece KT120

KT120 is beam-tetrode power amplifier, with limited Pa—60W. In audio frequency amplifier, two tubes as AB1 push-pull can gain 110W when outputs.

Heated
UH……..6.3V
IH………1.95A
Maximum Rating
Ua……………….850V
Ug2……….650V
Ug1…………..-200V
Pa………………...60W
Pg2……………8W
Ik………250mA
Uh-k…..300V
Rg1
Fixed bias……………51K
Cathode bias…………240K
Tbulb…………………250C
Direct Interelectrode Capacitances
Input…………………..29 PF
Output…………………10PF
Grid to plate…………..1.8PF
A1 single-ended output
Ua…………………….400V
Ug2……………….…..225V
Ug1…………..……….-14V
Pa……………………………60W
Ig2………………………..14mA
Ik…………………...135~165mA
Transconductance……………14mA/V
Rl……………………………3K
Output power………………..20W
THD <  14%







ROHS Compliant



Good quality tubes



Test and selected by factory
3months quality warranty from date of receipt.







Product Images

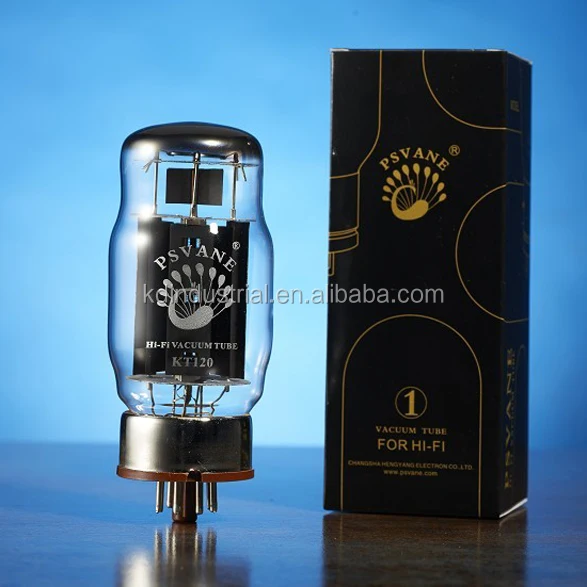

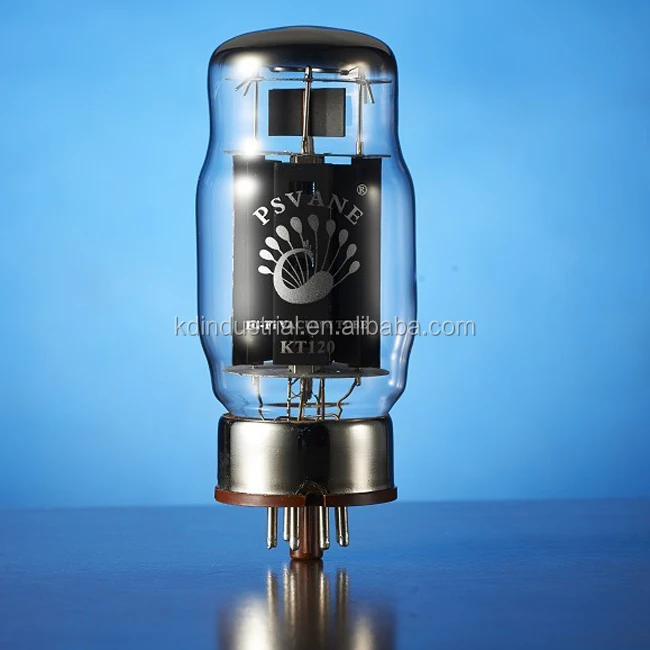

KT120 1.jpgKT120 2.jpg

KT120 3.jpg
