Sinbosen Профессиональное аудио системы оборудование компонентов LAS5 1 линия колонки регулятор мощности со светодиодом

Sinbosen professional audio system equipment distributor LAS5+1 line speakers power controller

Panel instruction



Front panel instruction
1.CH1, CH2, CH3, CH4, SUB INPUT and LINK / CH1, CH2, CH3, CH4, SUB. The input and parallel output of the signal are output to the amplifier through the rear-panel XLR plug
2. 8 channel amplifier signal output.
3. The output voltage display.
4. AC power output switch.
5. AC Power input.



Rear panel instruction

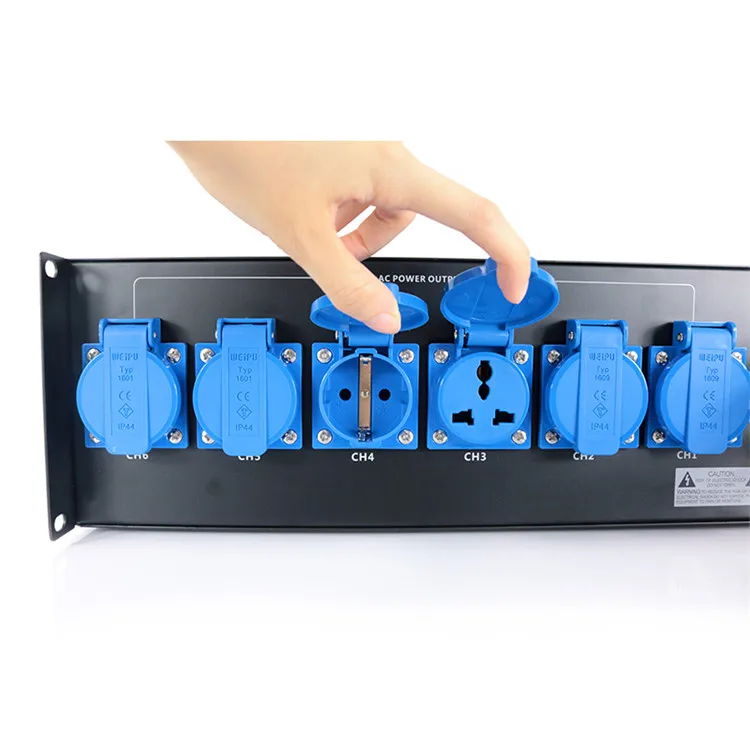

7. AC Power output connector.
8. CH1,CH2,CH3,CH4,SUB OUTPUT.
9. 8 channel amplifier signal input.


Feature

1. Panel color: Iron black.
2. Power input conditions (single-phase 3 wires): AC90-260V 50-60HZ two phases (three wires: zero, fire, ground).
3. Number of speaker load inputs: 16 groups Output number: 16 groups.
4. Maximum output of single power / total power (reactive power) of controlled output: 5000W / 10000W maximum of reactive power.
5, output power socket specifications: flame retardant ABS material, can withstand up to 16A current phosphor copper material.
6. Protection function: Each channel is equipped with an independent air switch. In case of short circuit or over current, the air switch automatically powers off to protect the audio equipment from damage.
7, power supply specifications: applicable to global voltage AC90-260V 50-60HZ.
