Description

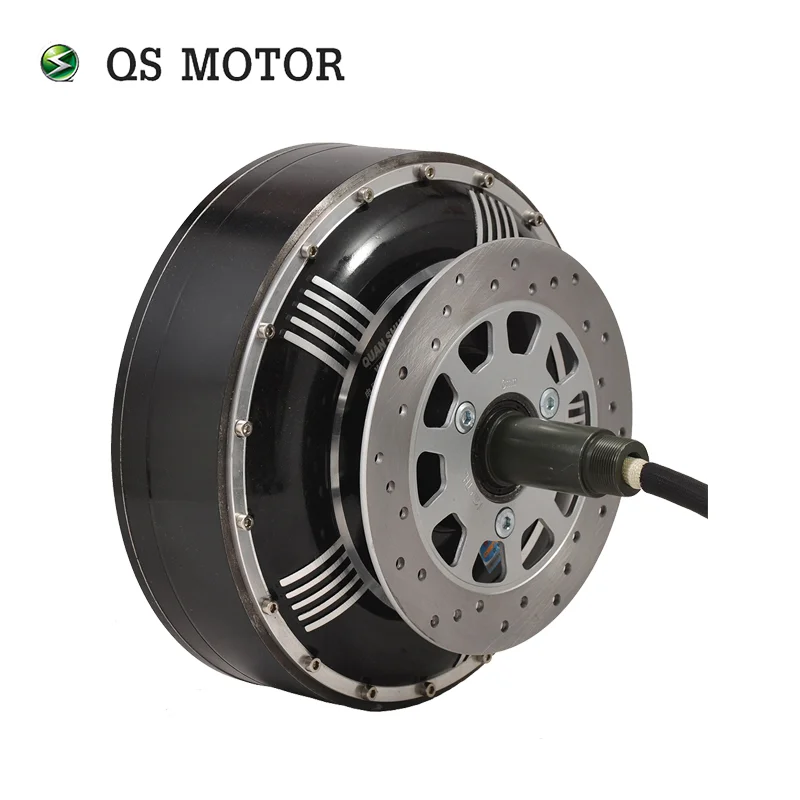

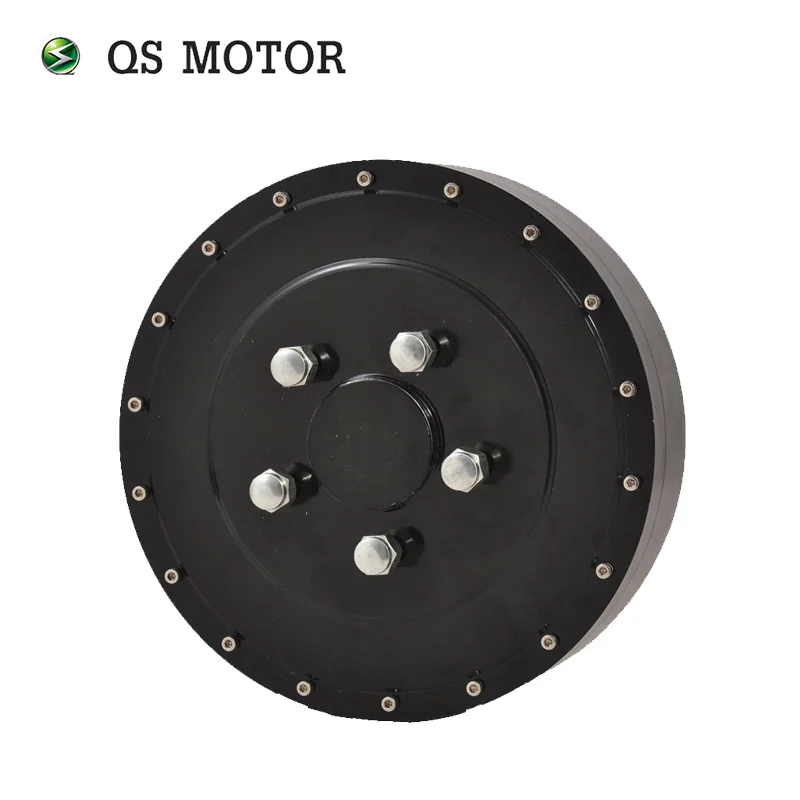

QS Motor Electric Car Hub Motor 273 4000W Export Type/V3 For Electric Car Conversion Kits

For 273 E-Car wheel hub motor, it could be used for electric scooter, tricycle, light car.

273 motor means the diameter of iron ring/hoop is 273mm, for all 273 motor, e.g. 13inch,14inch,16inch,17inch 273 e-scooter hub motor,

273 spoke hub motor, 13inch,14inch,16inch.17inch 273 single shaft hub motor, 273 E-car Hub motor etc., the configuration & performance is the same as 13inch 273 Hub Motor.

New design disc brake cover 273 e-car motor

Standard disc is moped PCD:3*80mm, M8, it could be customized to be PCD:4*114.3mm, M12.

It's USD: 135.0 more per piece.

If the vehicle top speed is over 80KPH, then we suggest to use this new disc brake cover.

P.s.: The new mold is done, but the produce cost is quite high with T6 heat treatment.

Key Features

1). Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

PS.1). Above quotation base on 273 electric car hub motor, 48V~144V.

2). Above configuration is suggested for mass production.

3). We can customize the 14kW e-car hub motor, the production time will be long, around 45-50working days.

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

Product description

Genearlly Spec:

•


  Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor





•


  Brand: QS Motor, QSMOTOR





•


  Motor Design: Single axle without moped rim (integrated)





•


  Matching Rim Size:14inch  & above wheel rim, CB ≥60mm,PCD ≤110mm(PCD 4*100mm, CB60mm as default)





•


  Magnet Height: 40mm, 16 pole pairs





•


  Stator: Aluminum Core





•


  Rated Power: 4000W





•


  Speed: 24KPH-100KPH, it's customized, genearlly we will design as 72V70KPH.





•


  Work Voltage range: 48V-144V, will be 72V as default.





•


  Max Torque approx 266.0N.m





•


  KV: 7.5/8.65/11.46/12.46/13.54/15.69(optional)





•


  Thermic Probe: KTY83-122 (as default, optional)





•


  Max Efficiency approx 84%





•


  Working Temperature: 70-120℃ , peak 150 ℃





•


  Brake type: Disc brake (as default), PCD: 3*80MM, M8





•


  Dual Halls with waterproof connectors(One for using, one for spare





•


  12mm axle flats





•


  10mm² Cross Section of Phase Wire(not including insulation layer)





•


  Waterproof Grade: IP54





•


  Color: Black (As default)





•


  N.W/ G.W: 21.5kg/23.0kg




Dimension Drawing:

•


  QS 273 e-car hub motor




Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

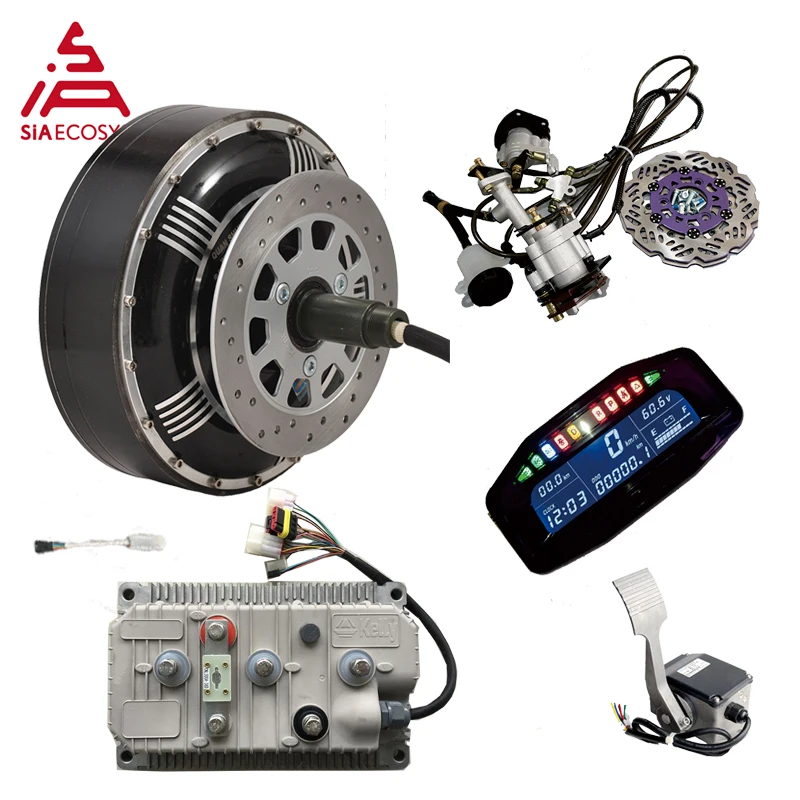

Conversion kits for 273 8kW E-Car hub motor

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

Application for E-Car hub motor
