Product Overview

Description



Products Description

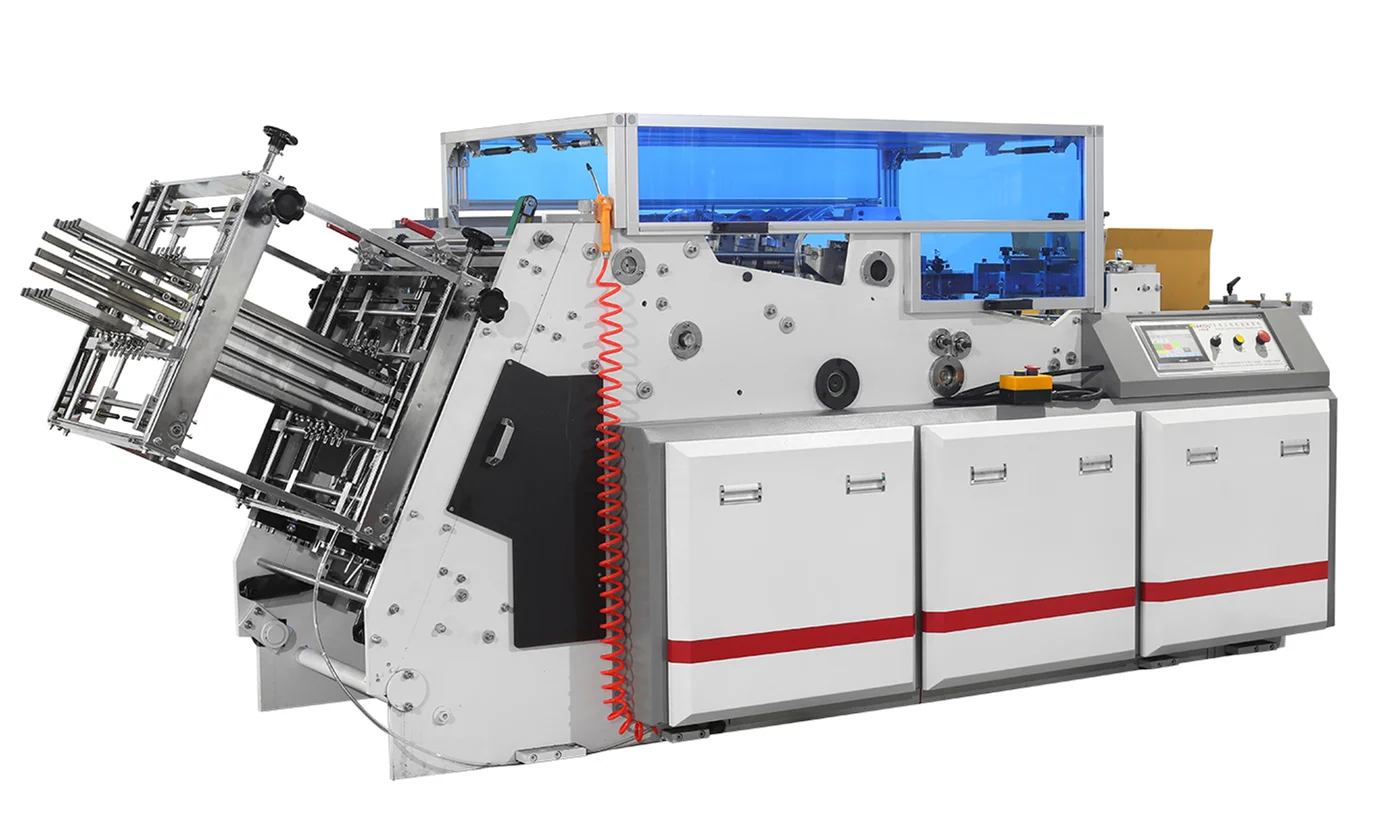

HBJ-D800GS/1200GS High Speed Paper Carton Erecting Machine




Technical Specification


Type
HBJ-D800GS
HBJ-D1200GS
Production capacity
80-200pcs/min
160-400pcs/min
Suitable Material
200-600gsm card paper，PE coated paper, kraft paper, corrugated paper(up to 1.5mm)
Paper open length
L100-450mm degree:5°-40°
Paper open width
W100-600mm Height H15-200mm
(for special sizes can be customized)
W100-400mm  Height H15-200mm
(for special sizes can be customized)
Total Power
5KW
6.25KW
Weight
2.2T
2.6T
Dimension
3600 x1400 x 1700 mm
3600 x 1850 x 1700 mm
power source
380V 50HZ( can be customized)

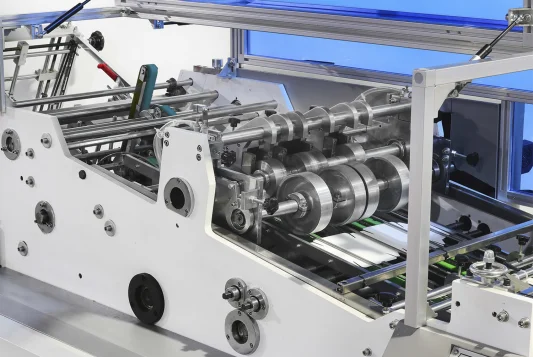

New Characteristic in structure

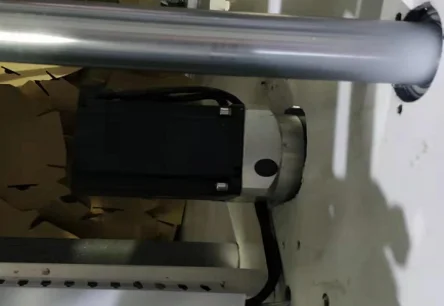

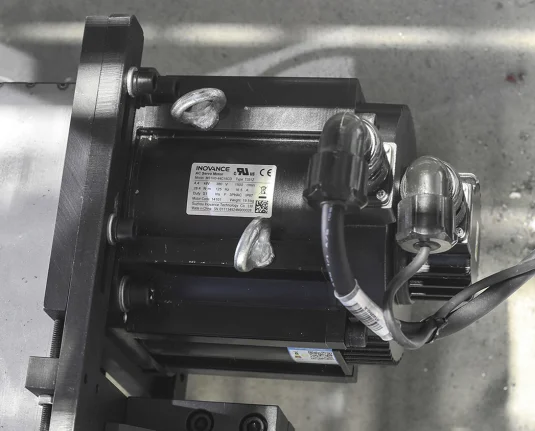

1.Full servo motor machine:with three servo motors for providing machine running fast and stable.
1)Servo motor on the paper feeding:
*The paper feedingworks continuously and stable, improve the work efficiency.
*The delivery length can be controlled by PLC.
2)servo motor on the main motor :
*The servo motor directly drives the belt, linear motion, reducing failure.
3)Servo motor on the box forming part:
*It can adjust the mold delivery distance by PLC, save the mold change time,and easy operation.




2.Hidden Electrical box
The design save the customer’s delivery cost, and reduce the workshop space occupied.




3.New sloping pathway
Paper feeding in fast speed will be too rush to make the paper out of the pathway, so we make the sloping pathway to prevent the paper forward inetance.

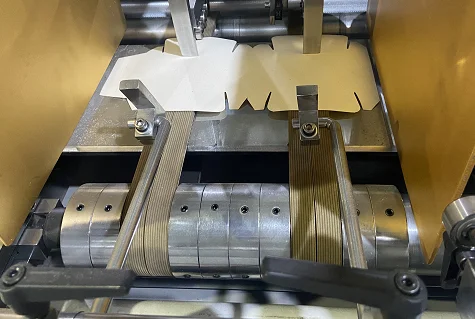

4.paper feeeding
It adopt the narrow and rough belt instead of wide belt, to increase the force of friction; the rotating wheel to assit the belt feeding continuously instead of the fix structure.

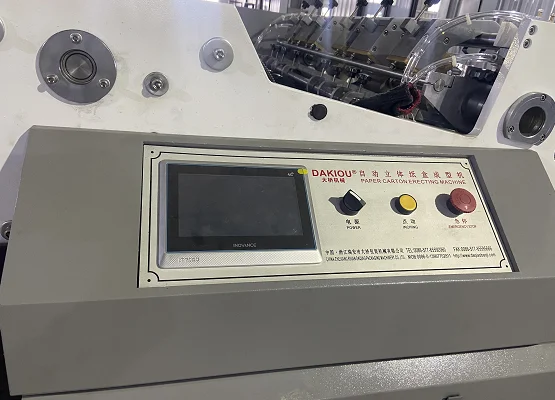

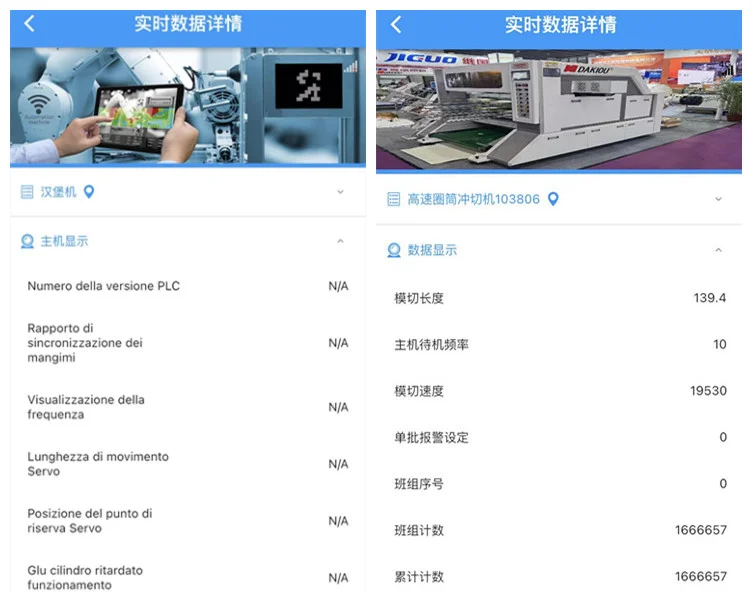

5. Touch screen
It adopt the IOT technology，we can update the machine program through internet，it is more  Convenient for our technique service support.

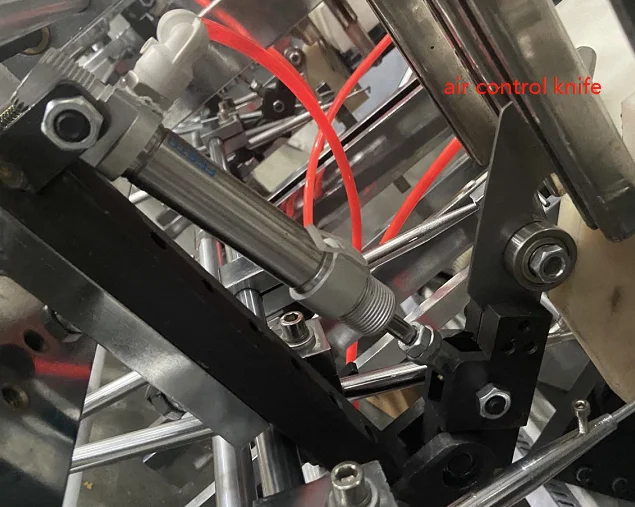

6.The pneumatic knife
1）The life is longer than old design spring knife
2）It can adjust the air pressure，make the strength average

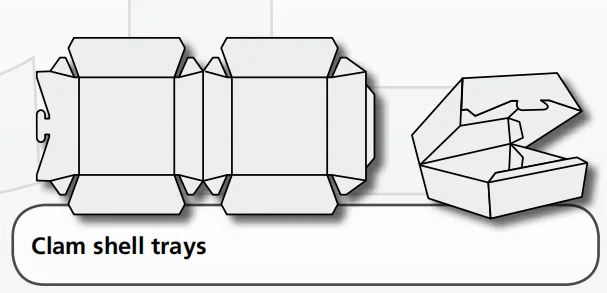

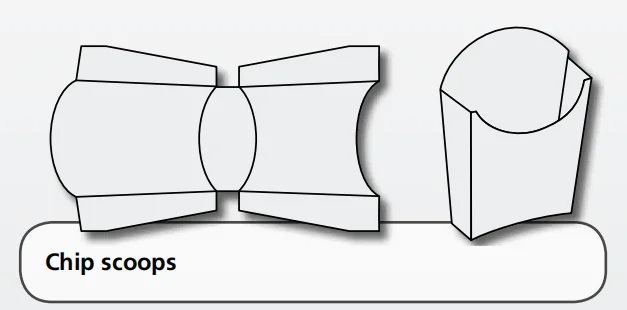

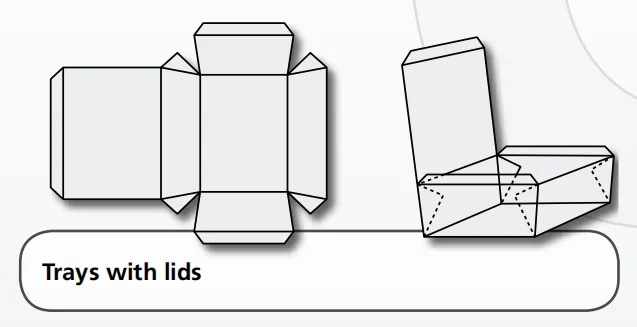

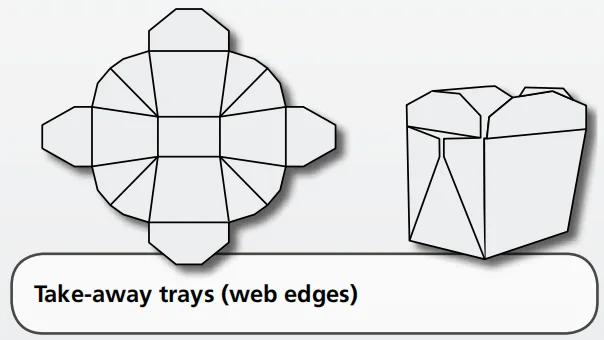

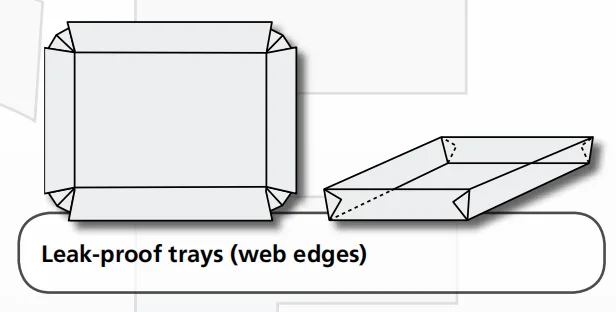

Box Type






Company Profile

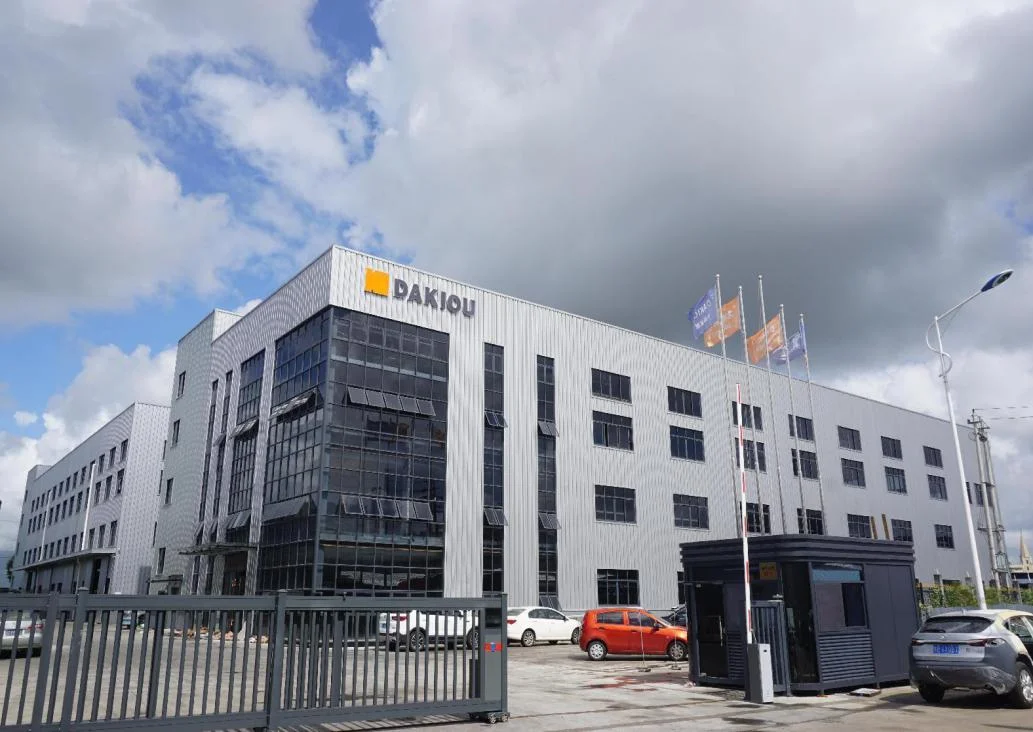

Company Profile
Ruian Daqiao Packaging Machinery Co.,Ltd（DAKIOU）,as a developer and manufacturer of carton erecting,paper cup,roll die cutting and other paper packaging machines,DAKIOU looks back on extensive experience and fast develop speed in this field. Start from 2002, high performance models have evolved thanks to the commitment and know-how of our employees, intensive research and development, and the steady exchange with our customers on their needs and ideas.






Our Team






Instead of the traditional mechanical process, we adopt the advanced computer-aided design software, AUTOCAD, SOLIDWORKS which provide advanced technology ensure the quality, efficiency, as well as the accuracy of the process drilling, cutting, milling, grinding and other key components of the machining process. The Standardized management system and the systematic quality assurance system prompt DAKIOU products become one of the world's most impeccable products.Our company successfully certified by IS09001 :2008 and products are approved CE certificate. We offer 360°service from advice to assembly, know-how meet technology for global customers.

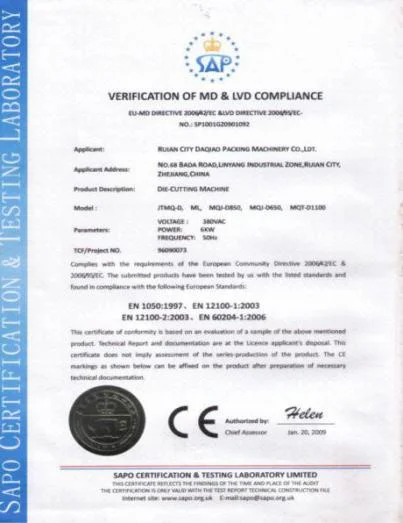

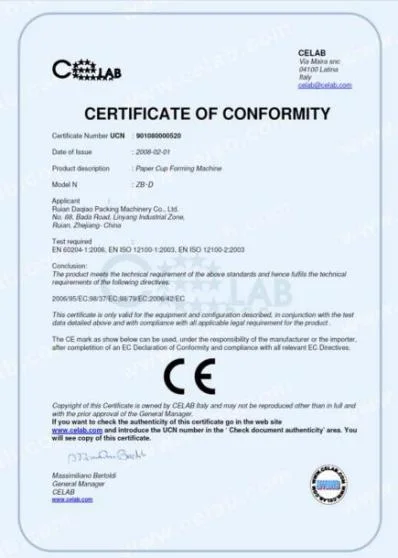

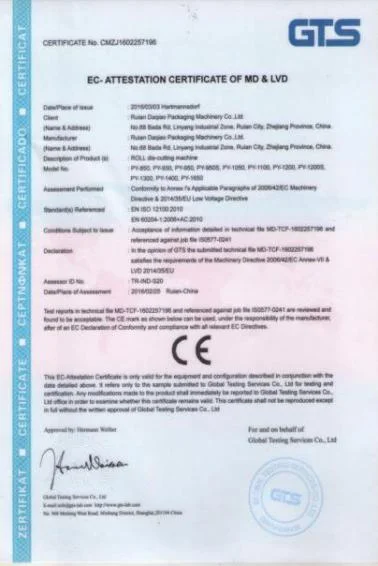

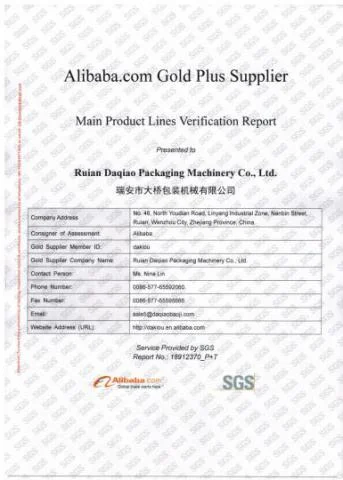

Certifications
