Best price automatic Construction Wire Mesh Welding Machine
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Anping Wanzhong Wire Mesh Products Co. Ltd.
Share on (1600550906913):
Product Overview
Description

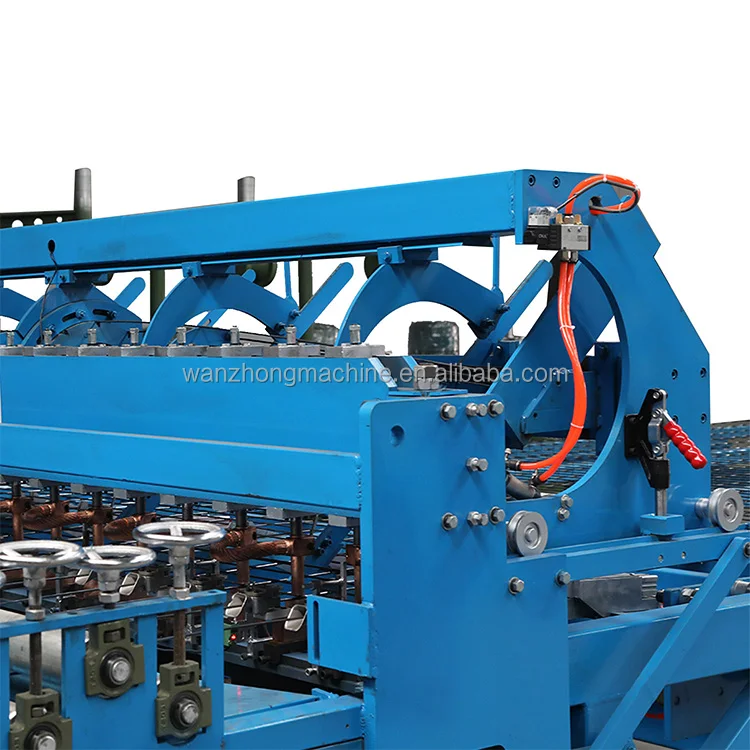

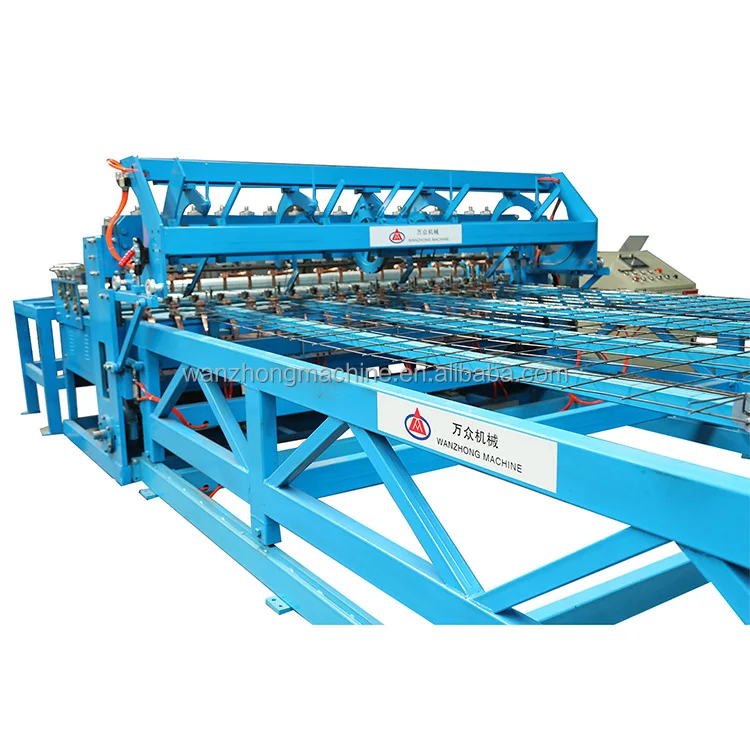

Construction Reinforce Wire Mesh Welding Machine
Product Description
Main Parameters:
| Type | WZ-1200A | WZ-1600A | WZ-2100A | WZ-2500A |
| Number of Electrodes | 24 | 32 | 40 | 48 |
| Max.Mesh Width | 1200mm | 1600mm | 2100mm | 2500mm |
| Wire Diameter | 2.5-6.0mm | 2.5-6.0mm | 3.0-6.0mm | 3.0-6.0mm |
| Cross Wire Space | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
| Line Wire Space | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
| Finished Products Way | Both Roll Mesh and Plate Mesh | |||
| Pulling Mesh Way | Servo Motor | |||
| Electric Capacity | 125KVA*3 | 125KVA*4 | 125KVA*5 | 125KVA*6 |
| Welding Speed | 60-80t/min | 60-80t/min | 60-80t/min | 60-80t/min |
| Control System | PLC control | PLC control | PLC control | PLC control |
Main Function and Advantages:

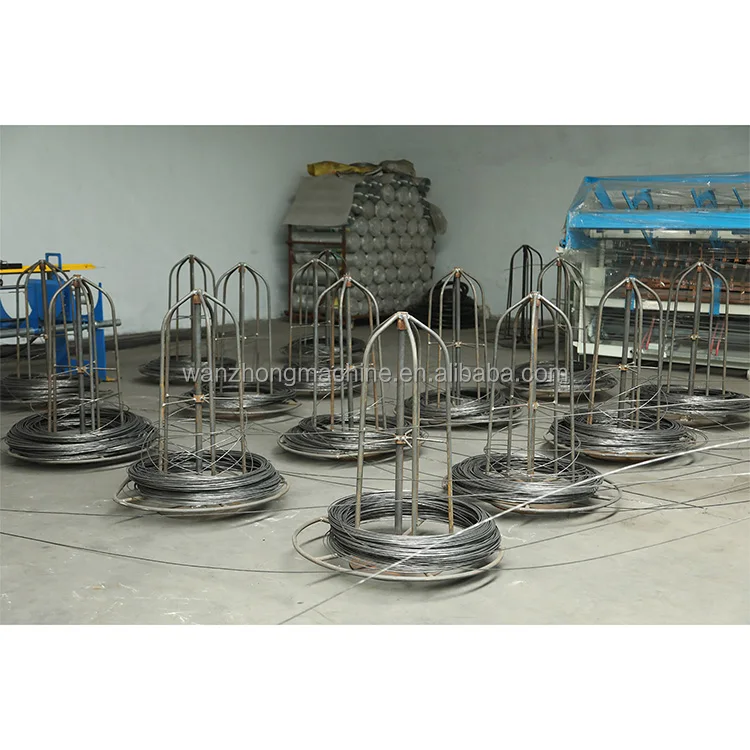

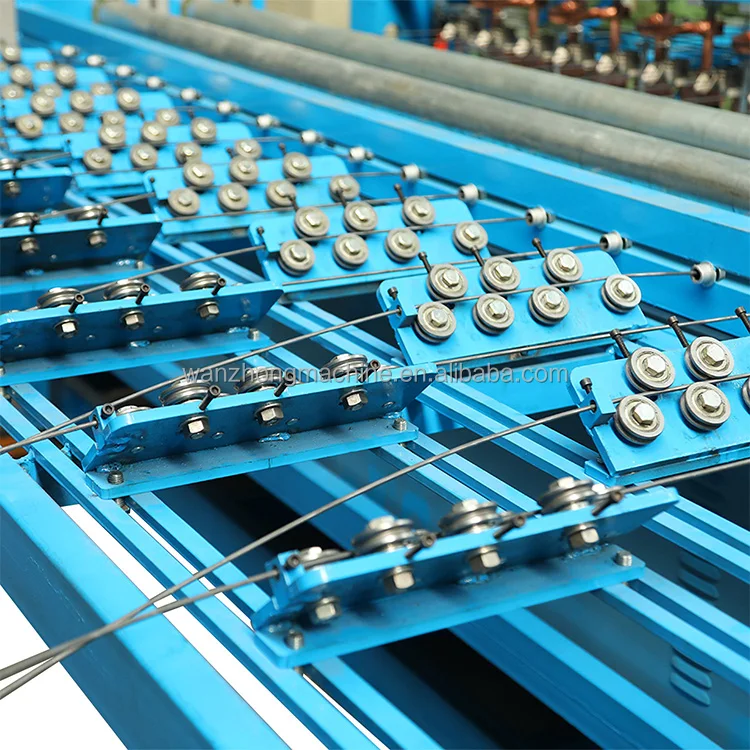

1 Our this mesh welding machine,the line wire feeding from coil automatically,which is more convenient and save labor,the total production line will need 3 workers ok;

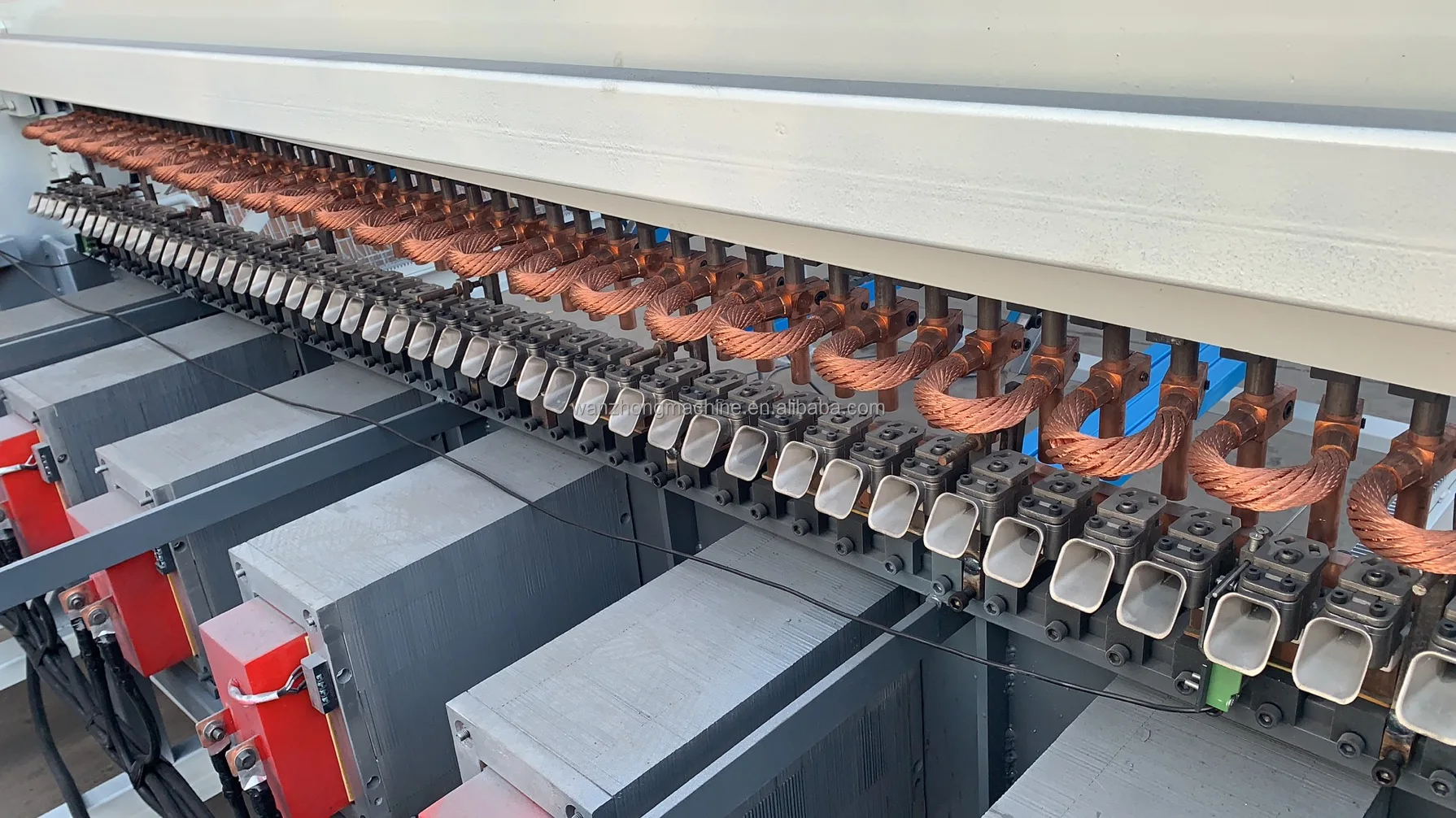

2 The welding transformers is our new model and installed with water cooling system,which prolong the service life,and this water is not wasted, can be recycled all the time;
3 Our welding pressure adopts mechanical spring,easy to adjust,which save the cost and maintenance cost is lower than other pneumatic model;
3 The cross wires are fed from pre-cut,which adopts step motor driven from the special hopper one by one;

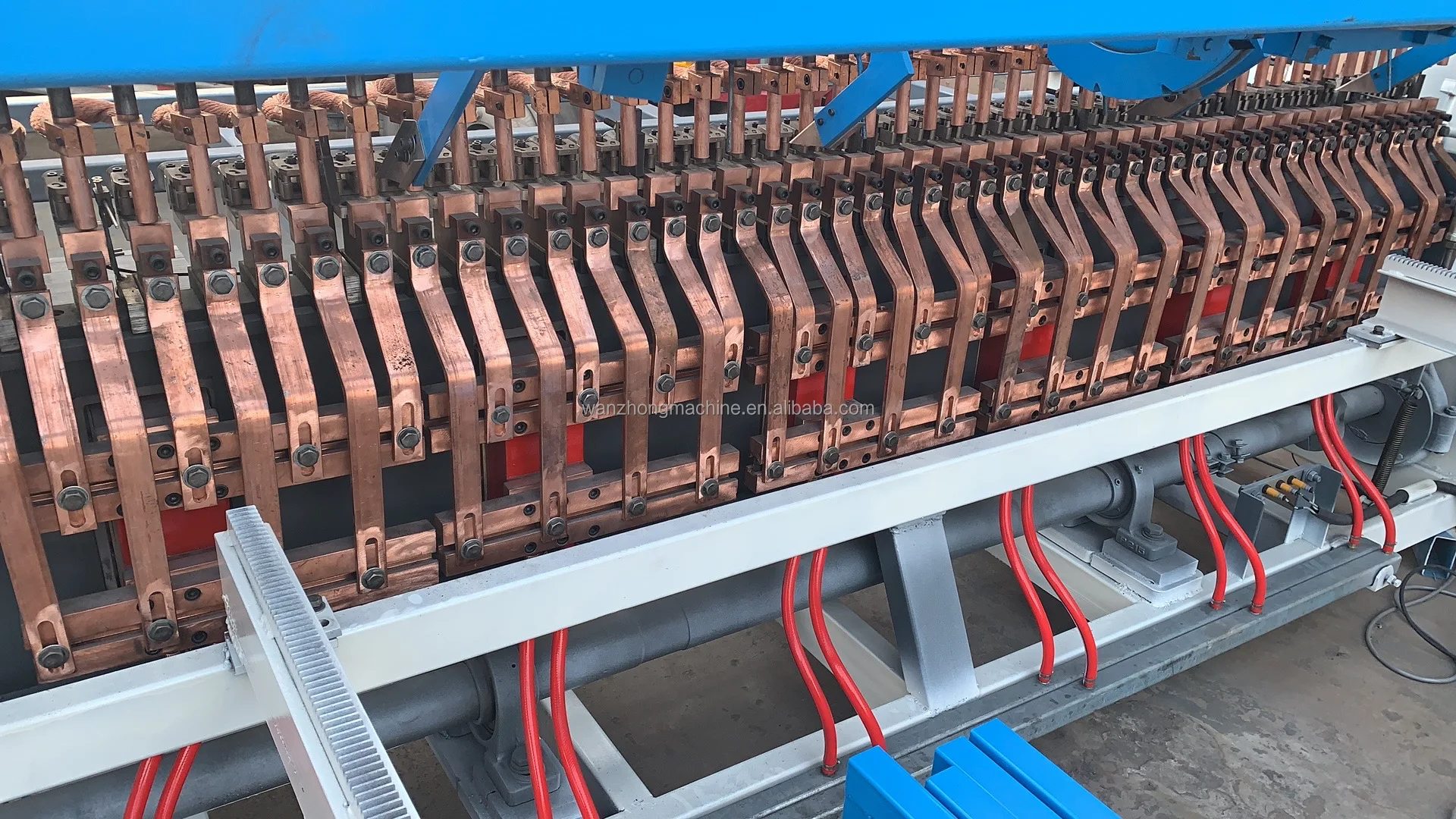

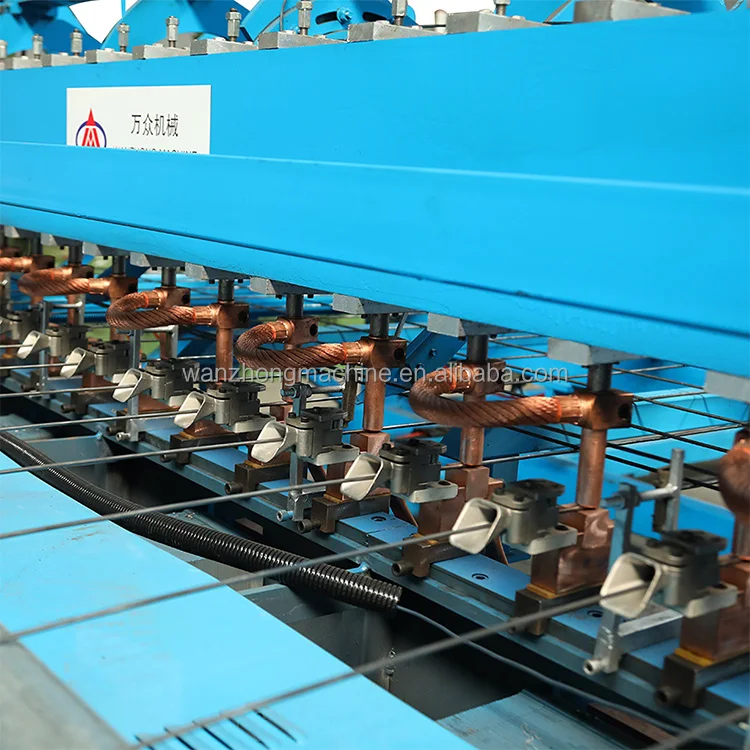

4 Every welding transformer is controlled by single microcomputer control ,cent-control welding one time pressure ,which is more intelligentialized.The controller will connect with the touch screen , and we can set the welding current and welding time on the touch screen ,which is very convenient,this machine will save energy greatly,in the theory,the production line will need only 12 degree electricity;
5 The cross wire testing devices are equipped . When the cross wire can’t suitably fall down or no cross wire, the machine will stop automatically,greatly avoid the occurrence of unqualified meshes;

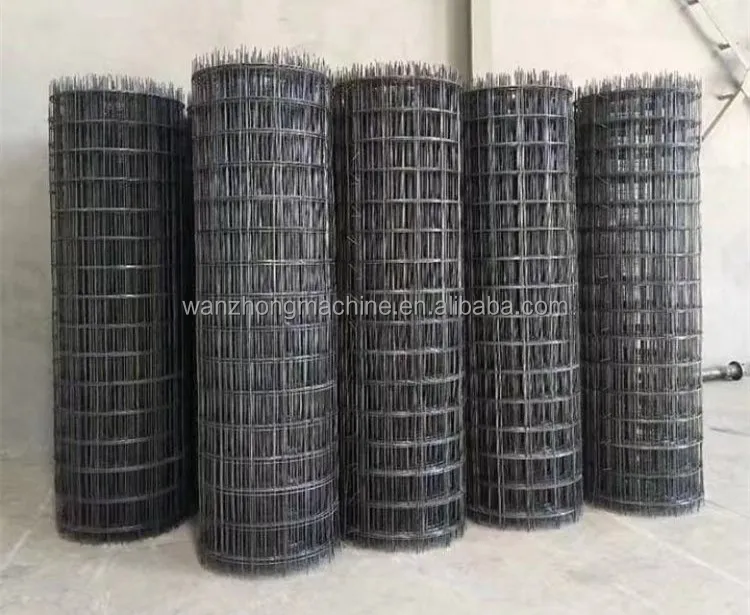

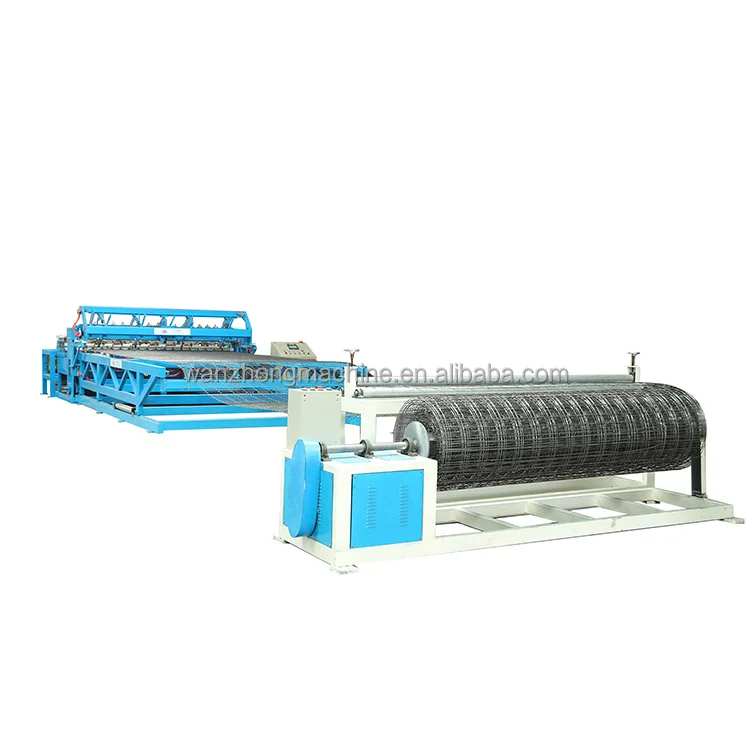

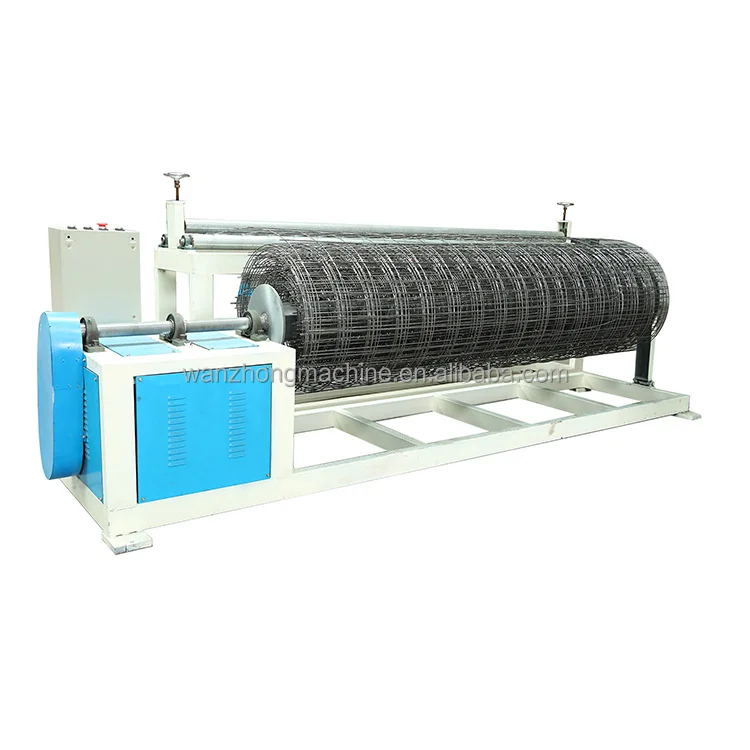

6 This machine can both produce mesh panels and roll mesh.
Customer's Evalution:
Packaging & Shipping
Our Services

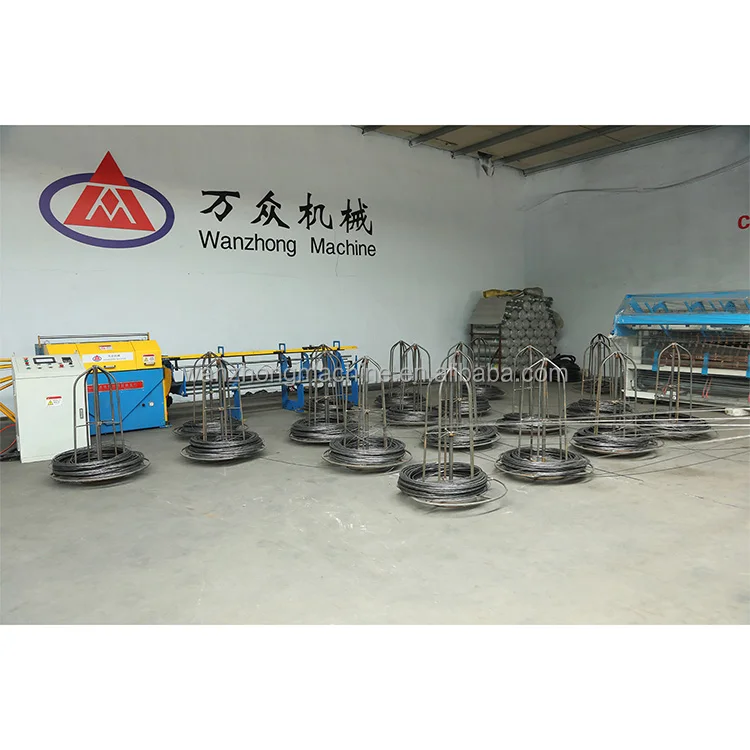

Company Information
FAQ NEW
Q:Are you manufacture or trading company?
A:We are manufacture,our factory set up on 2006,So we can give you a competitive price.
Q:Do you inspect the finished products?
A:Yes,we have QC departmengt,they will inspect the machine before shipping,to ensure there is nothing problem of the machine.
Q:Does the packing strong?
A:Yes,of course!All of our export packing,all to meet the export packing standards.
Q:How about after-sales service process?
A:We supply the detailed instructment and clear labeling in all the connecting place,thus our customers can try to install by themselves.
Surely,special technical engineers supply urgent technical support and consulting,at the same time,we assign the technical engineers to install and debug the machine according to our clients, then our clients will assume round-trip tickets,eating,accommodation costs and ensure they the personal and property safety, and pay 80 salaries per day.
Equipment Program part is life-long maintenance.
Q:How about the quality guarantee?
A:Usually one year. Within one year after the date when the goods reach the destination port if the parts (not including easily damaged parts ) are broken for reasons which are not human, the seller will change the same with a new one free of cost. but the buyer will pay for postage.Surely can be negotiable.
Q:How about the payment term?
A:T/T,L/C,trade assurance,we can all accept.
Q:Where is your factory?
A:Our factory located in wire mesh industrial zone,anping county,hebei province,china,welcome to visit our factory!
There is about two hundred and fifty kilometers away from Beijing Airport.
Q:Do you have import & export right?
A:Yes,we have,so we can export the carton machines to you directly,without any trading company agency.
