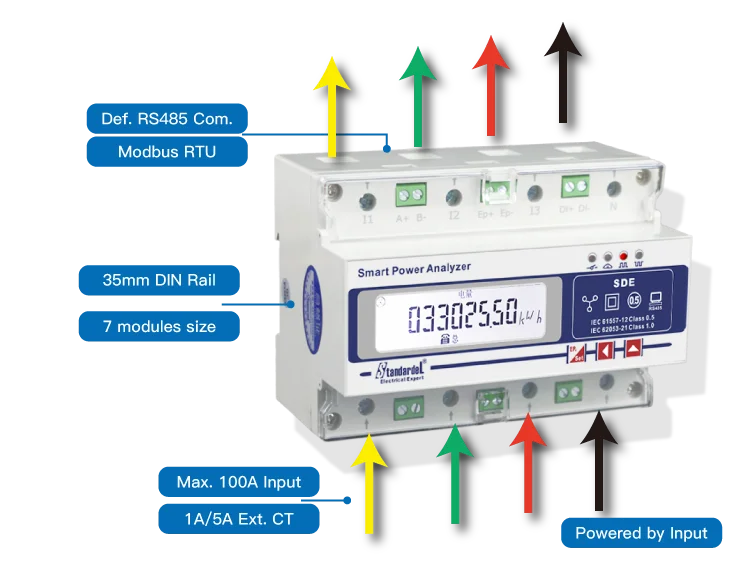

SDE600 high accuracy energy meter RS485 ct & direct input three phase four wire 100A ac energy meter



     SDE600 DIN rail power analyzer is designed special for energy management system (EMS). By its DIN rail installation, it is very suitable to be used with breakers, contactors. Besides electrical energies, it may measure all the parameters on the electrical networks, such as currents, voltages, active powers, reactive powers, apparent powers, frequency, power factors and 4 quadrant energies.
     We may connect up to 100A current to SDE600 directly. It has a 8 digits LCD display with backlight. By its front keys, you may easily check different display data or program its parameters. It has a RS485 interface to transfer the measuring data to other master devices, such as PLC, data center computers.
     SDE600 has good cost performance, as an intelligent unit and a digital electrical data collection unit, it has been widely used in many intelligent systems.

- Measuring: 30 parameters on AC electrical network:
             AL1, AL2, AL3(current senses), VL1, VL2, VL3, VL1-2, VL2-3, VL3-1, Fr,
             PL1, PL2, PL3, PL,QL1, QL2, QL2, QL, SL1, SL2, SL3, SL, PF1, PF2, PF3, PF,
             imp & exp kWh, L & C kvarh
- Display: With 8 digits white backlight, display range 000000.00~99999999 kWh;
                keep kWh value without power;
                dot will move according to energy value to 8 integer digits;
- Dimension: 7 modules (126×89×74mm);
- Current Input: 5A (Ext. CT), 16A, 32A, 63A, 100A;
- Line & Voltage Input:
             3P4L (3x57.7/100V, 3x127/220V, 3x230V/400V,3x240/415V);
             3P3L (3x100V, 3x220V, 3x380V)
- Power Supply: By Input;
- Communication: With 2 cables isolated RS485 interface up to 38400bps (Def. Modbus-RTU protocol);
- Pulse: kWh impulse output (comply DIN43864);
- Autodiagnosis: for wiring error alarm, check error reason by alarm code;
- Mounting: 35mm standard DIN rail installation;
- Software: With free testing software, to easily read its data and set its parameters by computer;
- Secondary Develop: provide DLL dynamic library and C# example, to develop you own software;

Q: Can I ask for sample ?
A: Yes, for sample orders, please order from our online shop.

Q: Are you trading company or manufacturer ?
A: We are factory located in Shanghai.

Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 10-15 days for the items out of stock.

Q: What is your terms of payment ?
A: Order amount less than $5000, 100% paid before shipment; order amount more than $5000,30% as deposit, 70% before shipment, or by negotiated for the both parties.

Q: Do you provide software ?
A: We have the free testing software for every model device. In the meantime, we also provide detection software to manage the device data, and charge of these software, you may demand our salers.
