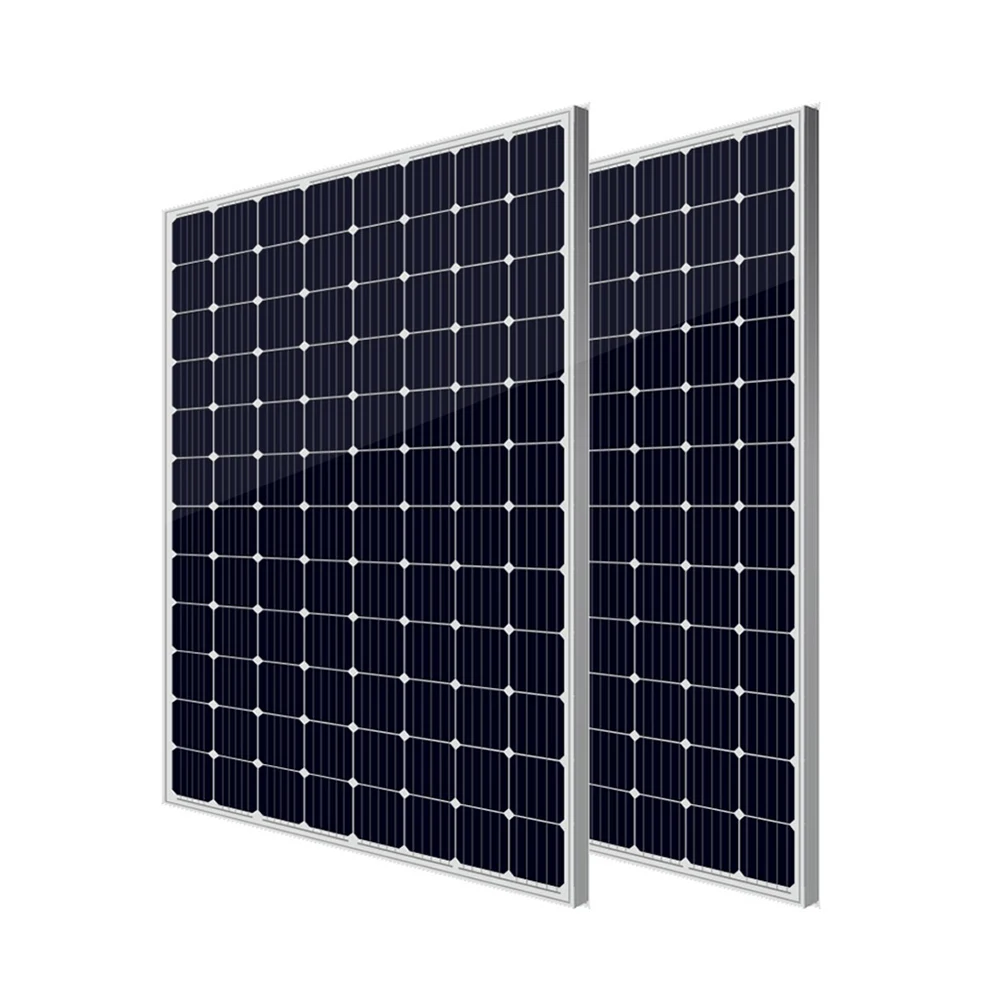

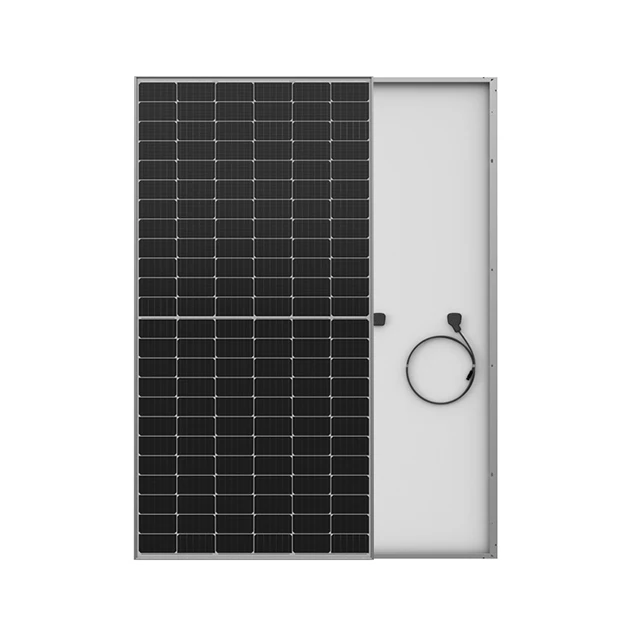

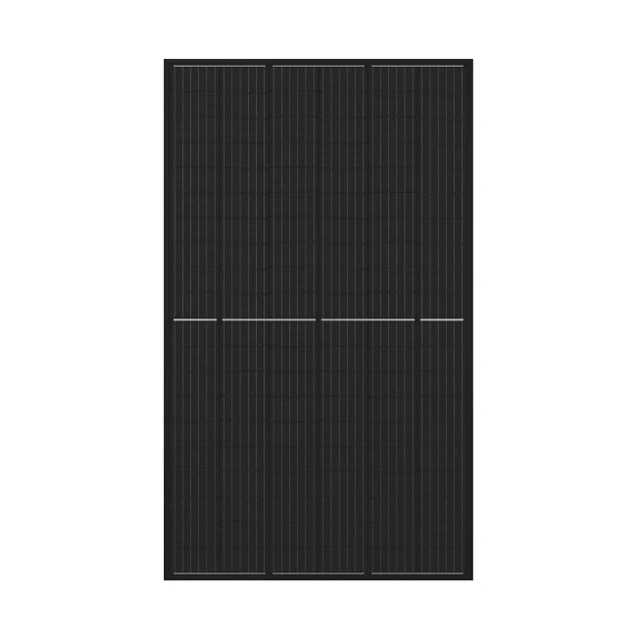

High quality Mono Solar Panels 550W for Solar Home System

Product Overview

Description



Electrical Data
(SCT:Irradiance 1000w/m2, module temperate 25℃,AM=1.5)
Power	540w	545w	550w
Open circuit voltage (Voc)	37.5	37.9	37.9
Max. power voltage (Vmp)	31.2	31.4	31.6
Short circute current (Isc)	18.41A	18.47A	18.52A
Max. power current(Imp)	17.3A	17.37A	17.40A
Power Tolerance	0~+5W
Max. system voltage	1000V
Operating temp	-40℃~85℃
NOCT	47±2℃
Temp. coefficient Isc	0.06%/℃
Temp. coefficient Voc	-0.34%/℃
Temp. coefficient Power	-0.42%/℃
