CE ISO 3000C laboratory heat treatment furnace carbon materials Graphitized carbon and carbon fiber composite materials
CX-GF- 20/30 VT is vertical top loading induction heating furnace with round hot zone shape. This model is ideal for various research applications and new materials development. Simple operation and easy maintenance process of this furnace, save time and budget in research projects. With maximum temperature up to 3000 ℃, Chenxin's laboratory furnaces are suitable for a wide variety of laboratory and small scale production applications. High level of temperature uniformity maximizing hot zone productivity.
Model | CX-GF 20/30 VT |
Configuration | Vertical, Top loading |
Max. Working Temperature | 3000 ℃ |
Continuous Working Temperature | ≥ 2850 ℃ |
Usable Space (mm) | Dia. * H: Φ200*300 |
Heating Power | ≤ 60 KW |
Frequency | 4000 Hz (auto-track) |
Ultimate Vacuum | 1.2 * 10-3 mbar |
Optional High Vacuum | 6.7 * 10-5 mbar |
Working Atmosphere | High Vacuum (Optional) / Vacuum / Inert Gas (Ar or N2) |
Supply Power | 3 N/PE, AC/380V, 50/60Hz |
Cooling Water Pressure | 1.5 - 2.5 bar |
Cooling Water Temperature | ≤ 28℃ |
Overall Dimension (L*W*H, mm) | Overall Dimension (L*W*H, mm) |
Weight (KG) | 1500 |
Main Application:

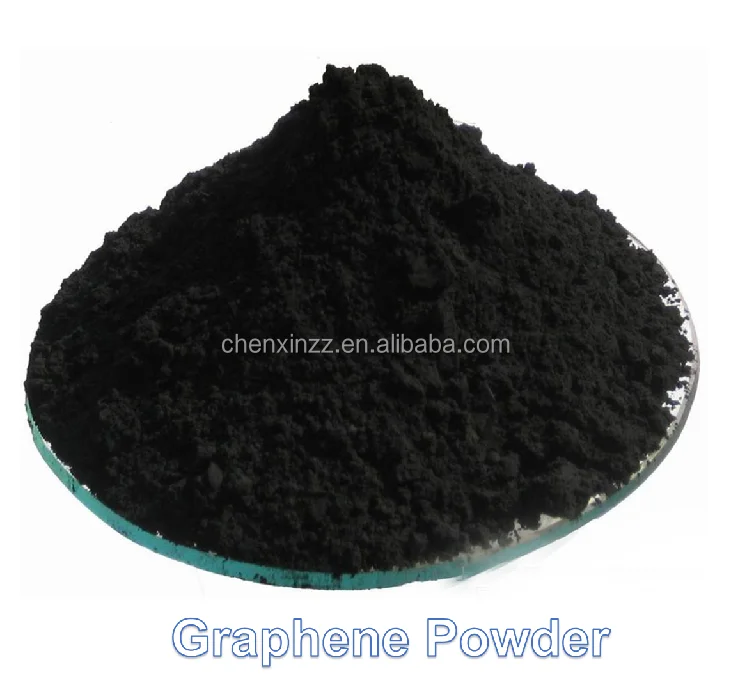

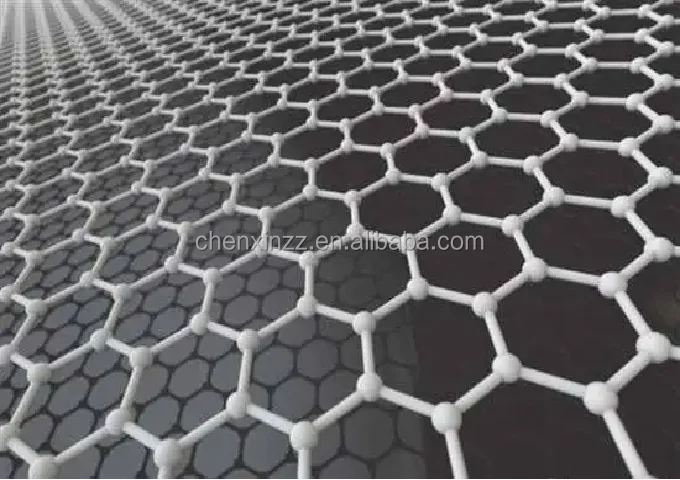

Carbonization and Graphitization treatment of carbon materials, like synthetic graphite film (Polyimide graphite flake and abbreviated PI film), carbon fiber, C/C composites, Graphene, Lithium battery negative electrode materials, VGCF negative material, etc. Purification of Carbon Nanotube (CNT), Natural Graphite, etc. Sintering of high temperature ceramics, other
materials which can be sintered or heated in graphite hot zone (carbon included environment).
materials which can be sintered or heated in graphite hot zone (carbon included environment).
About Graphitization:
Graphitization is a heat treatment process of carbon materials at high temperatures to form graphite structure. By graphitization, electrical conductivity, thermal conductivity, heat resistance, and mechanical strength are increased, and weight is reduced.
By these properties, graphite is used in various applications such as battery materials, electronic components, and aircraft components, and is attracting attention as a high value-added technology, and is expected to be applied in various fields.
Lithium battery material

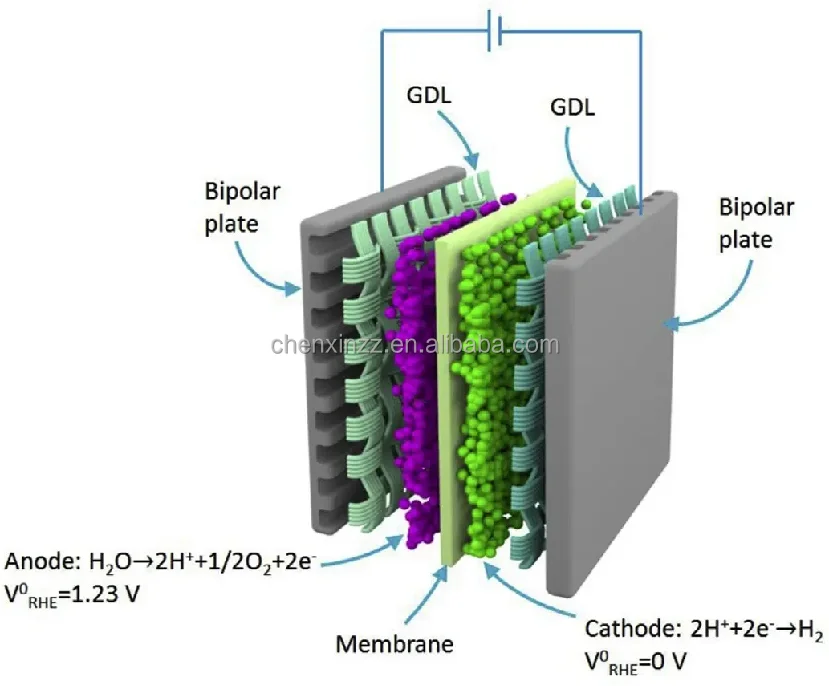

Graphitized carbon is used as an anode material for lithium-ion secondary batteries widely used in automobiles, mobile phones, notebook computers and so on. It is also applied to fuel cell materials and is highly expected as a new energy material.
Electronic components

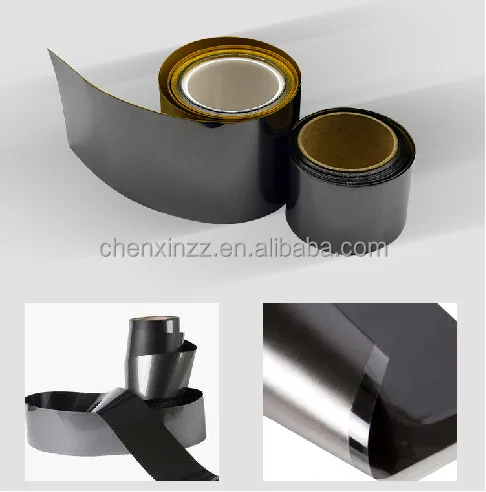

Graphite sheet is made by graphitizing a specific polymer sheet, and is used as an excellent heat dissipation sheet because of its high thermal conductivity, flexibility and workability. It is used in mobile phones, notebook computers, and LCD TVs
Aerospace parts
Graphitized carbon and carbon fiber composite materials have high heat resistance and are used in parts exposed to high temperature such as aircraft engine components and heat-resistant tiles for space rockets. They also have excellent acoustic, vibrational and impact properties.

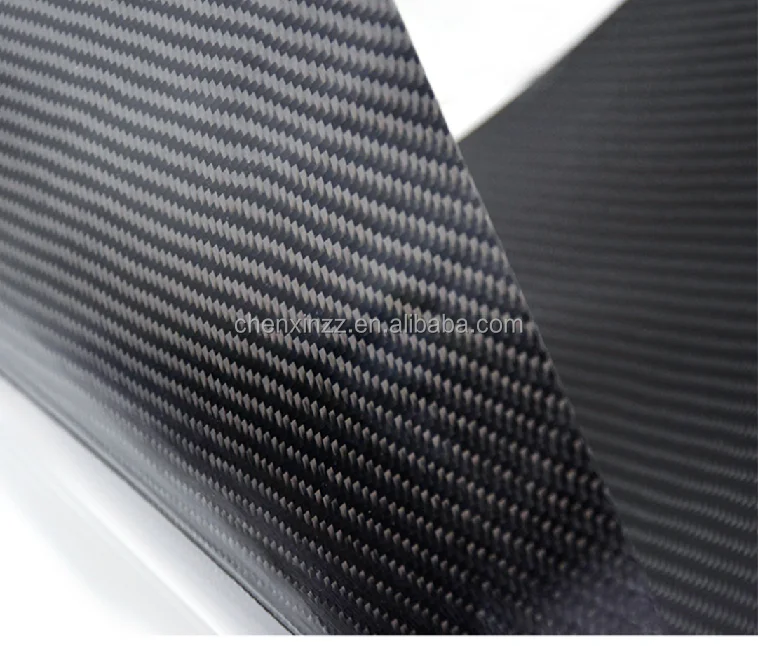

carbon fiber
Graphitized carbon fiber has excellent tensile and bending properties, and is used as a lightweight, durable and
corrosion-resistant reinforcement and structural materials.
corrosion-resistant reinforcement and structural materials.
Furnace Structure
