QS Motor 16inch 3000W 260 40H V4 Brushless DC Electric Scooter Motorcycle Hub Motor

Share on:

Price in USD:Details


Product Overview

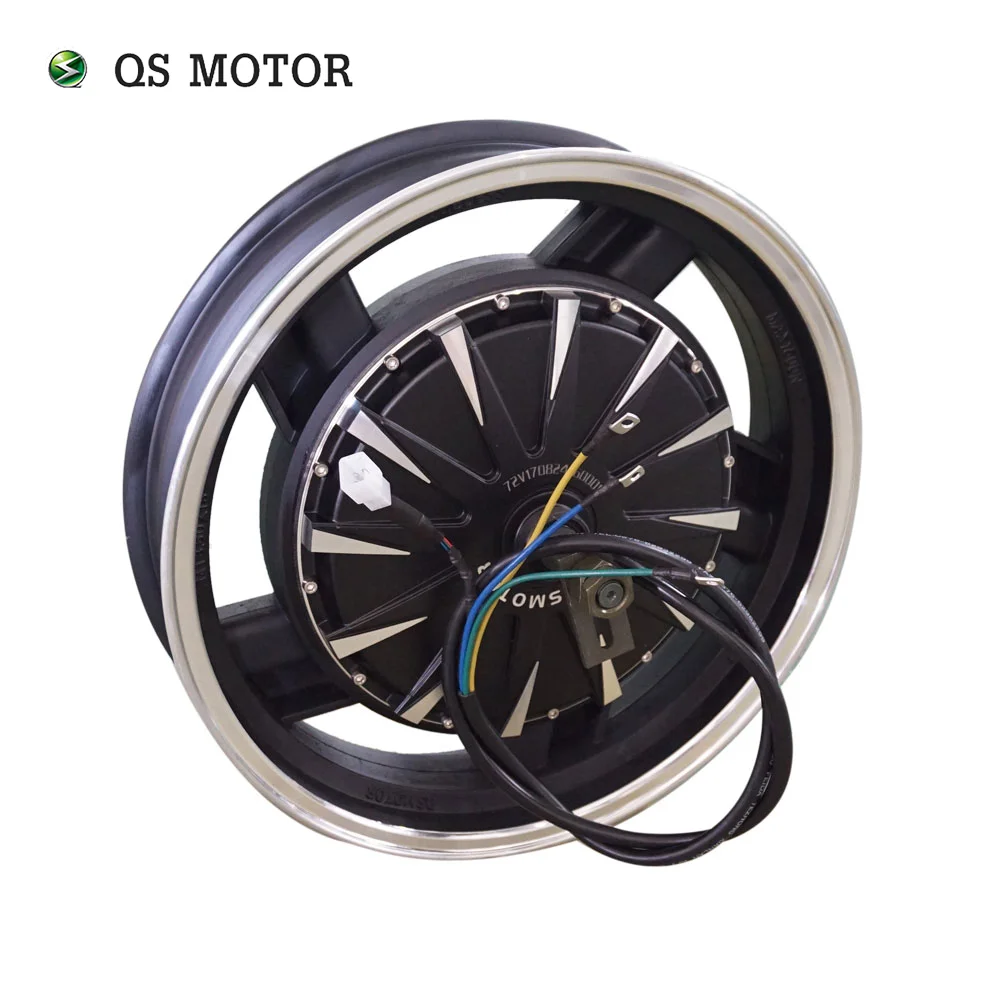

QS Motor 16inch 3000W 260 40H V4 Brushless DC Electric Scooter Motorcycle Hub Motor

For 16inch E-Motorcycle wheel hub motor, it could be used electric motorcycle.

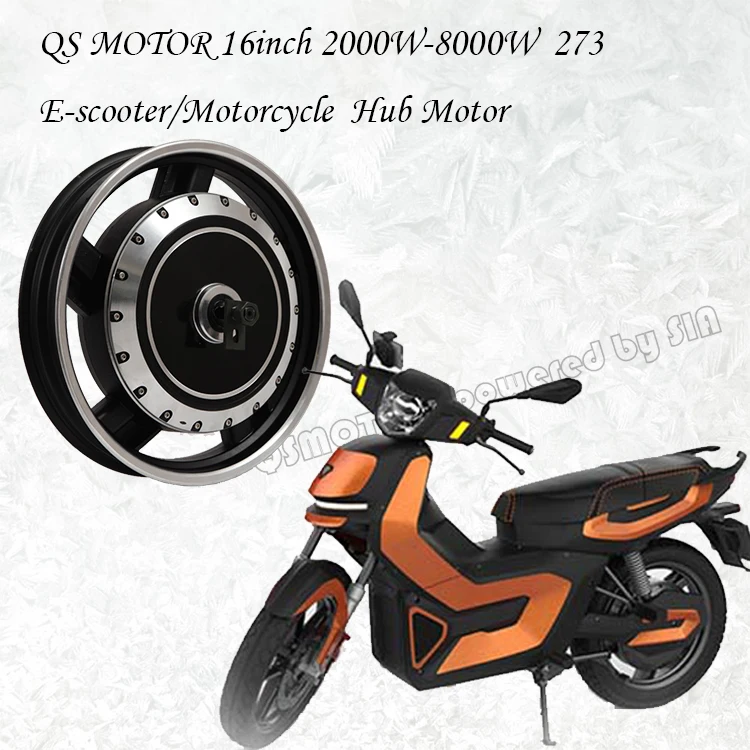

It's high cost effective compare to 16inch 273 E-scooter Hub Motor.

260 motor means the diameter of iron ring/hoop of rotor is 260mm, for all 260 motor, e.g. 12inch,13inch & 14inch 260 e-scooter hub motor, etc., the configuration & performance are the same.


There has only one width of wheel:

Narrow Tire 16X3.5inch (as default), max. 5000W 260 45H V3, it's integrated wheel design.


Key Features


1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%




PS.1). Above quotation base on 260 16inch electric scooter wheel hub motor, 48V~96V.

2). Above configuration is suggested for mass production,

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

Since 2019, all 260 V3 has updated to V4 version, it has better performance than previous V3, with higher speed and stronger torque.


Product description


Genearlly Spec:

  • Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

  • Brand: QS Motor, QSMOTOR

  • Motor Design: Double axle with 16inch moped rim (integrated)

  • Rim Size:16x3.5inch(Narrow Tire as default), matched tire: 120/70-16 etc

  • Magnet Height: 40mm, 16 pole pairs

  • Stator: Aluminum Core

  • Rated Power: 3000W

  • Speed: 30KPH-80KPH, it's customized, genearlly we will design as 72V75KPH.

  • Work voltage range: 48V-96V, will be 72V as default.

  • Max Torque approx 227.0N.m

  • KV: 8.0/10.8/11.8/12.9/14.3/16.25(optional)

  • Thermic Probe: KTY83-122 (as default, optional)

  • Max Efficiency approx 88%

  • Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

  • Drop-outs: 200mm

  • Dual Halls with waterproof connectos(One for spare, in case of damage)

  • 10mm² Phase Wire

  • Waterproof Grade: IP54

  • Color: Black (As default)


Dimension Drawing:

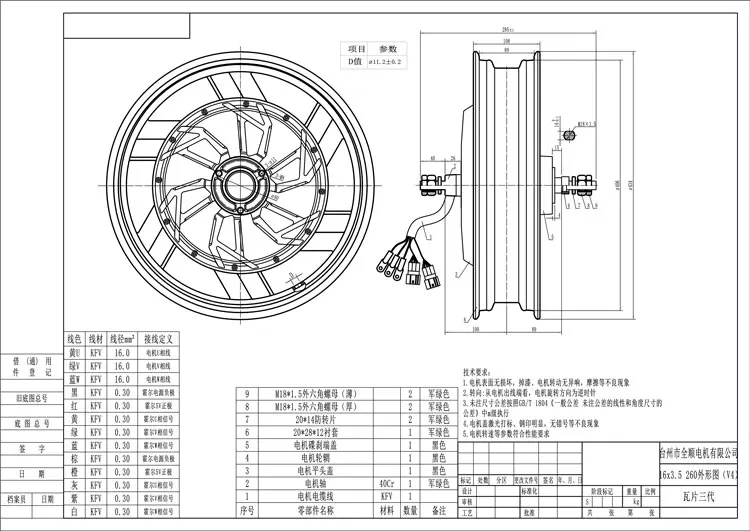

  • 16*3.5inch 260 in-wheel hub motor(Integrated)

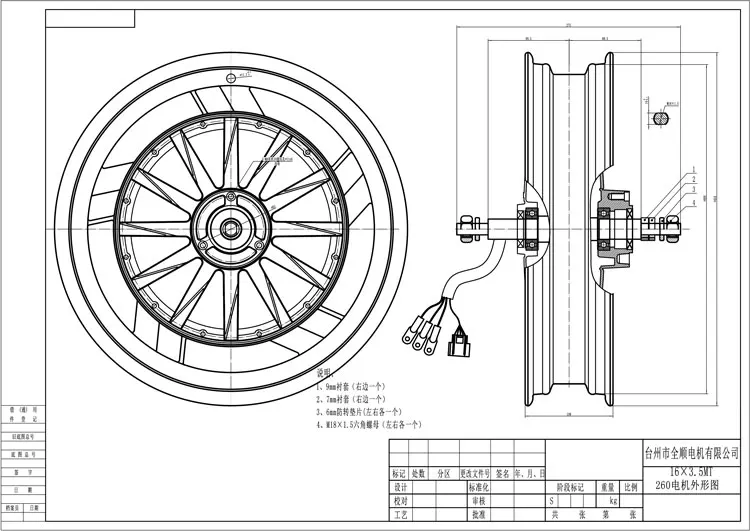

  • 16*3.0inch 260 V4 in-wheel hub motor(Integrated)

Please noted:


Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

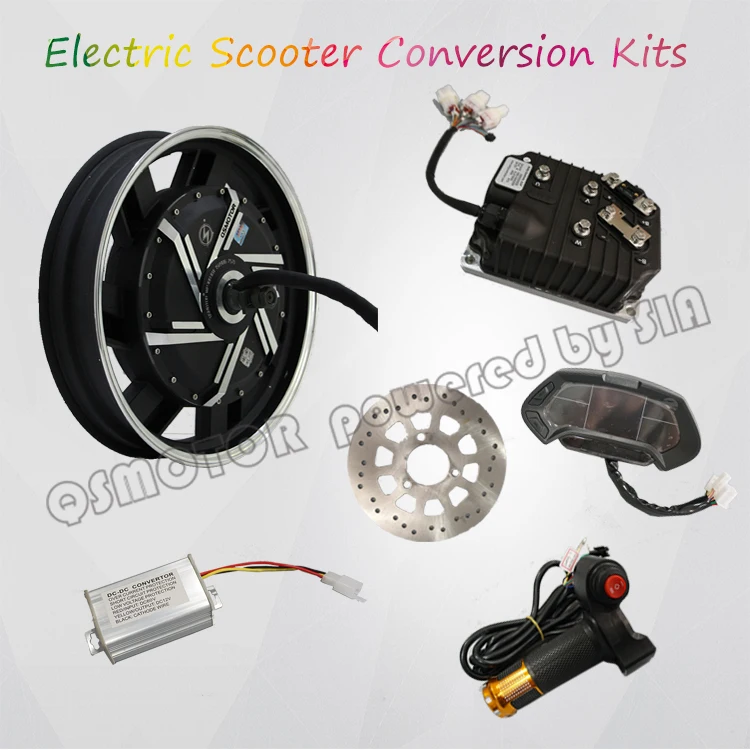

Conversion kits for 16inch in-wheel hub motor


We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.



Application for 16inch in-wheel hub motor
