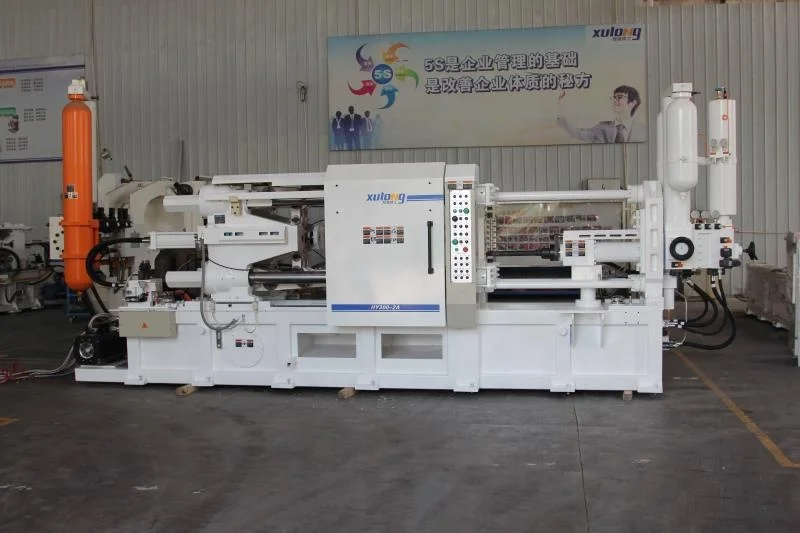

Metal Pressure Injection Molding Aluminium Die Casting Machine For Auto Parts

Metal Pressure Injection Molding Aluminium Die Casting Machine For Auto Parts

Category: Metal & Metallurgy Machinery >>>
Supplier: Anhui Xulong Precision Industry Co. Ltd.

Price:$39,280.00 - $41,570.00

Quantity:

Product Overview

Description

Product Description

Metal Pressure Injection Molding Aluminium Die Casting Machine For Auto Parts

* High performance: the maximum air injection speed ≥8M/S,pressurized construction time ≤15MS
* High reliability: According to the latest structure and manufacturing process design of the famous foreign die casting machine factories, the injection system, the heart part of a die casting machine, is capable of various harsh working conditions to achieve high stability and precision production because of its high rigidity, high reliability and high durability.
* High-speed production:According to the new structure design of the most advanced die casting machine made by foreign famous factories, the reliable of high reliable injection system and express clamping system can be greatly improved than traditional die casting machine, and it can realize high-speed production, which can increase the quantity by more than 15%.

300T Cold Chamber Die Casting Machine
Project	Unit	Technical Parameter
Die Locking Force	KN	≥3000
Space Between Tie Bars	MM	580x580
Tie Bar Diameter	MM	φ110
Locking Stroke	MM	≥450
Die Thickness	MM	250~650
Ejection Stroke	MM	≥100
Ejection Force	KN	≥140
Injection Force	KN	158~340
Injection Position(0 as the center)	MM	0~ -160
Plunger Diameter	MM	φ50	φ60	φ70
Injection Weight(Aluminum)	KG	1.6	2.3	3.2
Injection Pressures	Mpa	152	106	78
Cast Projection Area	CM²	184	264	358
Max Cast Projection Area	CM²	750
Height of Pressure Chamber Flange	MM	12-0.05
Plunger Penetration	MM	≥160
Injection Stroke	MM	≥460
Dry Cycle	S	10
System Working Pressure	Mpa	14
Motor Power	KW	18.5
Machine Weight	KG	13000
Machine Dimension(LxWxH)	MM	6600X1620X2950

Detail Images:

Ejection Part

Ejection Control

Injection Part

Proportional Divider

Lubricating System

Electric Cabinet

Clamping Unit

Clamping Control

Injection Control

Adjustable Template

Products Features:

* Oil hydraulic system adopts proportional controlled system pressure and flow, achieves multi-stage pressure & speed control, and low pressure die clamping protection function.

* Injection speed and pressure are controlled by four stages, position and location are the two ways to supercharge.

* High-speed casting template ,high tension alloy steel Corinth column(tie bars),electroplated chrome outer layer.
* Adopt Omron PLC control system(touch screen) to make sure cast product data storage and monitor capabilities, timely alarm in case of abnormality, and eliminate larger quantities of defective products.

* Omron PLC control system(touch screen) is powerful, stale and reliable operation.

* Hydraulic driver gear die regulating device.

* Reliable and durable foreign brand electrical appliances and hydraulic components.

* Central electric lubrication system.

* Rapid hydraulic ejecting device and core puller.

Company Introduction

Anhui Xulong Precision Industry Co,.Ltd is a professional manufacturer,specialized in manufacturing various types die casting machine.In the past 35 years,our products are welcomed by many customer from all over the countries,and earned good reputation in domestic and overseas market because of advanced manufacturing technology,strict quality control,perfect quality management system and our creative spirit.

Office Inner

Honor Wall

Office Building

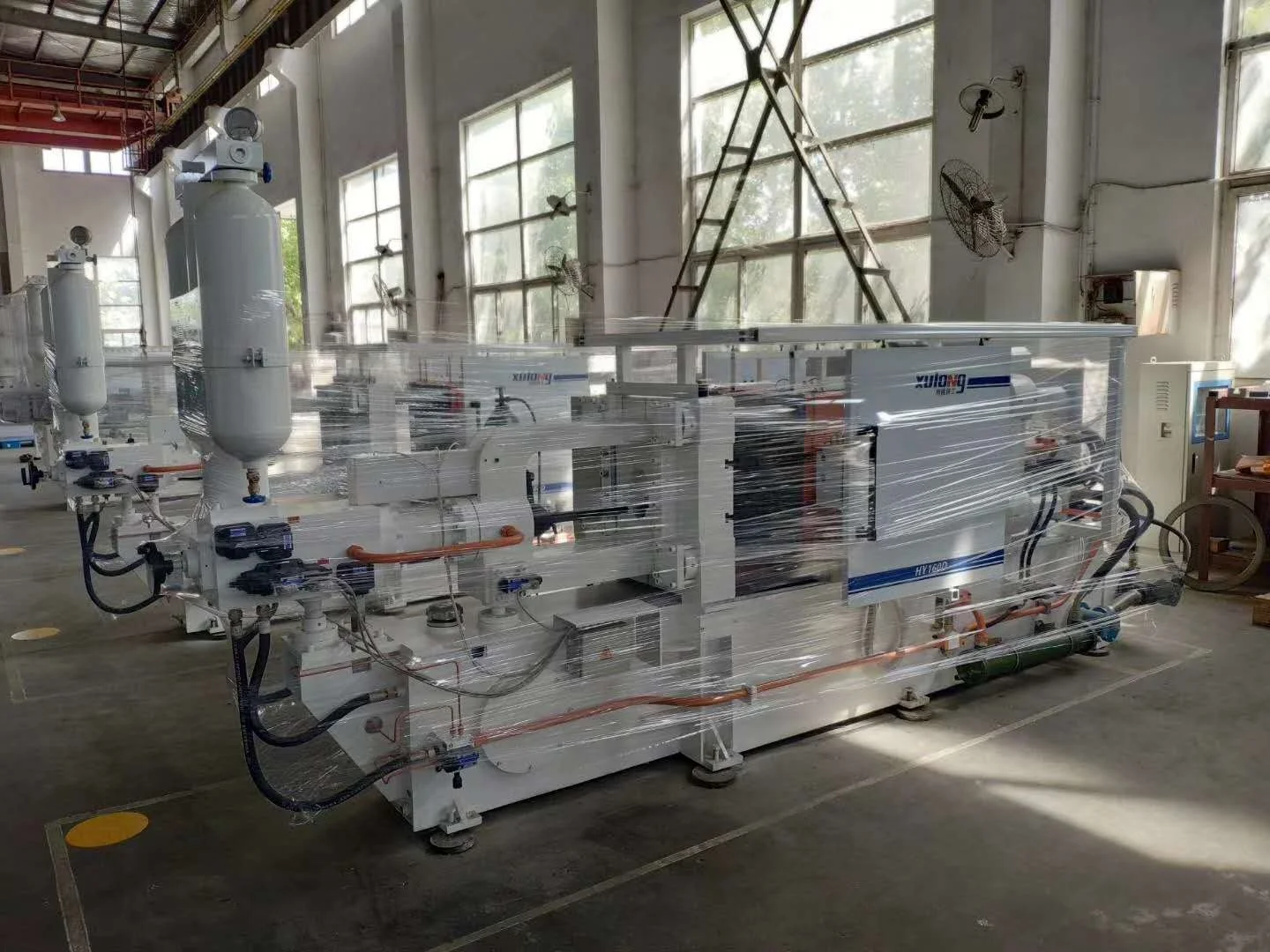

Package &Shipping
