Best selling 10inch 2000W 205 45H V3 Brushless DC Electric Scooter Single Shaft Hub Motor

Share on:

Price in USD:Details


Product Overview

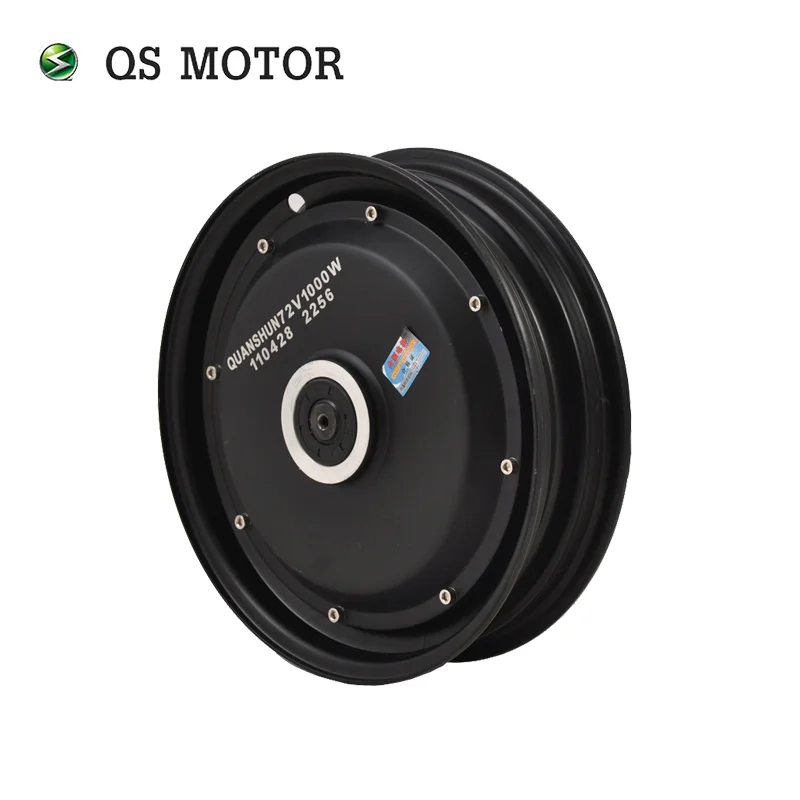

Best-selling 10inch 2000W 205 45H V3 Brushless DC Electric Scooter Single Shaft Hub Motor

For 10inch E-Scooter wheel hub motor, it could be used for electric scooter, small electric car.

There are three width of wheel,10X2.15inch(500w-3000w), 10X3.0inch(500w-3000w),10x5.5inch(customized type, 1000w-4000w)for choice.

We offer narrow tire,10X2.15inch as default.


Key Features


1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%



PS.1). Above quotation base on 205 electric scooter wheel hub motor, 48V~72V.

2). Above configuration is suggested for mass production,

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

Product description


Genearlly Spec:

  • Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

  • Brand: QS Motor,QSMOTOR

  • Motor Design: Single axle with 10inch moped rim (integrated)

  • Rim Size:10x2.15inch(Narrow Tire as default), matched tire:3.0-10,3.5-10 etc

  • 10x3.0inch(Wide Tire), matched tire: 130/90-10 etc

  • P.s.: For Wide tire design, the additional cost will be $3.5/pcs

  • Magnet Height: 45mm, 16 pole pairs

  • Stator: Aluminum Core

  • Rated Power: 2000W

  • Speed: 30KPH-70KPH, it's customized, genearlly we will design as 72V60KPH.

  • Work voltage range: 48V-96V, will be 72V as default.

  • Max Torque approx 168.0N.m

  • KV: 8.5/9.6/10.4/11.9/13.1/14.6/16.4 (optional)

  • Thermic Probe: KTY83-122 (as default, optional)

  • Max Efficiency approx 88%

  • Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

  • Dual Halls with waterproof connectos(One for spare, in case of damage)

  • 8mm² Phase Wire

  • Waterproof Grade: IP54

  • Color: Black (As default)


Drawing for 10inch in-wheel hub motor:


1. 10*2.15inch in-wheel hub motor:

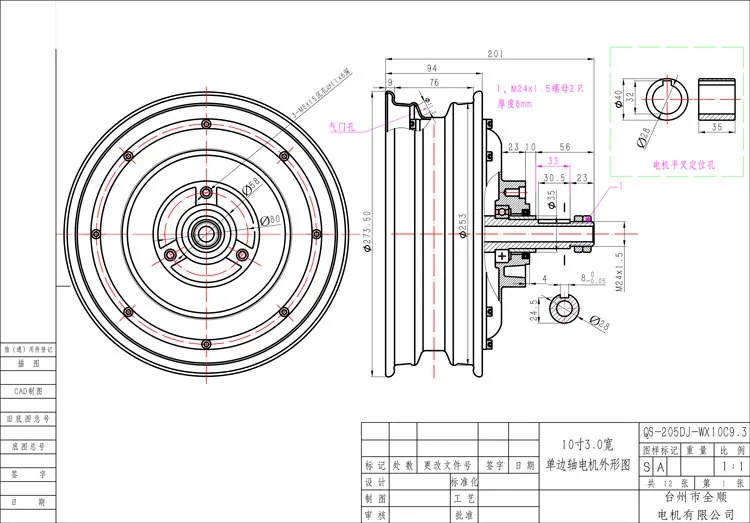

2. 10*3.0inch in-wheel hub motor:


3. 10*5.5inch in-wheel hub motor:


Please noted:


Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Conversion kits for 10inch in-wheel hub motor


We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

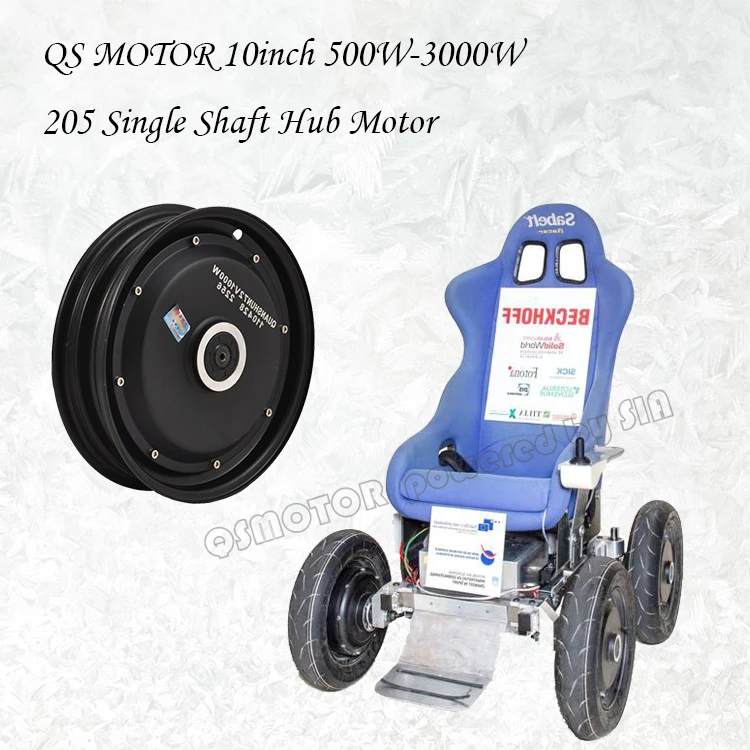

Application for 10inch in-wheel hub motor
