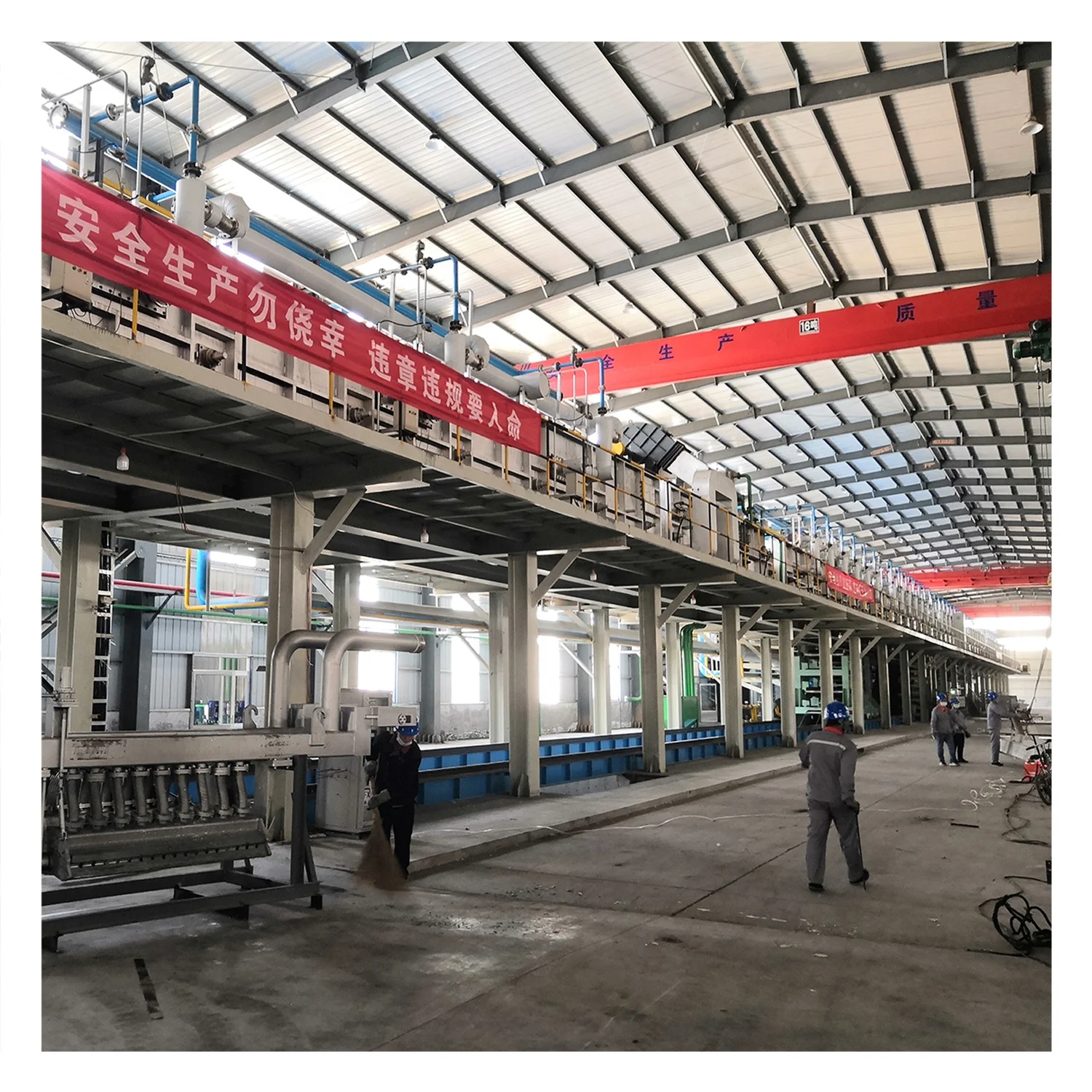

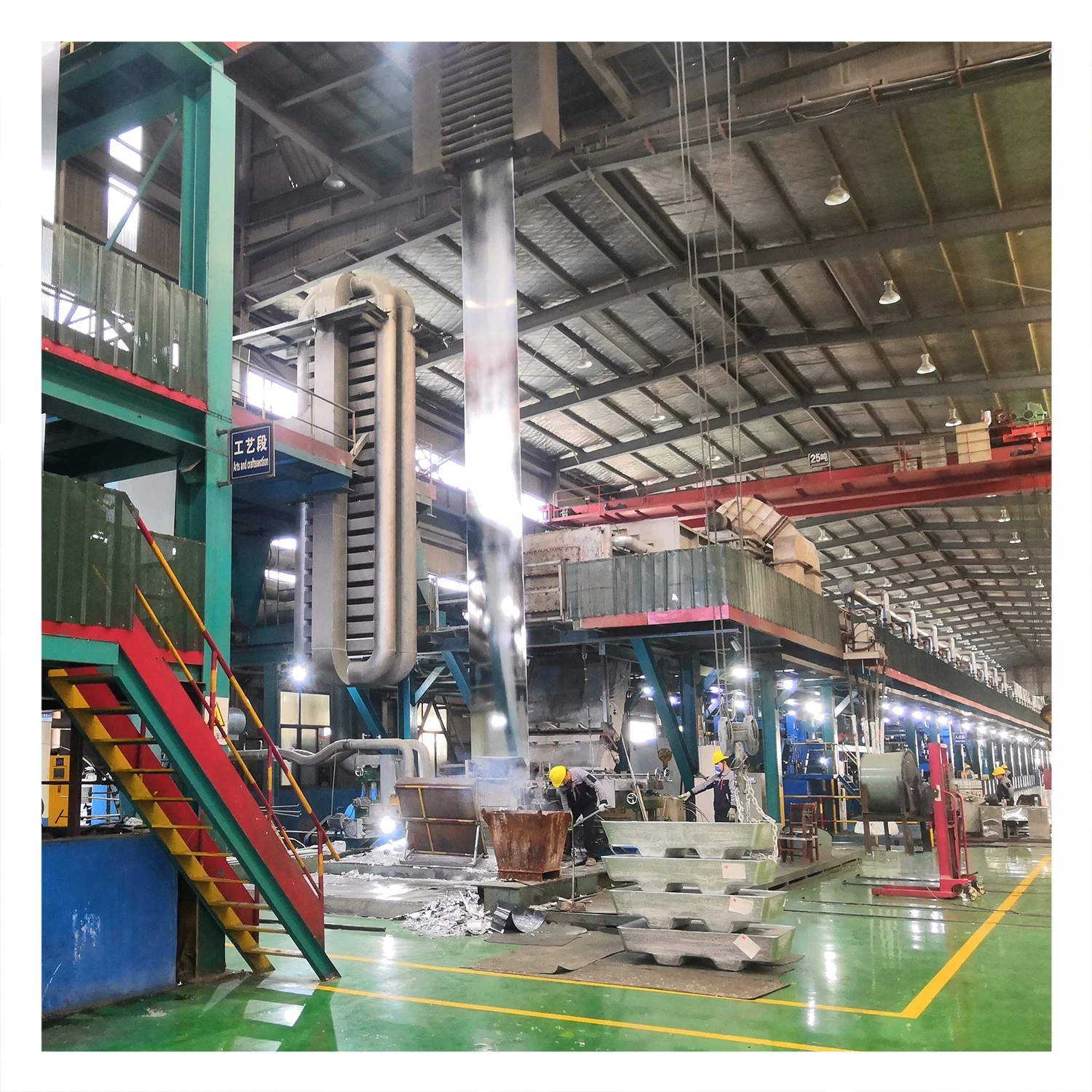

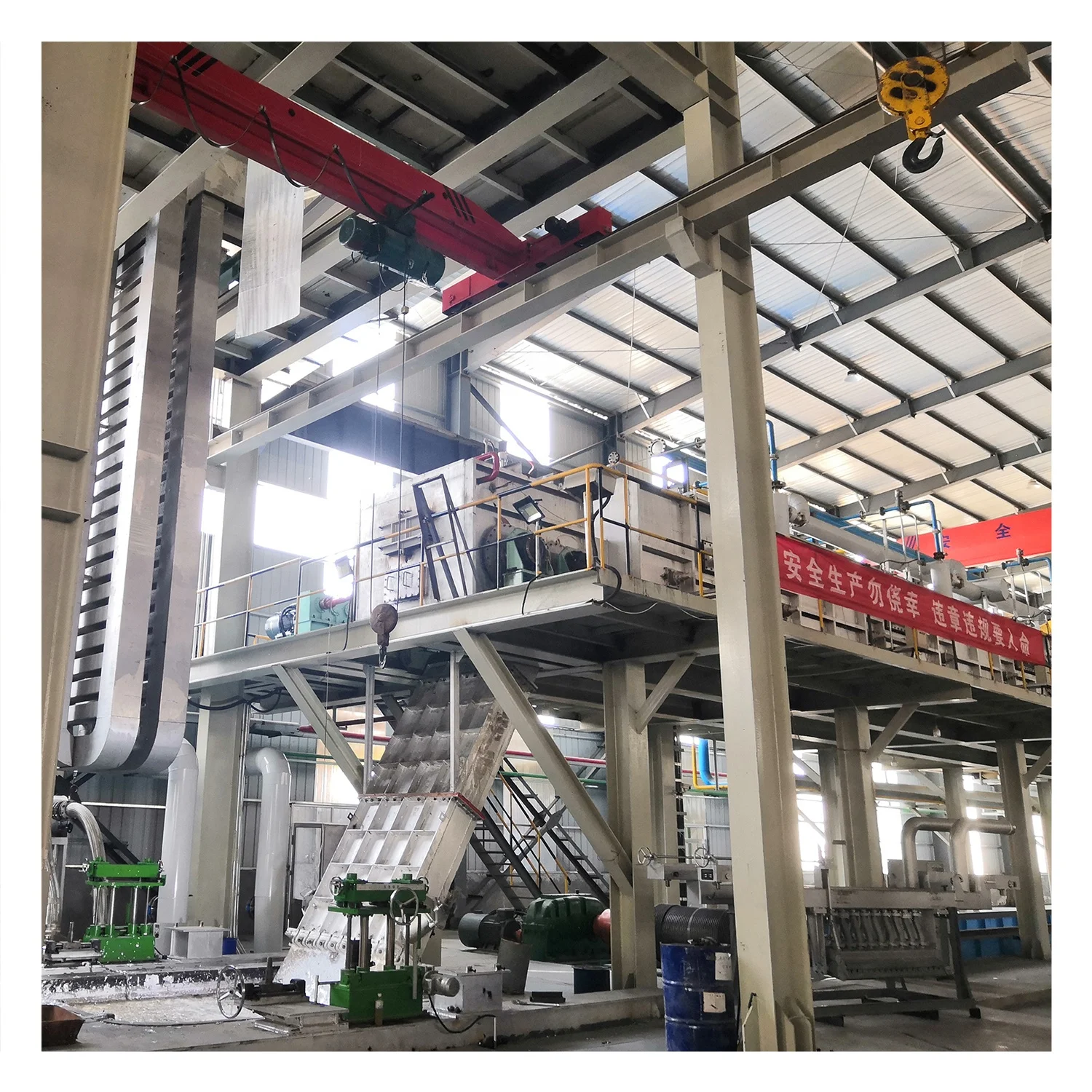

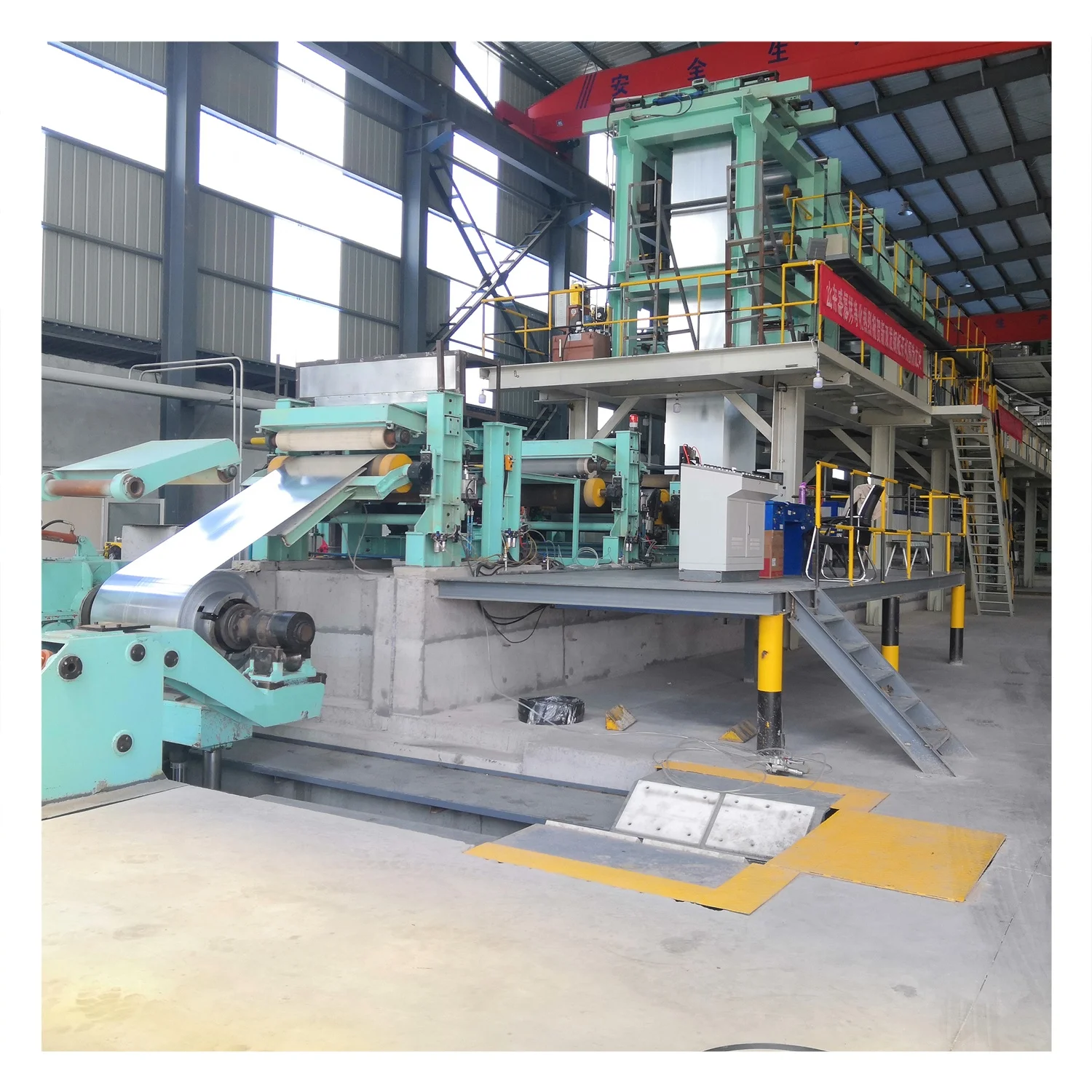

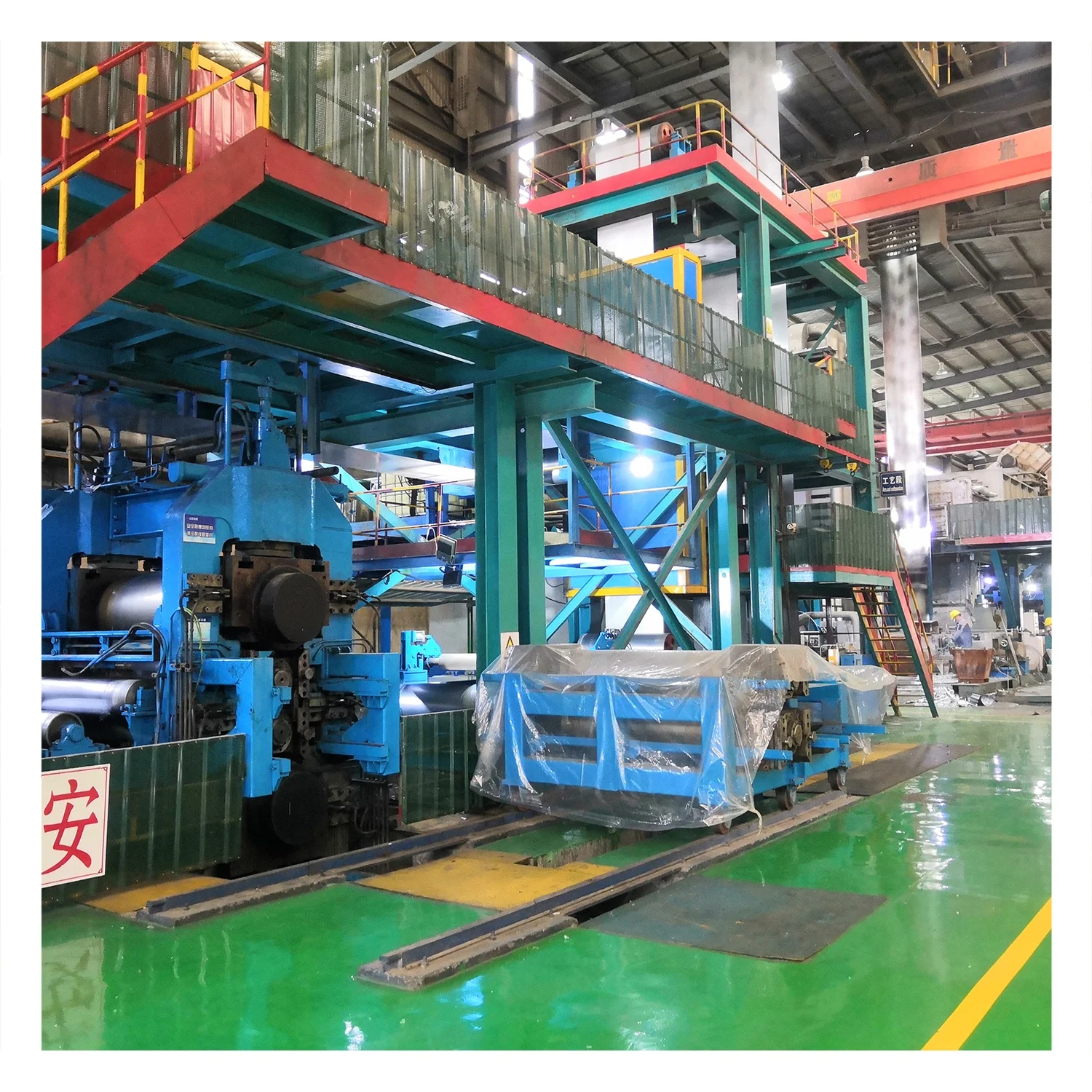

Continuous hot dip galvanizing line with horizontal annealing furnace
The hot - dip (aluminum) galvanizing line is a set of equipments that plating a layer of zinc or aluminum alloy on the strip while in high temperature. The production line was composed of uncoiler, welder, storage tank, degreasing section equipments, continuous annealing furnace, zinc pot, air knife, skin pass, tension leveler, oiler, shear, recoiler and other equipments.
Cold rolled low carbon steel: SPCC, SPCD, JIS G 3141 | ||||
Thickness: | 0.12-3.5 mm | |||
Width: | 700-1650mm | |||
Coating type: | GI, GA, GF | |||
Product grade: | CQ,DQ,DDQ,EDDQ | |||
Line Max.speed: | Entry 260mpm, processing 200mpm, exit 260mpm | |||
Capacity: | 60,000-300,000 MT/Y | |||
Energy saving: | Heat recovery system from waste gas | |||
Product Overview
FAQ
Q: Are you manufacturer?
A: Yes, we are
Q:How long is the delivery time?
A:Usually, it is around 9 months.
