2022 New Arrival XINKE automatic tunnel shot blasting machine with agricultural machinery shell spraying line

Name: XINKE automatic tunnel shot blasting machine with agricultural machinery shell spraying line
Machine Model: QXY Series - Customized

Introduction of XINKE automatic tunnel shot blasting machine with agricultural machinery shell spraying line

Preservation lines combine the heating (drying), blasting, coating and drying of workpieces such as sheet steel, profiles, pipes or steel structures in one automatic line.
Preservation lines are ideal when there is a lengthy manufacturing or storage time between blasting and final coating. In order to prevent rust returning, a weld primer is applied to provide corrosion resistance for weeks.
Sheet widths of up to 5000mm can be processed, with passage speeds varying from 1.0m/min to 8.0m/min.
In addition, due to the relatively regular shape of the steel plate, and it is easy to perform mechanical rust removal and automatic painting through processing. Therefore, the cleaning efficiency will be greatly improved, labor intensity and environmental pollution will be effectively reduced too.

Applications:
-Removal of mill and forge scale and rust.
-Increase of surface roughness.


Production Process of XINKE automatic tunnel shot blasting machine with agricultural machinery shell spraying line

The workpieces move along the inlet roller conveyor into the pre-heater. They are dried and heated before blasting begins in the blast machine. After blasting, a coating is applied in the spray chamber and the finished workpieces move into the drying chamber.
The slat conveyor transports the parts towards the outlet roller table. They are removed there or fed into a downstream logistics system via the cross transfer conveyor.




Main Specification of 2022 new arrival XINKE automatic tunnel shot blasting machine with agricultural machinery shell spraying line


Item/Type
QXY-1600
QXY-2000
QXY-2500
QXY-3500
QXY-4000
QXY-4500
QXY-5000
Speed(m/min)
0.5-3.0
0.5-3.0
0.5-3.0
1.0-6.0
1.0-6.0
1.0-6.0
1.0-6.0
Width(mm)
1600
2000
2500
3500
4000
4500
5000
Height(mm)
450
450
450
450
500
500
500
Total PW(kw）
240
300
360
600
660
680
760
Ventilation Capacity(m³/h)
26000
34000
38000
40000
45000
50000
55000


Key benefits:
-Continuous blasting
-Highly efficient blast wheel
-Versatile transport technology
-High process security
-Custom designs with flexible layouts
-Simple integration into existing
-Manufacturing processes

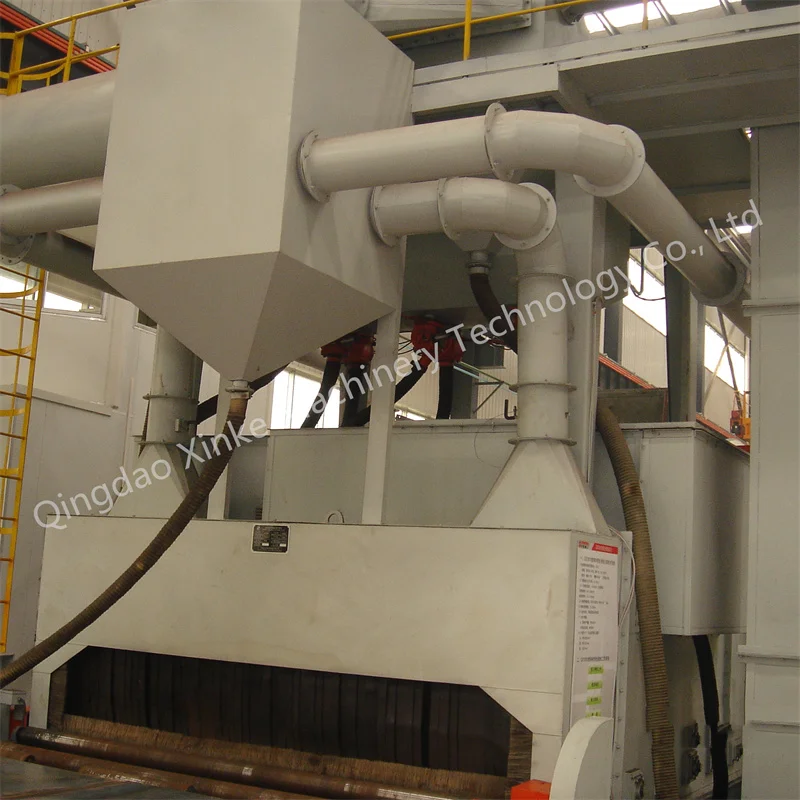

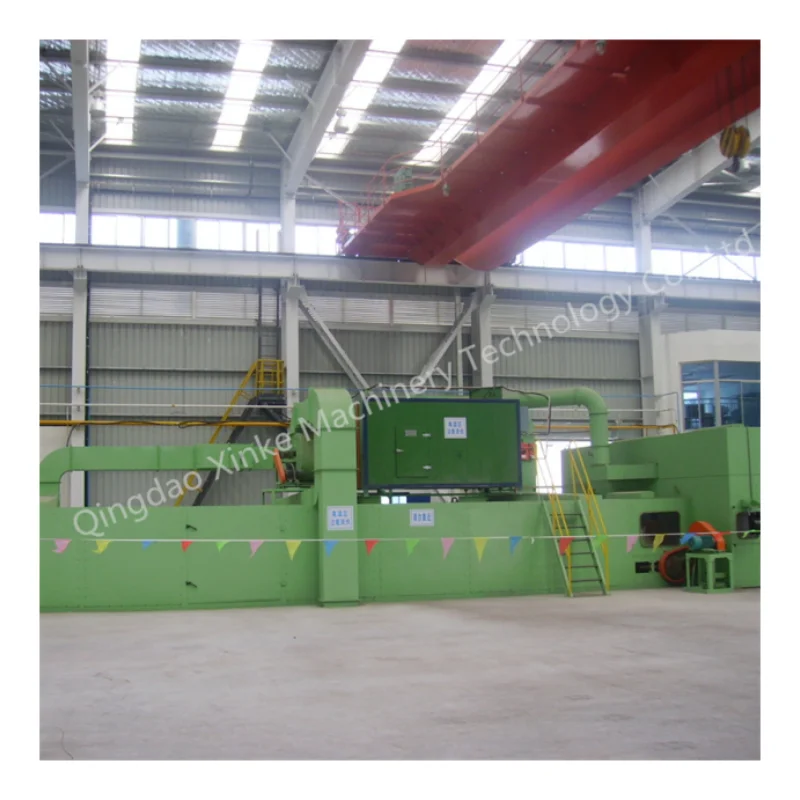

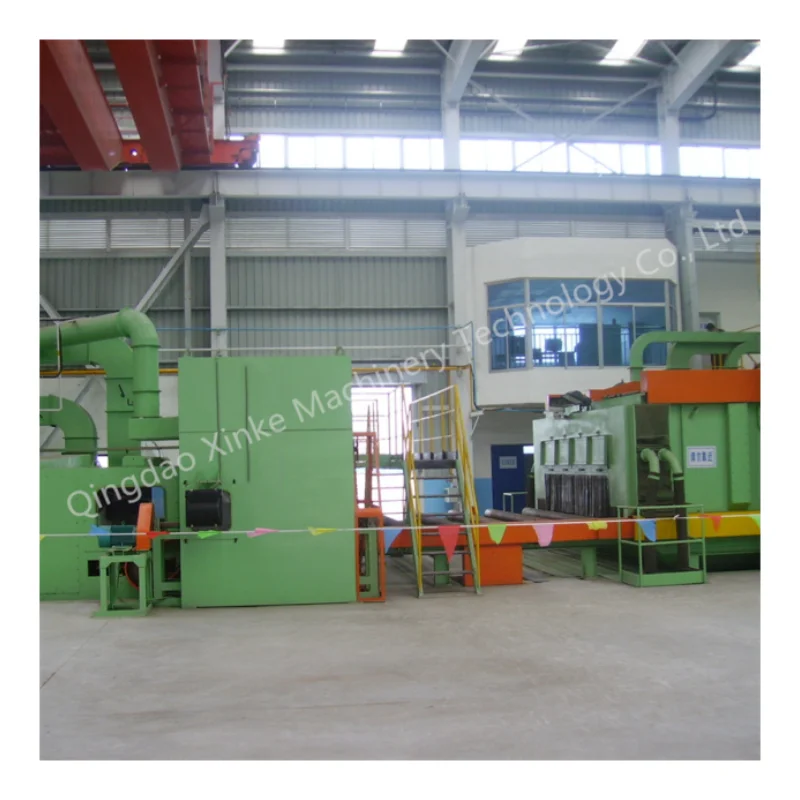

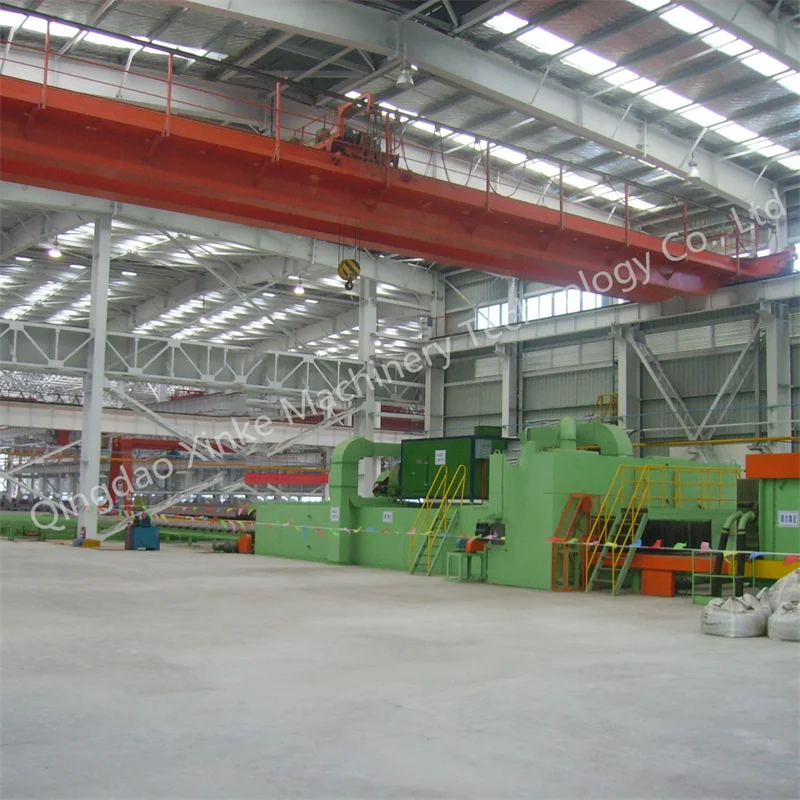

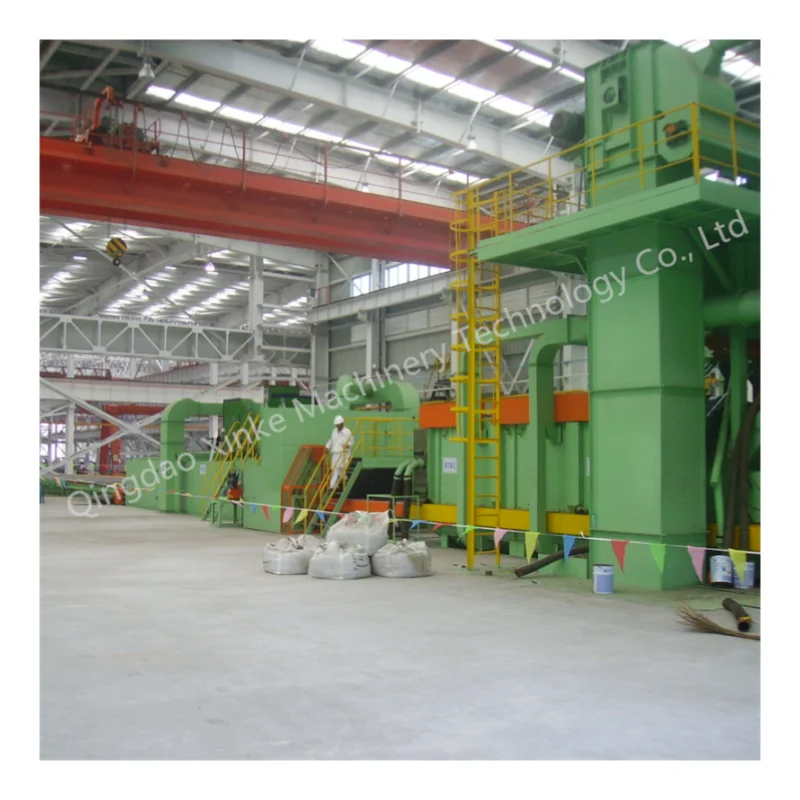

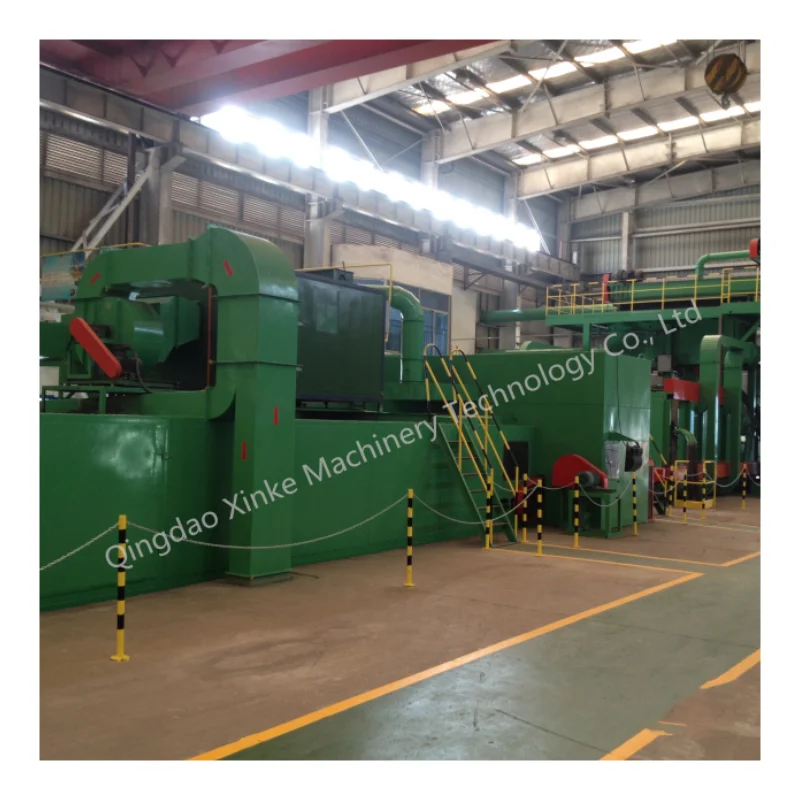

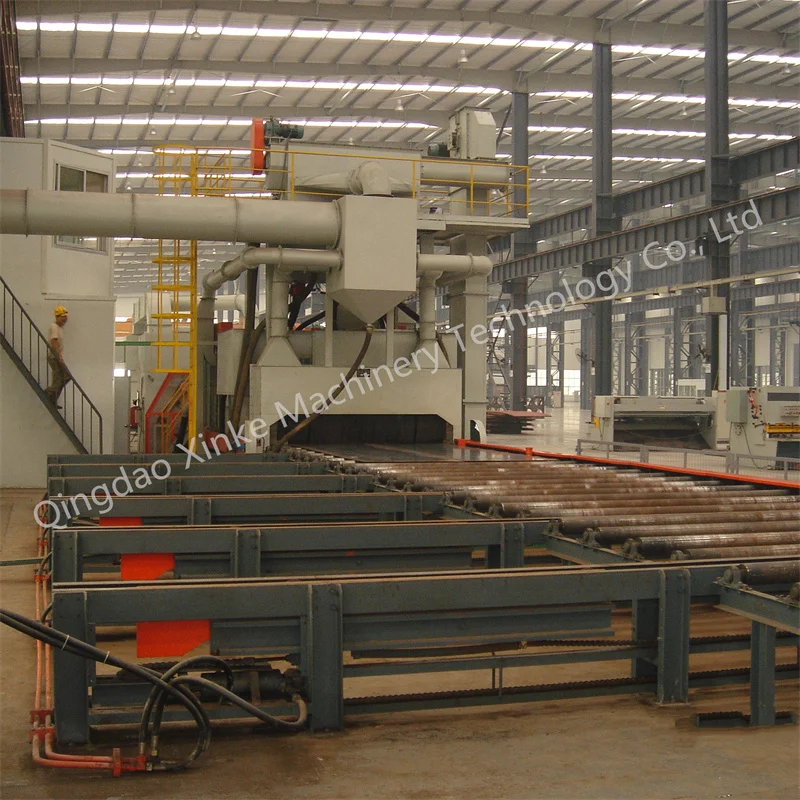

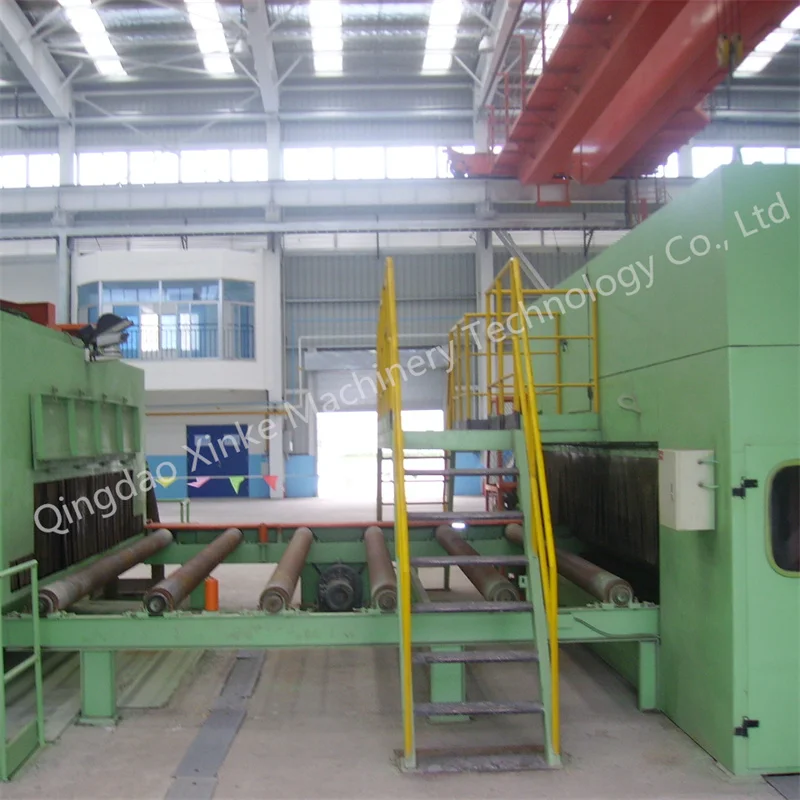

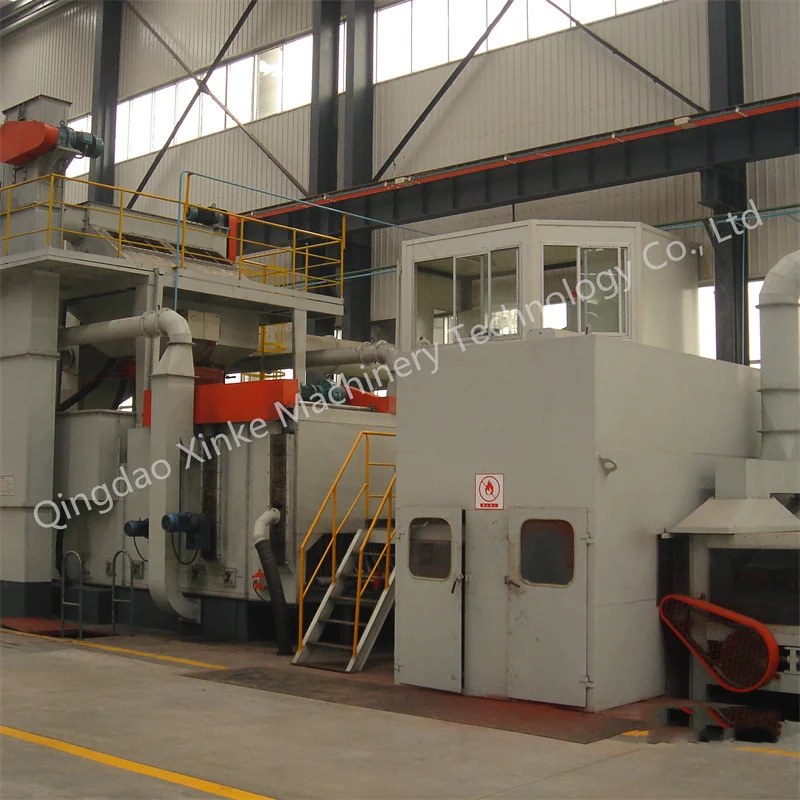

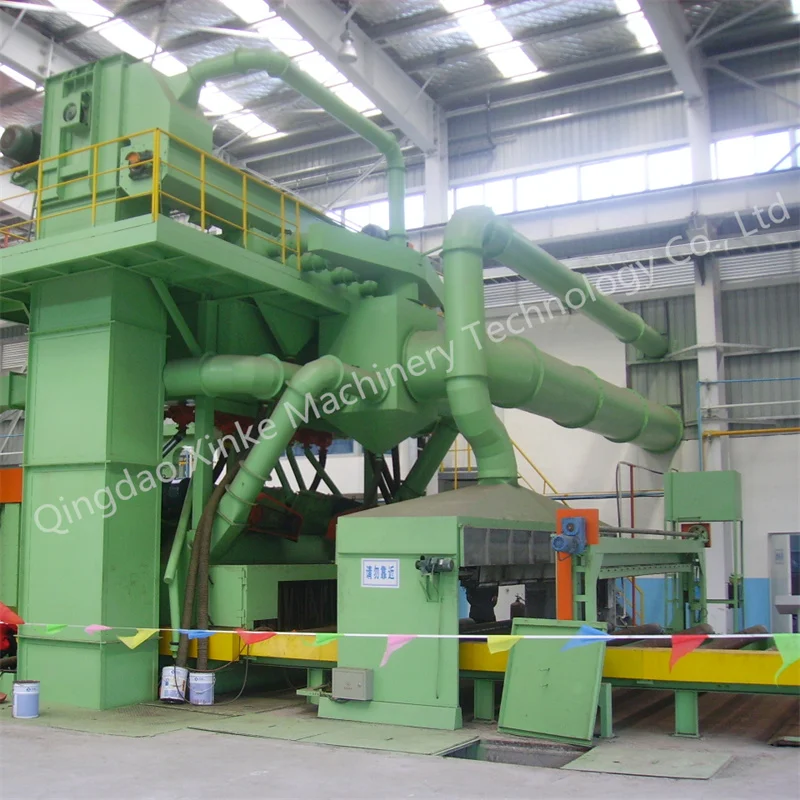

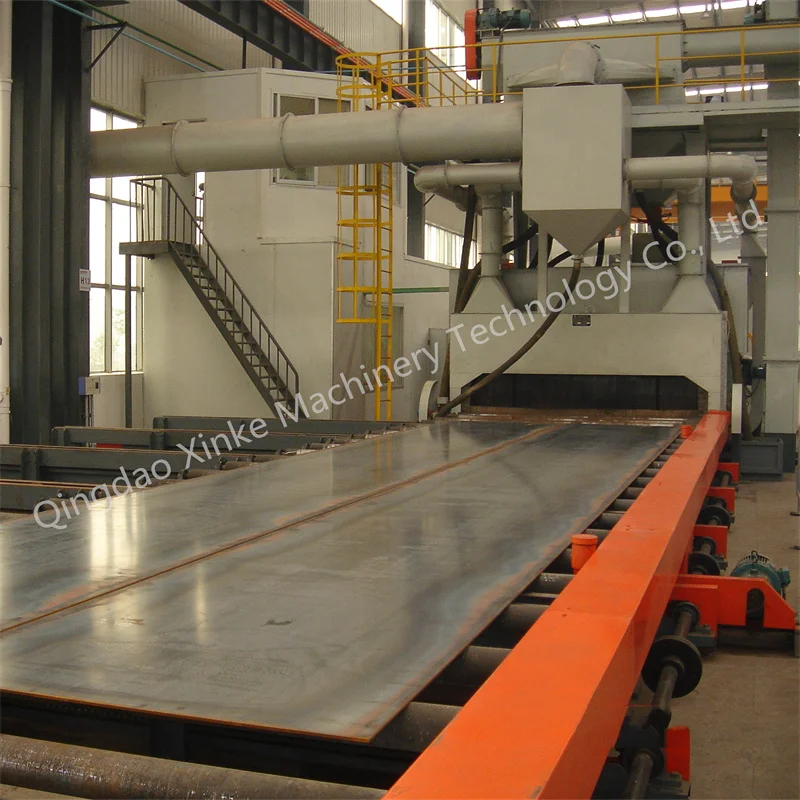

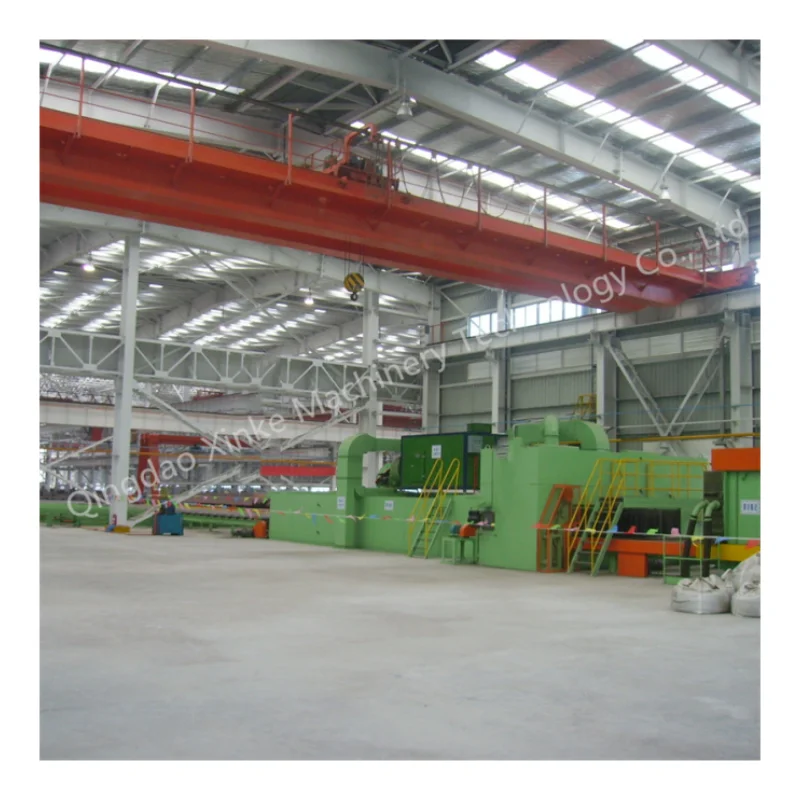

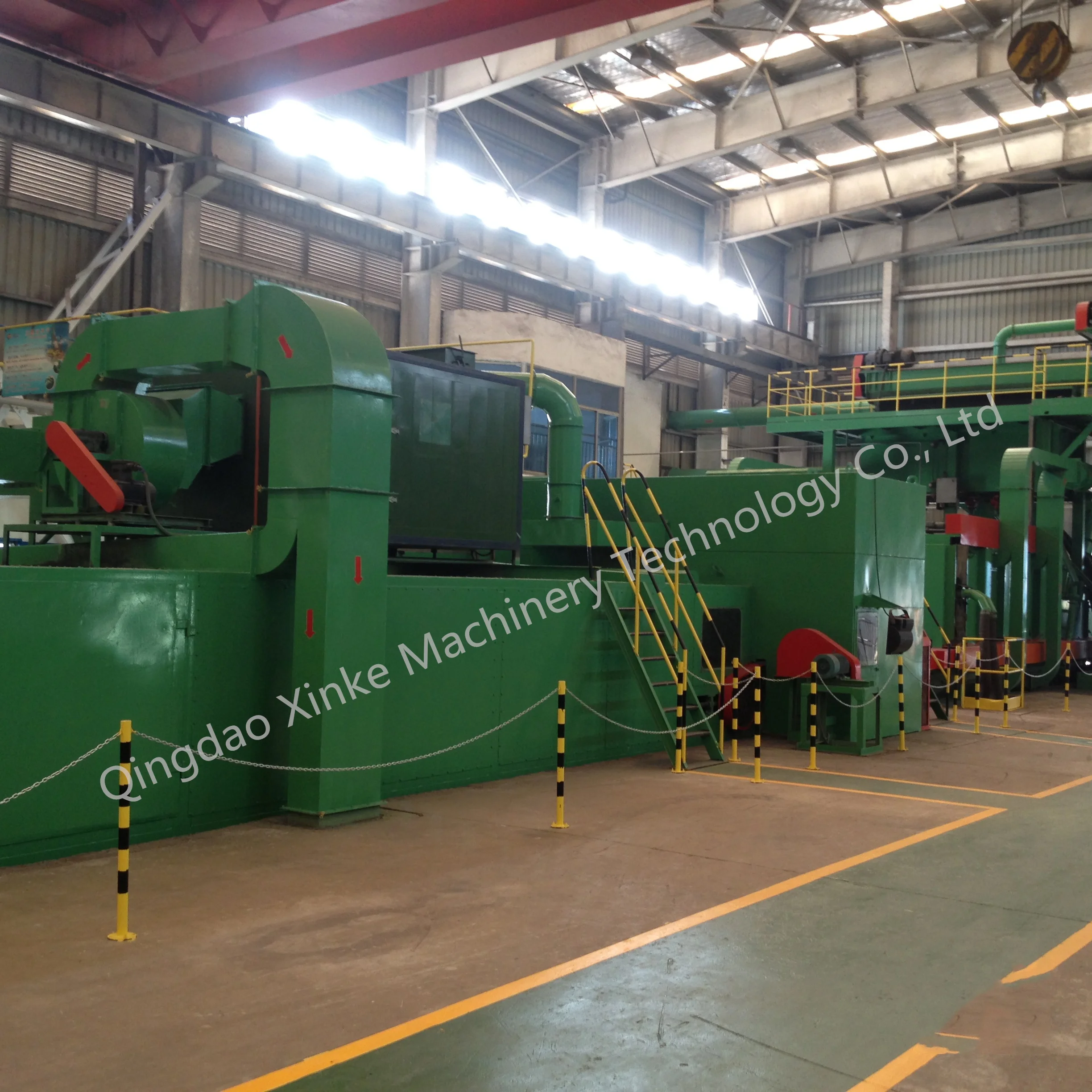

Photographing in Client's factory of XINKE automatic tunnel shot blasting machine with agricultural machinery shell spraying line








Cleaning efficiency of XINKE automatic tunnel shot blasting machine with agricultural machinery shell spraying line




Shot blasting wheel:
The shot blasting wheel is a key component, which has a great impact on the quality of steel cleaning, service life and maintenance. This series of machines adopts several sets of the world's most advanced single-disc curved blade shot blasting machines. The projectiles flow in from the introduction pipe, and the high-speed dense projectiles are thrown out by the shot dividing wheel, the directional sleeve and the blade, hitting the surface of the workpiece, making the The rust layer and its dirt on the surface of the workpiece fall off quickly, and a smooth surface with a certain roughness is obtained, which improves the adhesion between the paint film and the surface of the material, and improves the fatigue resistance and corrosion resistance of the material. This part is mainly composed of impeller, main shaft and main bearing seat, pill dividing wheel, directional sleeve, guard plate, transmission mechanism and so on.

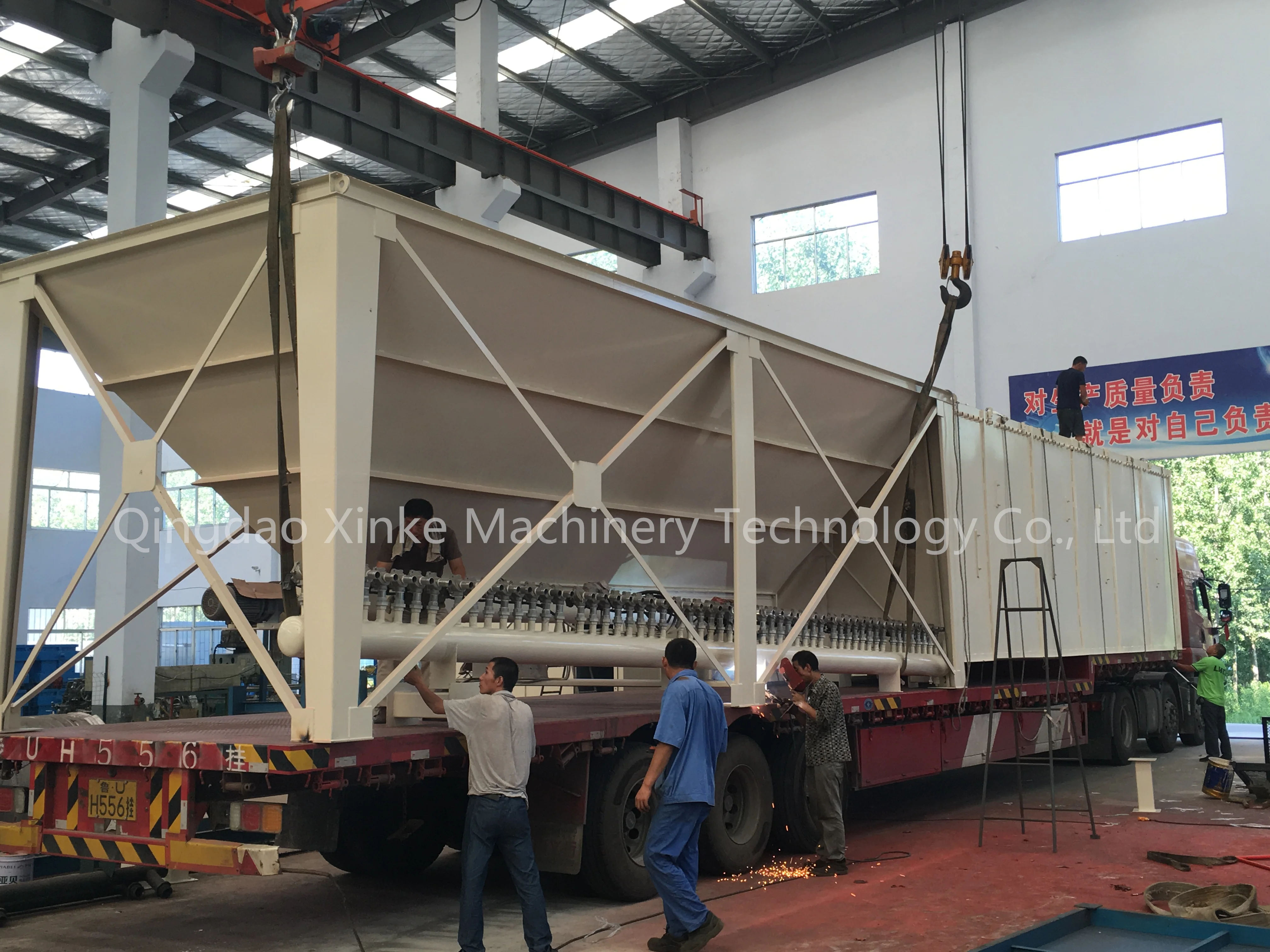

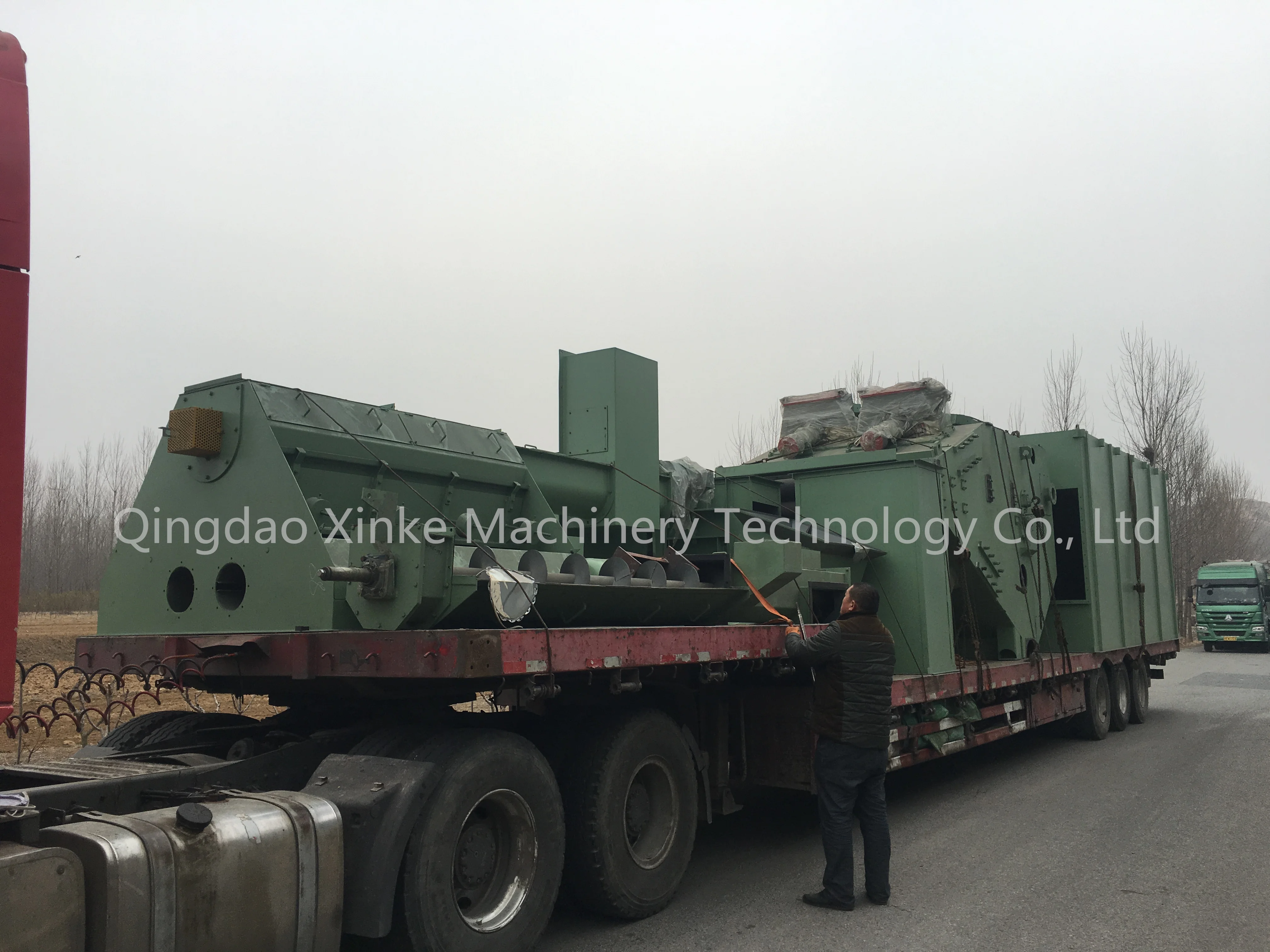

Shipping & Delivery of XINKE automatic tunnel shot blasting machine with agricultural machinery shell spraying line




Company Profile








1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(65.00%),North America(10.00%),Mid East(6.00%),South America(5.00%),Southeast Asia(5.00%),Oceania(3.00%),Eastern Europe(3.00%),Southern Europe(2.00%),Eastern Asia(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Shot Blasting Machine,Foundry molding machine,Dust removal equipment,Foundry sand mixing machine,Shot blast wheel& Spare parts of shot blasting machine

4. why should you buy from us not from other suppliers?
Xinke have formed the domestic foundry machinery complete equipment engineering center, and we have extensive experience brings together the technical and professional workers, a strong on-site construction and external collaboration supporting capacity.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
