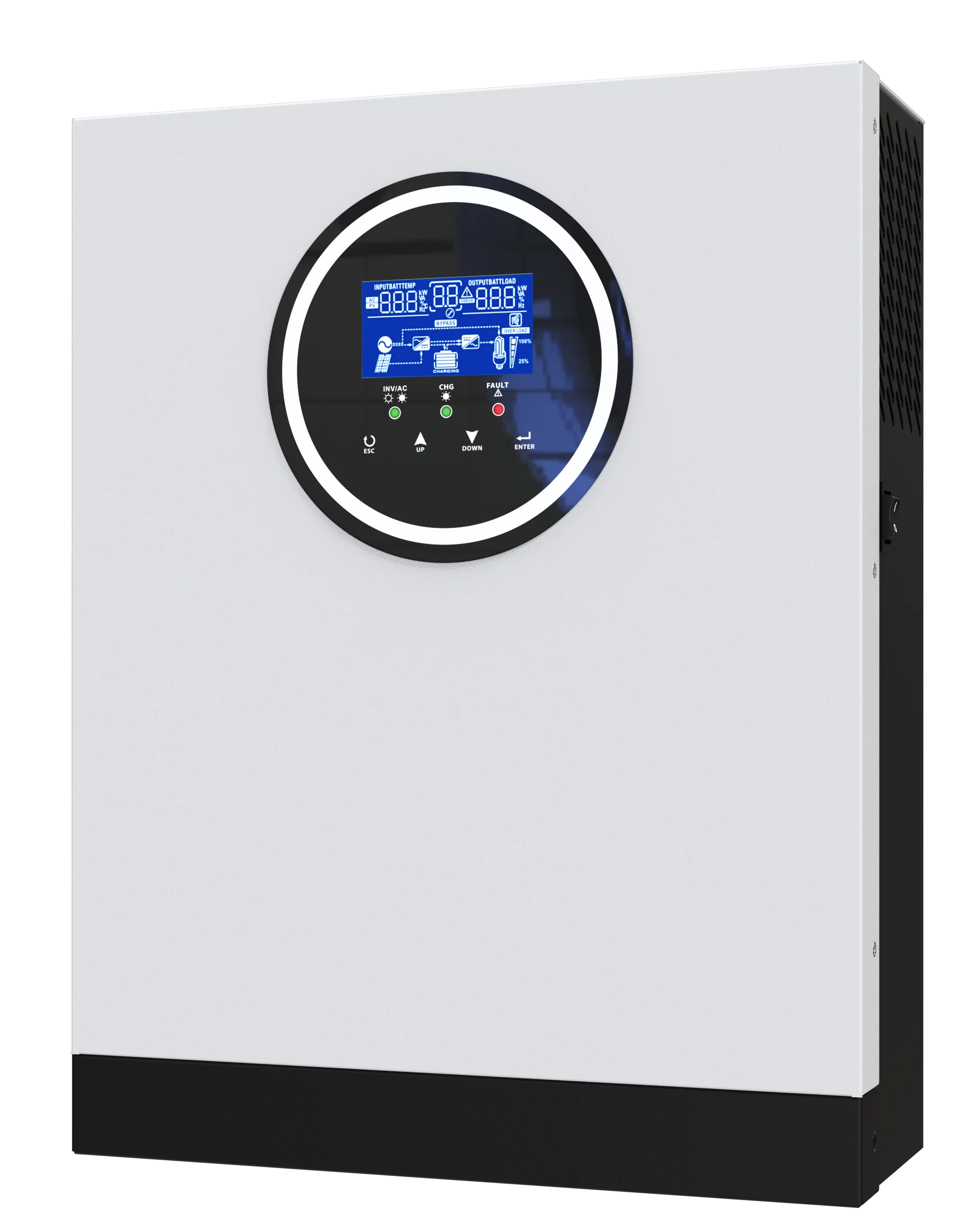

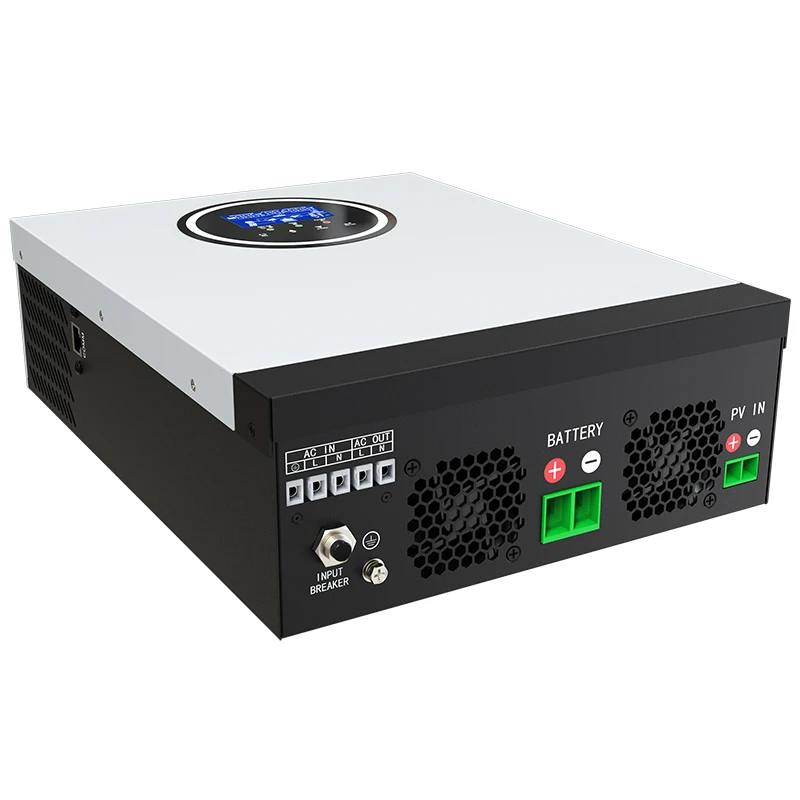

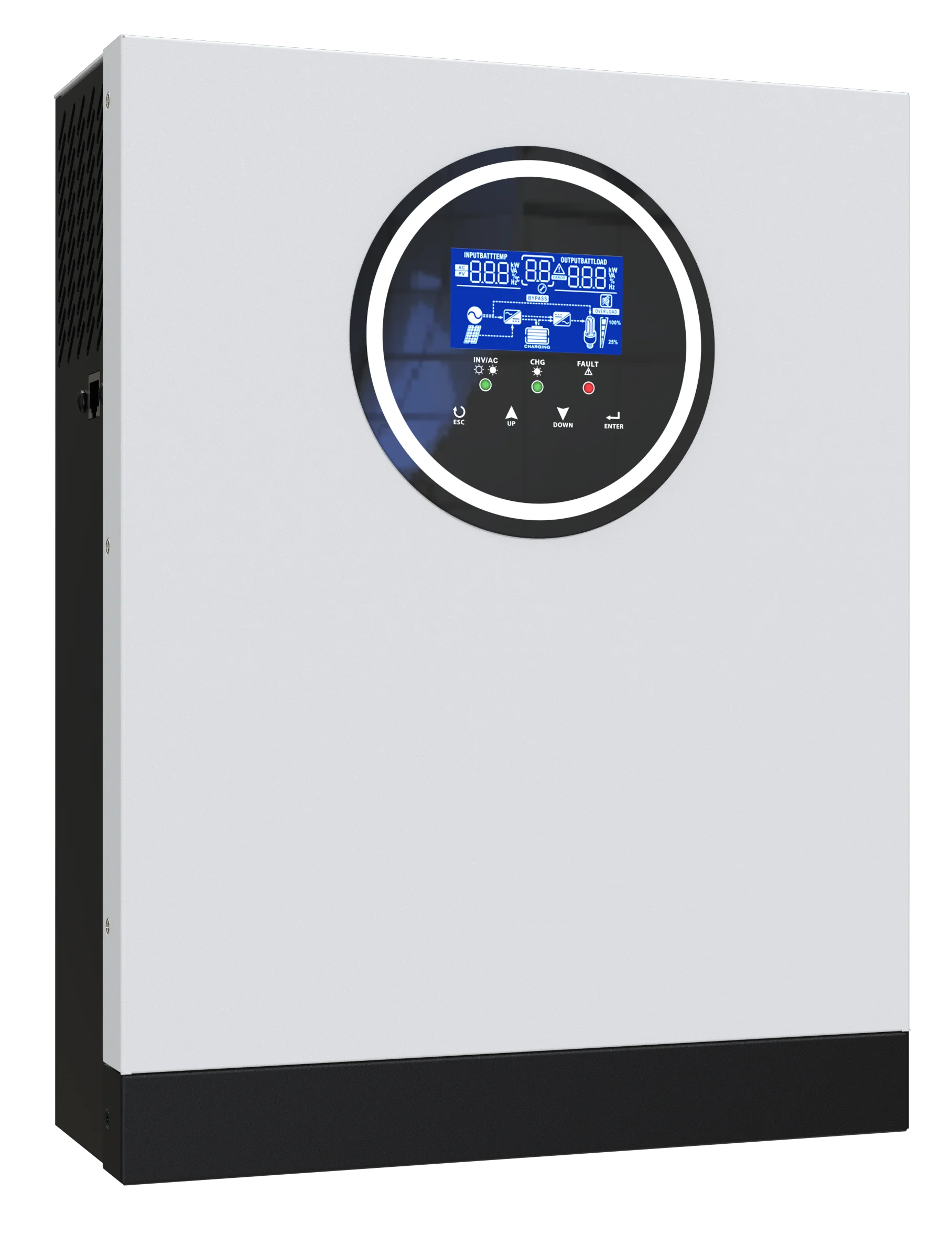

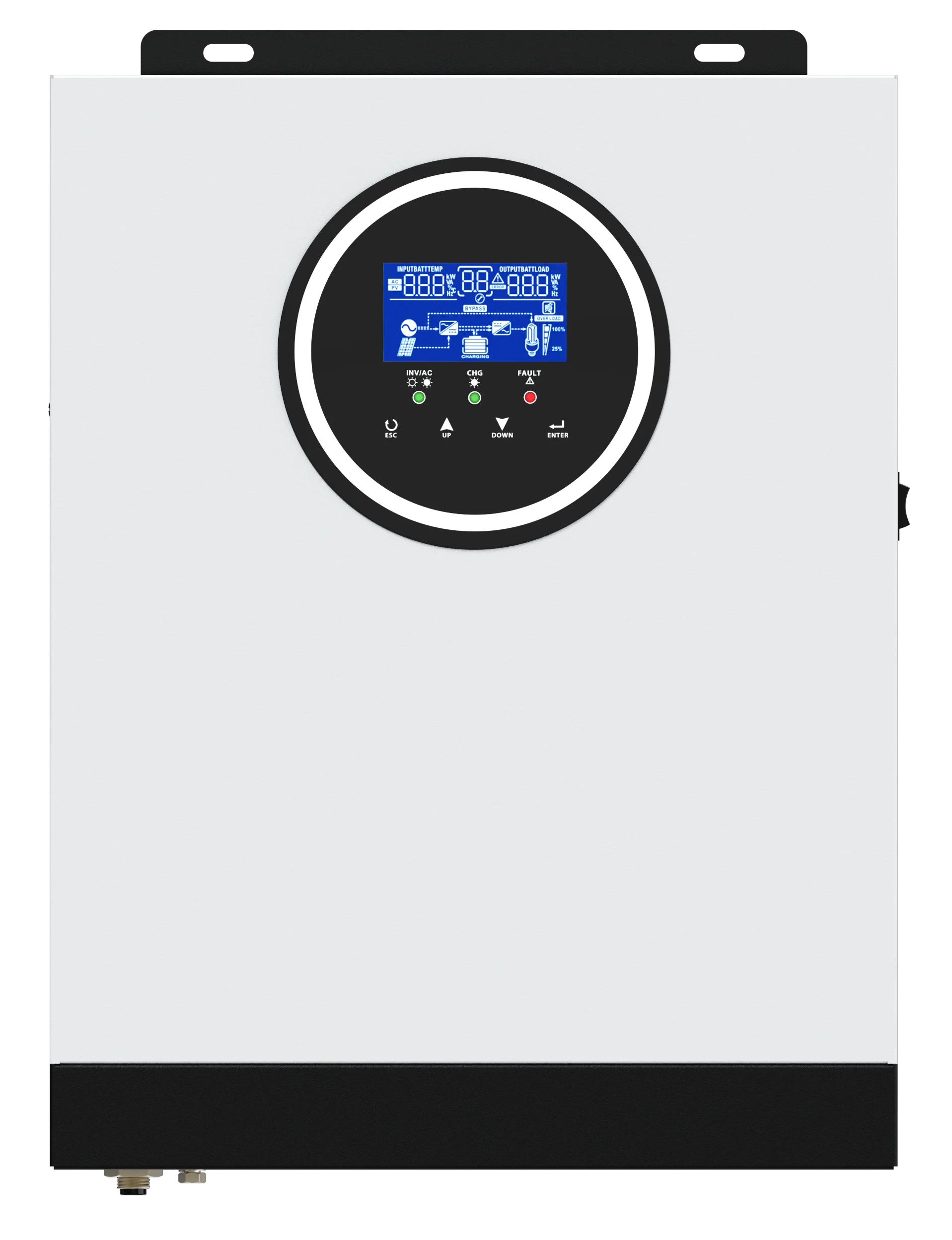

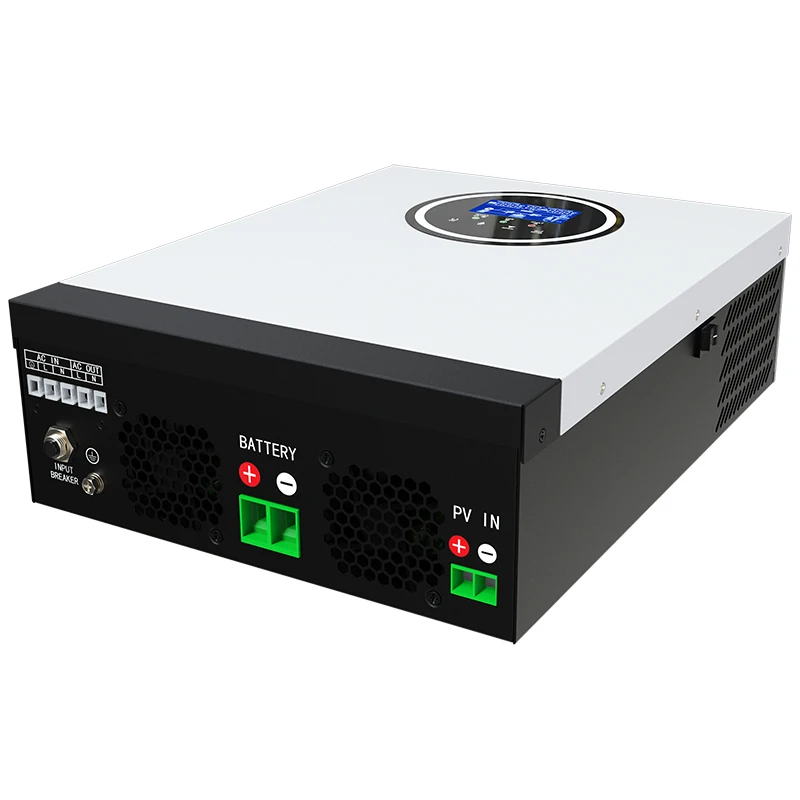

3200VA/3000W 24VDC 230VAC Pure Sine Off Grid Hybrid Solar Inverter with 450VDC 80A MPPT Solar Controller PV Max.Power 3000W

Product Overview

Description

3200VA/3000W 24VDC 230VAC Pure Sine Off Grid Hybrid Solar Inverter with 450VDC 80A MPPT Solar Controller PV Max.Power 3000W







Product Specification

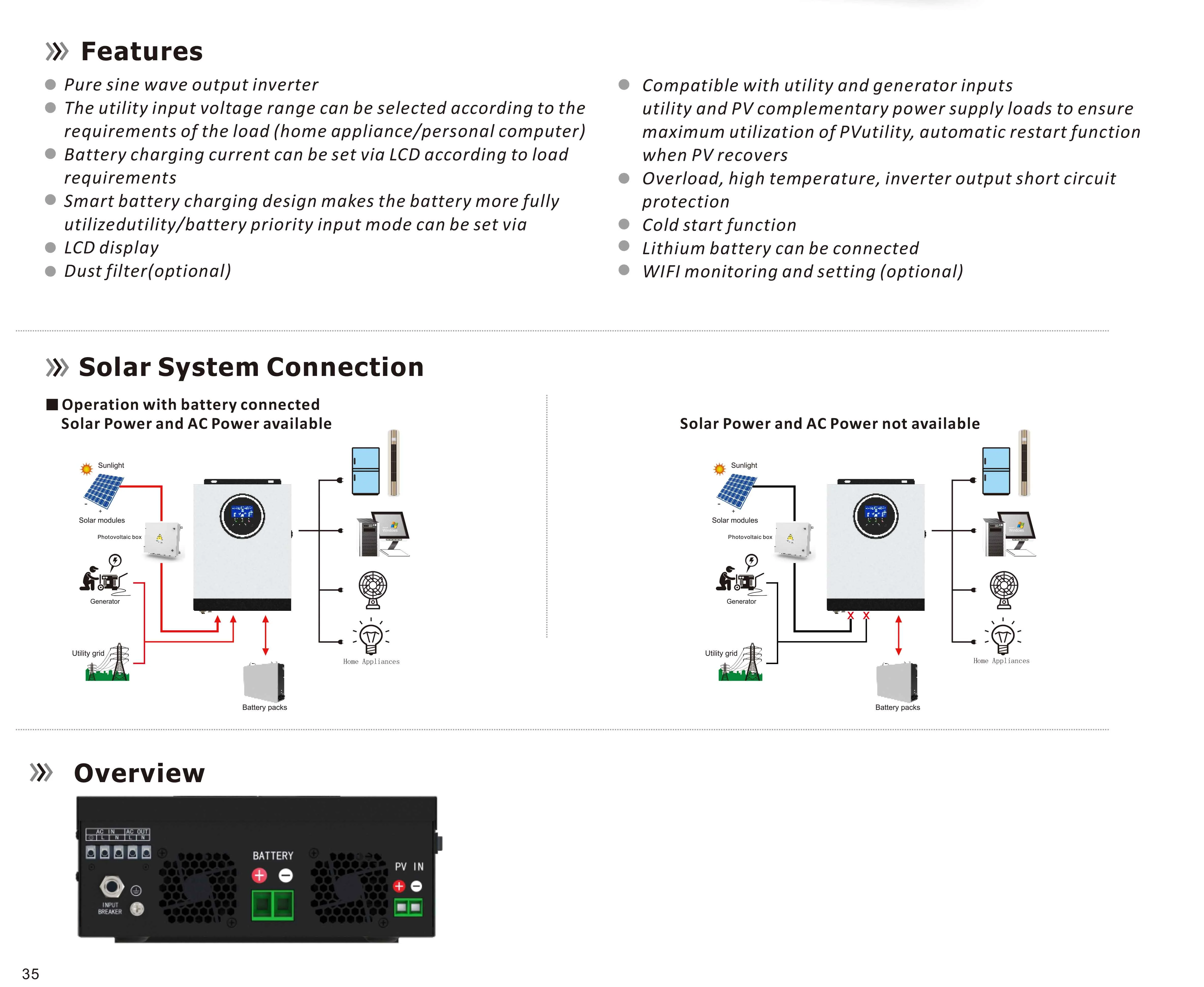

Features



Pure sine wave output inverter

1.The utility input voltage range can be selected according to the requirements of the load (home appliance/personal computer)

2.Battery charging current can be set via LCD according to load requirements

3.Smart battery charging design makes the battery more fully utilized

utility/battery priority input mode can be set via LCD display

4.Compatible with utility and generator inputs

5.Utility and PV complementary power supply loads to ensure maximum utilization of PV

6.Utility, automatic restart function when PV recovers

7.Overload, high temperature, inverter output short circuit protection

8.Cold start function

9.Lithium battery can be connected

10.WIFI monitoring and setting (optional)

11.Dust filter(optional)









MODEL	SM-2000H	SM-3200H
Rated Power	1600W	3000W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC (for personal computers) 90-280VAC (for home appliances)
Frequency Range	50Hz/60Hz (Autosensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC±5%
Surge power	4000VA	6400VA
Transfer Time	10ms (for personal computers) 20ms (for home appliances)
Wave form	Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage	12VDC	24VDC
Floating Charge Voltage	13.5VDC	27VDC
Over charge Protection	16VDC	33VDC
Maximum charge current	60A
SOLAR CHARGER
MAX. PV Array Power	2000W	3000W
MPPT Range@ Operating Voltage	90-450VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Charging Current	80A
Maximum Efficiency	98%
PHYSICAL
Dimension. D*W*H(mm)	348*259*105mm
Net Weight (kgs)	5.5	6
Communication Interface	RS232(Standard) GPRS/WIFI(Optional)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10℃ to 55℃
Storage Temperature	-15℃ to 60℃
