Fully Automatic Hydraulic Spline Shaft Steel Rod Rebar Nail Thread Rolling Screw Bolt Making Machine
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Bobo Machine Co. Ltd.
Share on (1600616883523):
Product Overview
Description
Product Description

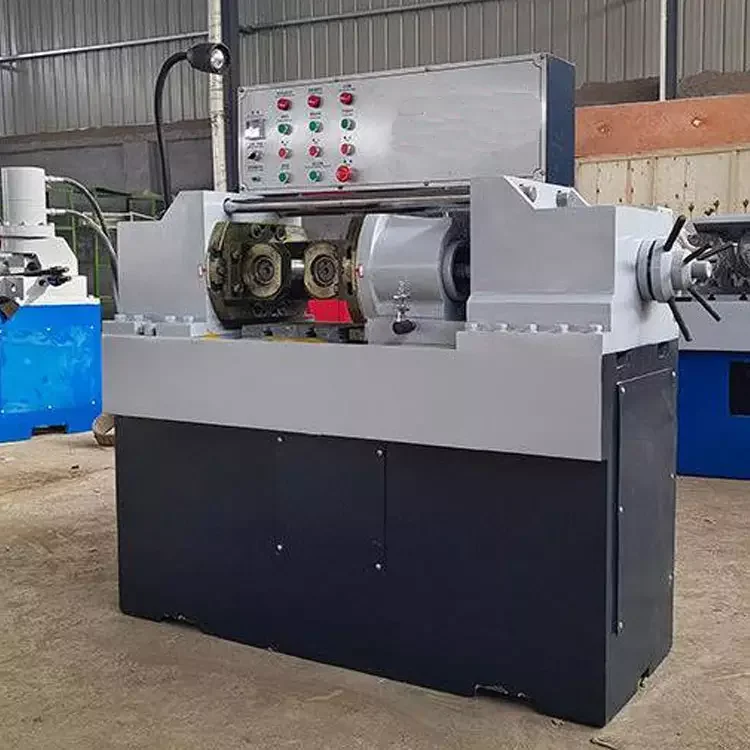

Fully Automatic Hydraulic Spline Shaft Steel Rod Rebar Nail Thread Rolling Screw Bolt Making Machine
This is a hydraulic round steel mesh knurling machine, straight thread screw thread rolling machine, through-wall screw thread rolling machine. The machine has reasonable design, compact structure and stable body. Using high-quality high-horsepower copper wire motor, the motor does not get hot, does not heat up, and has sufficient power.
This machine is suitable for rolling and forming straight, spiral and twill with a diameter of 4-16MM in a cold state. It can be
assembled with a spiral rolling wheel to process the fixed wire and the through wire.
Specification
Features
* Reasonable design, compact structure, solid body.
* High-quality copper wire motor, copper coils longer and thicker, low heat.
* Convenient and fast, stable and efficient operation.
* Casting body, precise silk teeth.
* Convenient and fast, stable and efficient operation.
* Casting body, precise silk teeth.
Product details
Wire rolling wheel
Intelligent control panel
Multi-process modulation of the knife shaft
Casting frame
Adjusable hand wheel
High power motor
Product Paramenters
1 | Name | Fully Automatic Hydraulic Spline Shaft Rebar Thread Rolling Machine |
2 | Rolling thread diameter | 5-36mm |
3 | Pitch | 0.5-4.0mm |
4 | Spindle drive power | 4kw |
5 | Outside diameter of rolling wheel | 120-170mm |
6 | Max. width of wire rolling wheel | 100mm |
7 | Rolling wheel bore diameter | 54mm |
8 | Spindle tilt angle | ±3° |
9 | Hydraulic drive power | 2.2KW |
10 | Max. rolling pressure | 140KN |
11 | Dimension | 1350*1210*1050mm |
12 | Weight | 1000KG |
