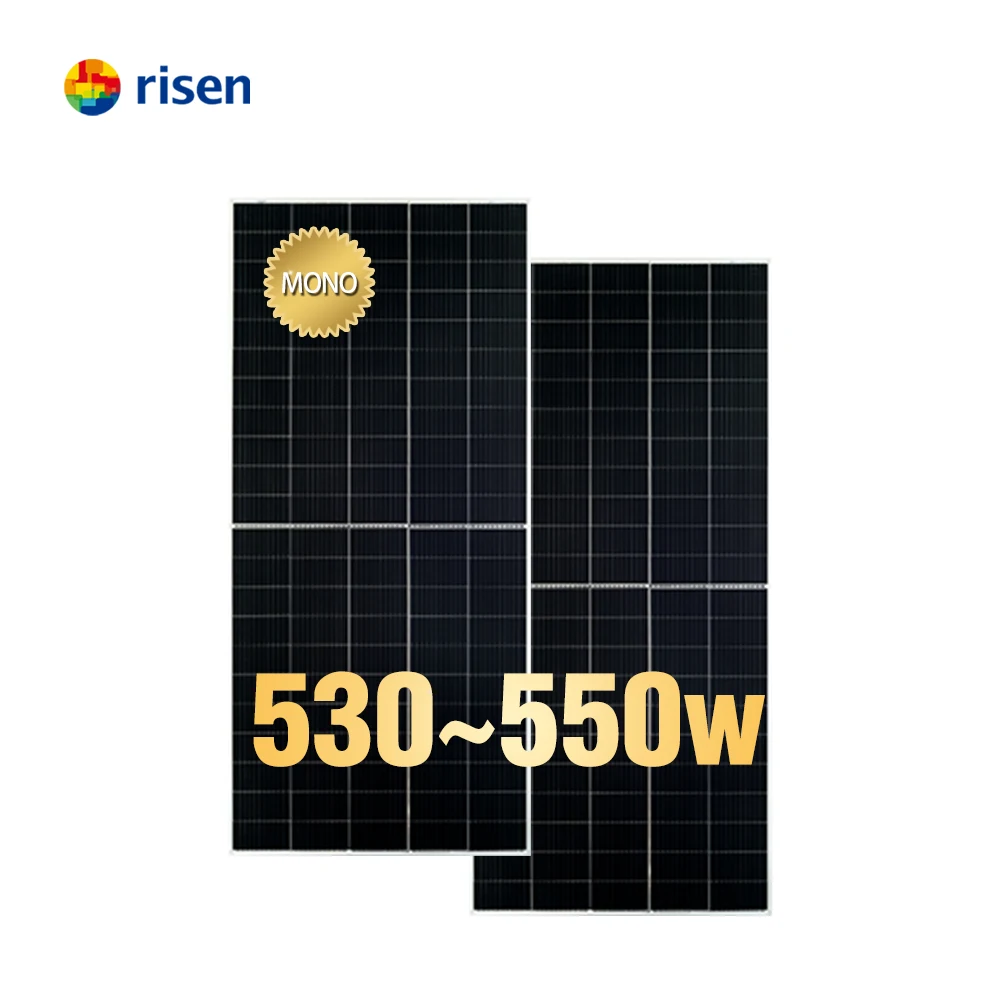

risen energy 400w 405w 405 w 410w 415w 420w 450w 500w 540w 550w 555w 600w 605w 450 550 540 watt 650w 665w 670w 700w solar panel
- Category: Solar Energy Products >>>
- Supplier: Wuxi Ideal New Energy Co. Ltd.
Share on (1600617552723):
Product Overview
Description
Product Description
ELECTRICAL DATA (NMOT) | ||||||||||
Model Number | RSM110-8-535M | RSM110-8-540M | RSM110-8-545M | RSM110-8-550M | RSM110-8-555M | |||||
Maximum Power-Pmax (Wp) | 405.3 | 409.0 | 412.8 | 416.7 | 420.5 | |||||
Open Circuit Voltage-Voc (V) | 34.95 | 35.14 | 35.36 | 35.56 | 35.77 | |||||
Short Circuit Current-lsc (A) | 14.87 | 14.91 | 14.95 | 14.99 | 15.03 | |||||
Maximum Power Voltage-Vmpp (V) | 29.01 | 29.19 | 29.38 | 29.57 | 29.75 | |||||
Maximum Power Current-lmpp (A) | 13.97 | 14.01 | 14.05 | 14.09 | 14.13 | |||||
NMOT: Irradiance at 800 W/m2, Ambient Temperature 20°C, Wind Speed 1 m/s. | ||||||||||
ELECTRICAL DATA (STC) | ||||||||||
Model Number | RSM110-8-535M | RSM110-8-540M | RSM110-8-545M | RSM110-8-550M | RSM110-8-555M | |||||
Rated Power in Watts-Pmax(Wp) | 535 | 540 | 545 | 550 | 555 | |||||
Open Circuit Voltage-Voc(V) | 37.58 | 37.78 | 38.02 | 38.24 | 38.46 | |||||
Short Circuit Current-lsc(A) | 18.13 | 18.18 | 18.23 | 18.28 | 18.33 | |||||
Maximum Power Voltage-Vmpp(V) | 31.26 | 31.46 | 31.66 | 31.86 | 32.06 | |||||
Maximum Power Current-lmpp(A) | 17.12 | 17.17 | 17.22 | 17.27 | 17.32 | |||||
Module Efficiency (%) ★ | 20.5 | 20.7 | 20.9 | 21.0 | 21.2 | |||||
STC: Irradiance 1000 W/m2, Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3. | ||||||||||

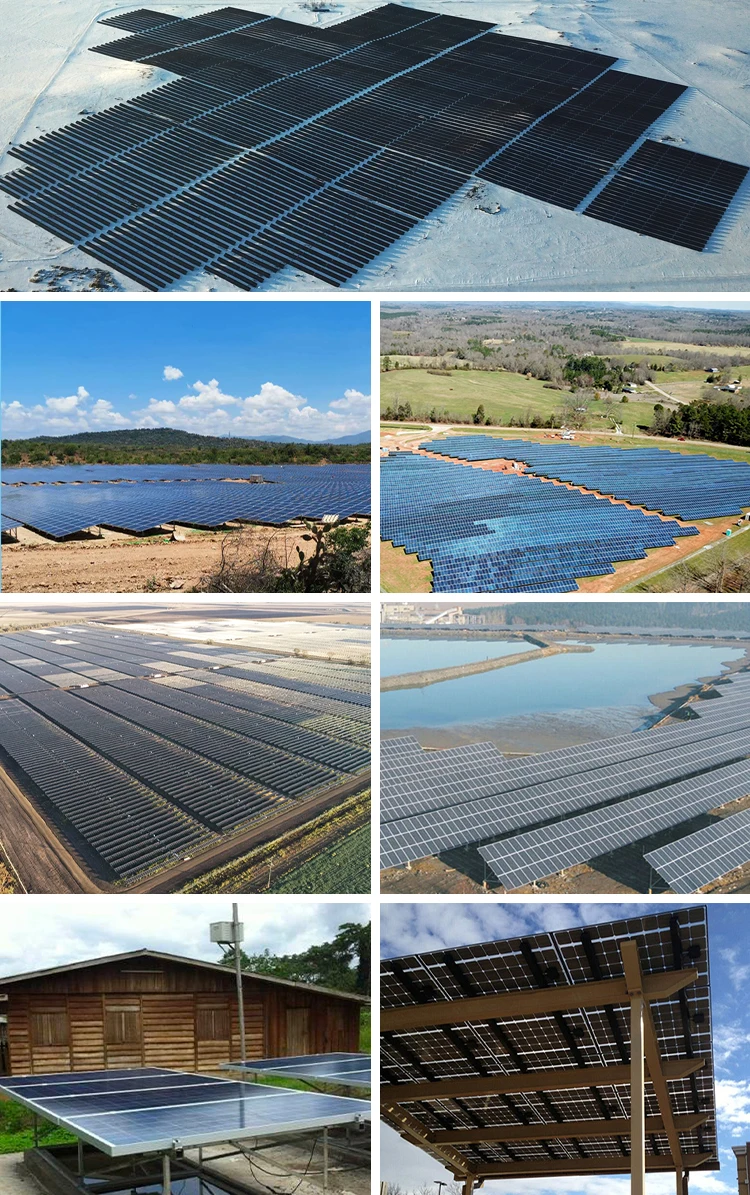

Project cases

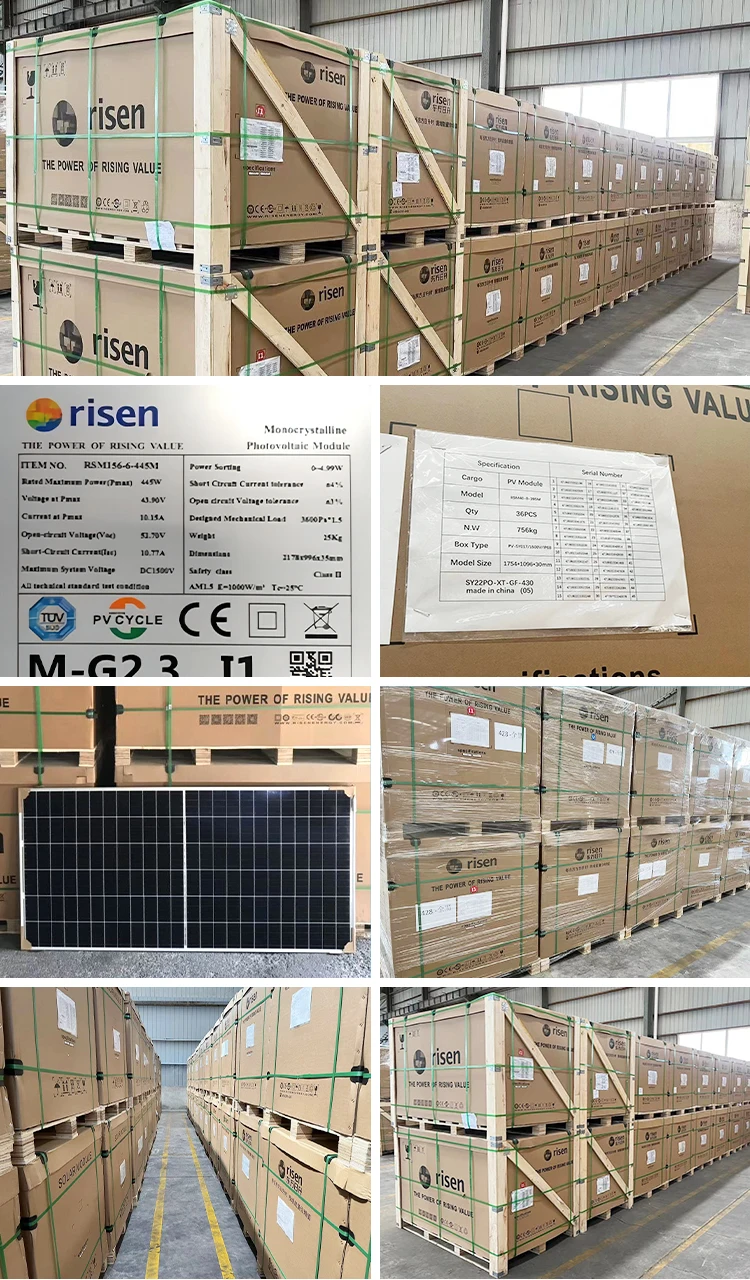

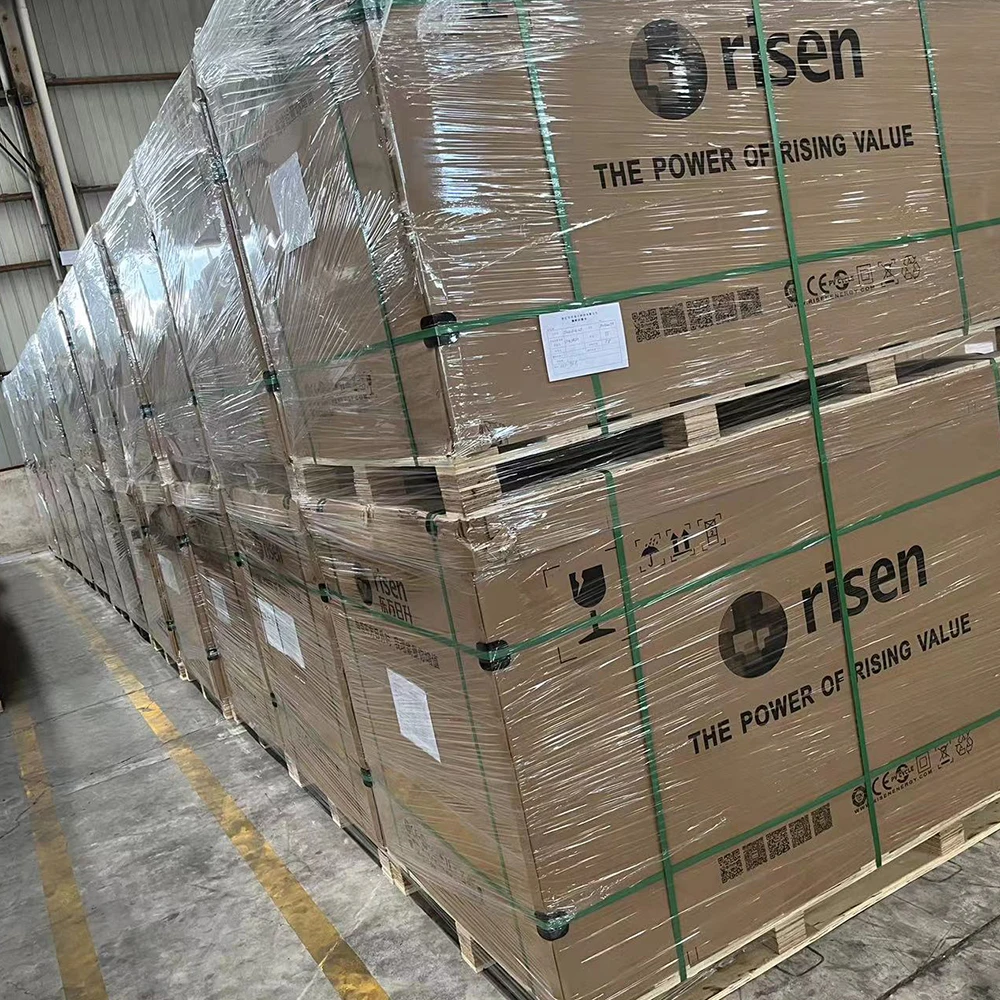

Packing & Delivery
