Product Overview
Description
Product Description

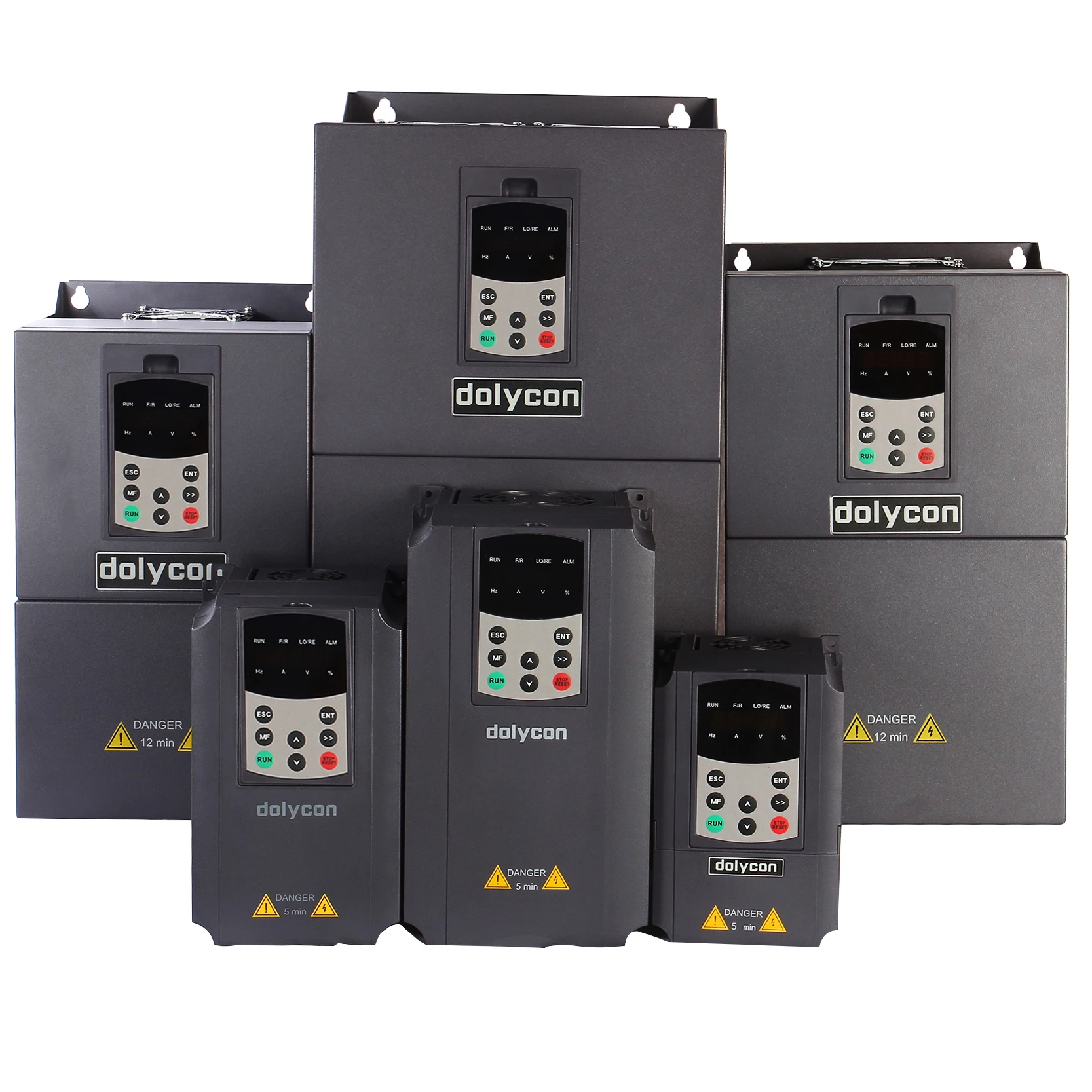

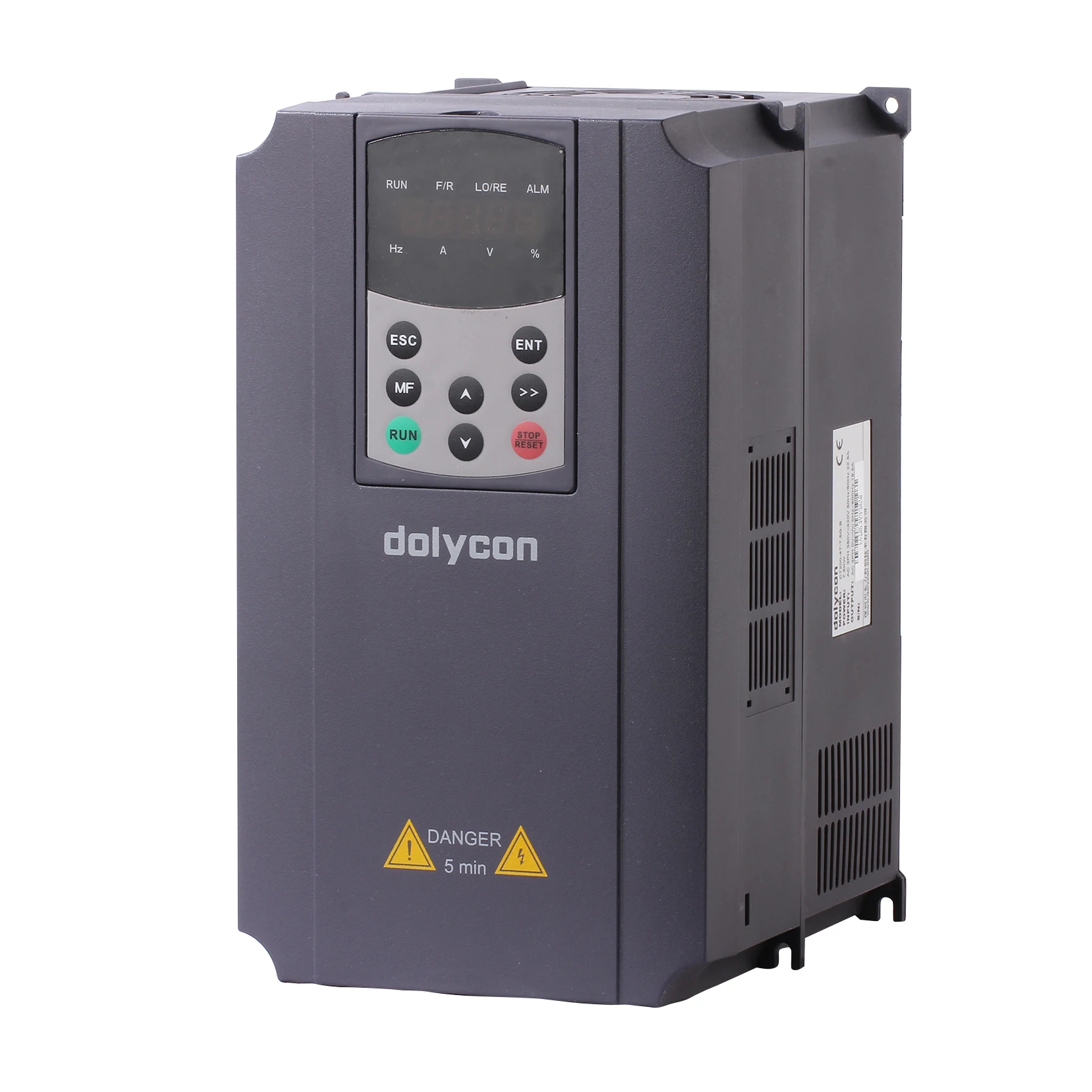

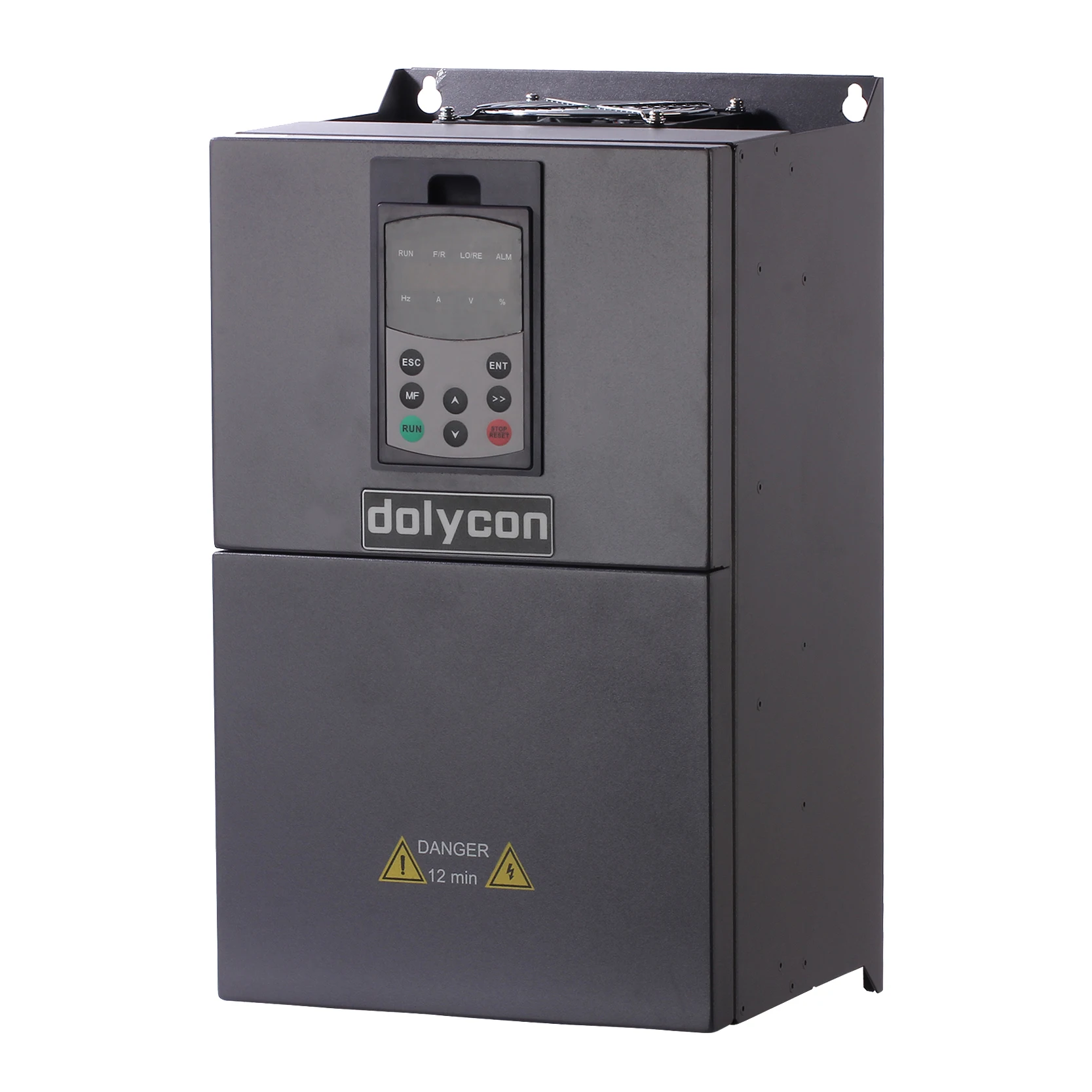

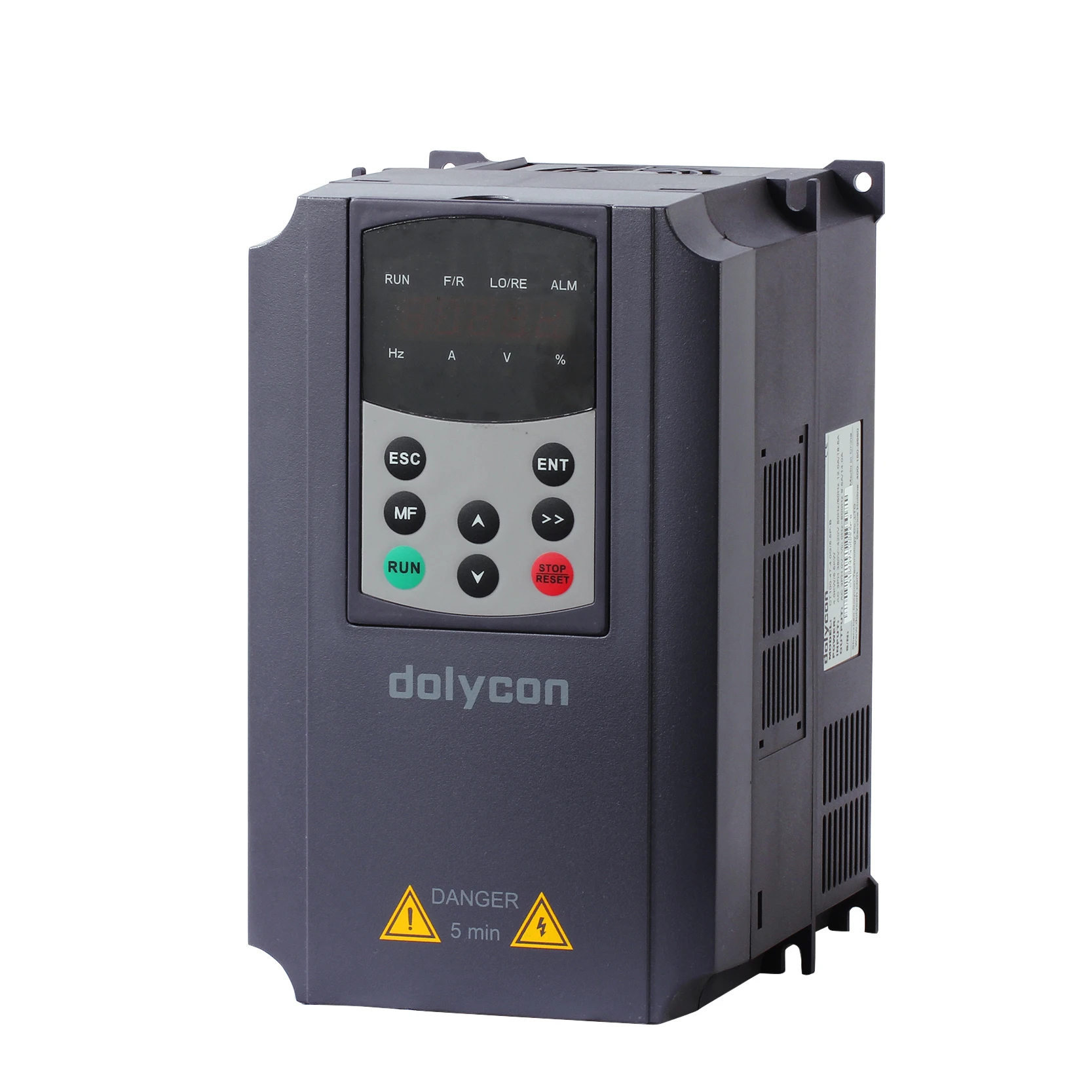

china solar pump inverter 0.75kw to 320kw 3 phase solar pump controller mppt efficiency 99%
ü Apply to all kinds of single phase or 3 phase AC induction motor.
ü Equipped with TI DSP digital control technique and Infineon IGBT power integration module design.
ü Maximum power point tracking (MPPT) algorithm for dynamic VI.MPPT efficiency can be 99%.
ü Fast response speed and good stability.
ü AC and DC input available, need extra anti-reverse diode if both AC and DC input together.
ü Remote GPRS monitoring and control available.
ü Automatic sleep&awake function:
ü Auto sleep and awake according to the weak and strong sunlight respectively.
ü Auto sleep and awake according to the high and low water level in the well and tank respectively.
ü Full protections:overload,over-current,over-voltage,under-voltage,short circuit,dry pumping etc.
ü PV reversed connection protection.
| Model | CT112-2S0.4G~4.0G | CT112-2T-0.7G~5.5G | CT112-4T-0.7G~132G | ||
| Input Specification | PV Input | Max. Input PV Voltage (PV Open-Circuit Voltage) | 450VDC | 450VDC | 780VDC |
| Recommended MPPT Voltage Range | 320~370VDC(Vmp) | 320~370VDC(Vmp) | 540~630VDC(Vmp) | ||
| Recommended Input Operation Voltage | 388~450VDC (VOC) | 388~450VDC (VOC) | 670~780VDC (VOC) | ||
| Grid or Backup Generator Input | Input Voltage | 1PH220V (-15%~30%) | 1PH & 3PH220V (-15%~30%) | 3PH380VAC (-15%~30%) | |
| Output Specification | Rated Output Voltage | 1PH220V | 1PH & 3PH220V | 3PH380VAC | |
| Output Frequency | 0~600.00Hz (Default: 0~60.00Hz) | 0~600.00Hz (Default: 0~60.00Hz) | 0~600.00Hz (Default: 0~60.00Hz) | ||
| Protection | Built-in Protection:Lighting Protection, over-current, over-voltage, output phase-lose, under-load, under-voltage, short circuit, overheating, water pump run dry etc. | ||||
| General Parameters | Application Site | No direct sunshine, no dust, corrosive gas, combustible gas, oil mist, steam, dripping or salinity etc. | |||
| Altitude | 0~2000m,derated use above 1000m,per100m, the rated output current decrease 1%. | ||||
| Environment Temperature | -10℃~50℃ (Environment Temperature be 40℃~50℃, please keep derated use.) | ||||
| Humidity | 5~95%, non-condensation | ||||
| Vibration | Less than 5.9 m/s2(0.6g) | ||||
| Storage Temperature | -20℃~+70℃ | ||||
| Efficiency | Rated Power Run≥93% | ||||
| Installation | Wall or rail mounting | ||||
| Cooling | Forced Air Cooling | ||||
| Model | Rated Power (KW) | DC Input VOC Voltage (V) | Recommend VOC Voltage (V) | Recommend MPPT Voltage (V) | Max. DC Input Current (A) | Rated Output Current (A) | Rated output Voltage (V) |
| CT112-2S-0.7G | 0.75 | 300~450 | 388~450 | 320~370 | 8.5 | 5.5 | 1PH 220 |
| CT112-2S-1.5G | 1.5 | 300~450 | 388~450 | 320~370 | 14 | 10 | 1PH 220 |
| CT112-2S-2.2G | 2.2 | 300~450 | 388~450 | 320~370 | 23 | 13.8 | 1PH 220 |
| CT112-2S-4.0G | 4 | 300~450 | 388~450 | 320~370 | 35 | 20 | 1PH 220 |
| CT112-2T-0.7G | 0.75 | 200~450 | 388~450 | 320~370 | 8.5 | 4.5 | 3PH220 |
| CT112-2T-1.5G | 1.5 | 200~450 | 388~450 | 320~370 | 14 | 7 | 3PH220 |
| CT112-2T-2.2G | 2.2 | 200~450 | 388~450 | 320~370 | 23 | 10 | 3PH220 |
| CT112-2T-4.0G | 4 | 200~450 | 388~450 | 320~370 | 35 | 16 | 3PH220 |
| CT112-2T-5.5G | 5.5 | 200~450 | 388~450 | 320~370 | 50 | 20 | 3PH220 |
| CT112-4T-0.7G | 0.75 | 300~780 | 670~780 | 540~ 630 | 8.5 | 2.5 | 3PH380 |
| CT112-4T-1.5G | 1.5 | 300~780 | 670~780 | 540~630 | 8.5 | 3.7 | 3PH380 |
| CT112-4T-2.2G | 2.2 | 300~780 | 670~780 | 540~630 | 14 | 5.3 | 3PH380 |
| CT112-4T-4.0G | 4 | 300~780 | 670~780 | 540~630 | 23 | 9.5 | 3PH380 |
| CT112-4T-5.5G | 5.5 | 300~780 | 670~780 | 540~ 630 | 23 | 14 | 3PH380 |
| CT112-4T-7.5G | 7.5 | 300~780 | 670~780 | 540~630 | 35 | 18.5 | 3PH380 |
| CT112-4T-11G | 11 | 300~780 | 670~780 | 540~630 | 35 | 25 | 3PH380 |
| CT112-4T-15G | 15 | 300~780 | 670~780 | 540~630 | 50 | 32 | 3PH380 |
| CT112-4T-18.5G | 18.5 | 300~780 | 670~780 | 540~ 630 | 50 | 38 | 3PH380 |
| CT112-4T-22G | 22 | 300~780 | 670~780 | 540~630 | 75 | 45 | 3PH380 |
| CT112-4T-30G | 30 | 300~780 | 670~780 | 540~630 | 75 | 60 | 3PH380 |
| CT112-4T-37G | 37 | 300~780 | 670~780 | 540~630 | 100 | 75 | 3PH380 |
| CT112-4T-45G | 45 | 300~780 | 670~780 | 540~ 630 | 100 | 92 | 3PH380 |
| CT112-4T-55G | 55 | 300~780 | 670~780 | 540~630 | 150 | 115 | 3PH380 |
| CT112-4T-75G | 75 | 300~780 | 670~780 | 540~630 | 225 | 150 | 3PH380 |
| CT112-4T-90G | 90 | 300~780 | 670~780 | 540~630 | 300 | 180 | 3PH380 |
| CT112-4T-110G | 110 | 300~780 | 670~780 | 540~ 630 | 375 | 215 | 3PH380 |
| CT112-4T-132G | 132 | 300~780 | 670~780 | 540~630 | 450 | 260 | 3PH380 |
