Automatic Paper Handle Bag Machine With Hot Melt Glue Paper Bag Handle Making Machine
- Category: Paper Product Making Machinery >>>
- Supplier: Zhejiang Hongwei Machinery Co. Ltd.
Share on (1600624670042):
Product Overview
Description
Model | HWYS-01 |
Handle length(A) | 152/190mm |
Rope spacing(B) | 75/95mm |
Paper width(C) | 30/40mm |
Paper rope length | 360mm |
Paper rope height(D) | 100mm |
Rope diameter | Φ2.5~5mm |
Bag width | 250-400mm |
Bag length | 250-450mm |
Top opening size | Over 130mm |
Production speed | 30-35 pcs/min |
Servo motor power | 750W |
Total power | 380V,10KW,50HZ |
Overall dimension | L6000*W1600*H1500mm |
PRODUCT INTRODUCTION:

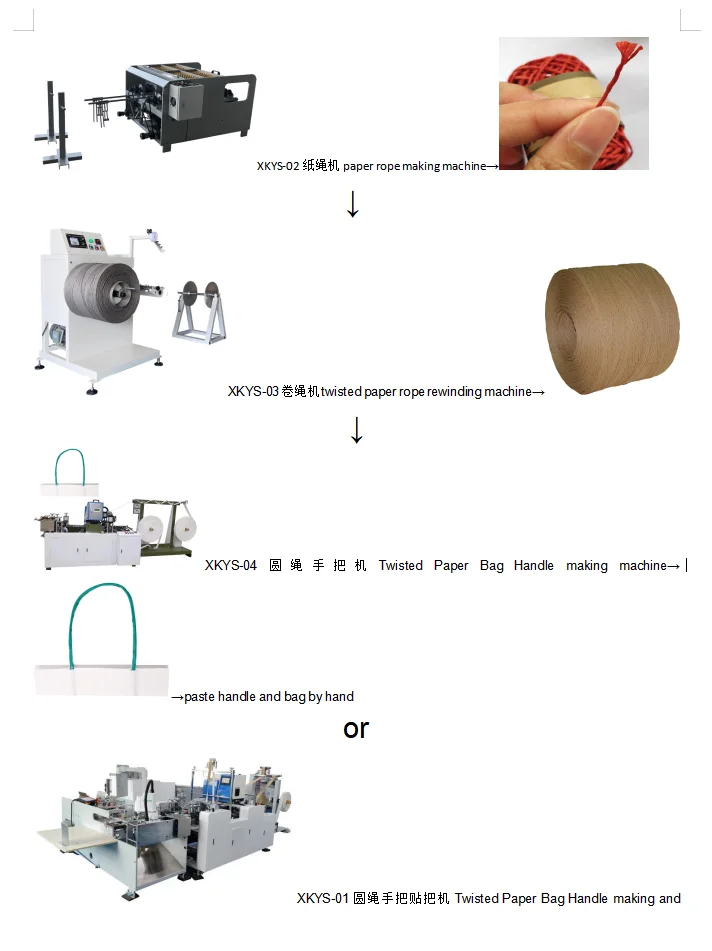

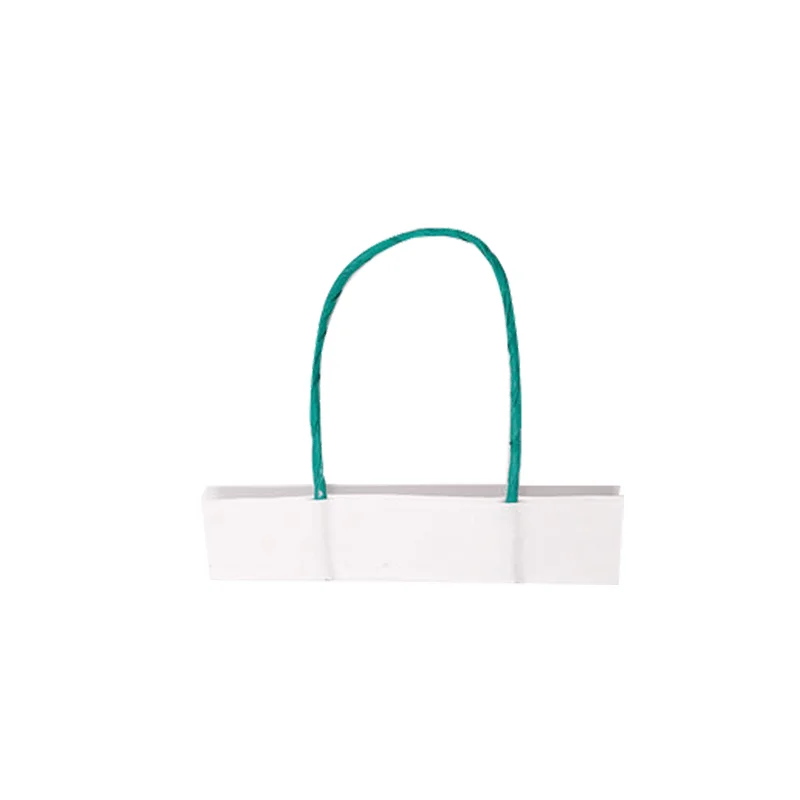

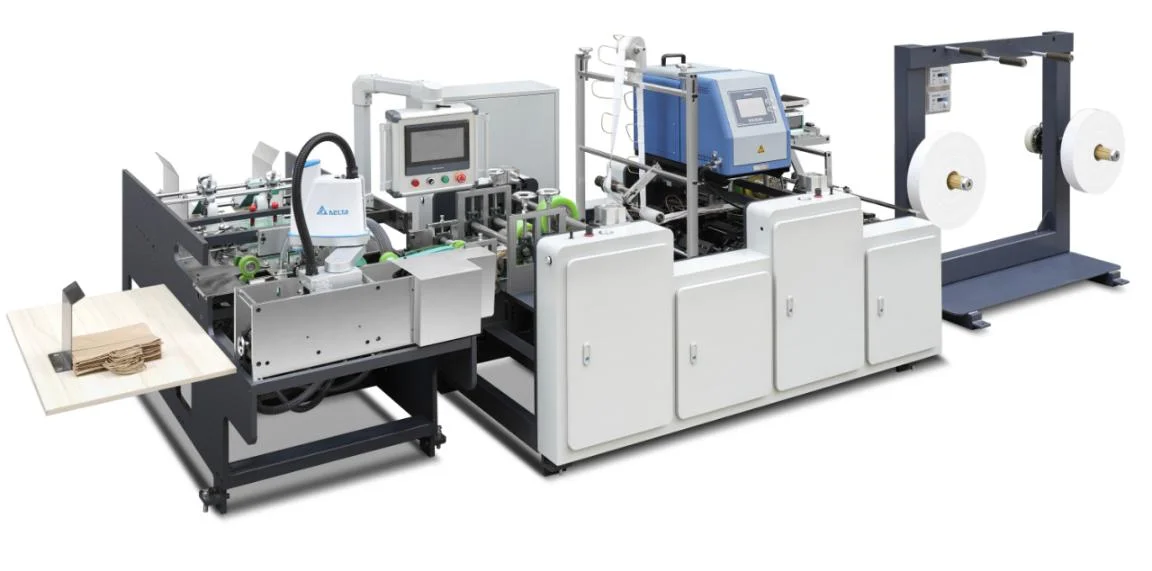

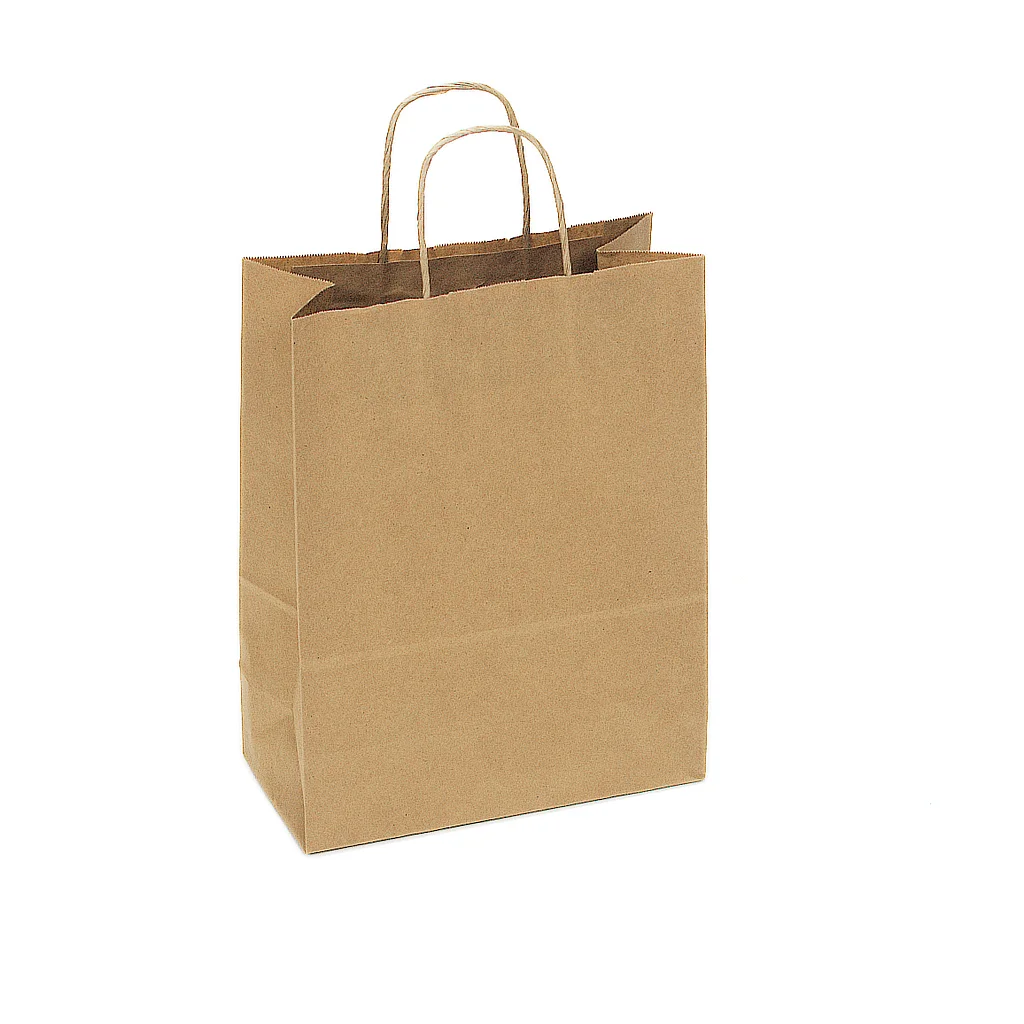

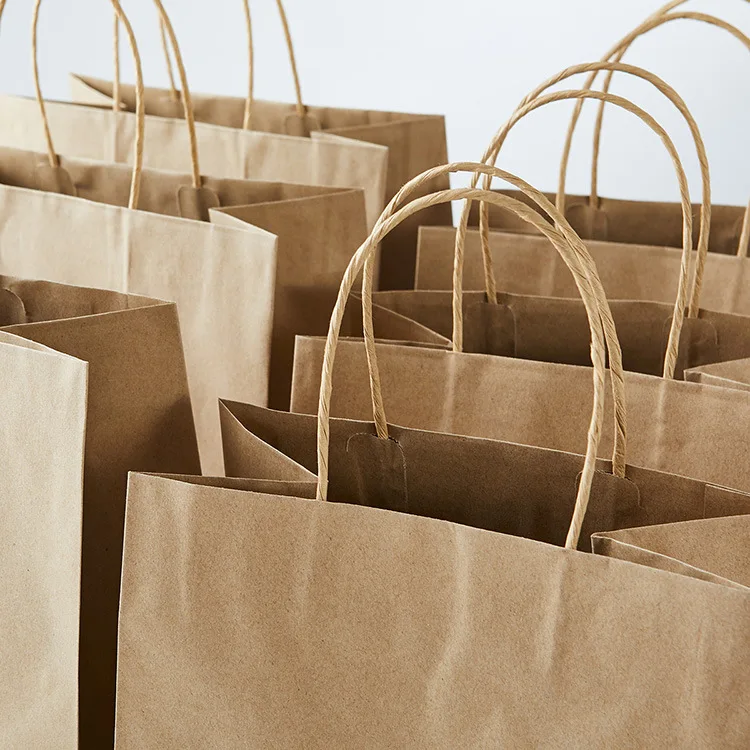

This machine designed to work with our paper bag machine, can produce paper rope handles and then stick the handles to paper bags to make paper bag with handle in line. This machine takes two narrow paper rolls and one paper rope roll as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

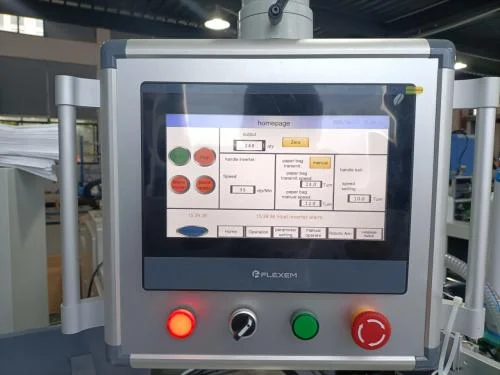

Using FLEXEM touch screen man-machine interface control system, operating at a glance.

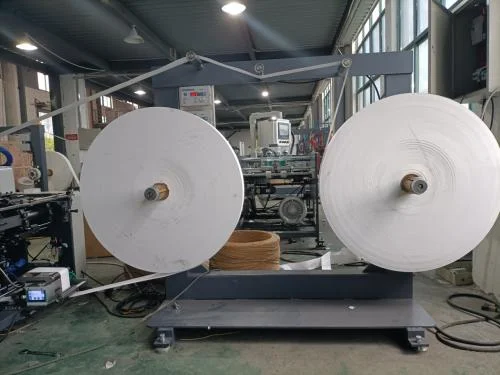

Double unwinding unit

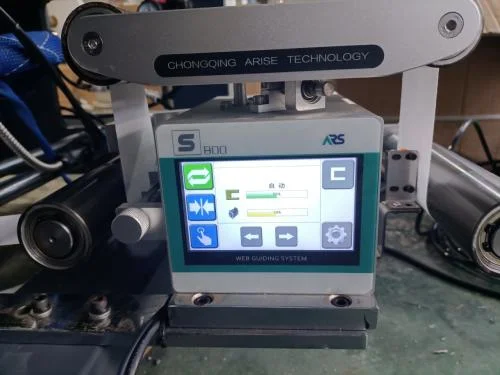

Use Arise EPC to ensure the handle patch on the right position

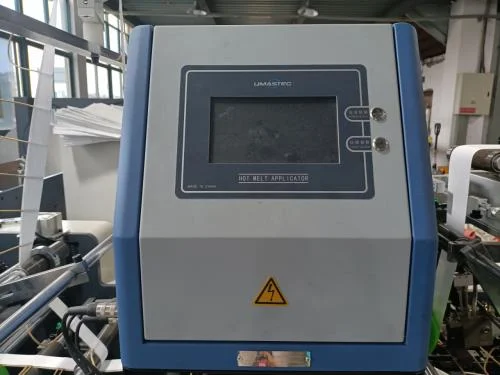

High quality hot melt system can reduce the melt cost and defective
Top brand hot melt system made in taiwan durable and long service life

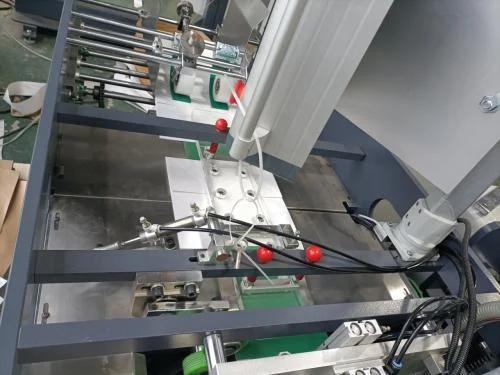

Feeder transmit paper bag automatically

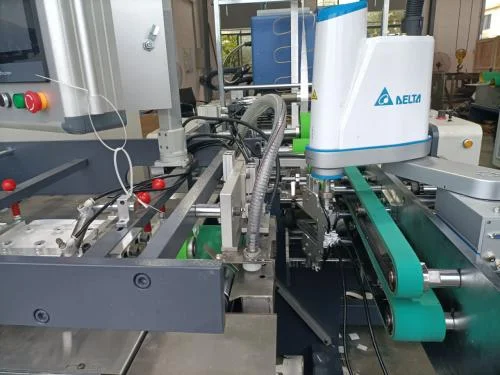

Taiwan made DELTA robotic arm durable and long service life

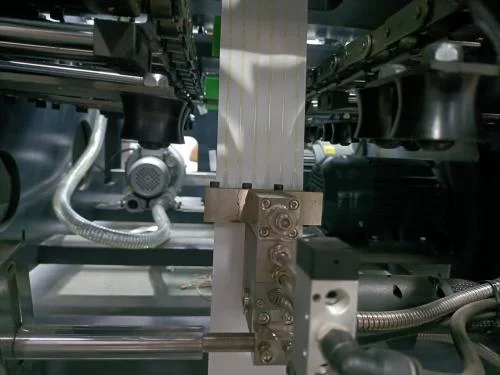

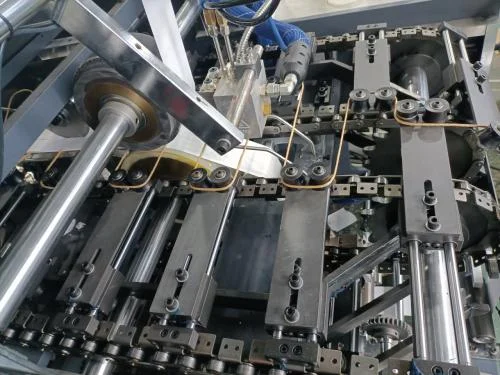

Handle making unit

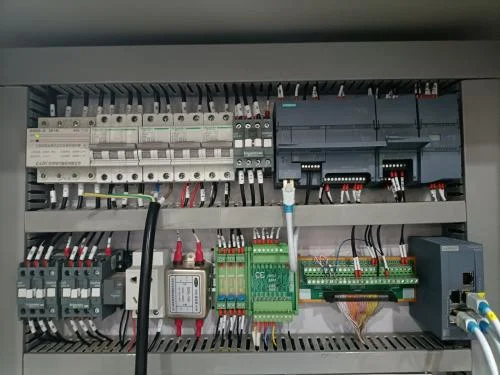

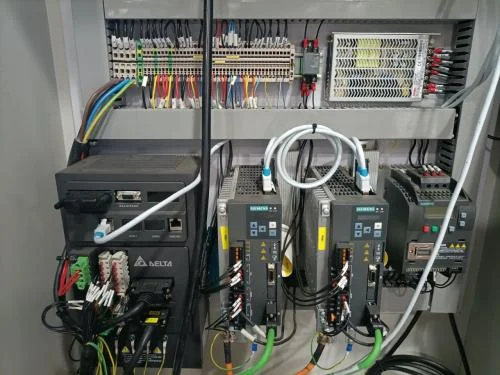

Siemens servo driver and inverter
Siemens
1.Quality Commitment: one year guarranty,Lifelong maintenance, Vulnerable parts are provided free of charge within 12 months.

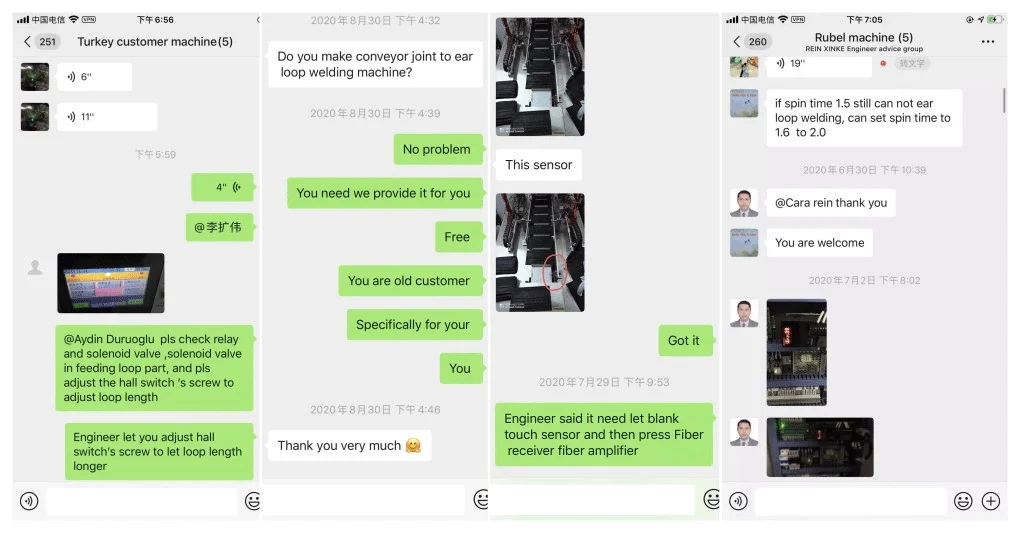

2. After-sales Service: 24hours online to help customer solve problem.
3. Operation Guide: after the customer receives the goods, the engineer will guide the installation throughout.
4. Machine Parts: all machine parts are imported from famous imported brands, which are convenient for customers to repair and buy by themselves.
2. After-sales Service: 24hours online to help customer solve problem.
3. Operation Guide: after the customer receives the goods, the engineer will guide the installation throughout.
4. Machine Parts: all machine parts are imported from famous imported brands, which are convenient for customers to repair and buy by themselves.
company
1. who are we?
We are based in Zhejiang, China, start from 2000,sell to Domestic Market(15.00%),South Asia(15.00%),Southeast
Asia(15.00%),SouthAmerica(11.00%),North America(9.00%),Africa(8.00%),Oceania(8.00%),Mid East(7.00%),Eastern Europe(7.00%),Central
America(5.00%).There are total about 50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Bag Making Machine production line,Paper cup machine production line, paper bowl machine production line, paper slitting machine, paper die cutting machine, paper printing machine
4. why should you buy from us not from other suppliers?
we have more than 20 years of rich experience for machinery manufacturing.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
