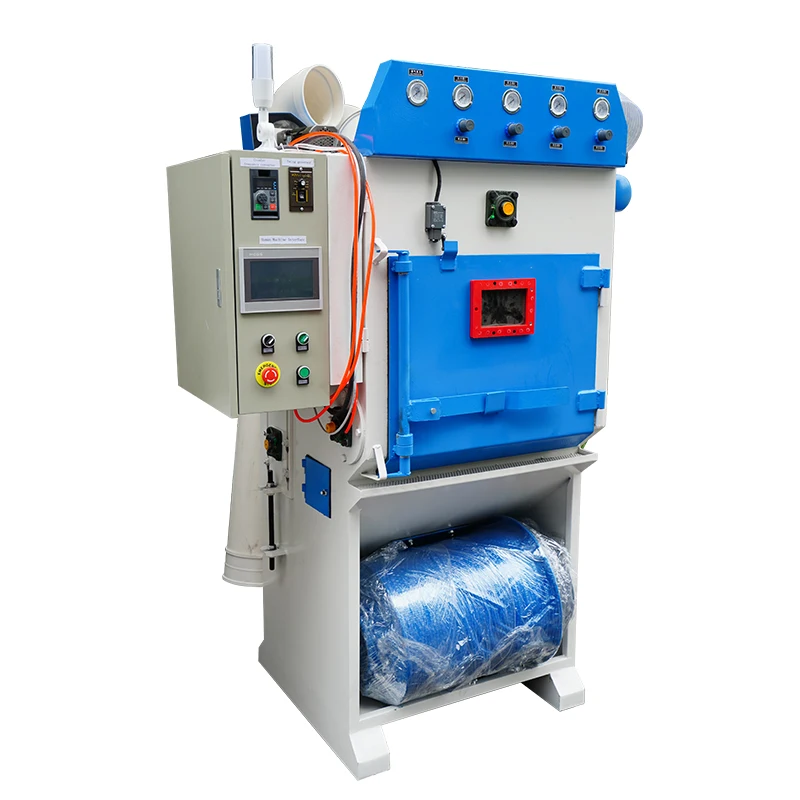

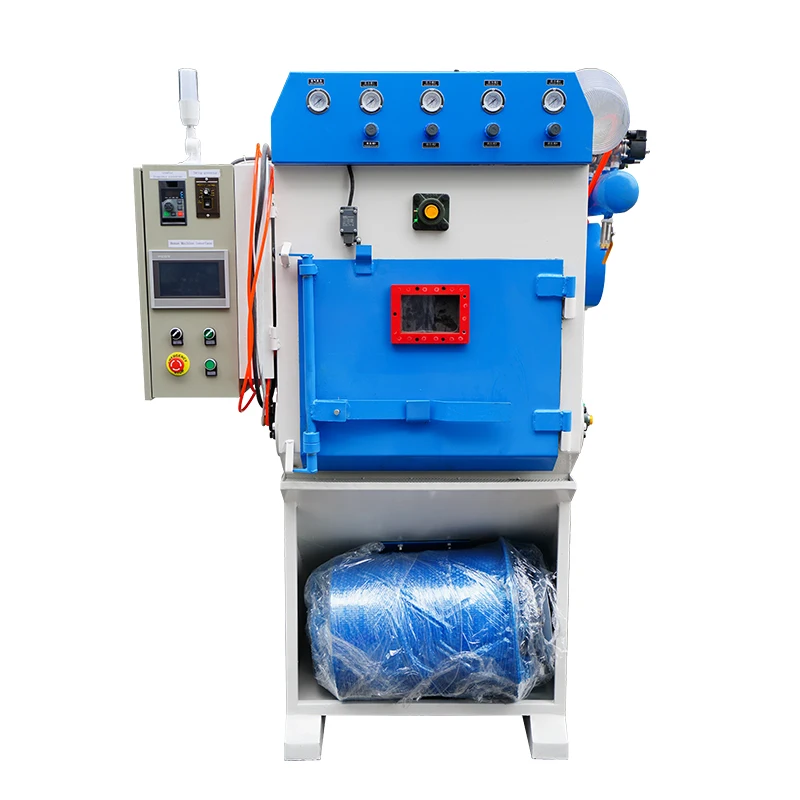

Automatic tumble belt sand blasting machine
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (1600627158136):
Product Overview
Description
Products Description

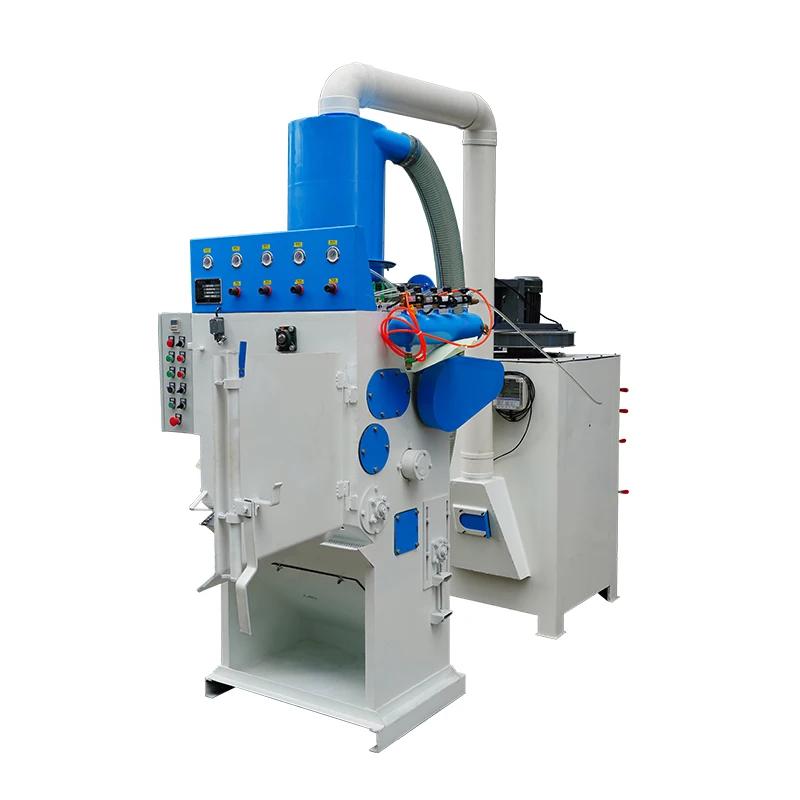

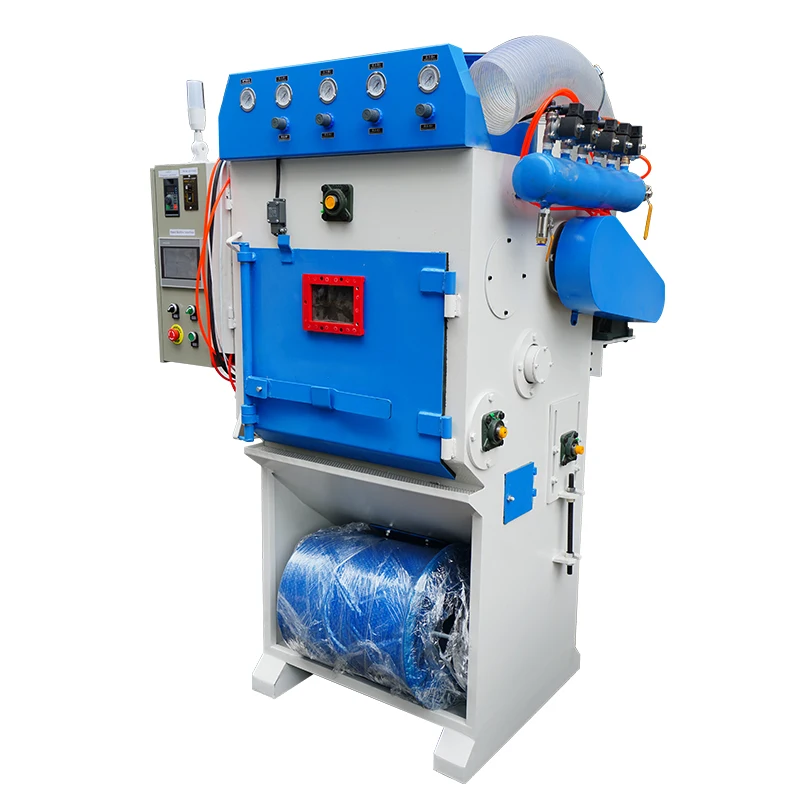

Automatic tumble belt sand blasting machine
Tumble belt automatic sandblasting machine are ideal for processing in small and medium sized parts in batches, as well as relatively heavy, complex-shaped parts that would be hard to handle in a traditional blasting cabinet.

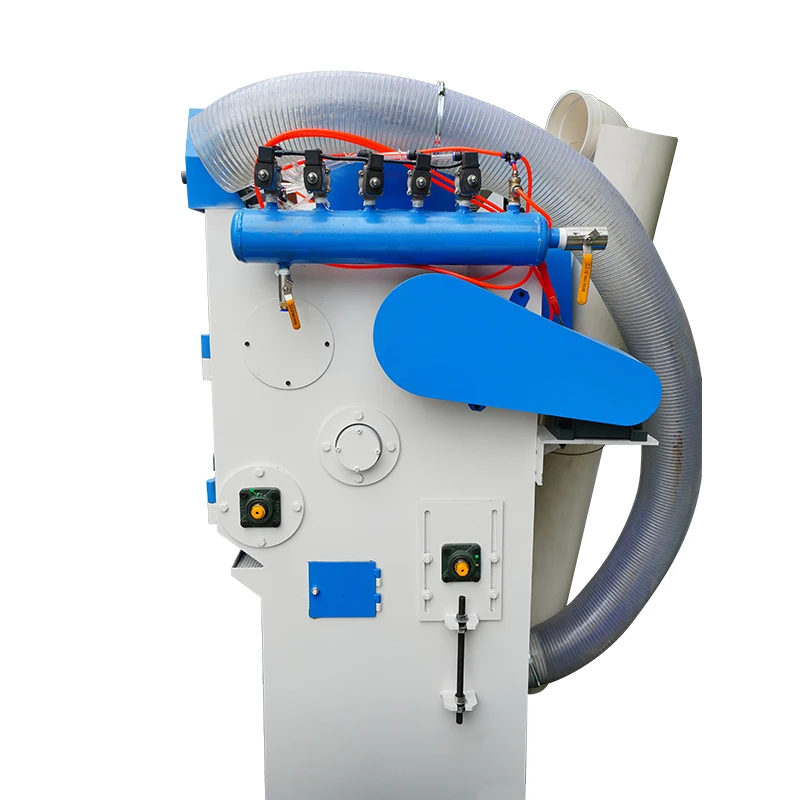

The main body of high wear-resistant steel plate organic synthesis. The use of high wear-resistant track formation suppose the roller sandblasting treatment is the track when the belt is rotated 360 degrees, and can work on the cavity, dead ends for sandblasting processing, track reversal for workpiece discharge. The machine gun swinging around the gun spray angle and the distance can be adjusted, the product can achieve the perfect sandblasting effect.
Details Images
Automatic Tumble Belt Sand Blasting Machine Features
1. Long life, wear-resistant rubber belt with a loading capacity of 100kgs.
2. Blasting guns are composed of boron carbide nozzles, which is the most durable materials in the market.

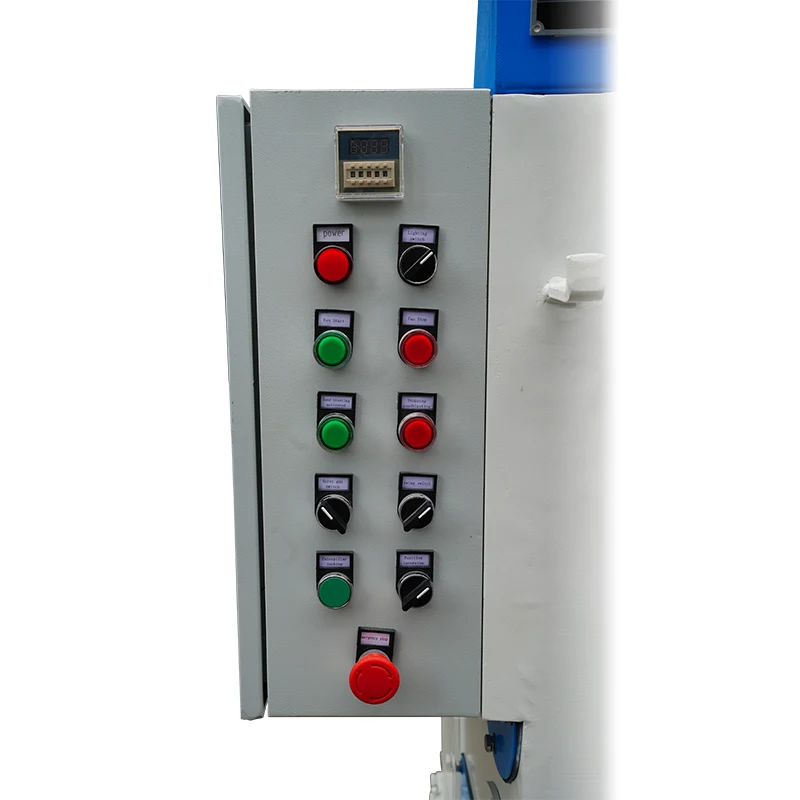

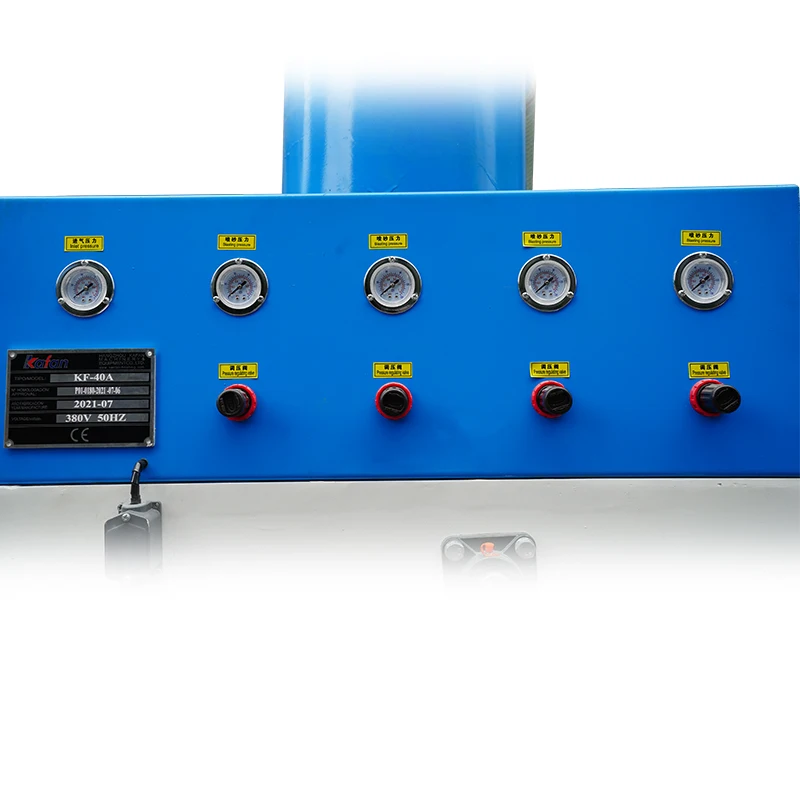

3. Easy-to-use electric control to adjust blasting pressures, belt tumbling speed, and blasting cycle time, etc.

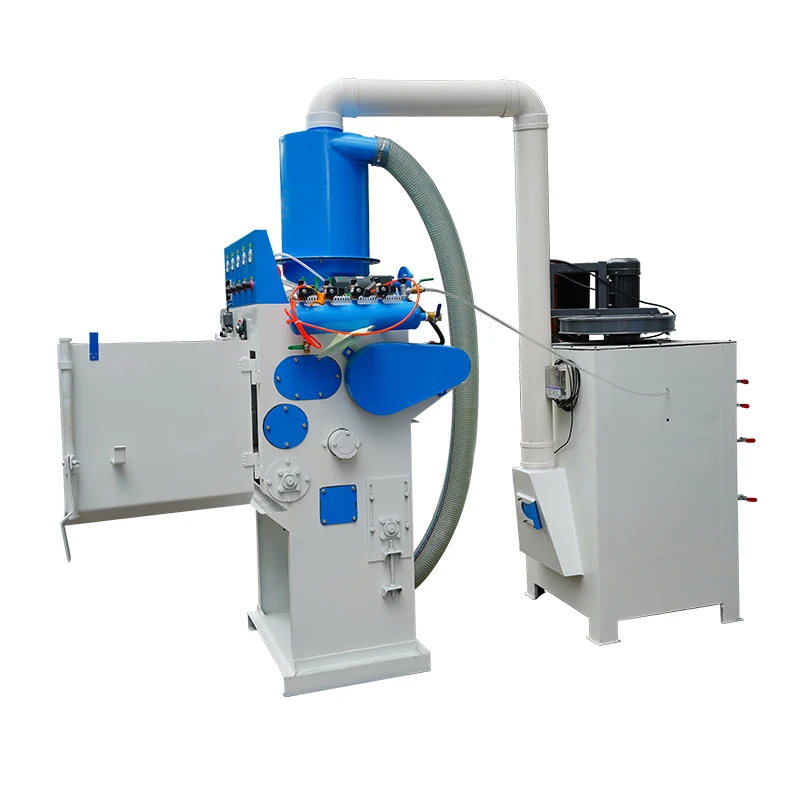

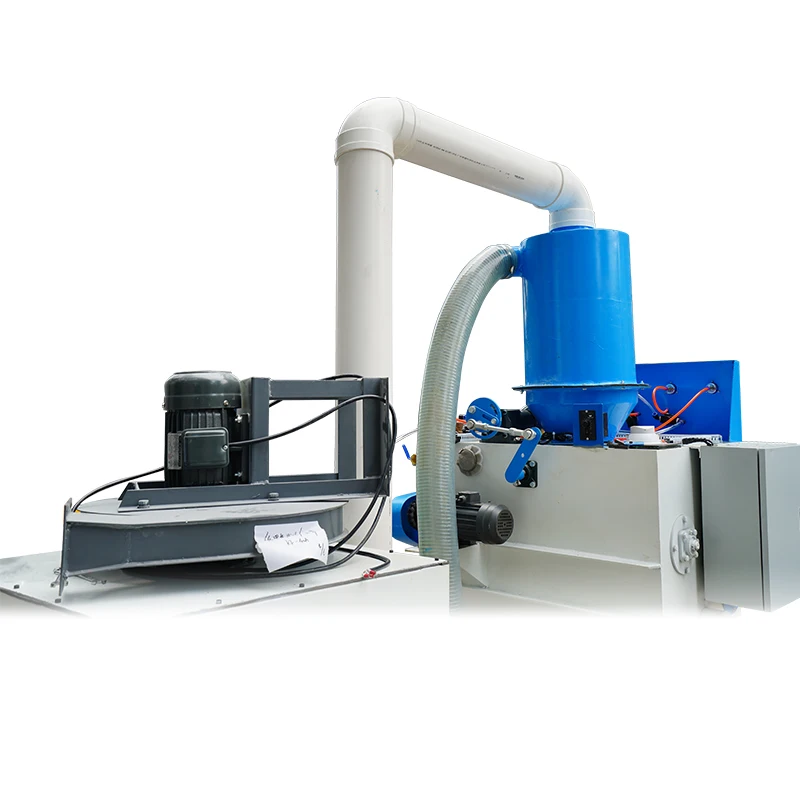

4. Blast media is continuously separated from dust by a cyclone device, returning only pure blast media in good shape back to the blast nozzles for optimal results.
5. Configured a pulse filter cartridge for dust removal system, features high removal efficiency and requires easy installation and maintenance.
6. The blast guns quanity, swing speed, rubber belt size, all can be tailored to the customers specifications to address all
process constraints and for optimal results and productivity.
2. Blasting guns are composed of boron carbide nozzles, which is the most durable materials in the market.
3. Easy-to-use electric control to adjust blasting pressures, belt tumbling speed, and blasting cycle time, etc.
4. Blast media is continuously separated from dust by a cyclone device, returning only pure blast media in good shape back to the blast nozzles for optimal results.
5. Configured a pulse filter cartridge for dust removal system, features high removal efficiency and requires easy installation and maintenance.
6. The blast guns quanity, swing speed, rubber belt size, all can be tailored to the customers specifications to address all
process constraints and for optimal results and productivity.
Tumble belt blasting machine working principle：

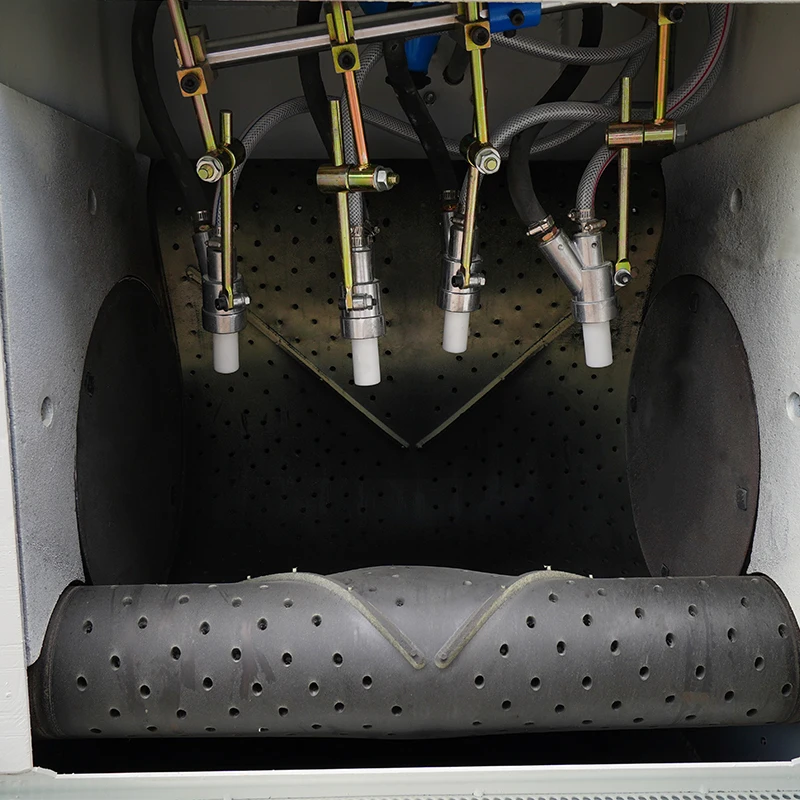

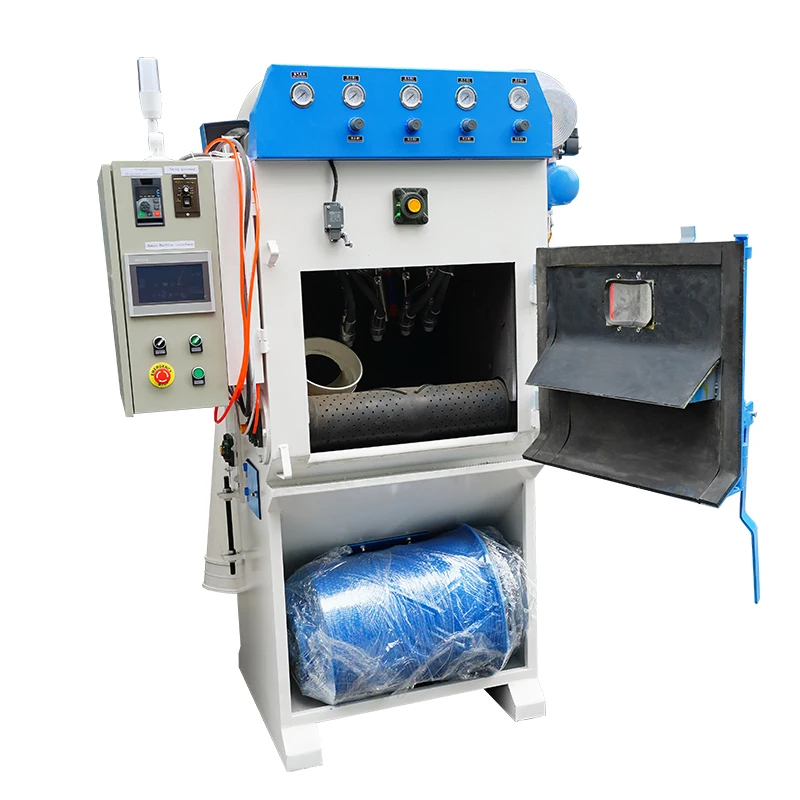

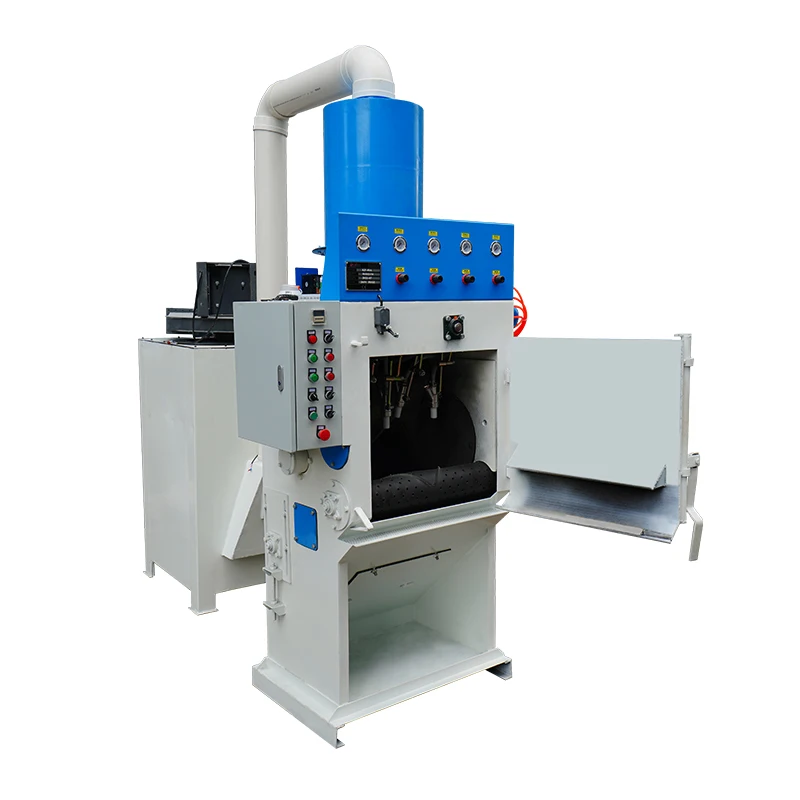

Simply load parts on the rubber belt and set the timer, then return later to unload perfectly cleaned or finished parts. Parts tumble on a thick, perforated rubber belt, a group of blast guns uniformly blast medias to all exposed surfaces to deliver a consistent finish automatically. Nozzles are mounted on an oscillating blast gun to ensure maximum coverage of all parts.
Model | KF-A40 |
Working cabinet: | L600*W500*H500 (mm) |
Cabinet outsize: | L800*W650*H2720 (mm) |
Dust collector dimensions: | L800*W800*H2100mm |
Productivity: | 0.3-0.5 T/H |
Load capacity: | ≤100KGS |
Rolling motor power: | 1.5KW |
Dust collection motor power: | 2.2KW |
Automatic blasting gun: | 4pcs Aluminium alloy blasting guns, with 4pcs boron carbide nozzles, dia 8mm. |
Voltage: | 380V 50HZ |
Application

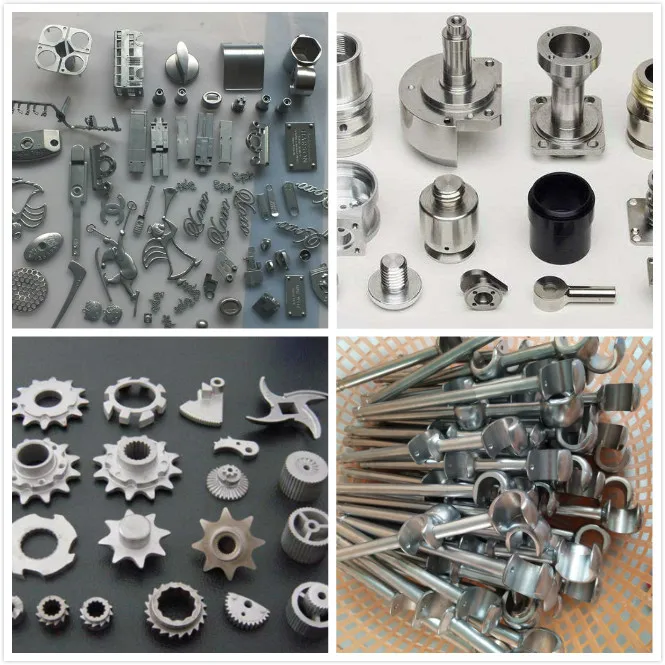

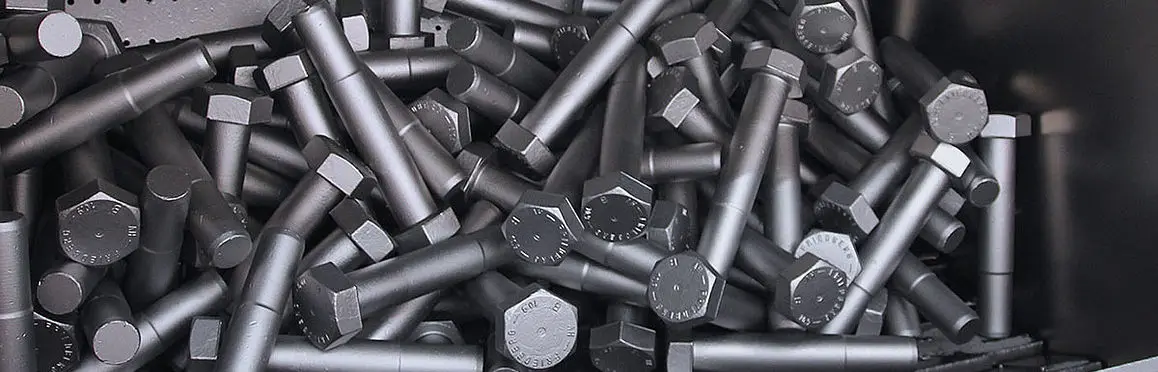

The machine suitable for small batches small and medium hardness workpiece to high speed blasting, like heat treatment parts, cleaning casting, glitch residue light decoration etc surface treatment, especially suitable for blasting head screwdriver, screws and socket, the maximum weight of the workpieces can not exceed 25kgs.
Recommend Products
Product packaging
Certifications
CE certificate of Crawler automatic sandblasting machine fit for small batches ,if you need others, please let me know .
Company Information
PROFESSIONAL MANUFACTURER OF SURFACE FINISHING MACHINERY
Kafan is a brand specializing in design and manufacturering sandblasting equipment and mass finishing equipment. devoted all ourselves supplying solution for worldwide customers, because of the superior technology, quality, service, we’ve established long term business relationship with distributor in US, Mexico, Russia, Poland, UK, Germany, South Africa, Vietnam, Thailand, etc.
Our products can be divided into two main parts, sandblasting equipment and mass finishing machines.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine, blasting parts and abrasives.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine, blasting parts and abrasives.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
