Africa type Single phase Digital Meter KHLSM
US $6.83-$7.10

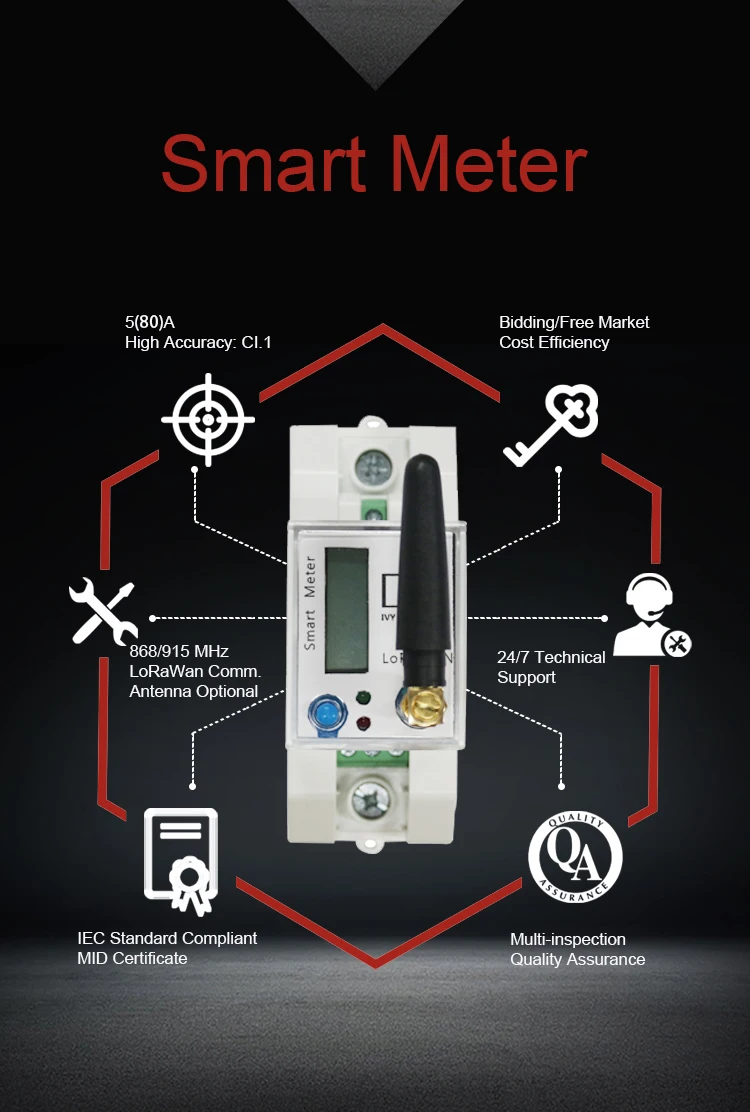

EM114039 LoRaWAN Single Phase House Power Electricity Meters For Smart Home Lora Energy Meter
- Category: Energy Meters >>>
- Supplier: Shanghai Ivy-Metering Electronic Technology Ltd.
Share on (1600628134116):
Product Overview
Description
Specification | Type | 1 Phase 2 Wires Prepaid Din Rail Meter |
P/N | EM114039 | |
Accuracy Class | Cl.1 | |
Operating Voltage | 220V | |
Rated Current | 0.25-5(80)A | |
Rated Frequency | 50Hz | |
Power Consumption | <1W/<10VA | |
Starting Current | 0.4%/Ib(Cl.1) | |
Technical Standard | IEC62052-11/ IEC62053-21, IEC62055-41/IEC62056-21 | |
Operating Temp. | -20℃~+70℃ | |
Relative Humidity | <95% | |
Load Control | Built-in 80A Latching Relay | |
LoRaWAN Communication | 868MHz | |
LCD | LCD5+1 | |

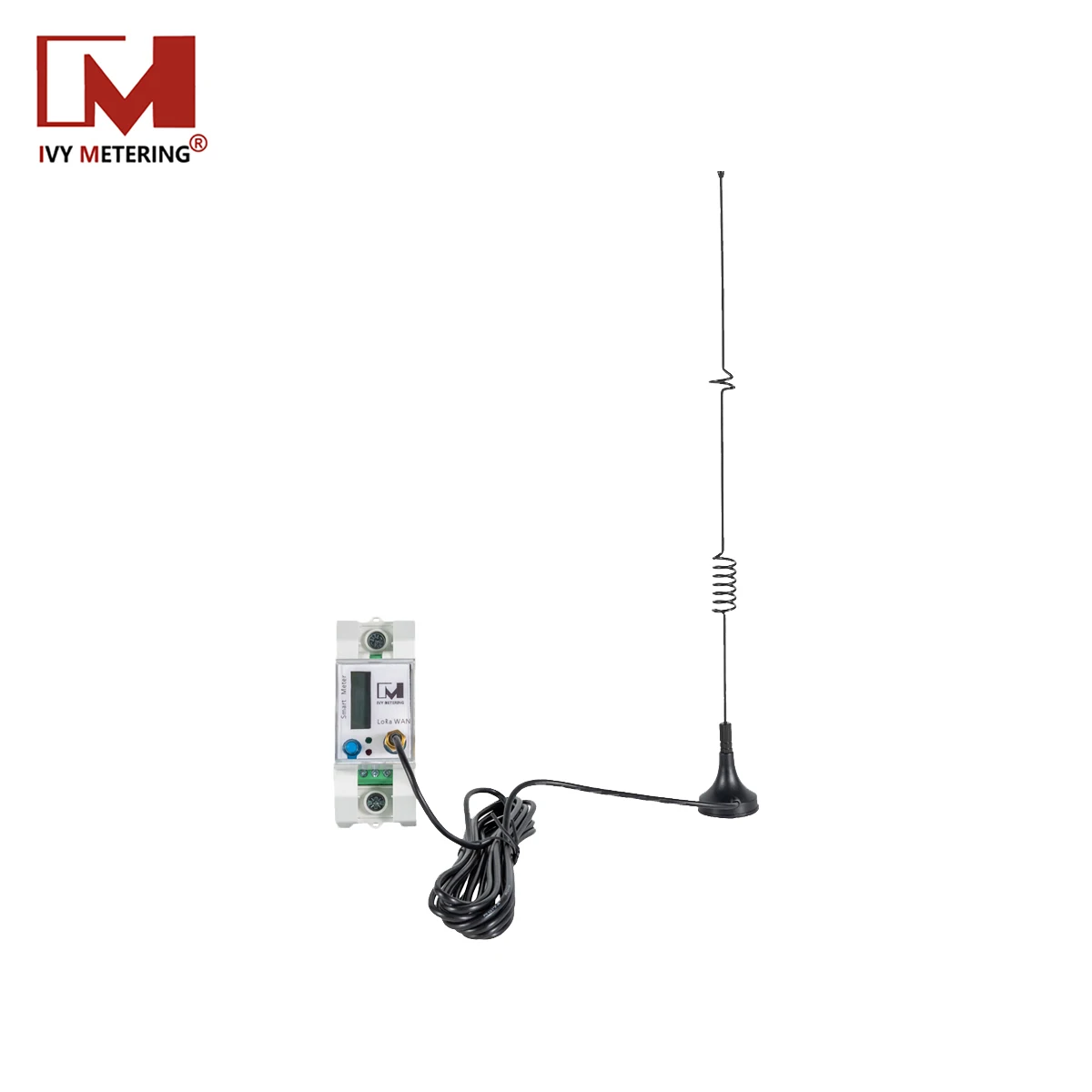

Antenna | Optional |
Cautions:
1.About AC/DC Energy Meter
(1) AC or DC- Generally speaking alternating current or direct current shall be the first factor.
(2) We also have DC meter when you need to measure the Direct Current.
2.About Function
(1) As the content is limited, all functions mentioned above are the main functions
(2) Other functions such as TOU, load control, friendly hours,RTC, plz refer to the technical specification or
(1) AC or DC- Generally speaking alternating current or direct current shall be the first factor.
(2) We also have DC meter when you need to measure the Direct Current.
2.About Function
(1) As the content is limited, all functions mentioned above are the main functions
(2) Other functions such as TOU, load control, friendly hours,RTC, plz refer to the technical specification or
contact with our sales team.
3.About Application
(1) The applications only for examples, for the pratical situation the energy meter can also be used for
3.About Application
(1) The applications only for examples, for the pratical situation the energy meter can also be used for
other applications.
(2) Welcome to inquiry if you are not sure about the functions or application, we have free technical support
(2) Welcome to inquiry if you are not sure about the functions or application, we have free technical support
