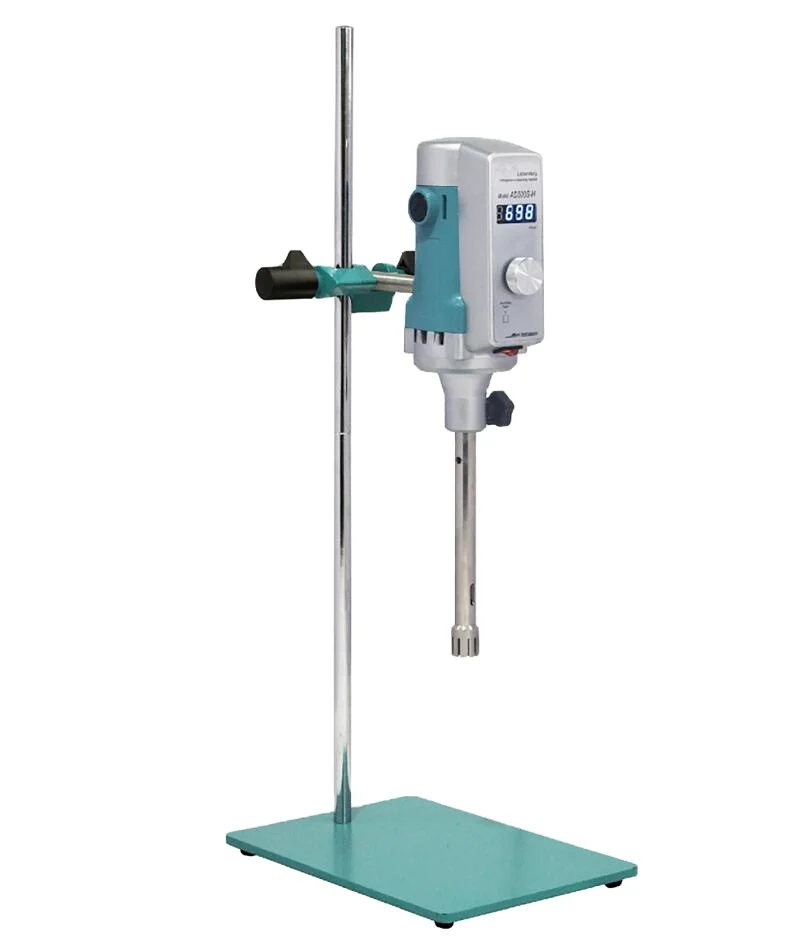

Laboratory Cosmetic 28000rpm High Shear Emulsifying Machine Emulsifier Homogenizer Mixer
- Category: Chemical Machinery & Equipment >>>
- Supplier: Hangzhou,West,Tune,Trading,Co.,ltd.
Share on:
Product Overview
Description
Products Description
Specifications
Rated voltage | AC220V |
Rated frequency | 50/60Hz |
Input power | 850W |
Output power | 500W |
Rated torque | 17.1N.cm |
Work mode | S1(Continuous) |
Operation control mode | Combined control knob |
Rotating speed adjustment range (idle running) | 2000~28000rpm |
Rotating speed control type | Stepless |
Speed digital display | LED |
Timing control range | 1~1000min |
Dynamic speed detection function | Yes |
Speed memory function | Yes |
Overload protection function | Yes |
Peak torque of the sirring head | 17.0N.cm |
Stirring head material | AISI 316 |
Stirring head specifications | 12G 18G 20G 24G 30G 36G |
Permissible ambinet temperature | not more than 40℃ |
Permissible relative humidity | not more than 80% |
Size of the mixer (T×B×H) | 215×310×720mm |
Weight | 8.7kg |

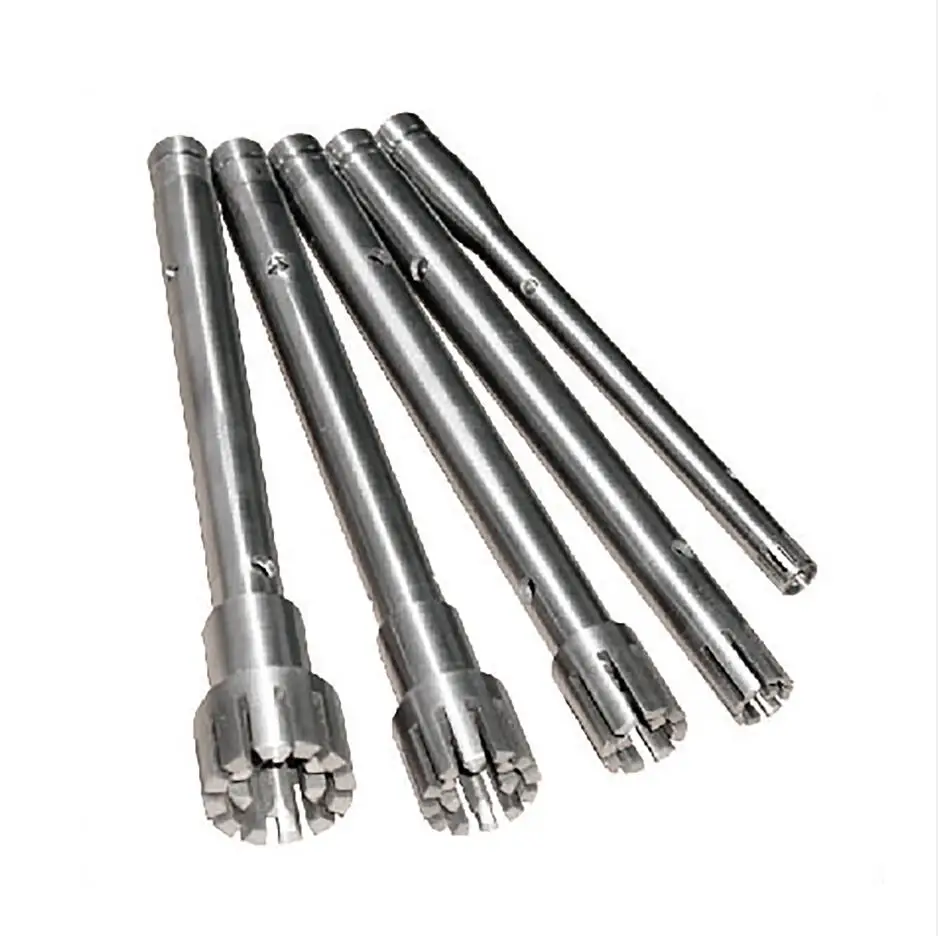

Stirring head Specifications | 12G | 18G | 24G | 30G | 36G |
Mixing capacity (H2O)ml | 30~800 | 50~1500 | 80~5000 | 100~8000 | 150~13000 |
Max Viscosity tolerated(mPa.s) | 1000 | 2000 | 5000 | 6000 | 7000 |
Max temperature tolerated(℃） | 120 | 120 | 120 | 120 | 120 |
Overall length(mm) | 215 | 222 | 225 | 235 | 238 |
Stator diameter(mm） | 12 | 18 | 24 | 30 | 36 |
Stirring head material | SS316 | SS316 | SS316 | SS316 | SS316 |
Bearing material | PTFE | PTFE | PTFE | PTFE | PTFE |
Peak linear speed of the rotor(m/s) | 12 | 15 | 18 | 22 | 26 |
Minimum height of the liquid immersed(mm) | 35 | 45 | 50 | 60 | 65 |
Maximum height of the liquid immersed(mm) | 150 | 160 | 165 | 170 | 175 |
