Product Overview

Description



PRODUCT OVERVIEW


All guide wheel raw material of Silver Plating Copper Wire Drawing Machine is bake lite, which can prevent wire surface from scratching. The annealing device adopts a vertical design with a steam generator.
The annealing and softening chamber is protected by steam. Both annealing tank and the cooling chamber are filled with steam or coolant without air mixing, so that the final wire will not be oxidized.


MACHINE CHARACTERISTIC

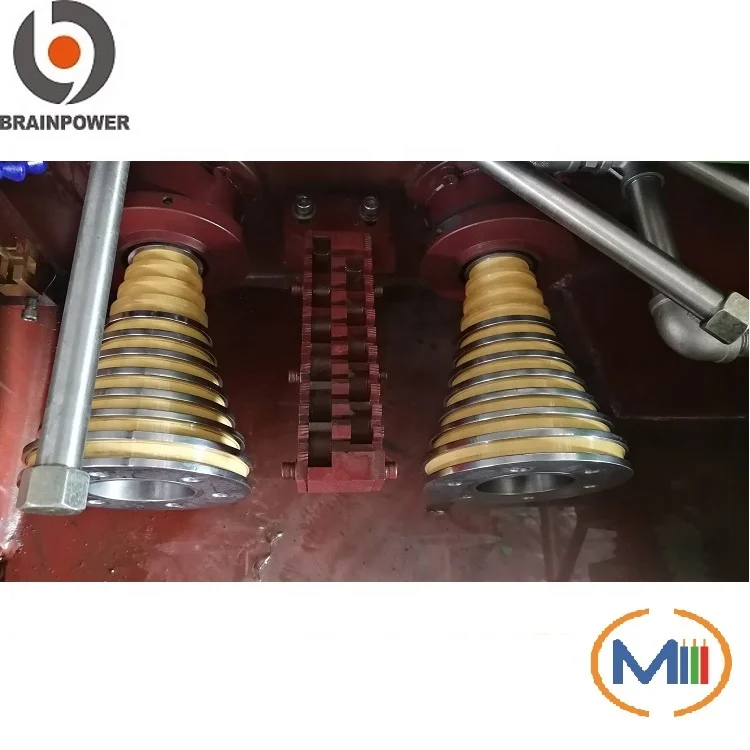

1. Zirconium oxide capstan with long working life and also ensure wire surface smoothly
2. D.C current annealing designing,with full digital controlled, annealing voltage working with main drawing speed，ensuring stable elongation.

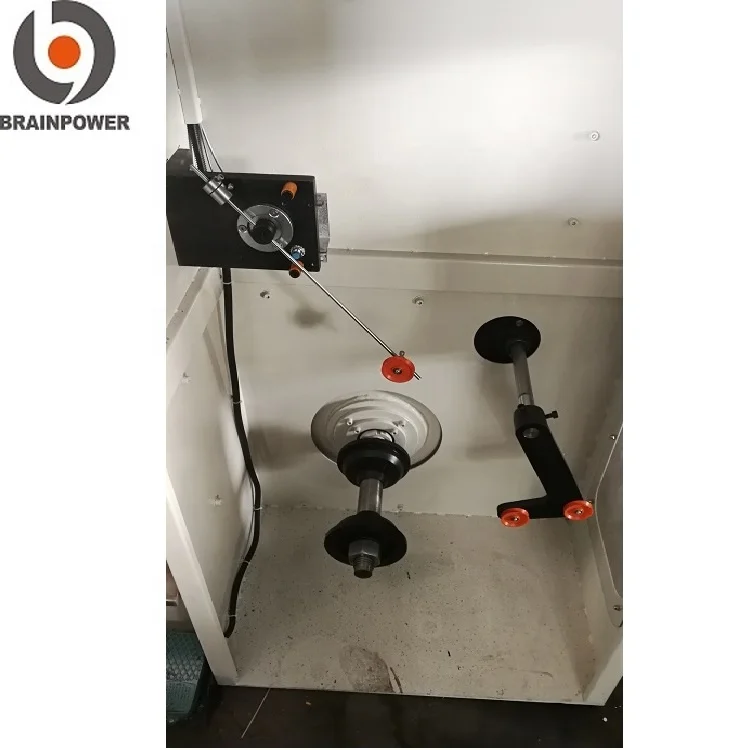

3. Silver Plating Copper Wire Drawing Machine use automatic traversing system.Traversing can be adjust easily according to bobbin height.


PRODUCT SPECIFICATIONS


No
Item
Data
1
Machine type
BRN-DT24Z
2
Inverter control
Two inverter control
3
Drawing dies No./max.
24
4
Inlet diameter
Ø 0.5- 1.2mm
5
Out diameter
Ø0.15- 0.35mm
6
Max.Drawing line speed
1500m/min
7
Slip ratio of m/c
13%
8
Fix speed capstan slip ratio
8%
9
Frame
Horizontal type
10
Capstan
Ceramic plasma capstan
11
Main motor
11kw/15kw
12
Spooler motor
4kw
13
Annealing voltage
DC 0-60V
14
Annealing current
DC 250A
15
Spool bobbin size
DIN160-DIN250


ABOUT US




PACKAGING & SHIPPING




FAQ


Q1: What’s the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.

Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.

Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.

Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.

Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
