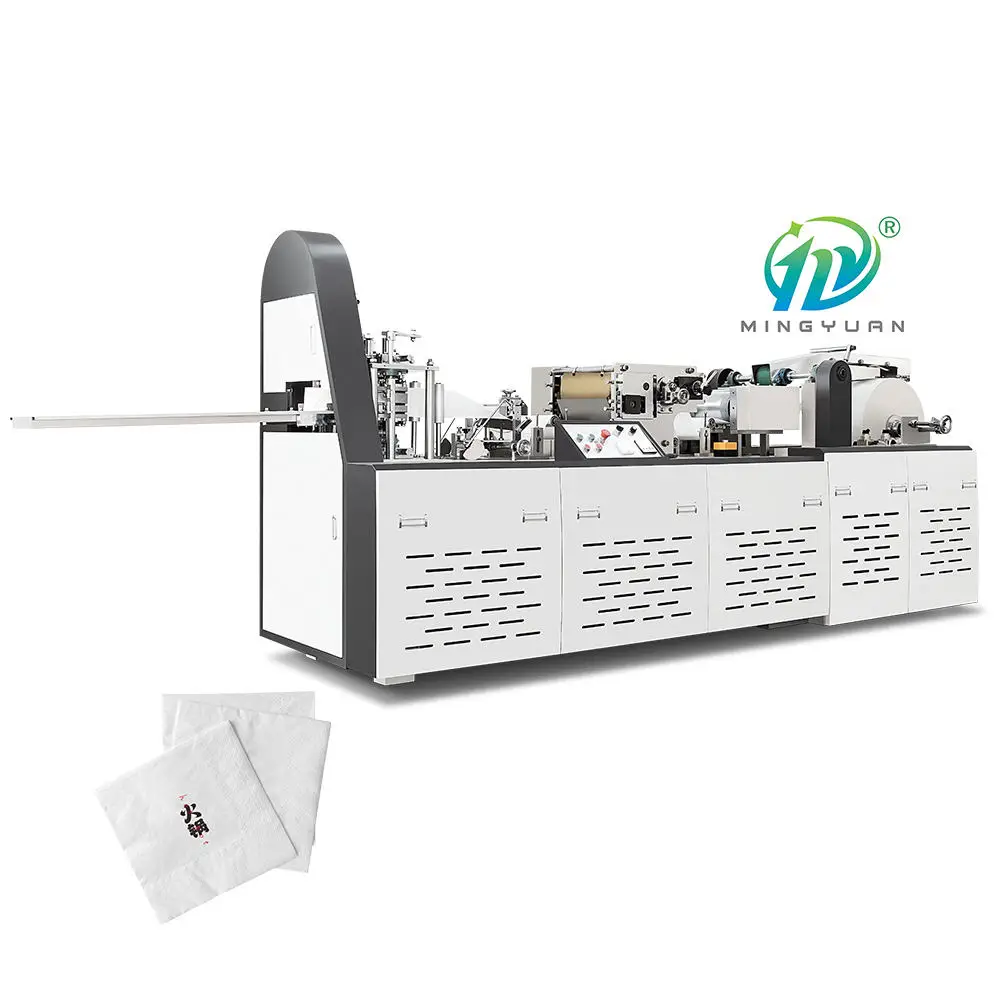

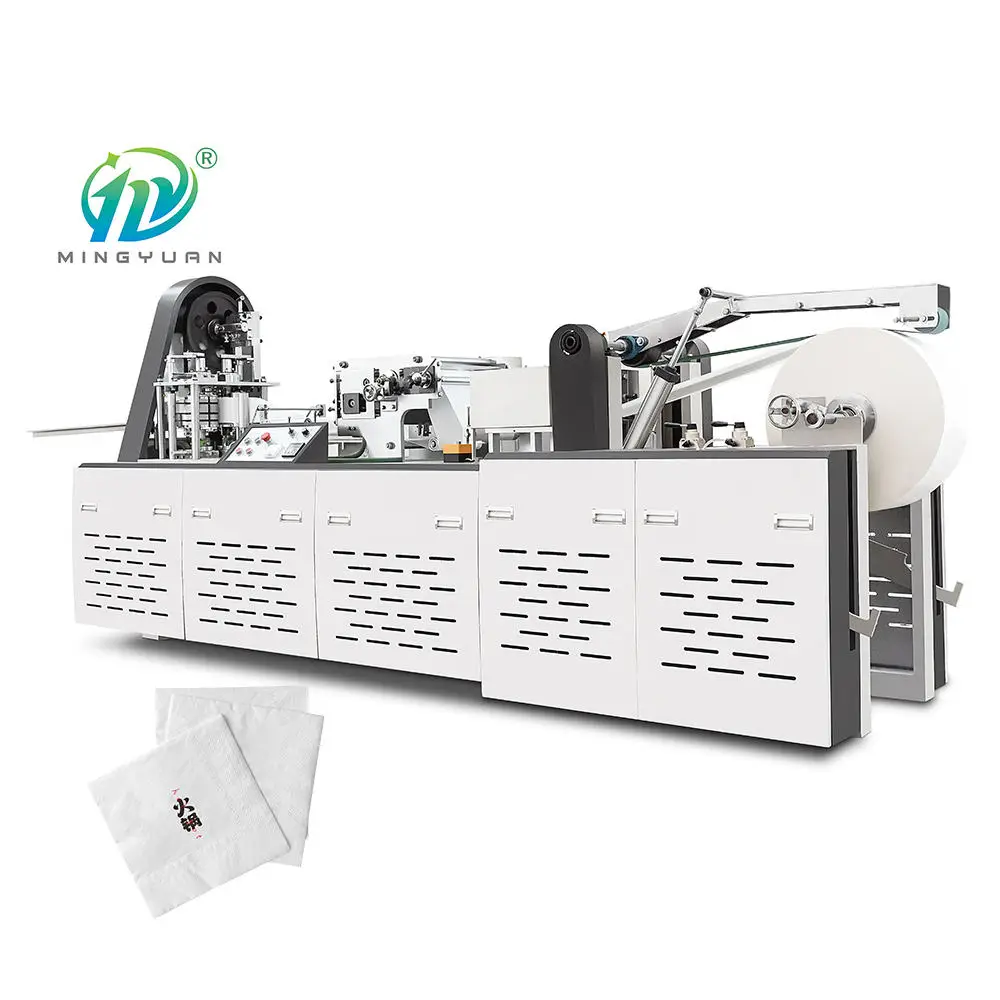

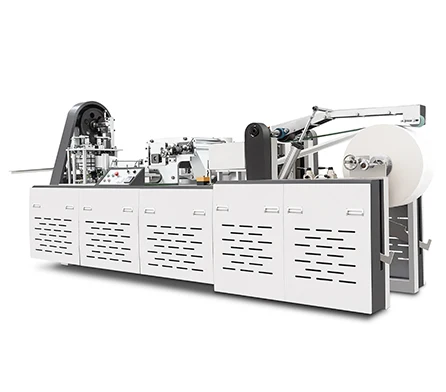

Automatic Toilet Tissue Paper Making Machine Small Folding Napkin Paper Machine
- Category: Paper Product Making Machinery >>>
- Supplier: Ruian Mingyuan Machinery Co. ltd.
Share on (1600629282374):
Product Overview
Description
Products Description
printing, folding and cutting the paper into square or rectangular-shaped napkin. Machine is equipped with color printing unit
which can print various clear and bright patterns and design of logo , high procession ceramic anilox roller, making the water ink
equally spread .it is the ideal equipment for making better quality and high-grade napkins.
Machine Model | MY-CJ180 | MY-CJ330 | |
Napkin Specification | Finished folding size 180*180mm （or other specification size） | Finished folding size 330*330mm （or other specification size） | |
Speed | 500-600 pcs/min（with printing speed） | 700-800 pcs/min (without printing machine ) | |
Weight | 1100KGS | 1700KGS | |
Power Source | 380V，50 HZ | ||
Power Consumption | 7 KW | ||
Raw Material | 230-410mm | ||
Paper Core Diameter | 76.2mm | ||
Raw Paper Maximum Diameter | 1100mm | ||
Band Saw Size：（Thickness x Width x Perimeter） | 0.6X32X3450mm | ||
Folding Type | v folding | ||
Printing Form | flexo printing | ||
Printing Ink | Water soluble ink | ||
Embossed Unit | Steel to rubber roller Steel to wool roller | ||
Printing Unit | one color | ||
Band Saw Wheel Diameter | 360MM | ||

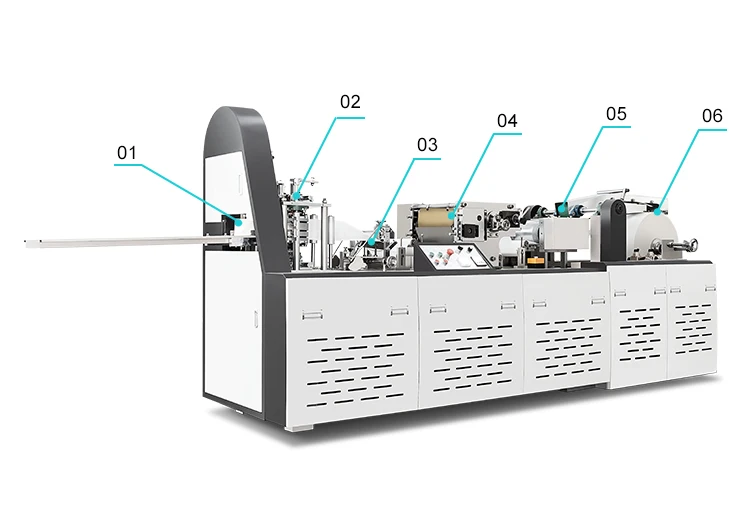

01 Collecting unit 02 Cutting unit 03 Folding device
04 color printing unit 05 Embossing unit 06 paper roll stand
04 color printing unit 05 Embossing unit 06 paper roll stand
Details Images
Control panel
Simple and easy to operate, equipped with better quality switches and button , All the operation can be finished and controlled in
this panel
this panel
Electric system
With CHINT and other high-quality brand electrical components, stable and better quality
Raw material stand
Raw paper roll can be put on this stand and paper unwinding by transmission belt
Pattern Embossing unit
Pattern matching paper rolling device, pattern significantly
Color printing device
Adopts flexible printing,the design can be customized design as your requirement, Using professional color priting anilox and
string ink rollers which can the water ink equally spread , the printing logo is clear and bright
string ink rollers which can the water ink equally spread , the printing logo is clear and bright
Folding unit
Folding board with mechanical hand to fold paper shape, and then cutting by bandsaw cutter
Main motor and bandsaw motor
Provide the power for the Transmission belt drive system and bandsaw cutter The equipment is equipped with a wide belt synchronous
conveying device and two control tension devices to ensure the dimensional accuracy of the folded finished product.
conveying device and two control tension devices to ensure the dimensional accuracy of the folded finished product.
Speed regulator
Adjust the unwinding speed of the belt to change the machine speed
Sample Display
After Sales Service
Spare Parts Without Return
Direct Replacement Of
Spare During Warranty Period
Free Shipping Replacement Spare
Be Free Of Spare Parts
Replacement Spare
You just need to pay the freight
Be Free of Spare parts
One To One Video Teaching
We Provide
Operation & Maintenance cd
Certifications

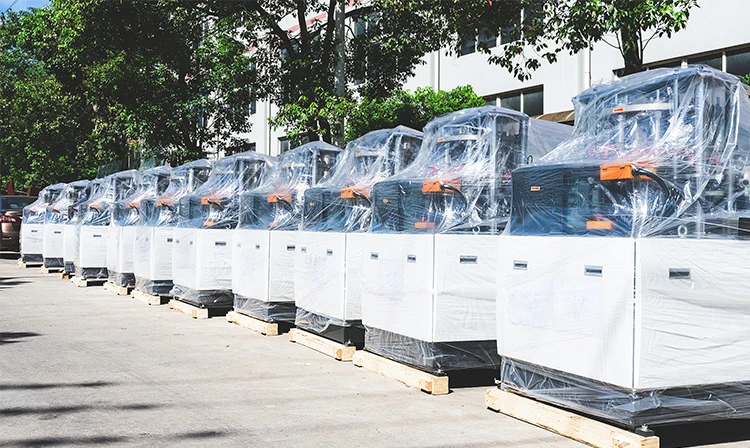

Company Strength
