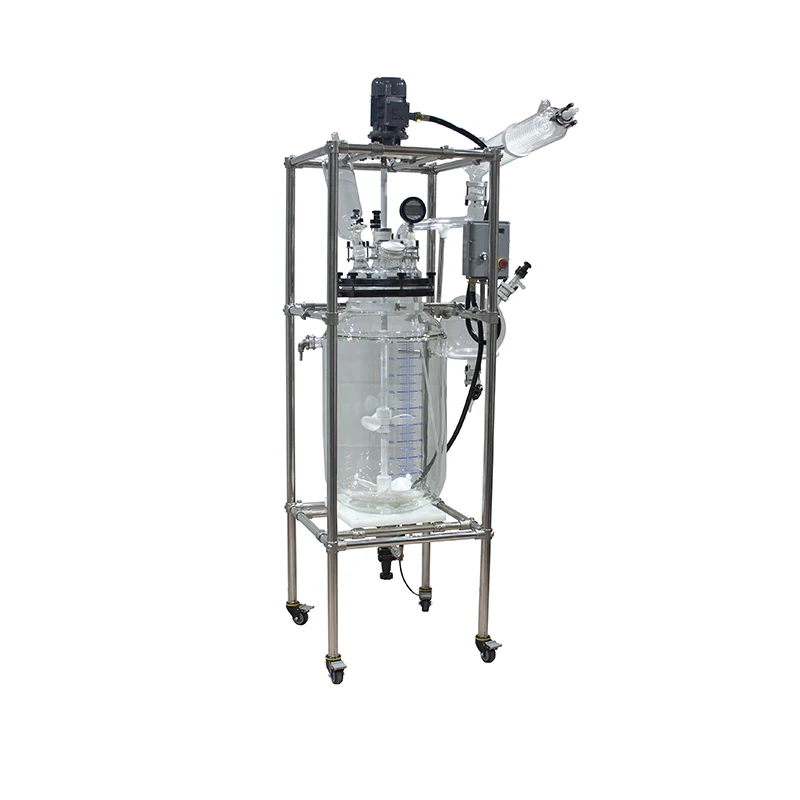

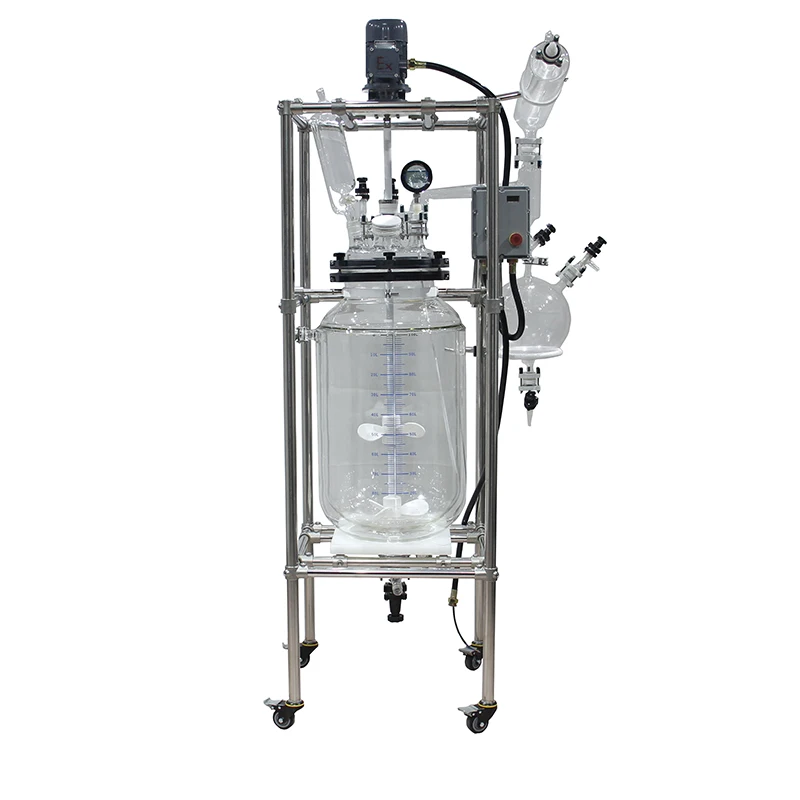

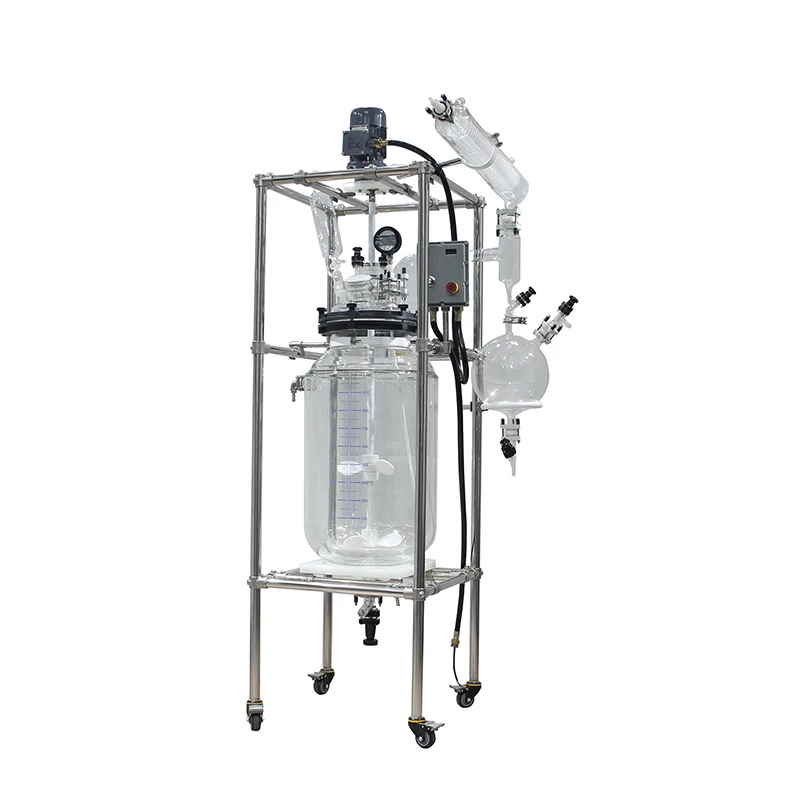

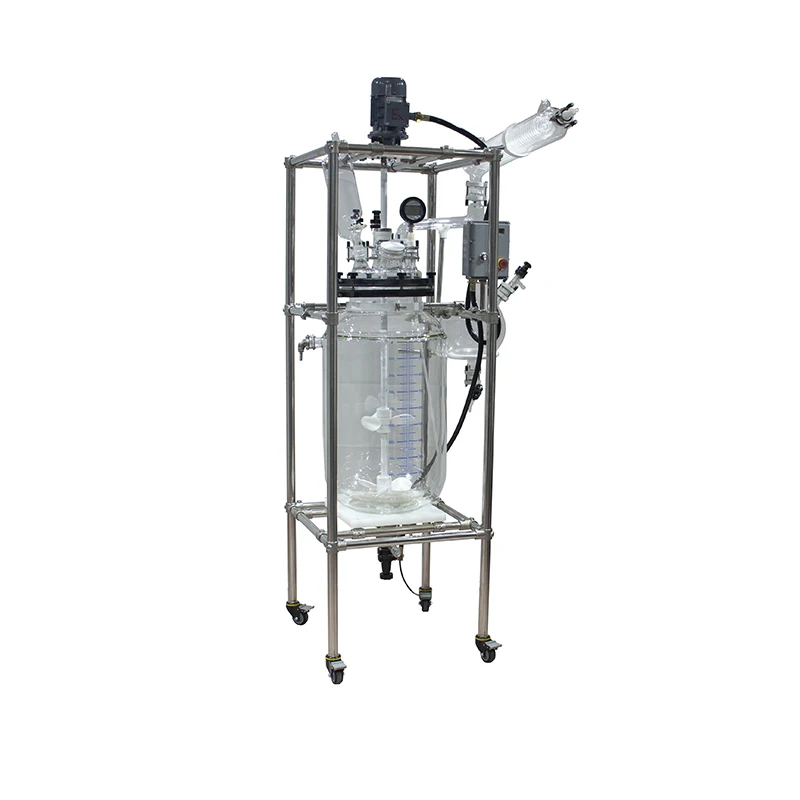

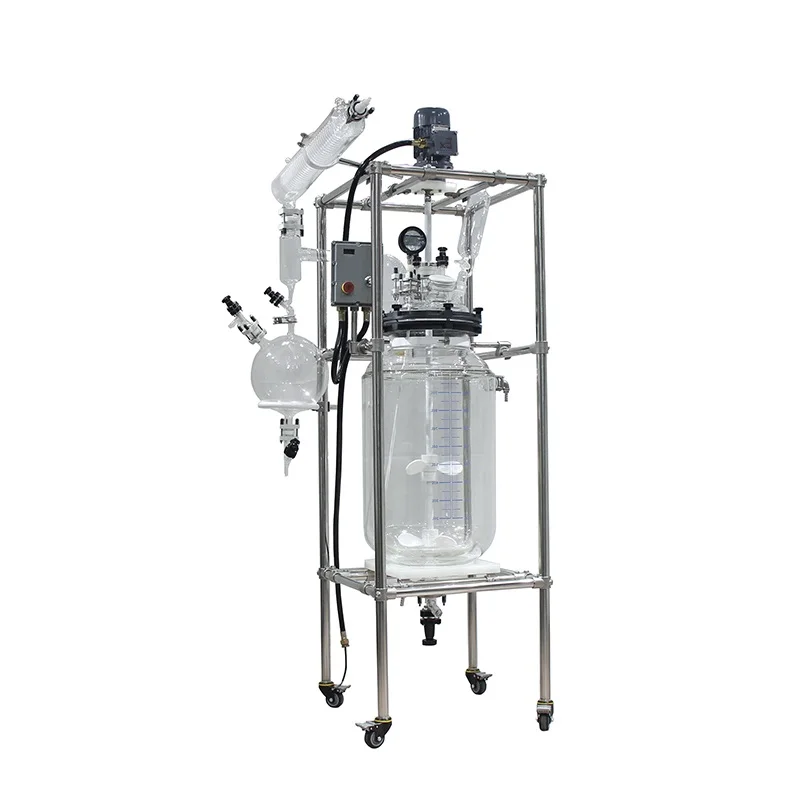

Прочный, усиленный сталью, высокого давления, л, лабораторный взрывозащищенный химический реактор
- Category: Chemical Machinery & Equipment >>>
- Supplier: Guangzhou Yisheng Experimental Instrument Co. Ltd.
Share on (1600699101990):
Product Overview
Description
Specification
Item | Explosion Proof Single jacketed glass reactor | ||
Model | SFEX-200L | ||
Vessel | 200L bore 600mm external diameter 650 mm jacket height 840 mm | ||
Jacket capacity | 40L | ||
Power Requirements | 220V/50HZ | ||
Stirrer Wattage | 400W reduction gearbox1:3 | ||
Torque | 6.35Nm | ||
Rotary Speed | 0-300rpm/min(with explosion proof box) | ||
Glass Temp | -100℃+280℃ | ||
Temperature Accuracy | ±0.5℃ | ||
Lowest Vacuum Level | 0.098Mpa | ||
Reactor lid openings (7) Φ340mm | Stirring port | Φ60mm flange port | |
Condensing reflux port | DN40 flange port | ||
Constant-pressure funnel port | 40# standard port | ||
Liquid charging port | DN25 flange port | ||
Sensor port | DN25 flange port | ||
Standby port | DN25 flange port | ||
Solid feeding port | Φ95mmflange port, PTFE cap & quick buckle | ||
Stirring paddle | Φ25*1300H(mm) mixing diameter 280mm | ||
Condenser dimension | Φ150mm*750H(mm) bottom DN40 flange port | ||
Condensing area | 0.5㎡ | ||
Dean-stark | Inlet DN40 flange port, outlet DN40 flange port,fluid receiving flask port DN25 flange port | ||
Receiving flask volume | 10L/20L | ||
Constant-pressure funnel | 10L/20L | ||
Liquid charging port | DN25 flange port, inlet（Pagoda type joint joint） external diameter 14mm | ||
Diameter of circulating fluid inlet and outlet | DN25 flange port, supporting flange plate,1/2" Male NPT Adapter | ||
Discharge port | DN80 flange port Φ40 drain hole ground clearance 450mm | ||
Vacuum nozzle | DN25 flange port | ||
Vacuum & fluid nozzle of condenser | 14mm external diameter(pagoda type joint) | ||
Dimensions | 850*1500*2950mm | ||
Net weight | 180KG | ||
Packing size | 920*1500*2700mm volume 3.73㎡ | ||
Gross weight | 285KG | ||
Working principle
The material --under normal or negative pressure and constant speed agitated by stirring paddle--- can be completely mixed inside the vessel of reactor system and heated thru fluid from the jacket volume and then generate?low molecular steam after heating reactions,which cools up and liquefies quickly coming down the serpentine condenser and get distilled or refluxed thru the dean-stark. The leftover residue can be released quickly thru discharge valve after reactions.The cooling reaction would be similar during the whole procedure.
