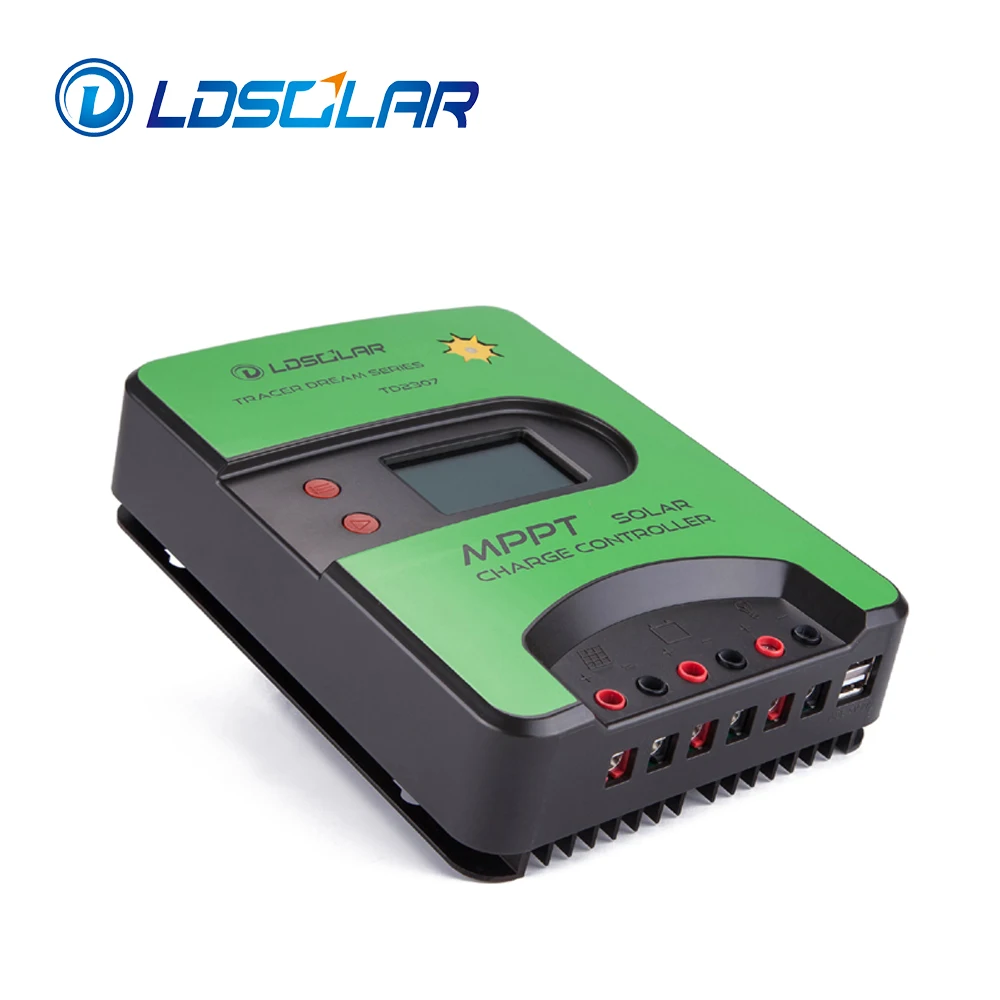

LDSOLAR 30A 12/24 в Off Gird Solar RS485 контроллер Mppt Солнечный контроллер
- Category: Solar Energy Products >>>
- Supplier: Wuhan Welead New Energy Co. Ltd.
Share on (1600788616239):
Product Overview
Description
Products Description

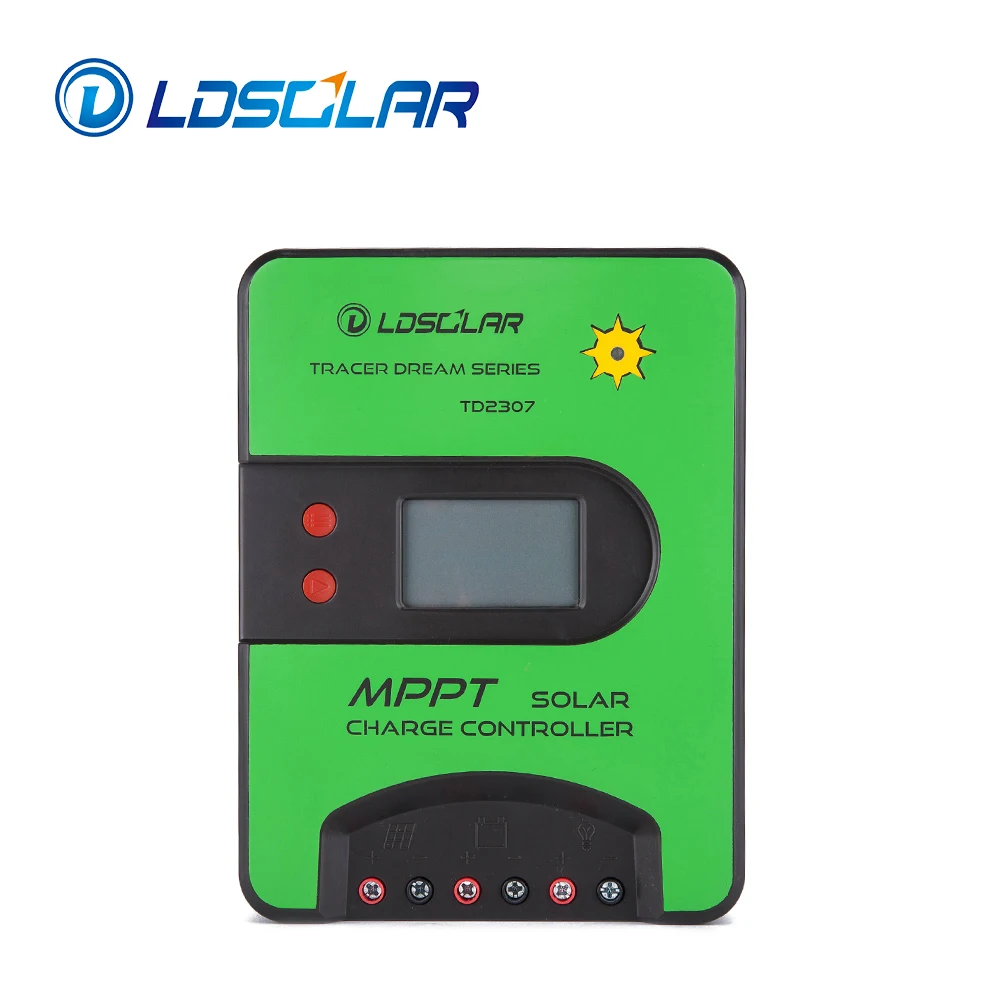

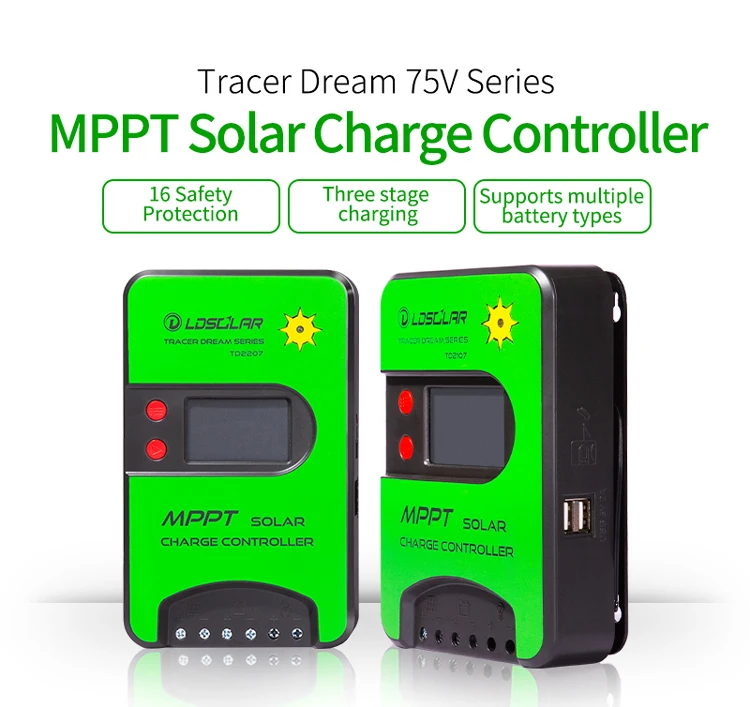

Tracer Dream 75V Series

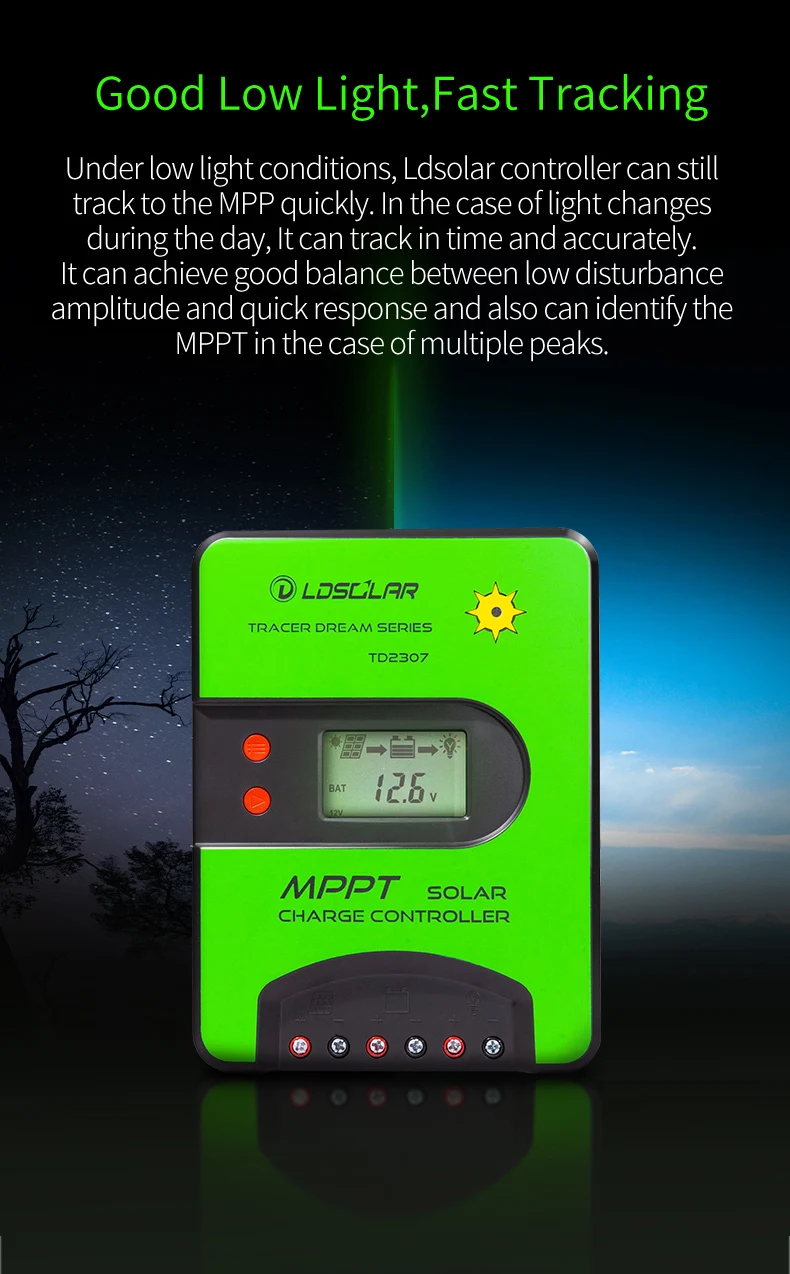

Tracer Dream 75V Series adopts MPPT technology. It's also ran by 32 bits CPU,so stability and speed can be guaranteed. Based on the synchronous rectifier technology.the transfer efficiency of circuit can be increased up to 98.5% and the Pmax tracking accuracy up to 99.5%.So our MPPT can trace the accurate Pmax inthe shortest time (10~20s),even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.
Product Details
Product Paramenters
Model | TD2107 | TD2207 | TD2307 | TD2407 | |||
System Voltage | 12V/24V DC auto | ||||||
Working voltage range | 8~32V | ||||||
Max.PV open circuit voltage | 75V（Min.working temperature）70V（25℃） | ||||||
MPP voltage range | （Battery voltage+2V）~65V | ||||||
Discharge circuit voltage drop | ≤0.25V | ||||||
Self-consumption | <23mA | ||||||
Rated charge current | 15A | 20A | 30A | 40A | |||
Rated discharge current | 15A | 20A | 30A | 40A | |||
Max.PV input power | 200W/12V 400W/24V | 260W/12V 520W/24V | 390W/12V 780W/24V | 520W/12V 1040W/24V | |||
Battery type | Sealed(Default)/Gel/Flood/Lithium | ||||||
LVD | 11.0V ADJ 9V...12V ; x2/24V ; x4/48V | ||||||
LVR | 12.6V ADJ 11V...13.5V ；x2/24V ; x4/48V | ||||||
Float Voltage | 13.8V ADJ 13V... 15V ; x2/24V ; M/48V | ||||||
Boost Voltage | 14.4V ADJ 13V...17V ；x2/24 ; x4/48V | ||||||
battery voltage less than 12.6v auto boost 2hours | |||||||
Battery Over Voltage Protection | 16.5V ; x2/24V ; x4/48V | ||||||
USB Output | 5VDC/2A 2PCS | ||||||
Temperature Consumption | For 12Vsystem:-24mV /°C ; x2/24V ; x4/48V | ||||||
Relative humidity | ≤95%, N.C. | ||||||
WorkingTemperature | -20°C~+50°C℃(Product can work continuously at full load) | ||||||
LCD temperature range | -20°C~+70°C | ||||||
Waterproof grade | IP32 | ||||||
Mounting hole size | Φ5mm | ||||||
Terminals | 10mm²/8AWG | 16mm²/6AWG | |||||
Weight | 0.63Kg | 0.82Kg | 1.2Kg | 1.5Kg | |||
Overall dimension(mm) | 165*123*46mm | 195*123*46mm | 205*157*53mm | 210*157*53mm | |||
Our Advantages
Professional Factory
Ldsolar focuses on the R&D, production and sales of solar controllers.
Quality Assurance
After multiple certifications,the quality is guaranteed and quality services are provided
Innovative Design
LDSOLAR R&D team can continuously launch new products according to market demand
After-sales guarantee
PWM provides 1.5 years warranty,
and MPPT provieds 3 years
Customized Services
Provide OEM/ODM customization services
Trusted and Dependable
We are trusted by customers all over the world, with 99% satisfaction.
