Three phase energy meter





1. Overview





XHD331-R is a multifunctional rail type meter, which can accurately meter and display various power parameters in three-phase three-wire and three-phase four-wire power grids, such as voltage, current, power, frequency, demand, active power, reactive power, forward power, backward power, total harmonic content, etc. The meter is connected to external transformer and suitable for various high-voltage and low-voltage power grids, with maximum current of 9999A and maximum voltage of 660KV. It has RS485 communication interface, and can realize remote communication. XHD331-R multifunctional power meter can be used in power systems, public facilities, industrial applications and residences, AC charging pile, solar photovoltaics and other occasions. Its complete communication functions make it very suitable for various real-time power monitoring systems.QQ20210826162100


Menu operation instructions
































































































First level menu



Second level menu



Third level menu



Instructions









SEt



dISP



1



The three-wire voltages are displayed first by default after power on



bL



0030



The back light is on for 30 minutes



dP



0000



Display the historical maximum demand without slip



cLRP







Demand zero clearing



cLRE







Electric energy zero clearing









InPt



nEt



n.3.4



The wiring mode is three-phase four-wire



U.ScL



220



The secondary voltage range is 220 v



I.ScL



0.333



The secondary current range is 0.333V



Pt



0001



Voltage transformation ratio



ct1



0050



Primary current transformer value









Conn



Sn



001



Communication address



bRud



9600



Communication baud rate



dAtR



n.8.1



The communication check bit is none



Prot



b-2



The communication data format is big-endian format



PTL



nod



The communication protocol is Modbus-RTU protocol



SECr



0001







Parameter setting password



3. Drawing size





size





meterb





QQ20200927143407QQ20200927082251

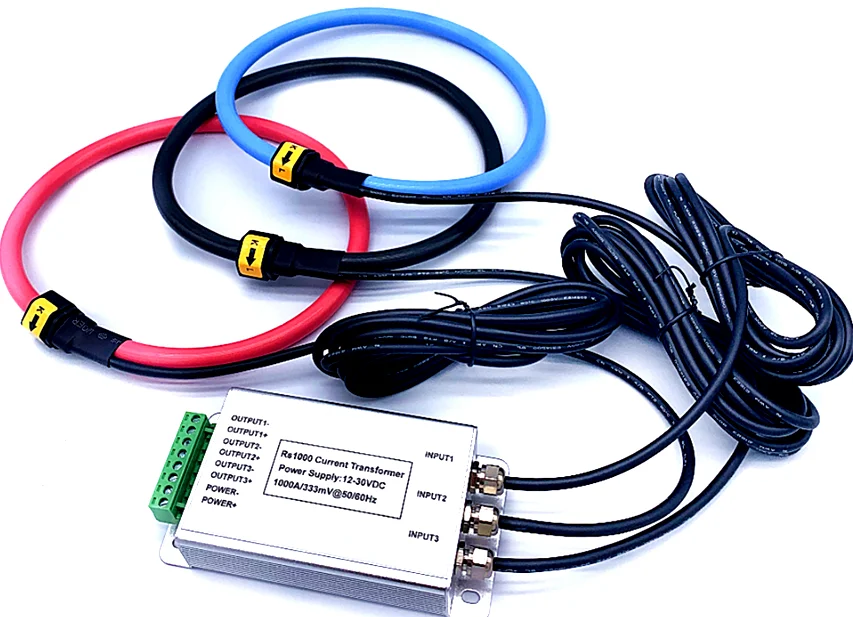

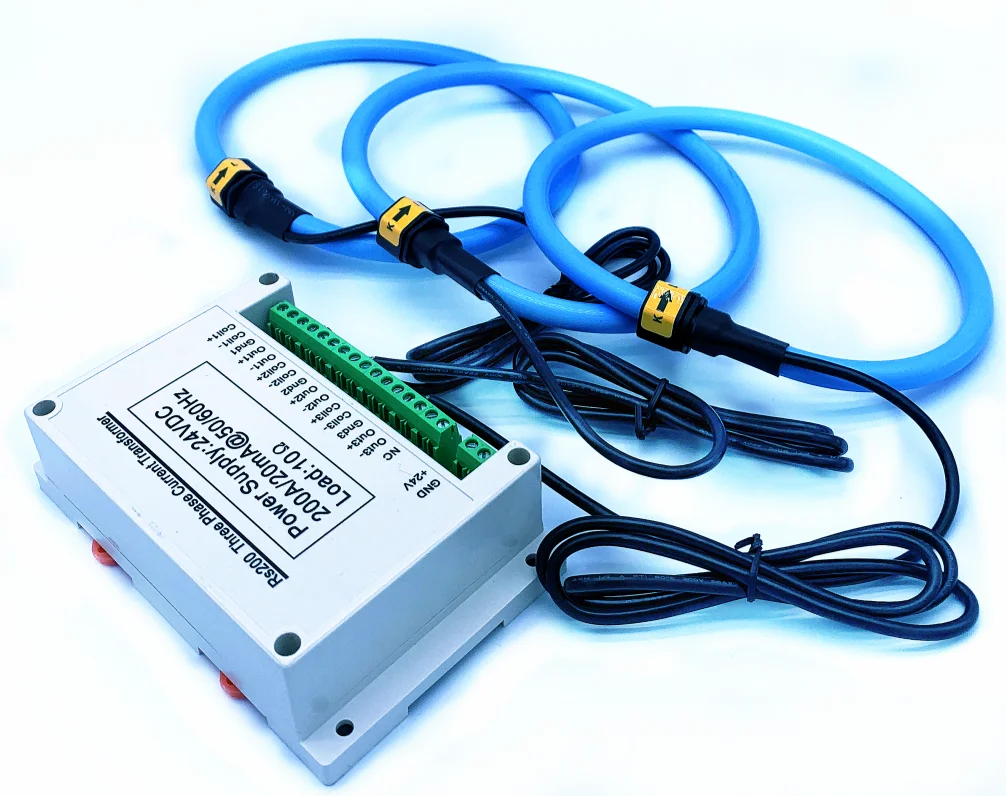

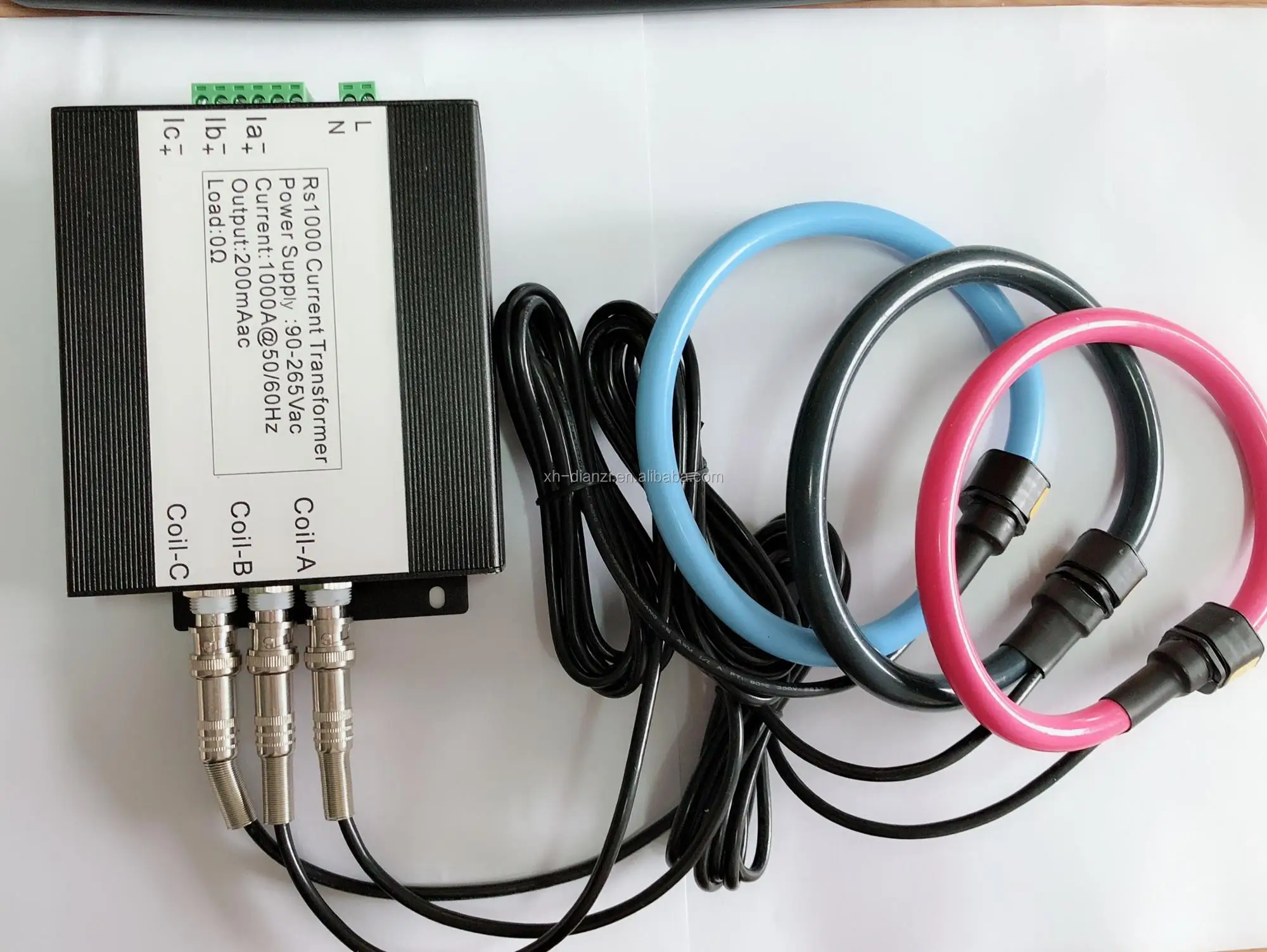

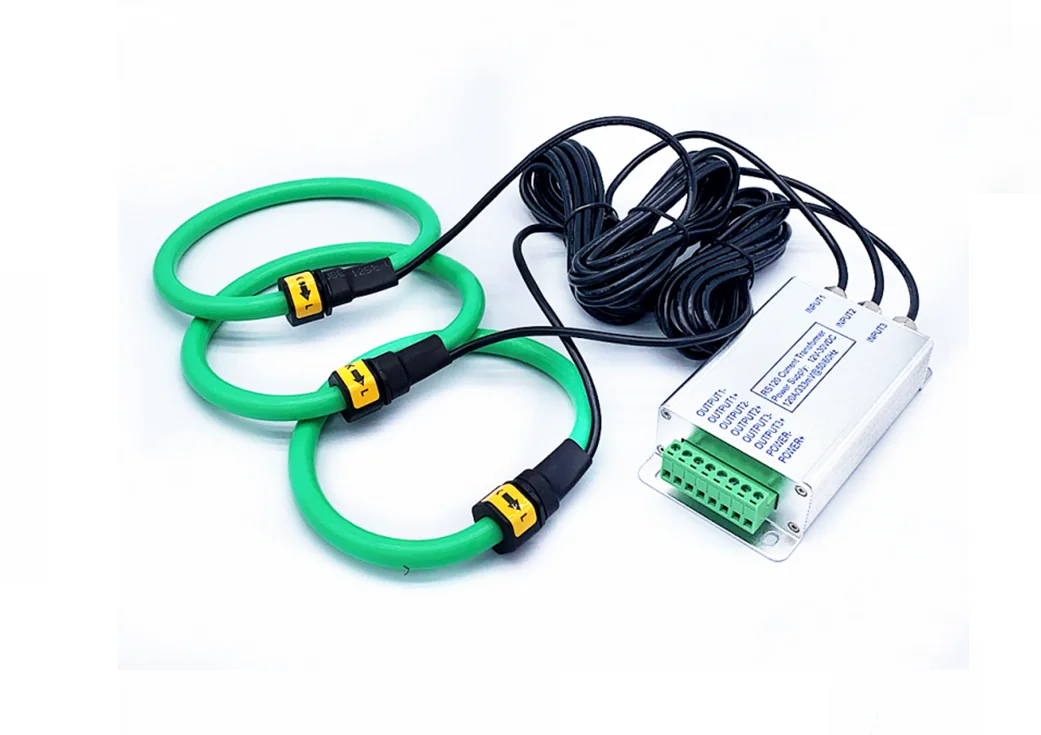

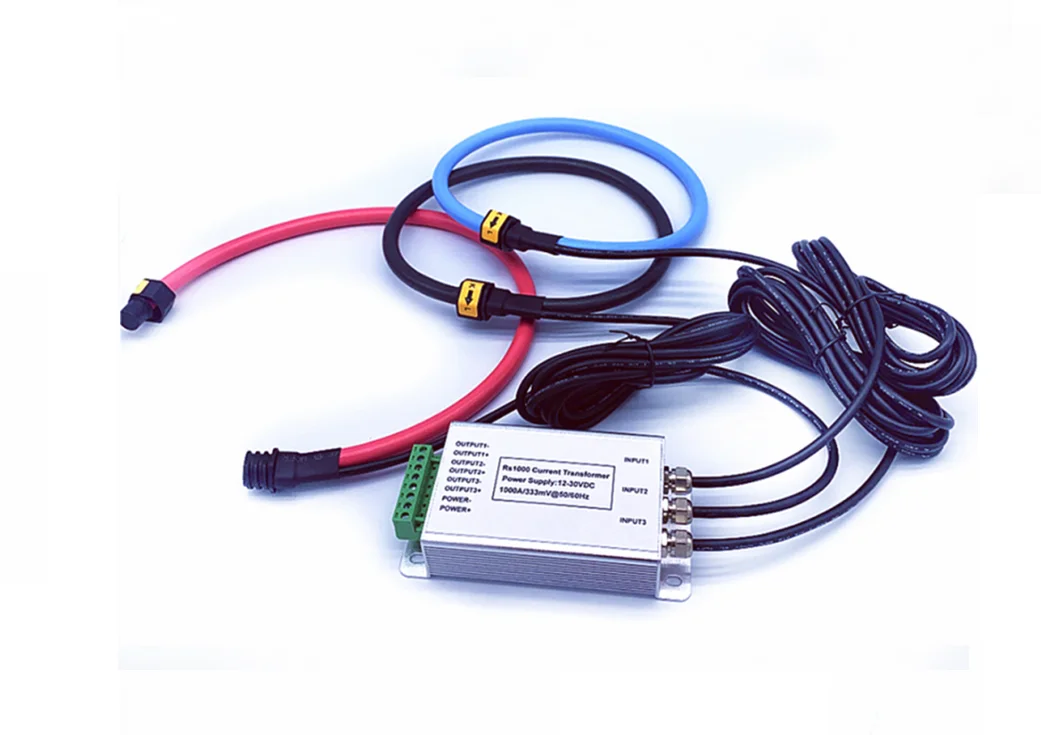

Three phase rogowski coils data
