SS316 Tescom Pressure Regulator Co2 Cylinder Regulator Hydrogen Pressure Regulator
- Category: Pressure Regulators >>>
- Supplier: Shenzhen Wofly Technology Co. Ltd.
Share on (1600819530972):
Product Overview
Description
Product Description
Features
Single-stage diaphragm structure
Corrugated diaphragm design for excellent
sensitivity and cycle life
Suitable for corrosive and toxic gases
20 μm fifilter element installed at inlet
Oxygen environment options are available
Single-stage diaphragm structure
Corrugated diaphragm design for excellent
sensitivity and cycle life
Suitable for corrosive and toxic gases
20 μm fifilter element installed at inlet
Oxygen environment options are available
Specification
Brand Name | AFK |
Model Number | R11 |
Product name | High Pressure Nitrogen Gas Regulator |
Material | Stainless Steel |
Application | Industrial |
inlet pressure range | 4000psi |
Outlet pressure range | 100psi |
Certificate | ISO 9001 |
Color | Siliver |
MOQ | 1 |
Inlet connection | CGA590 |
Outlet connection | 1/4 Male |
Technical Data
Max Inlet Pressure：600psig, 3500psig
Outlet Pressure Range：0~30, 0~60, 0~100, 0~150, 0~250, 0~500
Component Material：
Seat：PCTFE
Diaphragm：Hastelloy
Filter mesh：316L
Working Temperature：-40℃～+74℃(-40℉～+165℉)
Leak Rate (Helium)：
Internal： ≤1×10 -7 mbar l/s
External：≤1×10 -9 mbar l/s
Flow Coeffificient (Cv)：
3500psig Inltet：Cv=0.09
600psig Inltet：Cv=0.20
Body Thread：
Inlet port：1/4NPT (EP 1 / 4 VCR optional)
Outlet port：1/4NPT (EP 1 / 4 VCR optional)
Pressure gauge port：1/4NPT (EP 1 / 4 VCR optional)
Outlet Pressure Range：0~30, 0~60, 0~100, 0~150, 0~250, 0~500
Component Material：
Seat：PCTFE
Diaphragm：Hastelloy
Filter mesh：316L
Working Temperature：-40℃～+74℃(-40℉～+165℉)
Leak Rate (Helium)：
Internal： ≤1×10 -7 mbar l/s
External：≤1×10 -9 mbar l/s
Flow Coeffificient (Cv)：
3500psig Inltet：Cv=0.09
600psig Inltet：Cv=0.20
Body Thread：
Inlet port：1/4NPT (EP 1 / 4 VCR optional)
Outlet port：1/4NPT (EP 1 / 4 VCR optional)
Pressure gauge port：1/4NPT (EP 1 / 4 VCR optional)
Packing & Delivery
We have a variety of products, products of different sizes and styles of packaging is also different, but each cargo our outer packaging will be wrapped around a circle of tape or wrap stretch film and internal filling tight to avoid shaking, so that the excellent protection of the product will not be damaged.

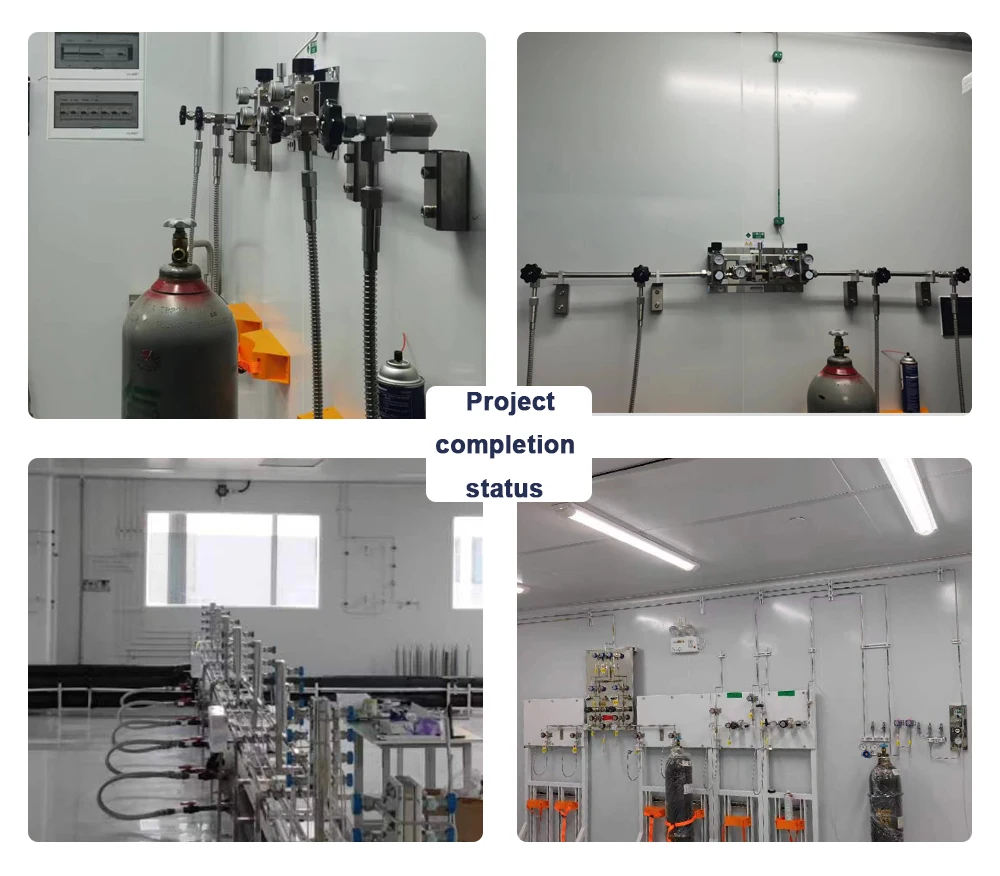

Engineering case
Applicable scenarios
Company Profile
WOFLY is a leading Manufacturer, Supplier and Exporter of a wide range of gas equipements, available under the brand name AFK. Wofly's success yields from high-quality, innovative products, exceptional customer service, and unequaled technical expertise in the gas& oil industry.
WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators.Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.
WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators.Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.
Cooperation with customers
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator。
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator。
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
