Product Overview

Description


Product Description

RW75 series medium-high back pressure regulator is piston-sensed configuration, applicable to high pressure gas or liquid applications.

Technical parameters
\t
Maximum Inlet Pressure
\t
2000PSI
\t
Ajustable pressure
\t
0-150,0-300,0-600,0-800,0-1500psig
\t
Safety test pressure
\t
1.5 times maximum inlet pressure
\t
Operating Temperature
\t
-40°F to 165°F / -40°c to 74°c
\t
Leakage Rate
\t
no gas leakage
\t
Cv value
\t
0.08
Material of Parts
\t
Body
\t
316L
\t
Seat
\t
PCTFE, PTFE,Vespel
\t
Bonnet
\t
ss316L, brass
\t
diaphragm
\t
ss31L, ELgiloy
Detailed Image
RW75 Back Pressure Regulator
Brand: AFK

Gauge:one outlet gauge (1000PSI pressure gauge range)

Material:ss304


RW75 Back Pressure Regulator

Body ports: three

Structure: piston

Body thread:1/4"NPT (F) ~3/4"NPT(F)

Mount: Panel mout and wall mount are available

Ordering Information

Once you send the inquiry, pls send order code e.g.RW75-L-B-G-G-00-00-P, or send following information to us:

1.What media is used for?
2. What is atual inlet pressure not pressure gauge range?
3. Material: ss316L or nickel plated brass?
4.Quantity?
\t

Series
\t

Body material
\t

Body ports
\t

Adusting pressure
\t

Gauge
\t

Inlet connection
\t

Outlet connection
\t

Mounting
\t
RW75
\t
L:L:ss316L
\t
A
\t
G:0-150psi
\t
G:Mpa
\t
00:1/4"NPT F
\t
00:1/4"NPT F
\t
P:panel mount
\t
\t
B:brass
\t
A
\t
I:0-300psi
\t
P:PSI/bar
\t
01:1/4"NPT M
\t
01:1/4"NPT M
\t
\t
\t
\t
B
\t
K:0-600psi
\t
W:none
\t
02:3/8"NPT F
\t
02:3/8"NPT F
\t
\t
\t
\t
\t
L:0-800psi
\t
\t
04:1/2"NPT F
\t
04:1/2"NPT F
\t
\t
\t
\t
\t
H:0-1500psi
\t
\t
06:3/4NPT F
\t
06:3/4NPT F
\t
\t
Other connections are available
Flow Chart

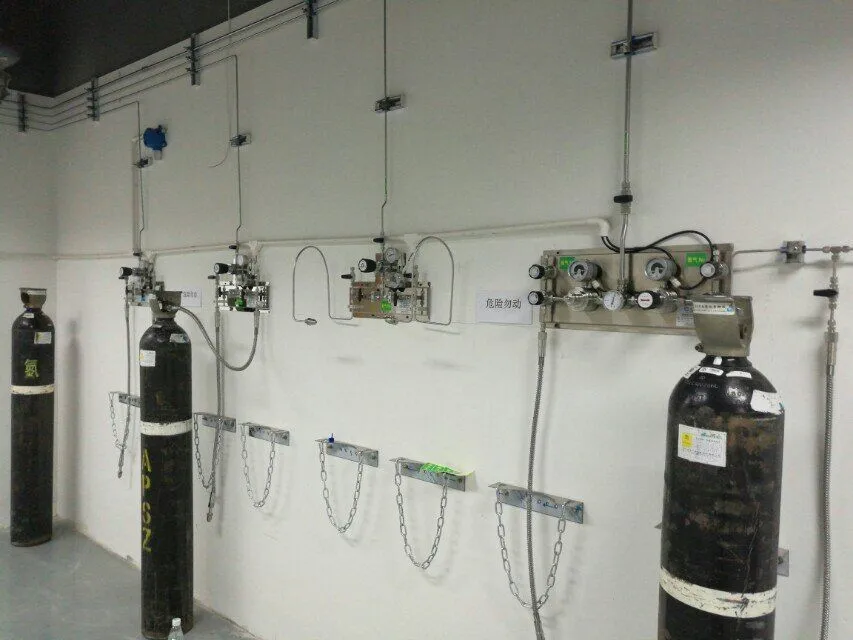

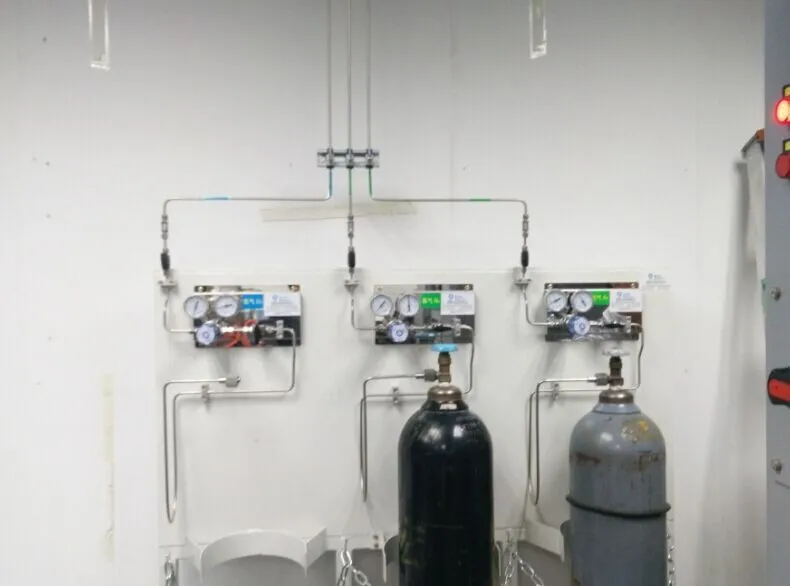

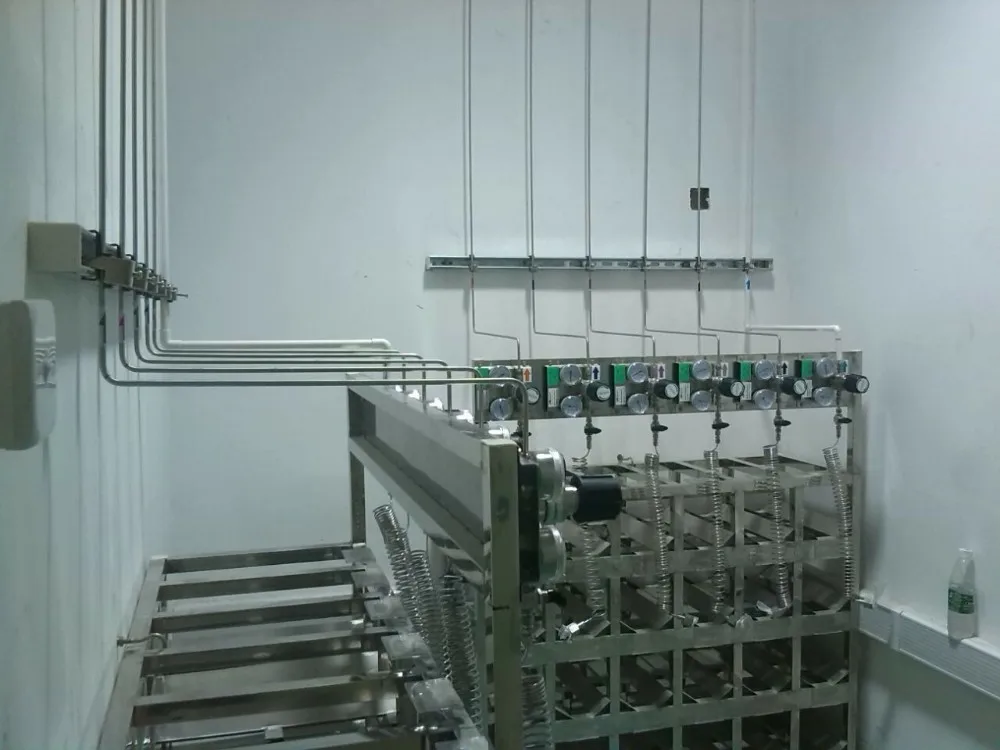

Application

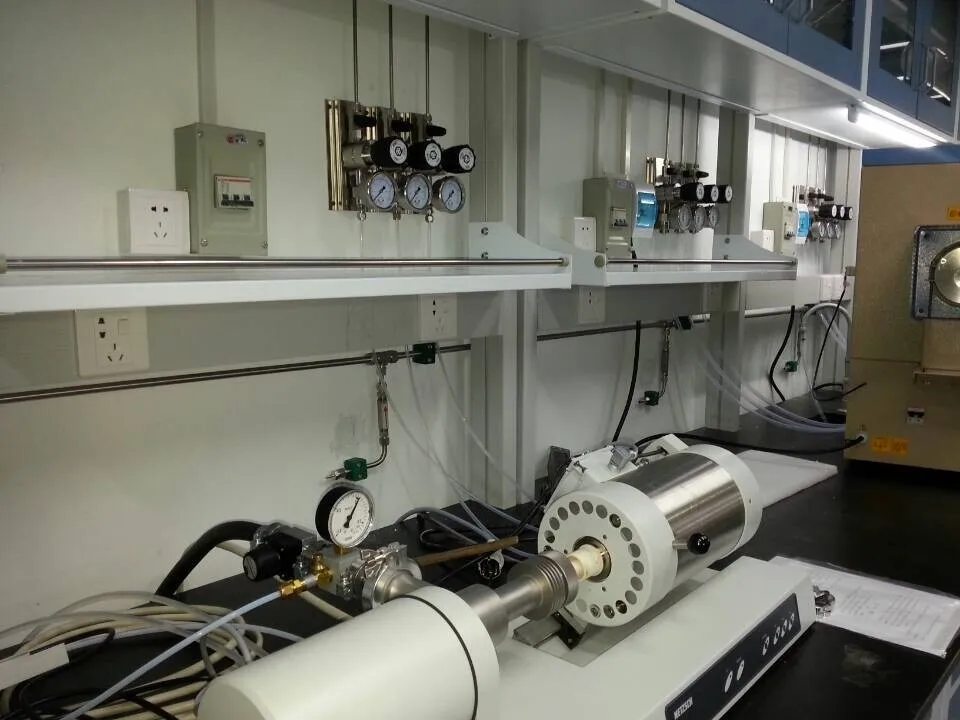

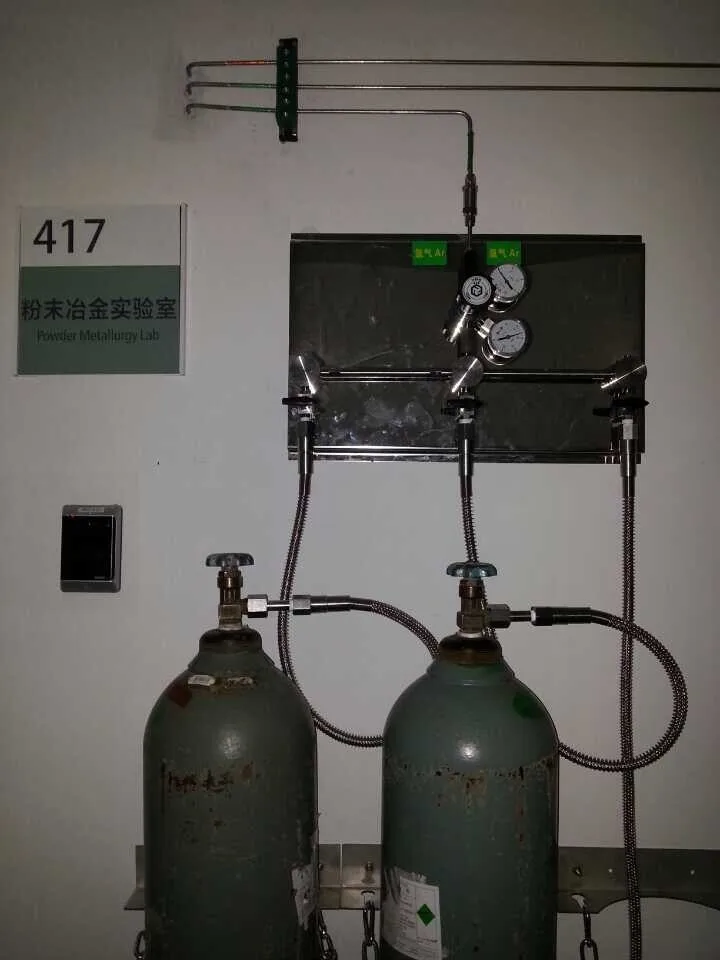

           Laboratory

       Electronic factory

                       Laser

            Semiconductor

  The quality of metrology institute

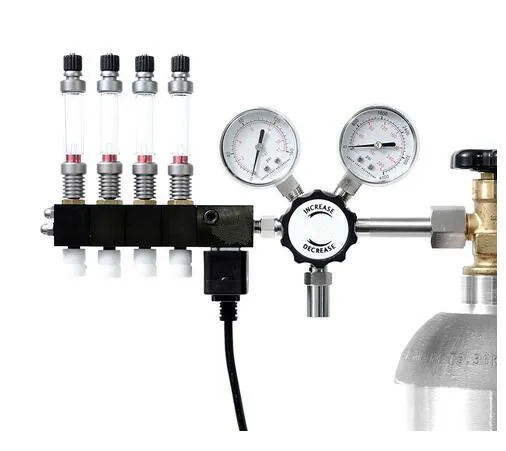

                          Aquarium
