Automatic Wire Nail Making Machine Z94 1C Z94 2C Z94 3C Z94 4C Z94 5C Z94 6C Z94 8C
- Category: Metal & Metallurgy Machinery >>>
- Supplier: SSS Hardware International Trading Co. Ltd.
Share on (1600819717430):
Product Overview
Description
Product Description

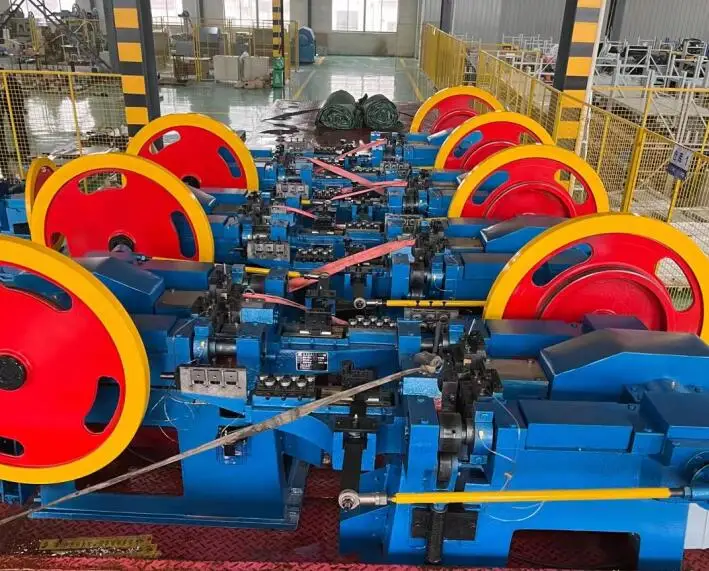

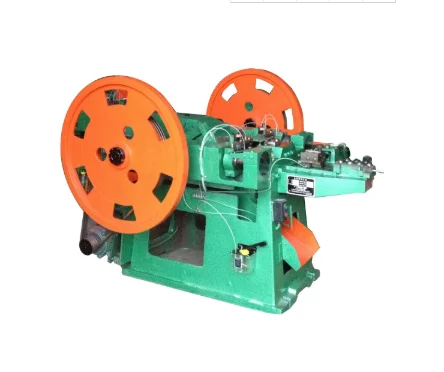

Automatic Wire Nail Making Machine Z94-1C Z94-2C Z94-3C Z94-4C Z94-5C Z94-6C Z94-8C
The new generation of Z94 series high efficient, low noise with super performance automatic nail making machine is mainly used for manufacturing steel nails.
The machine is also able to manufacture other steel nails with special specifications, such as double-cap nail, felt nail,
V-nail,corrugated plate nail, U-nail, injecting-nail, gun nail and etc. after little reformation. The manufactured nails can be
extensively used in industry, building, repairing and etc.
The machine is also able to manufacture other steel nails with special specifications, such as double-cap nail, felt nail,
V-nail,corrugated plate nail, U-nail, injecting-nail, gun nail and etc. after little reformation. The manufactured nails can be
extensively used in industry, building, repairing and etc.
Automatic Nail Making Machine Z94 Series
Model | Z94-1C | Z94-2C | Z94-3C | Z94-4C | Z94-5C | Z94-6C | Z94-8C |
Nail Length (mm) | 9.0-25 | 16--50 | 40-80 | 70-110 | 70-180 | 70-220 | 100-330 |
Nail Dia. (mm) | 0.9-1.6 | 1.2-2.8 | 2.0-3.4 | 3.4-5.0 | 3.4-5.0 | 3.4-8.0 | 3.0-8.0 |
Motor power(KW) | 1.5 | 3.0 | 3.0 | 4.0 | 5.5 | 7.5 | 11.0 |
speed(pcs/min) | 450 | 350 | 280 | 220 | 200 | 160 | 60-90 |
L*W*H(M) | 1.44*1.04*1.27 | 1.7*1.3*1.4 | 2.0*1.4*1.4 | 2.2*1.6*1.65 | 2.5*1.6*1.5 | 3.3*1.65*1.75 | 3.5*1.85*1.9 |
Weight(KGS) | 450 | 760 | 1050 | 2000 | 2200 | 4400 | 5600 |
This machine adopts plunger type stricture so as to ensure the features such as high
Speed, low noise and less impact. Especially, it can make the high quality of oil rivet nail, roofing nails, U nails and double-head nails. Each model machine could make different kinds size nail, the nail length could adjust on machine and a set of free mold (nail knife and punch pin ect. spare parts) for Each nail making machine .
Working principle:

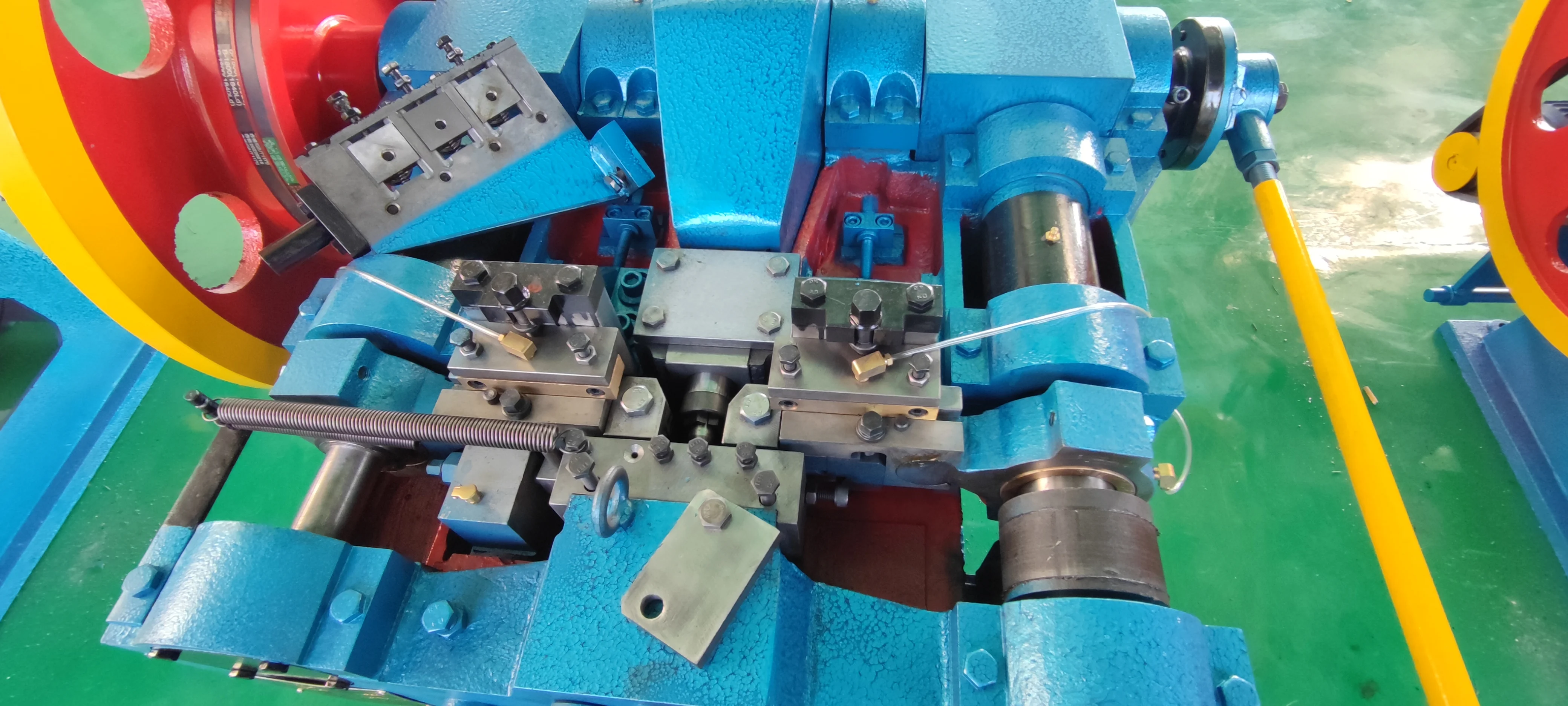

The machine has only one piece punch bar, one pair nail die, and one pair nail cutter, the machine nail die will grip the steel wire and the punch bar will punch to get the nail head, and the nail cutter to cut the nail point. this structure decides that it can make only one nail per time.
This type nail-making machine adopts a plunger structure, driven by 3 phase electric motor and is equipped with auto oil pipe lubrication.
Speed, low noise and less impact. Especially, it can make the high quality of oil rivet nail, roofing nails, U nails and double-head nails. Each model machine could make different kinds size nail, the nail length could adjust on machine and a set of free mold (nail knife and punch pin ect. spare parts) for Each nail making machine .
Working principle:
The machine has only one piece punch bar, one pair nail die, and one pair nail cutter, the machine nail die will grip the steel wire and the punch bar will punch to get the nail head, and the nail cutter to cut the nail point. this structure decides that it can make only one nail per time.
This type nail-making machine adopts a plunger structure, driven by 3 phase electric motor and is equipped with auto oil pipe lubrication.

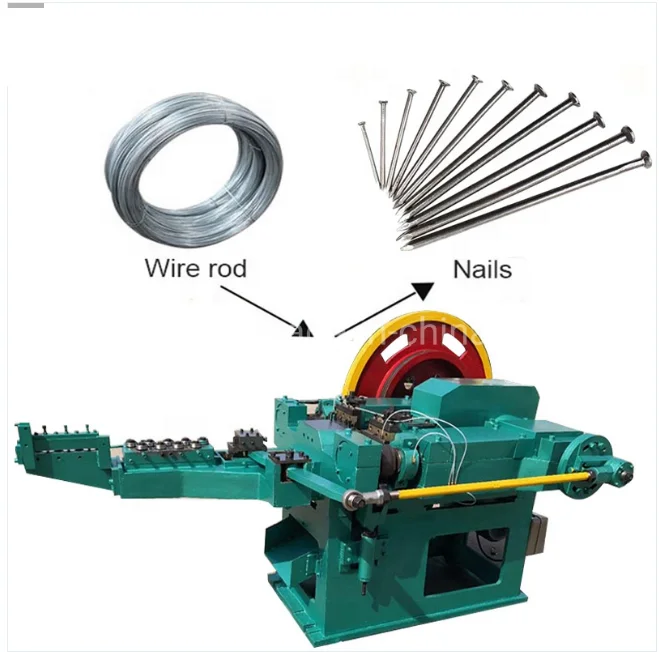

Wire Nail Making Process:

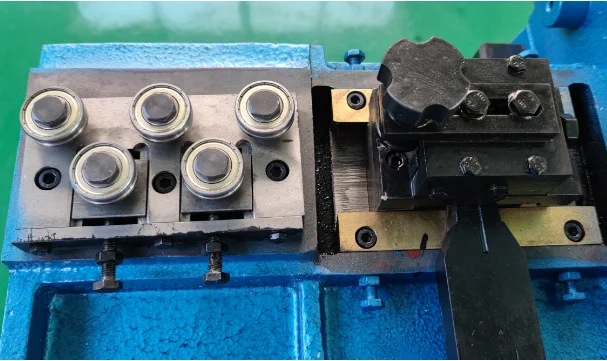

1. Wire Straightening: put the wire coil on pay-off rack and input wire to traightening device for straightening.
2. Wire Feeding: The feeding box will grip and feed the steel wire continuously.
3. Nail head Forming: When the steel wire is clamped by the gripping mechanism, the punch system will punch the wire to form the
nail head.
4. Nail Tip Cutting: After the extrusion is completed, the cutting mechanism cuts the wire, and an emergency return mechanism can
be used.
5. Final Step: The gripping die open, the nail is dropped down and the next nail will be made continuously.
Our Advantage
Machine advantages：
* Can make a wide range of wire nails according to different models; * fully automatic and uses Taiwan nail-making technology in the nail production process, this type is the most mature design in the world yet
* low running cost
* cheap spare parts price
* Low power consumption as with just 4 kilowatts of power.
* Simple construction and Easy on nail adjustment: ONLY 10 minutes To change the nail diameter and change the nail mold. ONLY 5 minutes To adjust the nail length, nothing needs to be changed .
* Can make a wide range of wire nails according to different models; * fully automatic and uses Taiwan nail-making technology in the nail production process, this type is the most mature design in the world yet
* low running cost
* cheap spare parts price
* Low power consumption as with just 4 kilowatts of power.
* Simple construction and Easy on nail adjustment: ONLY 10 minutes To change the nail diameter and change the nail mold. ONLY 5 minutes To adjust the nail length, nothing needs to be changed .

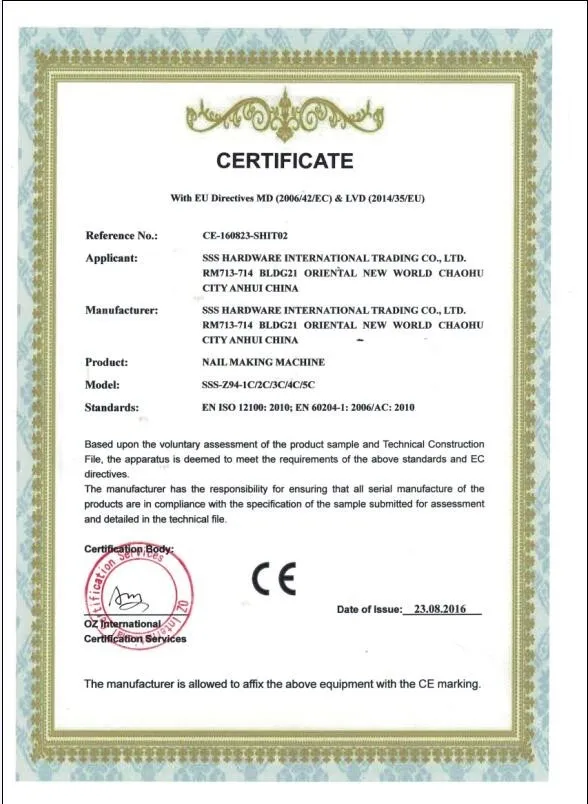

Certifications

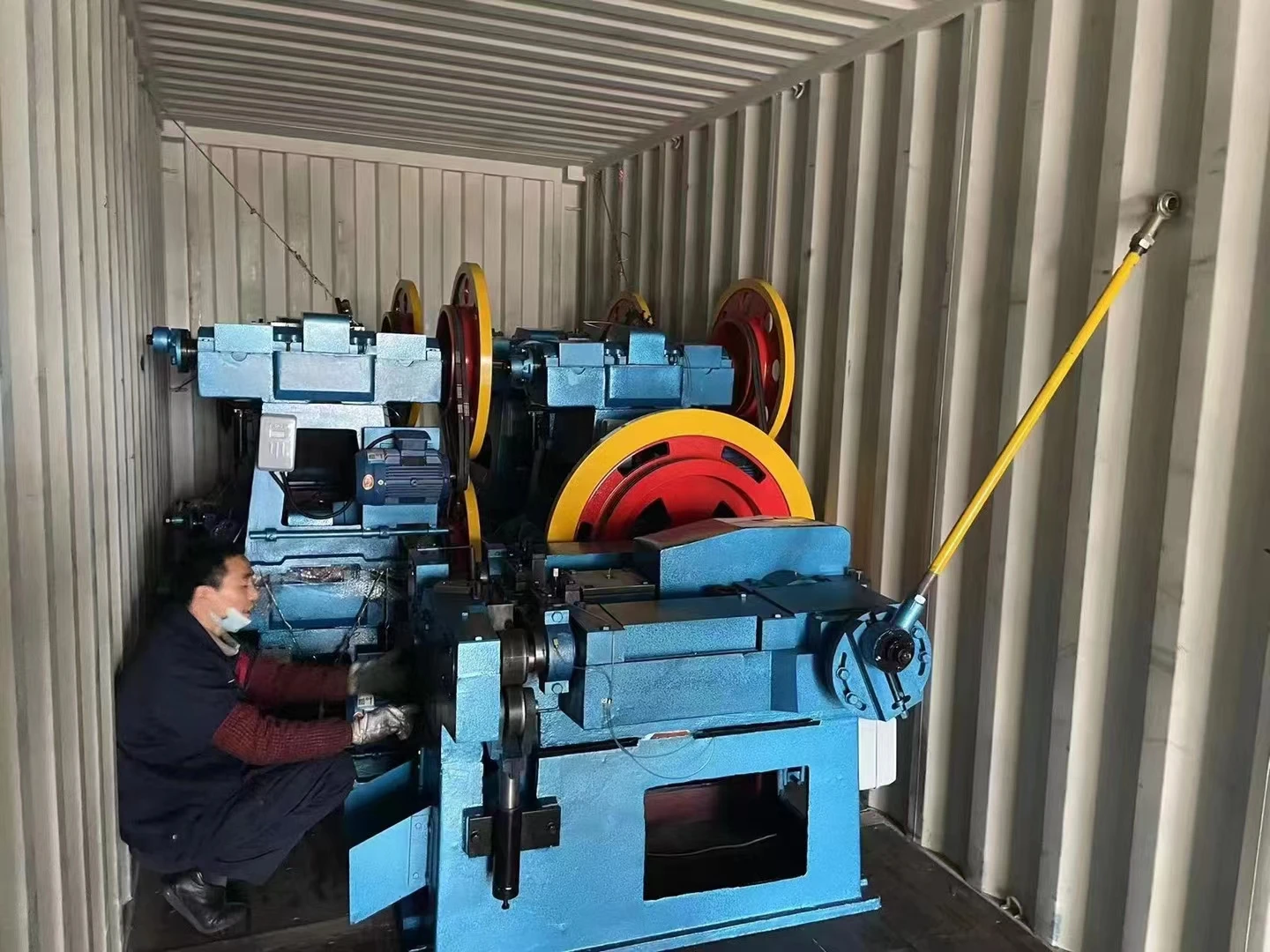

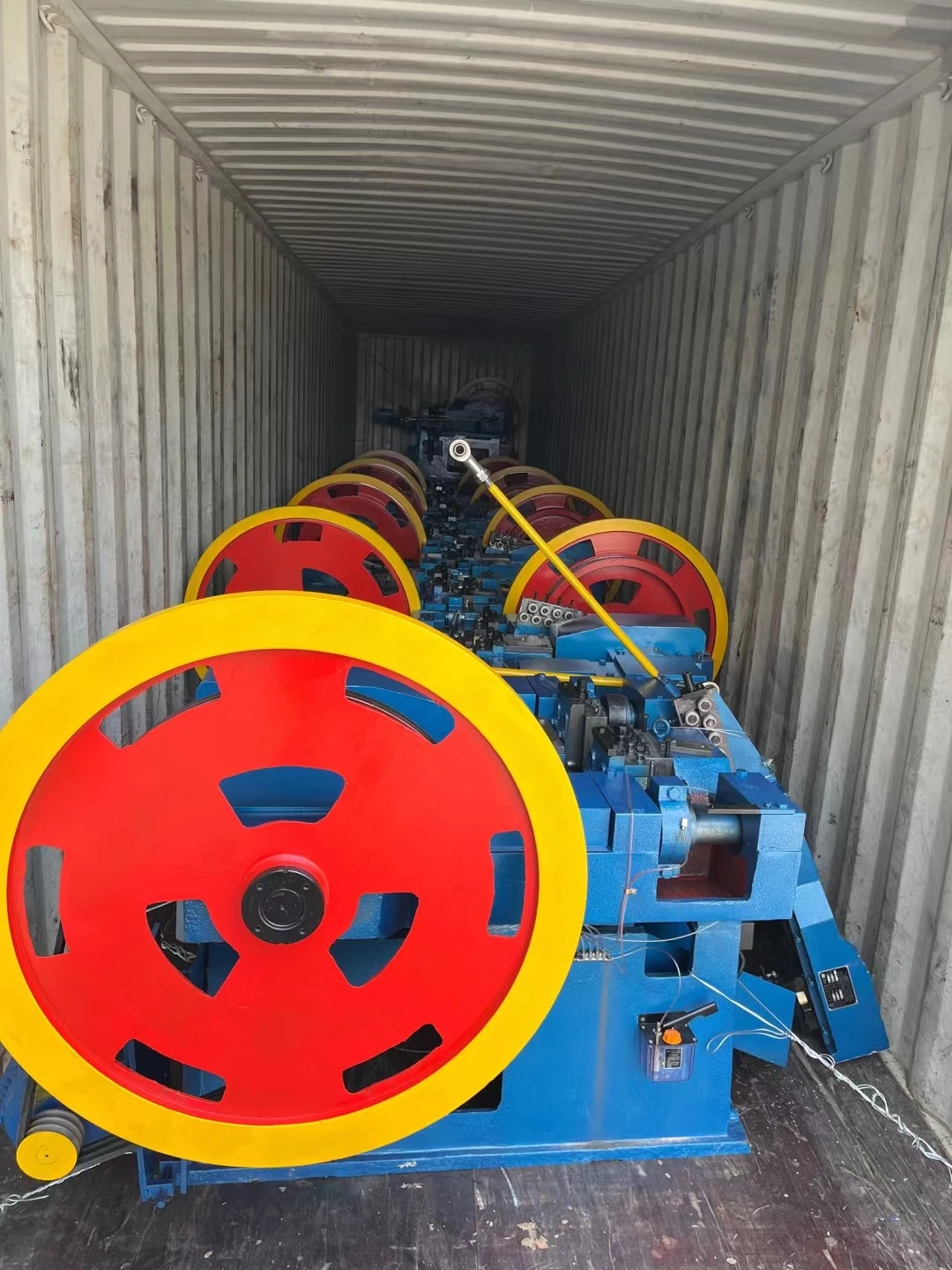

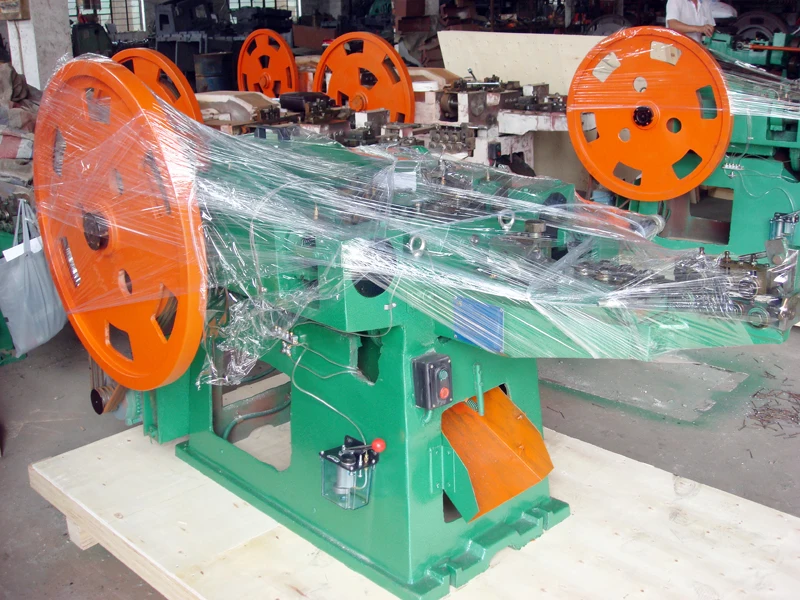

Packing & Delivery
Plywood case

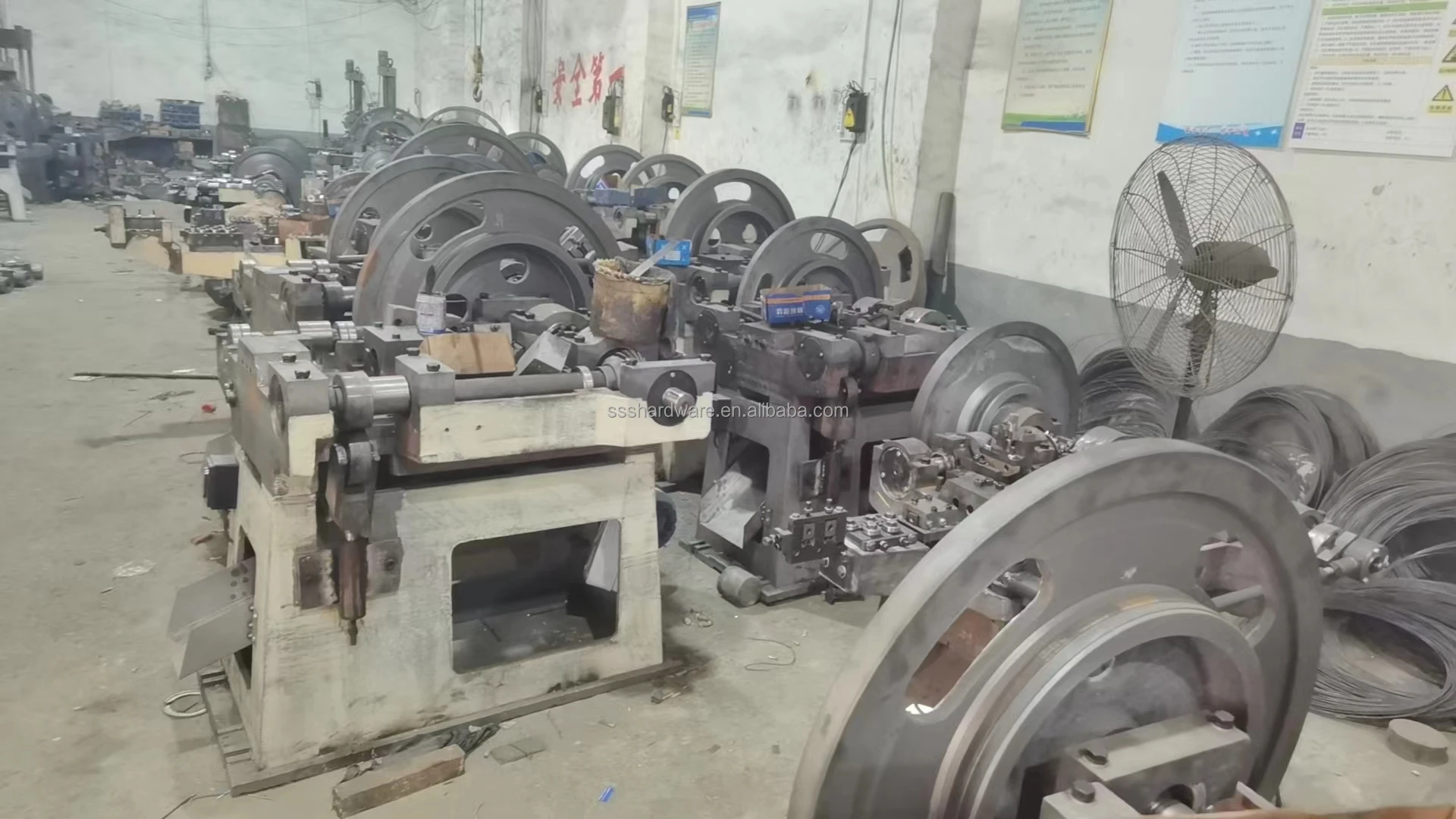

Our Company

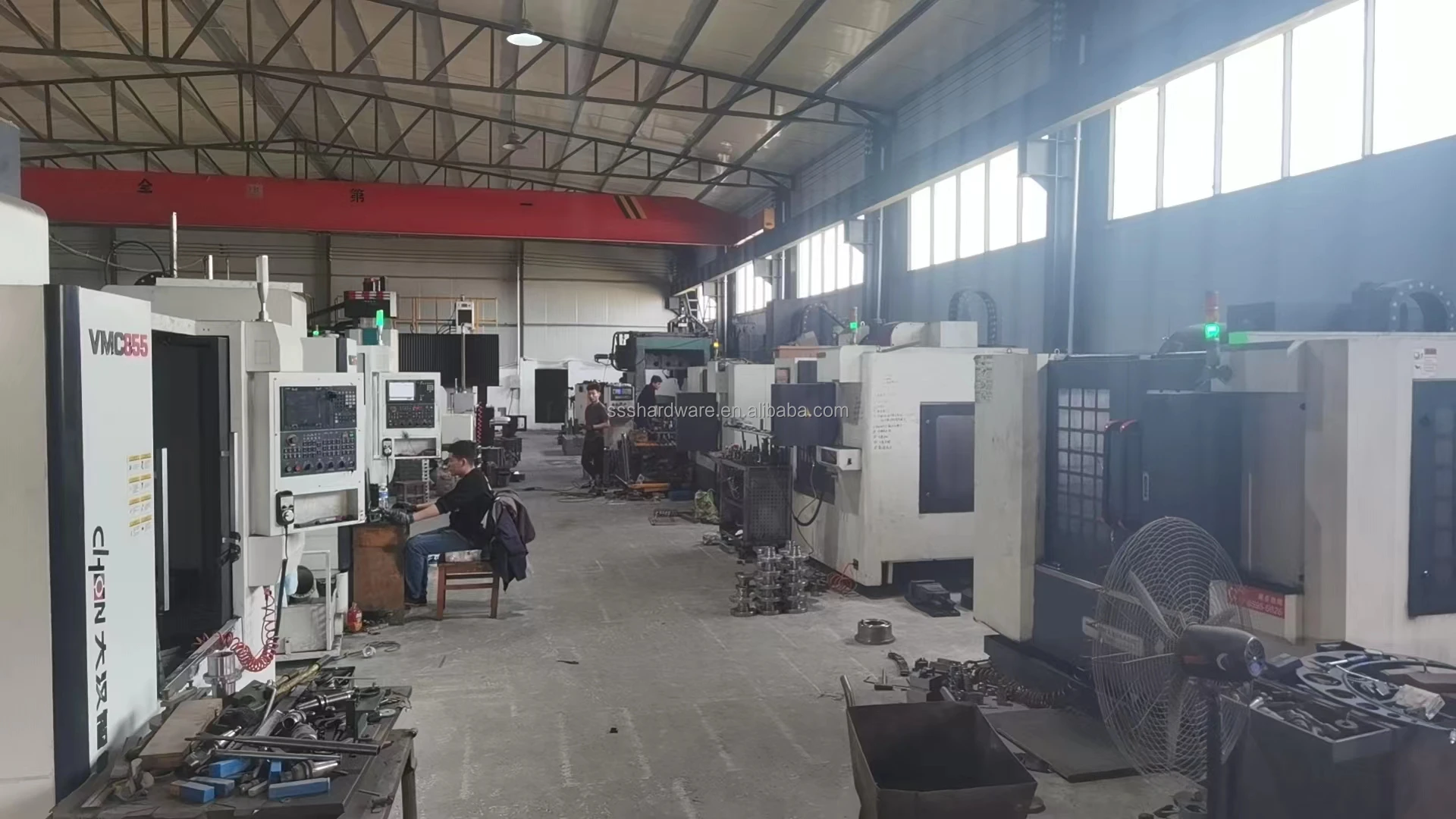

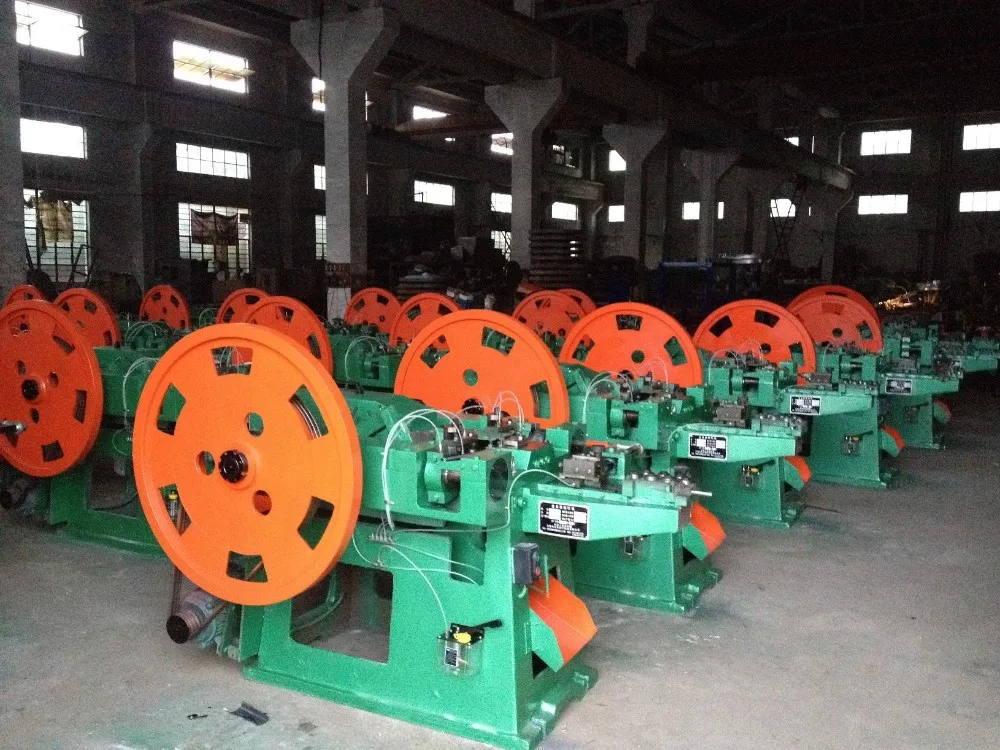

SSS HARDWARE INDUSTRY CO., LTD. specializes in staples, collated nails, welding wires and threaded rods. Our factory covers an area of 60,000 square meters and owns 300 sets of equipment. We are supported by seven branch work plants to ensure our good
quality and prompt delivery.
quality and prompt delivery.
1. INDUSTRIAL STAPLES, BRAD NAILS, COIL NAILS, PAPER STRIP NAILS, PLASTIC STRIP NAILS, DA NAILS, STNAILS & DA NAILS
2. WELDING WIRES FOR COIL NAILS, STAPLE WIRES, WIRE BANDS & WELDING WIRES
3. THREADED RODS, NUTS, BOLTS & WASHERS
4. AUTOMATIC NAIL MAKING MACHINE, NAIL THREAD ROLLING MACHINE, NAIL POLISHING MACHINE, COIL NAIL MAKING MACHINE & STRIP NAIL MAKING MACHINE
5. STAPLE MAKING MACHINE & BRAD NAIL MAKING MACHINE
Quality is our priority and your satisfaction is what we are striving for. Our products are very popular in UK , Italy, Germany,France, Poland, Slovenia, Bulgaria, Belarus, Serbia, Russia, Canada, America, Mexico,Korea, Brazil, Argentina, Colombia,Guatemala, Venezuela, South Africa & New Zealand.
You can totally rest assured of our guaranteed quality and our good after-sales service.
Please feel free to contact us for more details including prices.
We are looking forward to cooperating with you soon based on our all-time guaranteed quality, our best price and our best service!
2. WELDING WIRES FOR COIL NAILS, STAPLE WIRES, WIRE BANDS & WELDING WIRES
3. THREADED RODS, NUTS, BOLTS & WASHERS
4. AUTOMATIC NAIL MAKING MACHINE, NAIL THREAD ROLLING MACHINE, NAIL POLISHING MACHINE, COIL NAIL MAKING MACHINE & STRIP NAIL MAKING MACHINE
5. STAPLE MAKING MACHINE & BRAD NAIL MAKING MACHINE
Quality is our priority and your satisfaction is what we are striving for. Our products are very popular in UK , Italy, Germany,France, Poland, Slovenia, Bulgaria, Belarus, Serbia, Russia, Canada, America, Mexico,Korea, Brazil, Argentina, Colombia,Guatemala, Venezuela, South Africa & New Zealand.
You can totally rest assured of our guaranteed quality and our good after-sales service.
Please feel free to contact us for more details including prices.
We are looking forward to cooperating with you soon based on our all-time guaranteed quality, our best price and our best service!
FAQ
Q: what's the packing of the machine?
A.In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.
Q: What's the payment term?
A.Usually by T/T ( 30% in advance, the balance against the copy of B/L),or L/C at sight.
Q: Can I change the motor as my local voltage?
A.We can change the voltage as your requirement, and there's no extra charge.
Q: How do your control quality?
A.We have an inspection team to check the products at all stages of the manufacturing process.
Q:What parameter is necessary?
A.The wire diameter,mesh size,mesh width ect are mainly needed, detailed information would be appreciated, Special requirement can be discussed.
A.In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.
Q: What's the payment term?
A.Usually by T/T ( 30% in advance, the balance against the copy of B/L),or L/C at sight.
Q: Can I change the motor as my local voltage?
A.We can change the voltage as your requirement, and there's no extra charge.
Q: How do your control quality?
A.We have an inspection team to check the products at all stages of the manufacturing process.
Q:What parameter is necessary?
A.The wire diameter,mesh size,mesh width ect are mainly needed, detailed information would be appreciated, Special requirement can be discussed.
