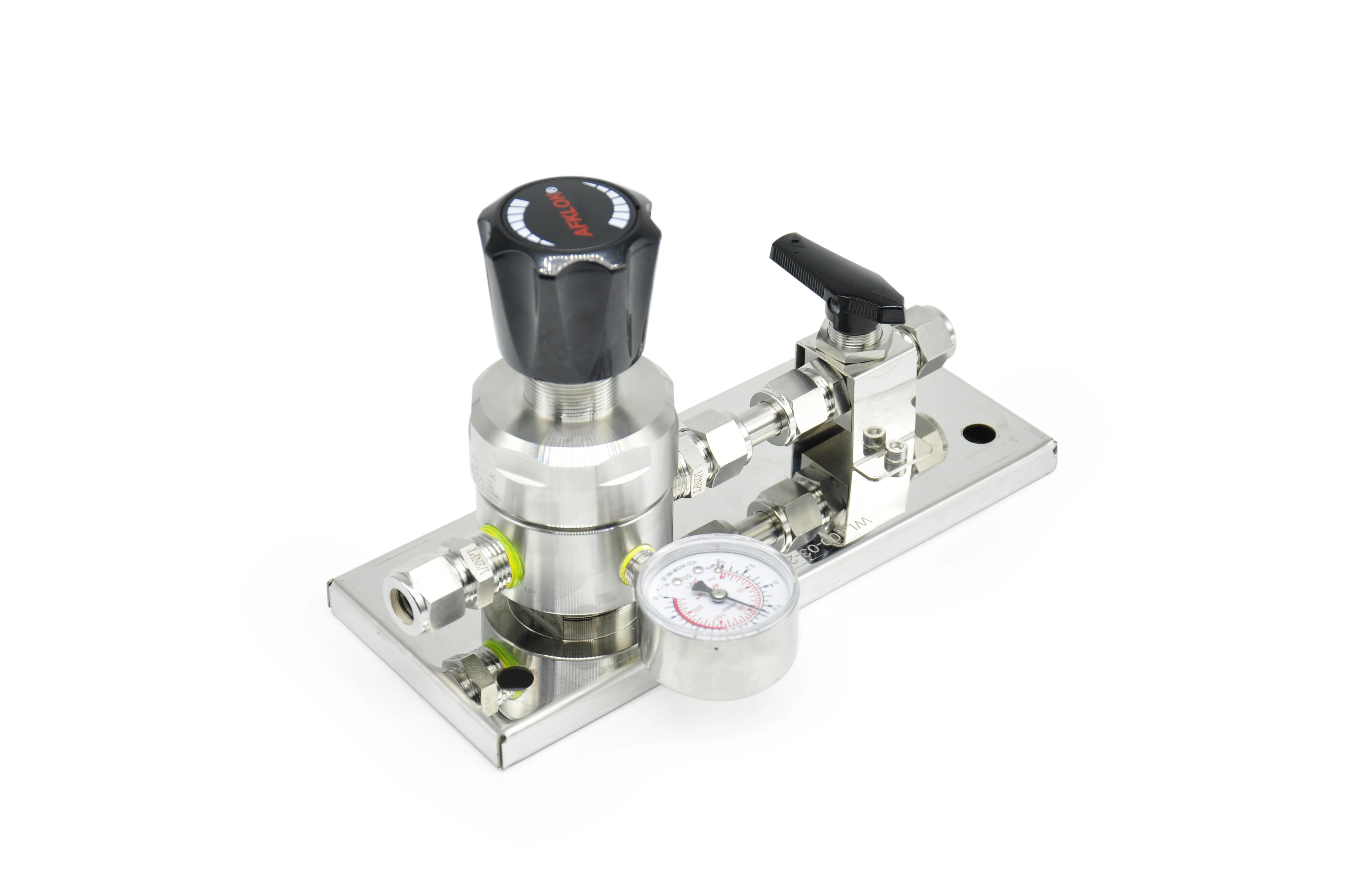

Secondary Pressure Reducing Device Panel Single Gauge 1.6Mpa Pressure Reducing Regulators with Panel Ball Valve
- Category: Pressure Regulators >>>
- Supplier: Shenzhen Wofly Technology Co. Ltd.
Share on (1600820623262):
Product Overview
Description
Specification
Brand Name | AFK |
Model Number | WL400 |
Product name | Co2 Cylinder Regulator Stainless Steel Pressure Regulator |
Material | Stainless Steel 316 |
Application | Industrial Usage |
Outlet pressure range | 1.6MPA |
Certificate | ISO9001 CE |
Color | Siliver |
MOQ | 1pcs |
Max inlet pressure | 3000,2200PSI |
Outlet pressure | 25,50,100,150,250PSI |
Working pressure | -40℃~230℃ |

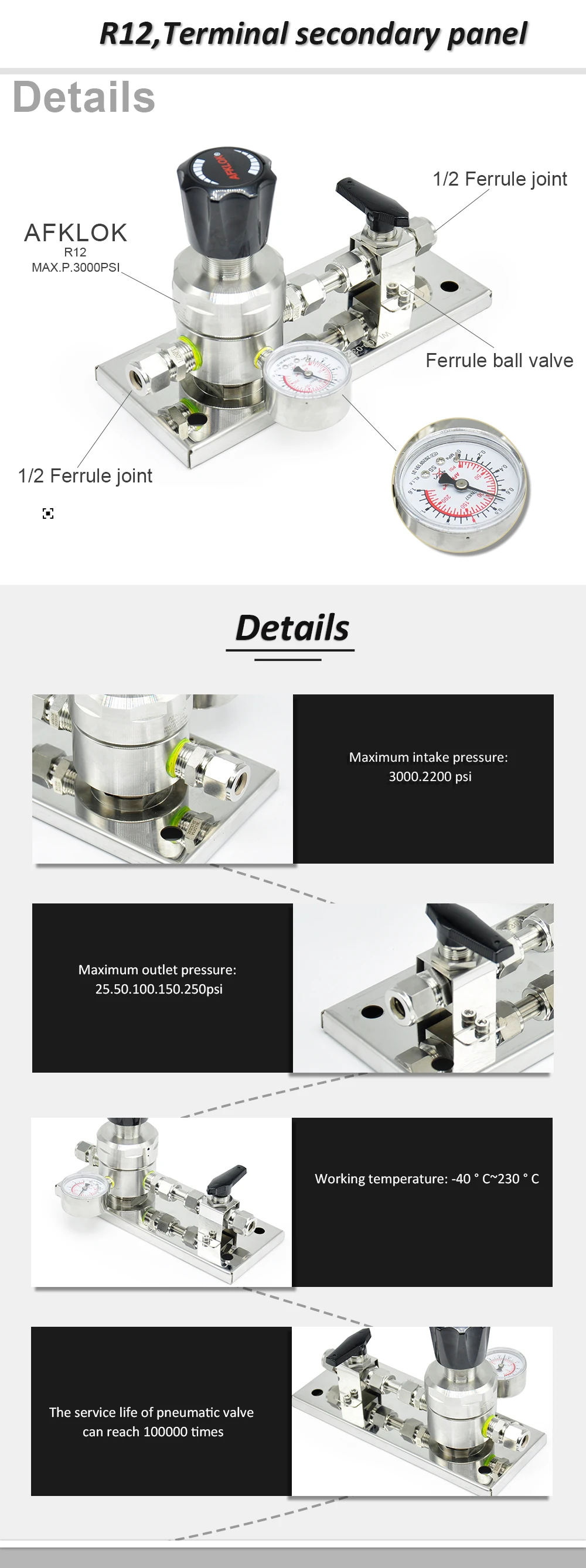

Features
Equipped R11 pressure regulator and high pressureball valve
Pressure regulator and pipe through the pressure test and leakage test
Wall installation, easy to use and safe
Pressure regulator and pipe through the pressure test and leakage test
Wall installation, easy to use and safe
2" stainless steel pressure gauge, reading clearly
Materials of Construction
Body: stainless steel
Seat: PU，PTFE,PCTFE
Inlet Connection: 1/4"tube fitting, 1/4"FSR，1/2"FSR
Seat: PU，PTFE,PCTFE
Inlet Connection: 1/4"tube fitting, 1/4"FSR，1/2"FSR
Outlet Connection: 1/4" tube fitting , 1/4"FSR
Body of Diaphragm Valve: stainless steel
Spec fications
Max.Inlet Pressure:3000,2200 psi
Max. Outlet Pressure:25,50,100,150,250 psi
Working Temperature:-40°C ~74°C(-40F~165°F)
Flow Rate: see flow Curve Chart
Pressure Regulator Leakage Rate: 2 x 10-8atm.cc/sec He
Cv: 0.14
Cv: 0.14
Product Description
It is Applied to the gas pipeline terminal, easy to use the control gas flow size. Maximum input pressure up to 20.7Mpa (3000 psig), corrosion resistance, clean shop assembly test, and suitable for laboratory, gas analysis and otheihigh purity gas.
Company Profile
Shenzhen Wofly Technology Co. , Ltd. was established in 2011,; is a professional engaged in the design and installation of gas systems engineering, technical services consulting and supporting product production and sales as one of the national high-tech enterprises. Headquartered in Shenzhen, Wuhan Subsidiary Company, Hong Kong subsidiary and the Xi'an Office.
We provide high-performance and high-quality turnkey solutions for the design and installation of bulk gas system, electronic special gas system, laboratory gas system, industrial central gas supply system, clean gas pipeline, Takasumi chemical liquid supply system, Local Scrubber tail gas treatment system, etc. . The project covers semiconductor, integrated circuit, photoelectric, new energy, microelectronics, optical fiber, biological medicine, Scientific Research Institute, Standard Testing, university and college and other high-tech fields.
We provide high-performance and high-quality turnkey solutions for the design and installation of bulk gas system, electronic special gas system, laboratory gas system, industrial central gas supply system, clean gas pipeline, Takasumi chemical liquid supply system, Local Scrubber tail gas treatment system, etc. . The project covers semiconductor, integrated circuit, photoelectric, new energy, microelectronics, optical fiber, biological medicine, Scientific Research Institute, Standard Testing, university and college and other high-tech fields.

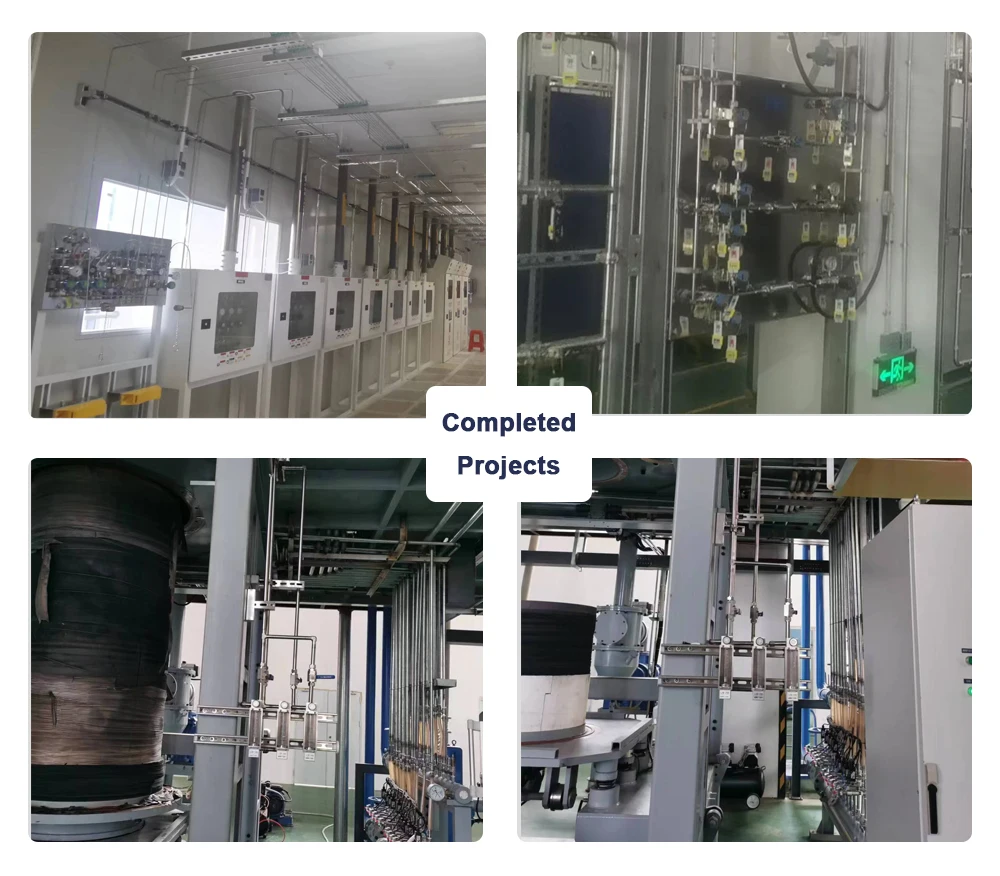

Cooperation Projects
Qualification
Packing & Delivery
We have a variety of products, products of different sizes and styles of packaging is also different, but each cargo our outer packaging will be wrapped around a circle of tape or wrap stretch film and internal filling tight to avoid shaking, so that the excellent protection of the product will not be damaged.
Engineering case
Applicable Scenarios
FAQ
Q. Are you manufacturer?
A. Yes, we are manufacturer.
A. Yes, we are manufacturer.
Q.What is lead time?
A.3-5days. 7-10 days for 100pcs
A.3-5days. 7-10 days for 100pcs
Q. How do I order?
A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
Q. Do you have any certificates?
A.We have CE certificate.
Q. What materials do you have?
A.aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. What is maximum inlet pressure?
A.3000psi (about 206bar)
A.We have CE certificate.
Q. What materials do you have?
A.aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. What is maximum inlet pressure?
A.3000psi (about 206bar)
Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A.Down way and side way. (you can choose it)
Q. What is product warranty?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A.Down way and side way. (you can choose it)
Q. What is product warranty?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
