Price:$3,117.00

Quantity:


Product Overview

Description



Products Description

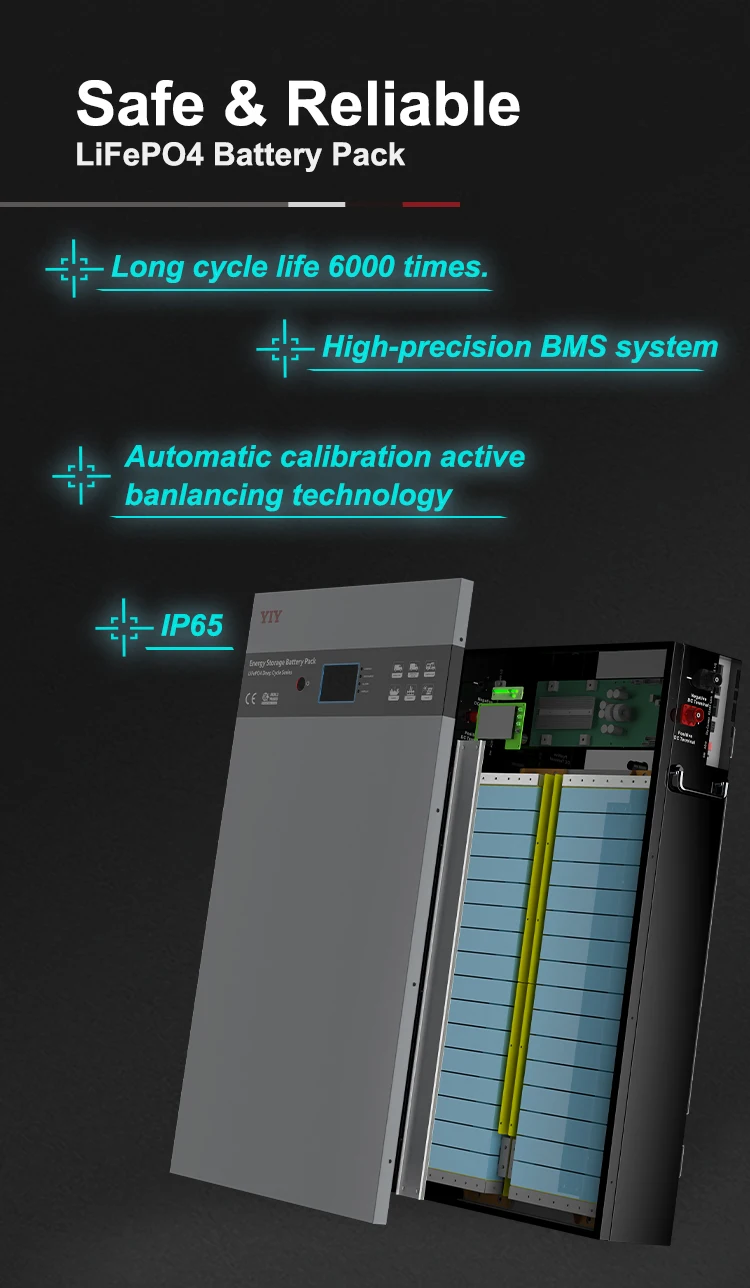

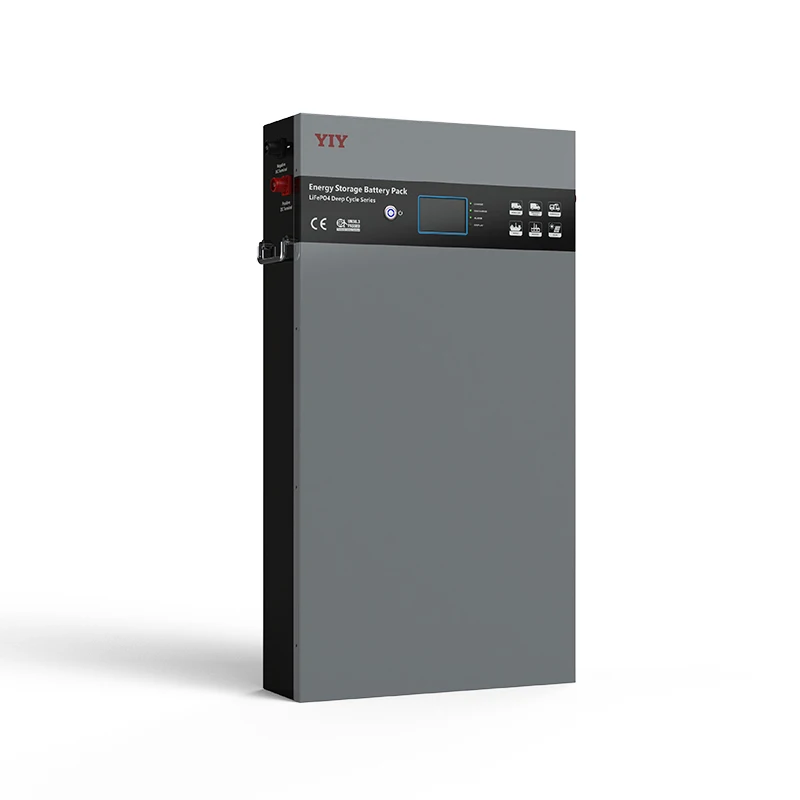

5000W Home energy storage system 10kwh LiFePO4 battery packs (BESS) solar energy system 5kw

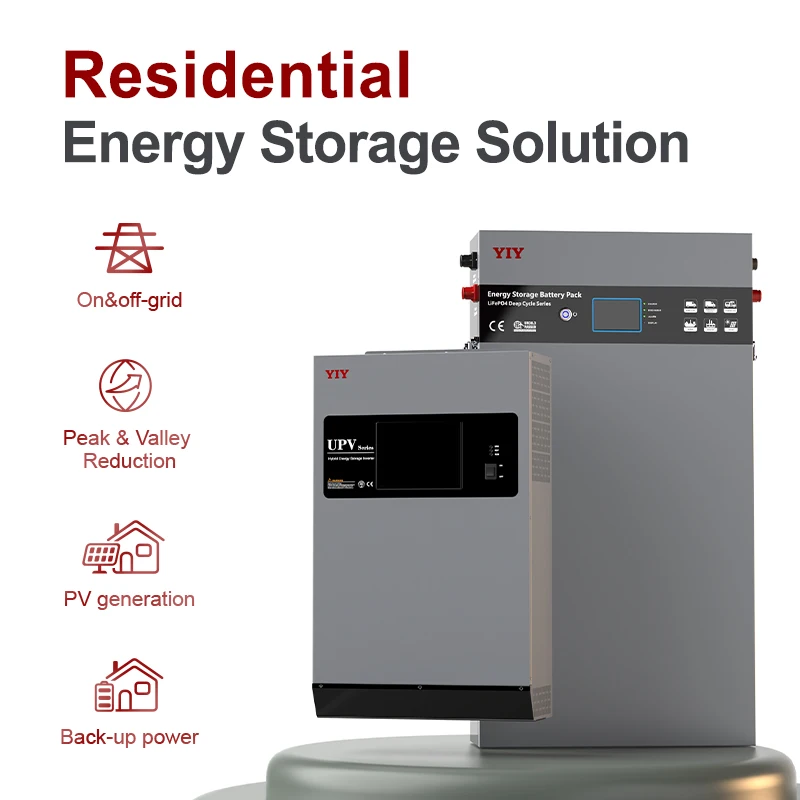

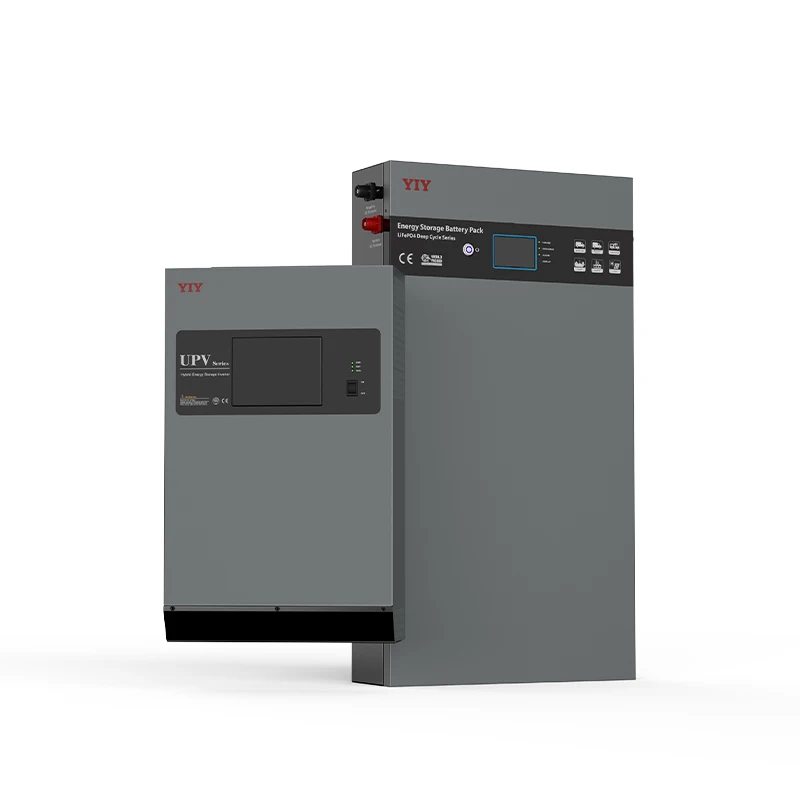

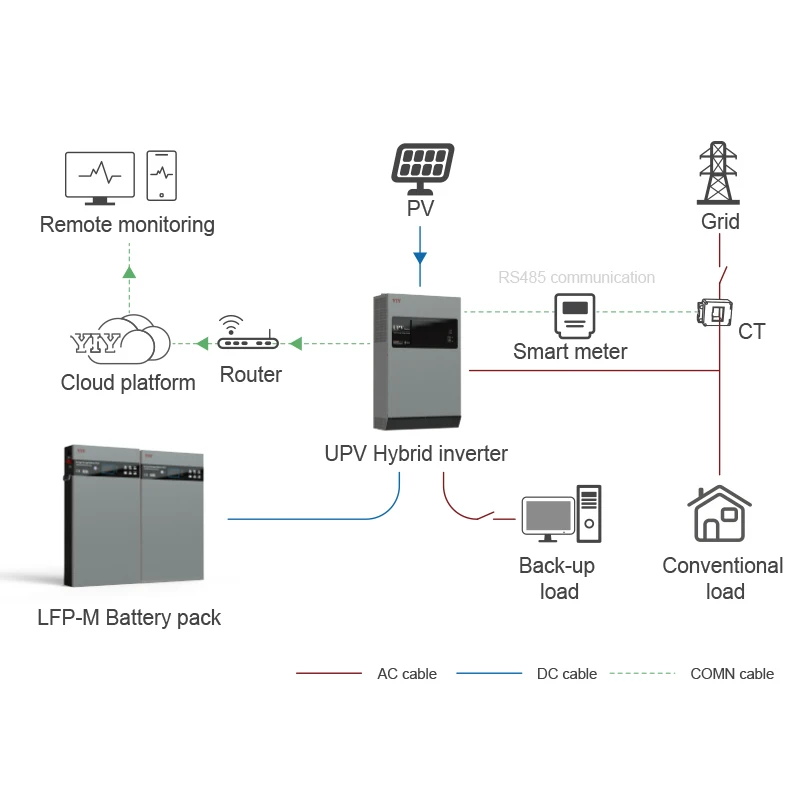

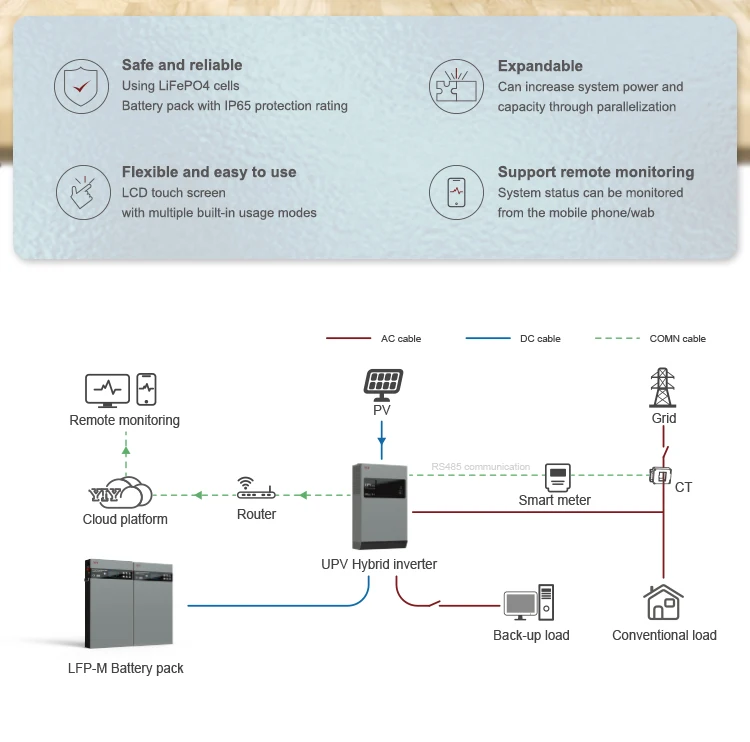

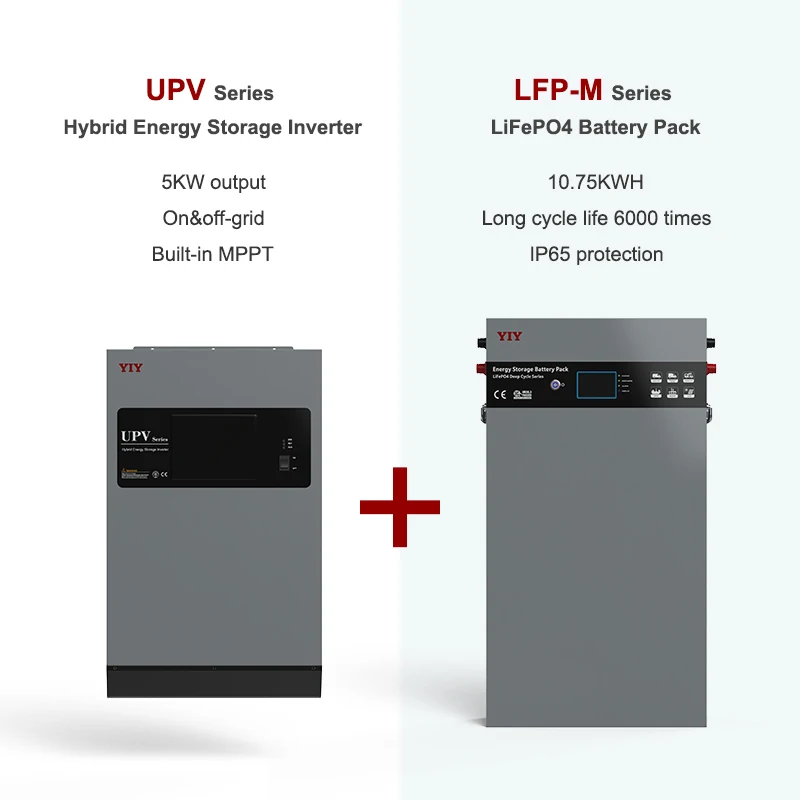

YIY UPV Hybrid energy storage inverter + LFP-M Battery pack is a DC-coupled photovoltaic energy storage system solution for a variety of scenarios, featuring hybrid power supply, reservation of energy supply and high overall system efficiency. It helps customers to build their own solar self-powered systems, reducing their electricity bills while providing them with a flexible and stable power supply environment.

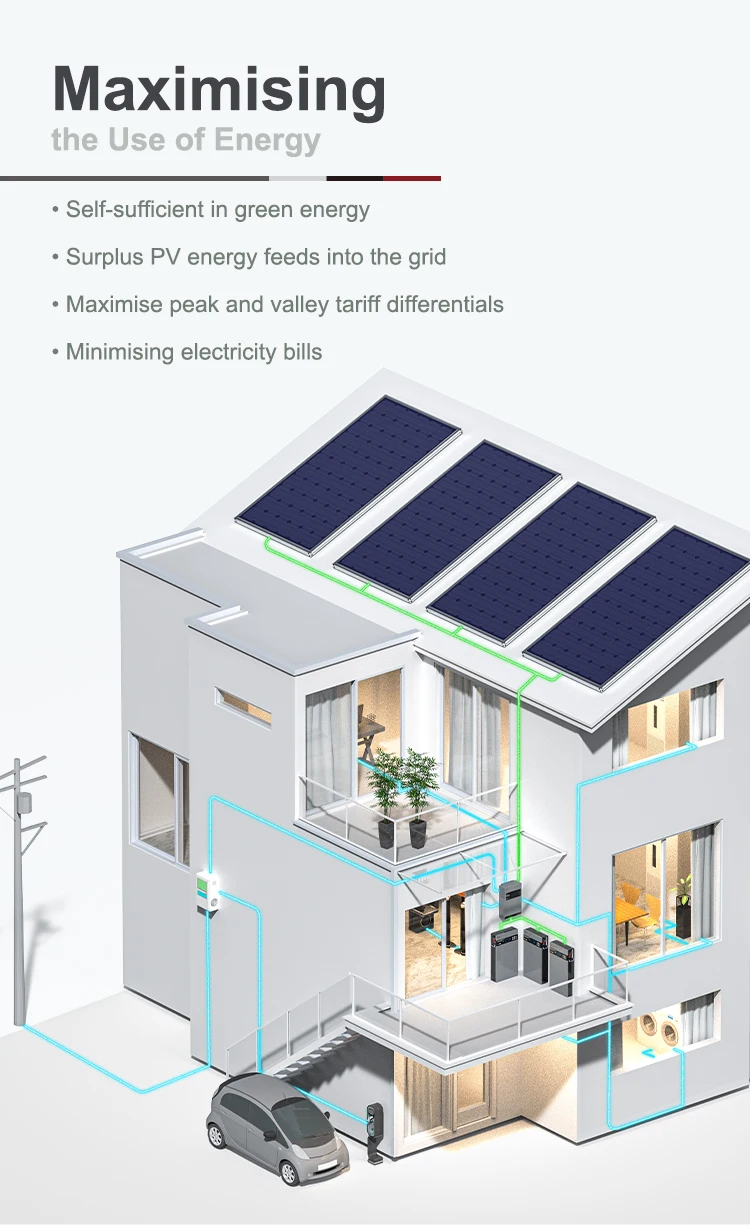

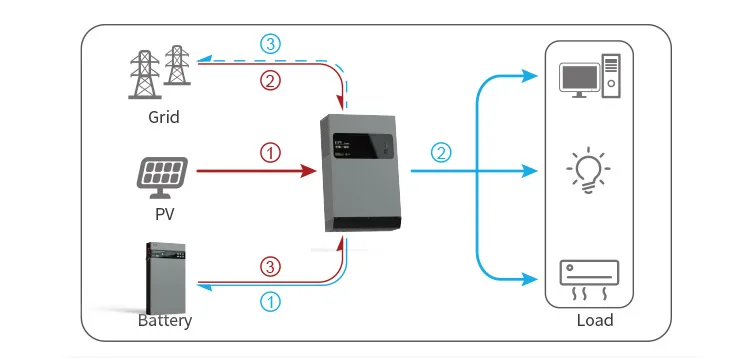

·Self-consumption priority
When solar power is sufficient, it provides power to loads directly, and then charge batteries or sell to the grid. But when thesolar power is insufficient, it will be supplemented by battery or the grid. Inverter charges battery at set time when grid tariffis cheap to secure battery health.

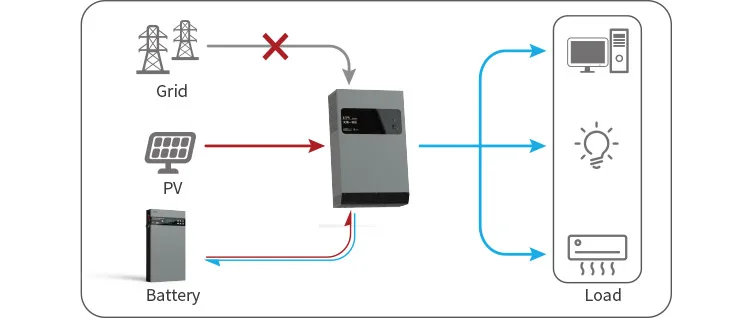

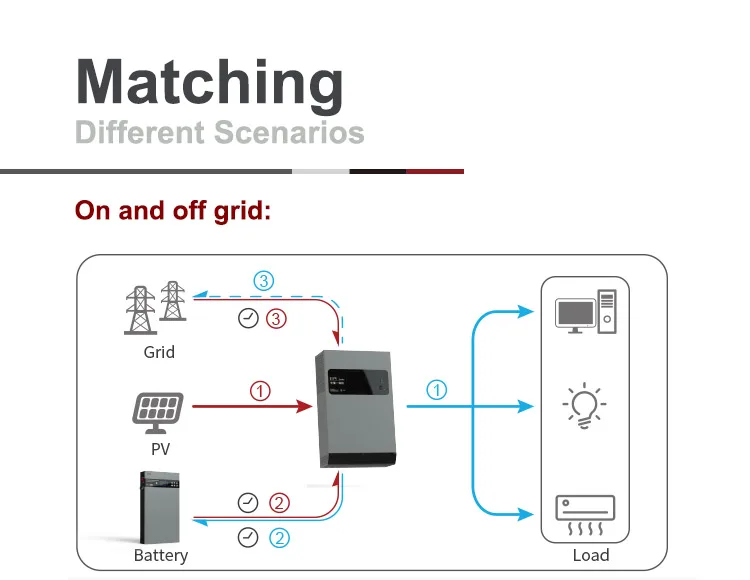

Back up mode
Solar power charges batteries first, then power up the loads connect-ed. If there is still excess power. it feeds back to the
grid. If solar power is insufficient, it will be supplementedby the grid. Battery power only works when the grid fails.

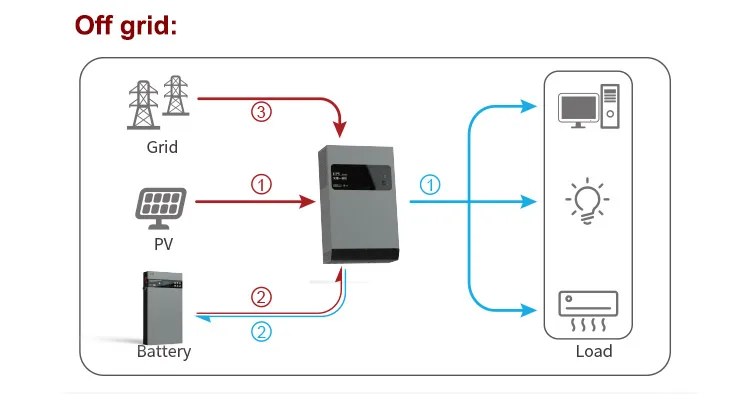

· Solar power supports loads first, and then charge batteries.When solar power is insufficient, it will be supplemented by battery power and the grid.




· Solar power charges batteries first, then power up the loads con-nected. If solar power is insufficient, it will be
supplementedby the batteries.






Technical Parameter


UPV Series Hybrid Energy Storage Inverter
Model
UPV 5048E
Battery
Battery Type
Lead~acid or Lithium~ion
BatteryVoltage Range
40~60V
Max. Charge/Discharge Current
100A
Charging Curve
3 Stages
Charging Voltage
Depends on battery type
Input DC(PV Side)
Recommended Max. PV Power
3kW
Rated Voltage Range
60~200V
Max. Input Voltage
200V
Start Up Voltage
75V
MPPT Voltage Range
75~170V
Max. Input Current
60A
No.Of MPPT Trackers No.Of Strings Per MPPT Tracker
1
PV Module Efficiency
≥99.6%
Output AC (Back Up)
Rated Output Power
5000W
Max. AC Output Power
5500W
Back Up Switch Time
＜8ms
Rated output voltage
230V (Single Phase)
Rated frequency
50Hz
Rated output current
22.7A
Input Voltage Waveform
Pure Sine Wave
THDv (@linear load)
2%
No load loss
＜50W
