Product Overview

Description





Product Overview




self-drilling screw making machine for drill point forming, self-drilling screw thread rolling machine

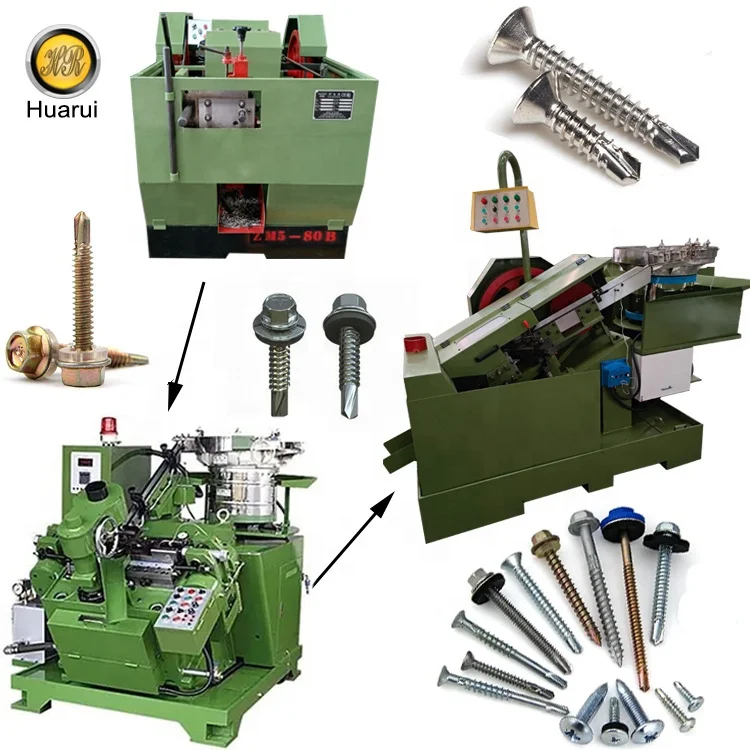

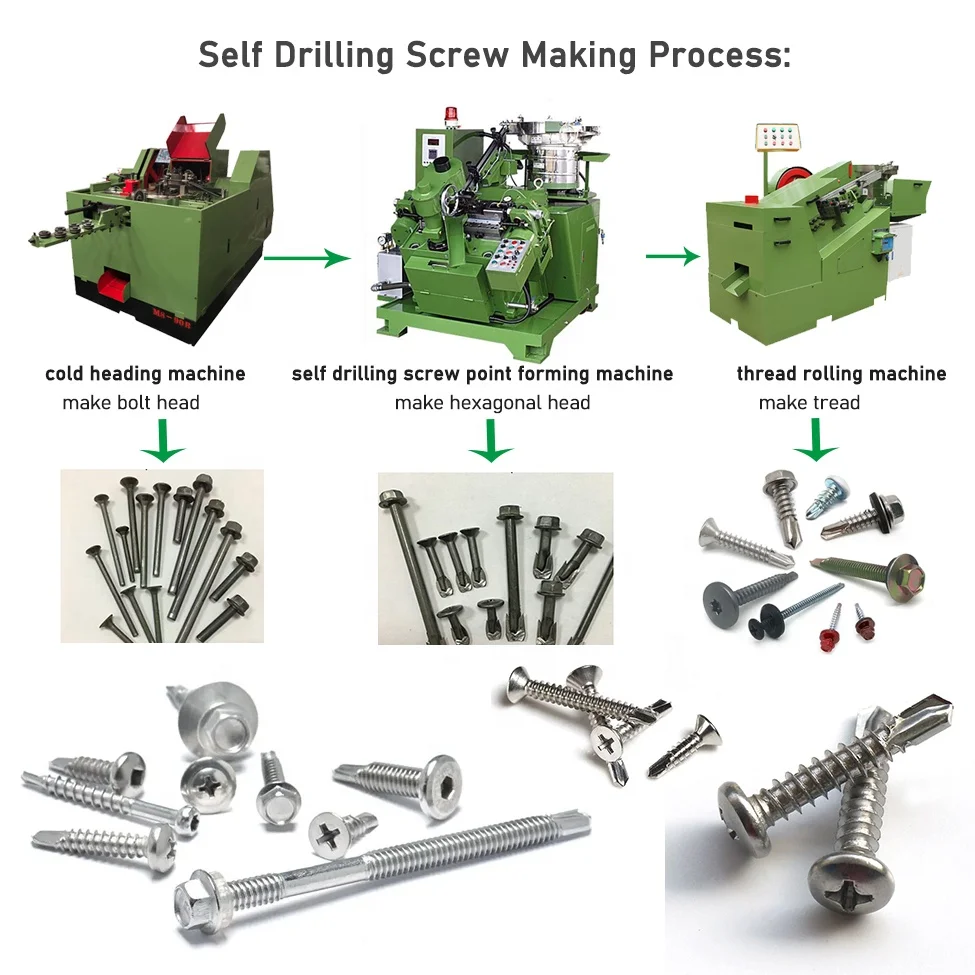

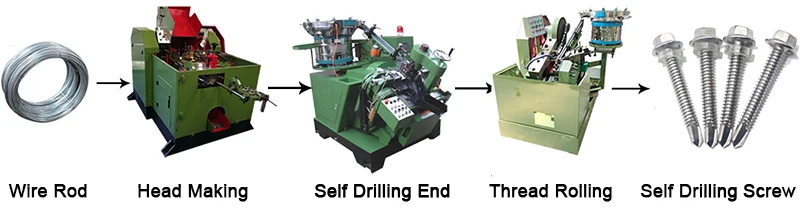

Process Flows: wire rod---cold heading machine---self drilling screw point forming machine---Thread rolling machine---finished Screws
Amy Peng (Mobile/Whatsapp/Wechat): +86 132 7125 3712




Specification of Each Machine

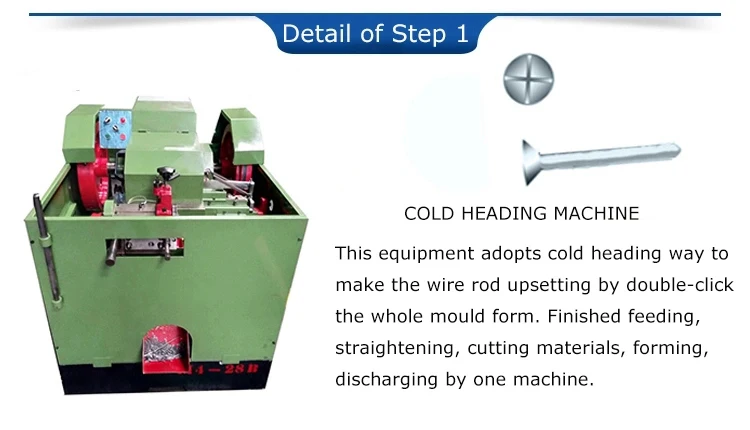

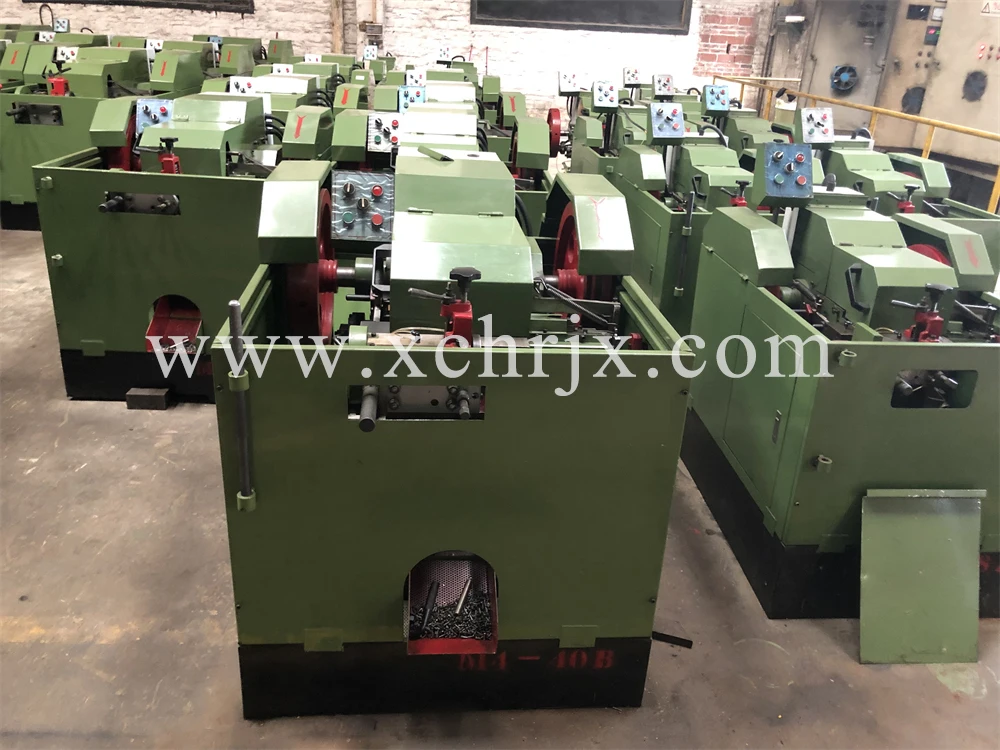

1. One die Two blow screw cold heading machine
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.






Model
Max. Screw Dia. (mm)
Max. Screw length(mm)
Capacity (pcs/min)
Motor (kw)
Weight (Ton)
Overall size (m)
ZM4-28B
4
28
120-160
1.5/0.37
0.97
1.5*0.9*0.9
ZM4-28D
4
28
180-200
1.5/0.37
1.2
1.6*1*1.2
ZM4-40B
4
40
120-150
1.5/0.37
1.08
1.6*1*1.2
ZM4-40D
4
40
180-200
1.5/0.37
1.4
1.6*1.1*1.1
ZM4-60D
4
60
110-160
1.5/0.37
1.5
2*1*1.2
ZM5-40B
6
40
120-150
2.2/0.37
1.8
1.8*1.1*1.1
ZM5-60B
6
60
110-140
2.2/0.37
1.8
1.8*1.1*1.1
ZM5-80B
6
80
80-100
2.2/0.37
1.9
2*1.1*1.2
ZM5-100B
6
100
60-80
3/0.18
2.1
2.4*1.2*1.2
ZM5-120B
6
120
50-70
3/0.37
2.3
2.8*1.3*1.3
ZM6-60B
8
60
80-110
4/0.37
2.8
2.3*1.3*1.3
ZM6-100B
8
100
60-90
4/0.37
2.7
2.3*1.3*1.3
ZM6-120B
8
120
60-70
4/0.37
3
2.4*1.3*1.4
ZM6-170B
8
170
40-70
4/0.37
3.7
3*1.3*1.5
ZM6-200B
8
200
40-55
4/0.37
3.7
3*1.3*1.5
ZM6-320C
8
320
25-30
7.5/0.37
4.5
5.2*1.8*2.1
ZM8-90B
10
90
70-90
5.5/0.37
4.2
3.4*1.5*1.5
ZM8-90C
10
90
70-90
5.5/0.37
4.2
3.4*1.5*1.5
ZM8-130B
10
130
50-90
5.5/0.37
4.6
3.4*1.5*1.5
ZM8-130C
10
130
50-90
5.5/0.37
4.6
3.4*1.5*1.5
ZM8-150C
10
150
40-50
5.5/0.37
5
3.5*1.7*1.7
ZM8-200C
10
200
25-60
7.5/0.37
6
3.8*1.6*1.7
ZM10-120B
12
120
40-70
11/0.75
7
3.3*1.71.7
ZM10-170C
12
170
40-60
11/0.75
7.5
4.2*1.81.7
ZM10-220C
12
220
35-60
11/0.75
7.5
4.2*1.81.7
ZM10-250C
12
250
30-45
11/0.75
8.5
5*1.8*1.7

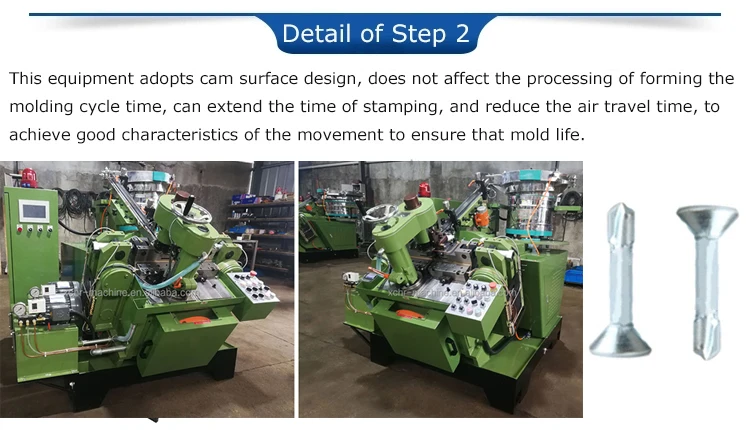

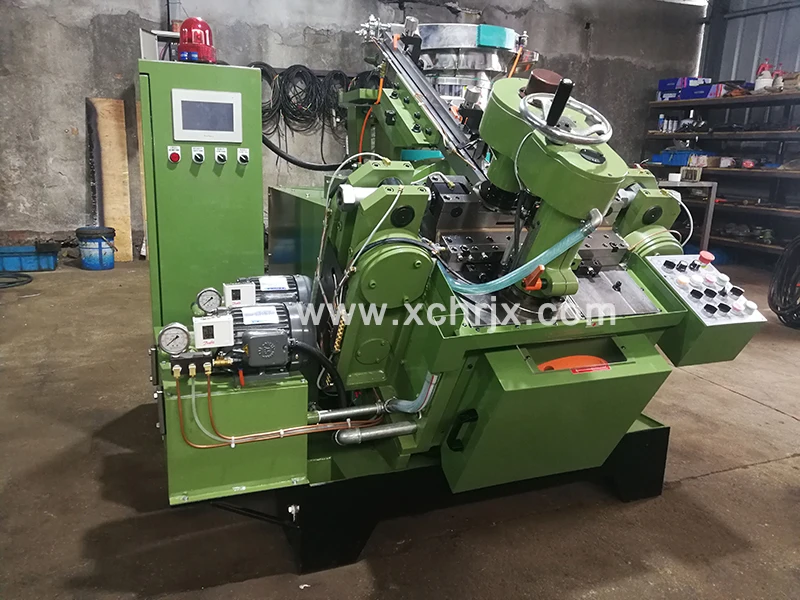

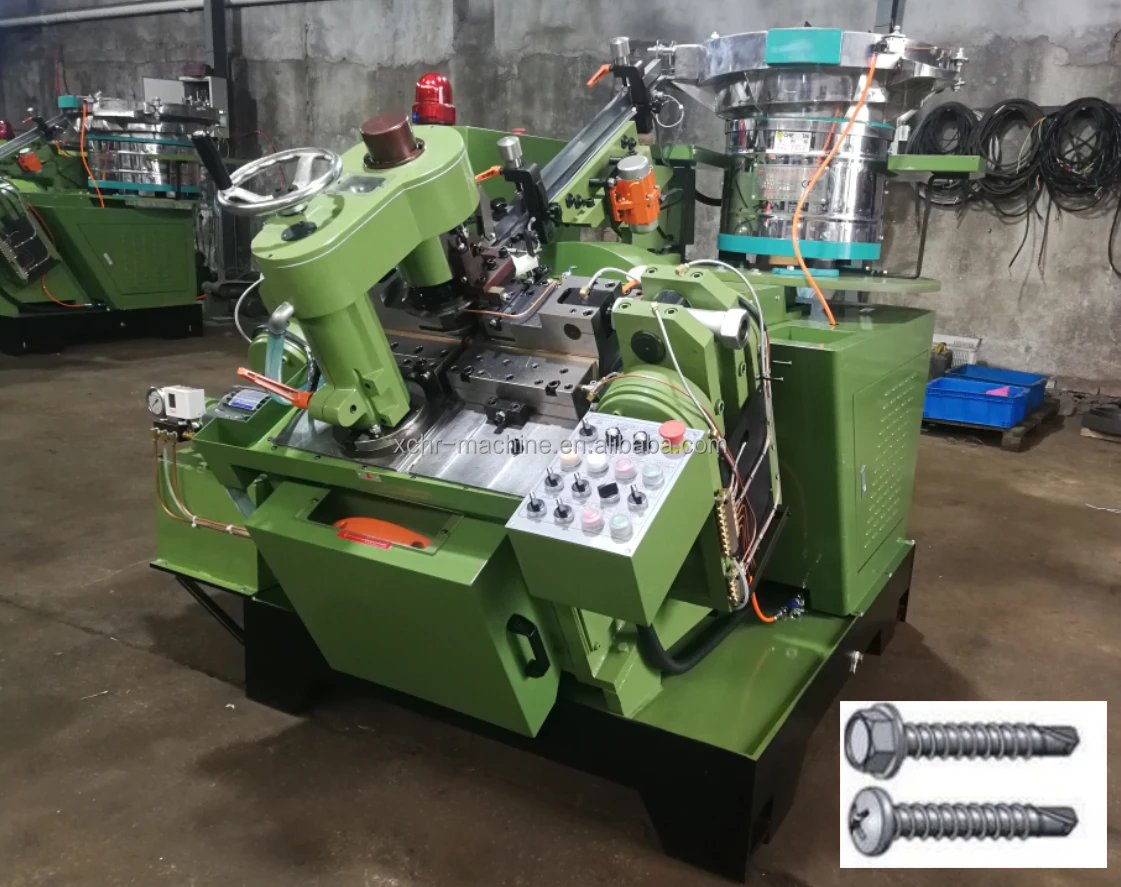

2. Self Drilling Screw Point Forming Machine
Function: This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.




Model
HR14-130L
Speed
120-520PCS/Minute
Main Motor
7.5KW(10HP)
Oil pump motor
0.75KW(1HP)
elevator motor
0.2KW(1/4HP)
Inverter
7.5KW
Brake System
Air-Pressure Clutch
Auto-action controller
PLC Controller
Abnormal auto-action
Automatically detect abnormal man-machine interface display
Vibrator Feeder
620mm,Plus Silent PU Gelatin Spraying
Wire Diameter
#6(2.8)~#14(5.45)NO.1-NO.6
Screw Length
9.5mm~130mm
Machine Size(L*W*H)
1950mm* 1650mm*1650mm
Machine weight
(approx)2180KG

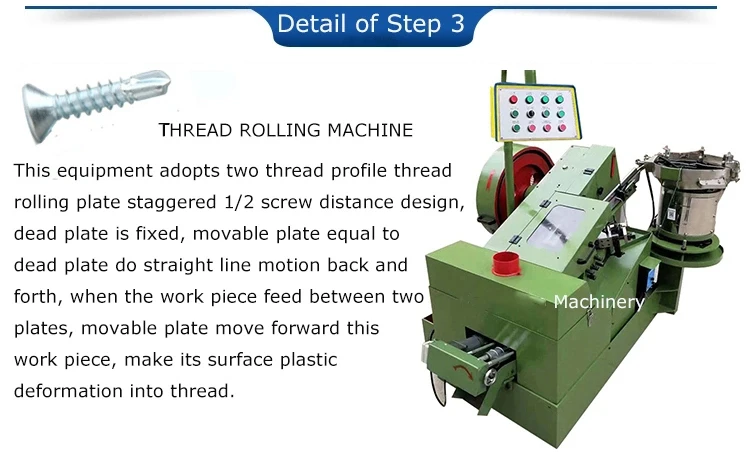

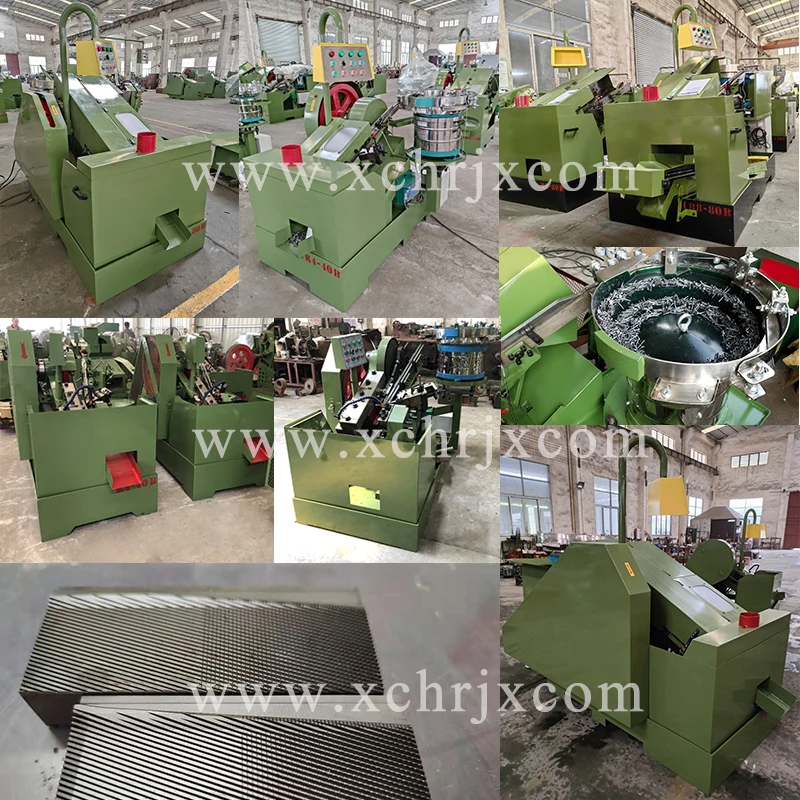

3. HR Series Automatic Thread Rolling Machine






Model
Max. Screw Dia (mm)
Max. Screw length(mm)
Motor (kw)
Capacity (pcs/min)
Weight (Ton)
Overall size (m)
HR4-40B
M4
40
2.2/0.37
280
0.97
1.5*1.15*1.35
HR5-55A
M5
55
3+0.37
170
1.2
1.6*1.35*1.7
HR5-55B
M5
55
3+0.37
170
1.2
1.6*1.35*1.7
HR5-65A
M5
65
3+0.37
130
1.3
1.75*1.4*1.65
HR5-65B
M5
65
3+0.37
130
1.3
1.75*1.4*1.65
HR6-60A
M6
60
4/0.37
180
1.5
1.7*1.65*1.3
HR6-60B
M6
60
4/0.37
180
1.5
1.7*1.65*1.3
HR6-100B
M6
100
5.5+0.37
110
1.9
2.7*1.3*1.3
HR8-80B
M8
80
5.5/0.37
110
1.8
2.1*1.55*1.3
HR8-100B
M8
100
7.5+0.37
100
2.1
2.4*1.7*1.3
HR8-120B
M8
120
7.5
100
2.1
2.4*1.7*1.3
HR10-120B
M10
120
7.5
80
2.35
2.4*1.95*1.4
HR12-120B
M12
120
11
60
3
2.45*2*1.45
HR12-160B
M12
160
13
60
3
2.45*2*1.45

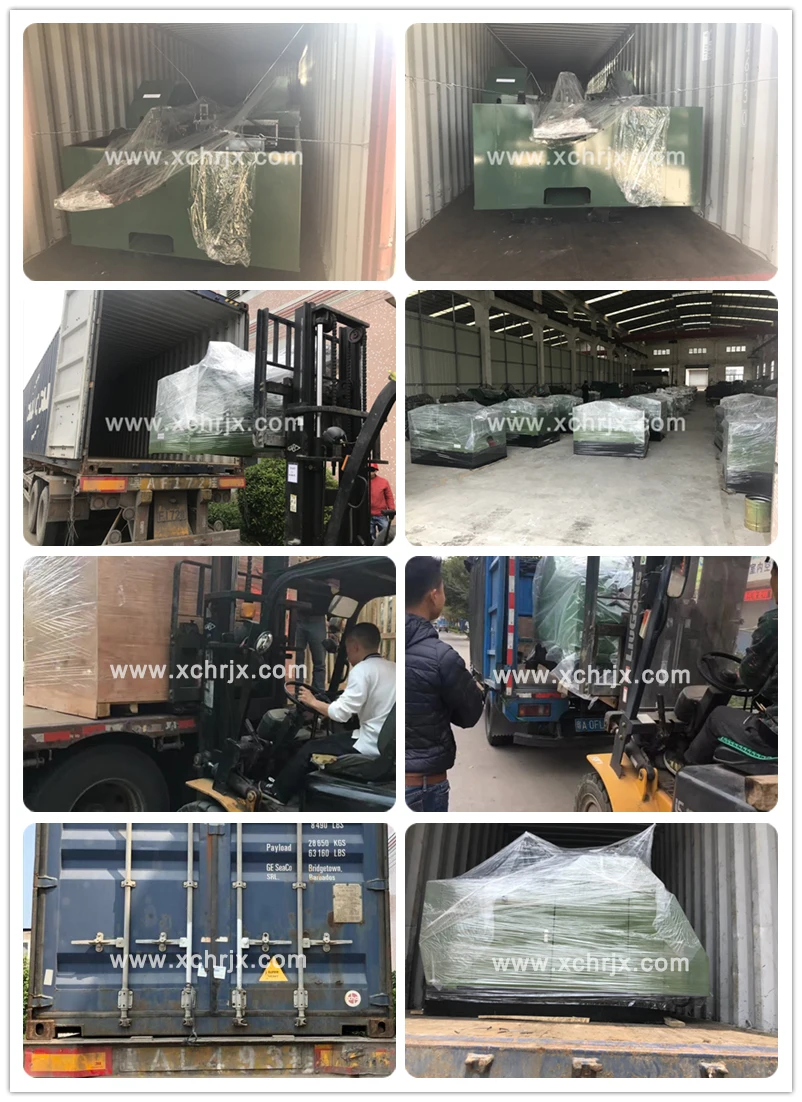

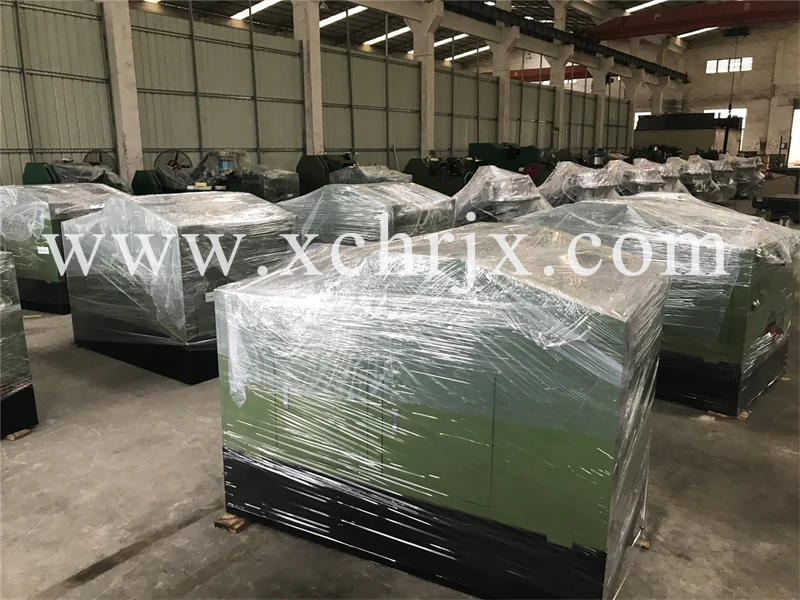

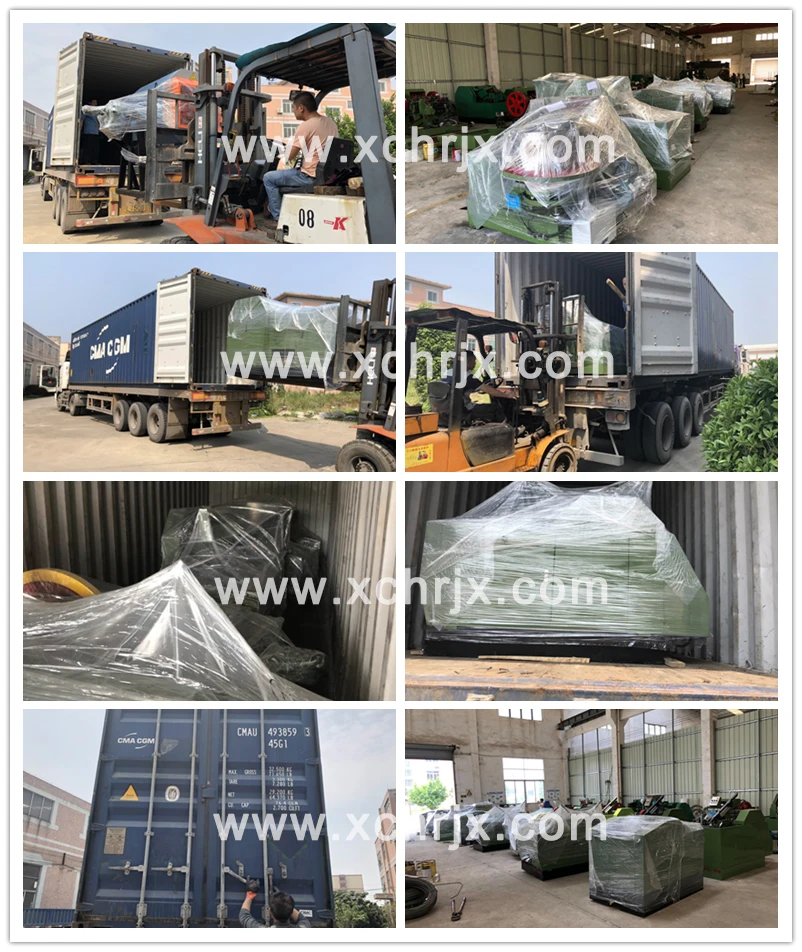

Packing and Shipping

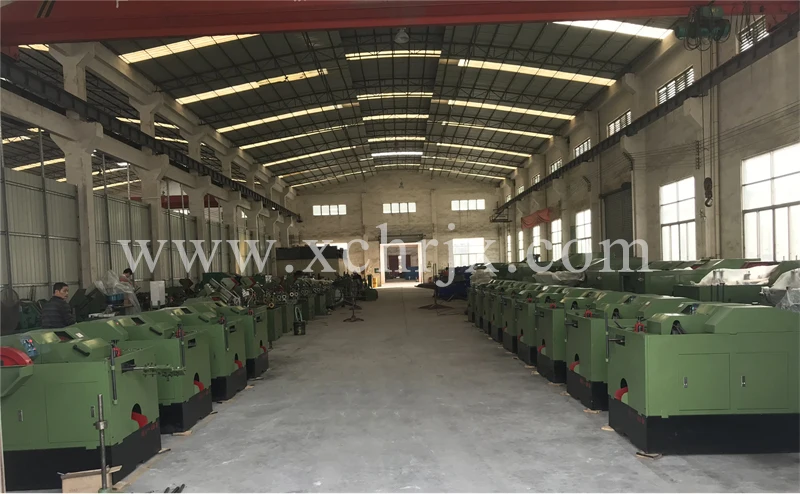

Company Profile








Xuchang Huarui Machinery Co., Ltd
Xuchang Huarui Machinery Co., Ltd. was established in 1990, mainly engaged in R&D and manufactures nail and Screw making machines,waste tire recycling machines and auxiliary equipment. After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company.

Our Company Serivice
1. Two-year guarranty.
2. If quality problems happen within guarantee period, our company will repair for free.
3. 100% test and adjust the machine before delivery, and production pictures will be sent to clients, to help them know the machines better.
4. Additionally, our company provides technical support and fittings for life.
5. After-sales service is available any time.
6. If needed, our technician is available overseas to help you.




CE Certifications




FAQ


Q1. Why do we choose Huarui Machinery?
A1. We have more than more than 30 years experience in producing high quality nail making machines and we can provide a reasonable nail production line according to customers' demand.

Q2. Are you trading company or manufacturer?
A2. We are manufacturer with nearly 30 years experience. and 13 years exporting experiences.

Q3. Have you exported your machines to overseas market?
A3. Yes, we have exported our machines to Uzbekistan, Kyrgyzstan, Kazakhstan, Indonesia, Russia, Egypt, India, Viet Nam, Thailand,Pakistan, Algeria and so on.

Q4. Is there any quality warranty ?
A4. Yes, the warranty of mechanical portion of the equipment shall be 2 years.

Q5. How to choose the machines?
A5. Please tell us the nail size and type that you want to produce, we will recommend the most suitable machine models to you.

Q6. What is the raw material should we use?
A6. To make nails, usually use the common iron material , like Q195 ,Q235 ..

Q7. What's the delivery time?
A7. It is depending on your order quantity, usually we aim to deliver your order within 30 days.

Q8. How do you pack the machines?
A8. Wrapped film packing in full container. Wooden Frame or Wooden Case packing in LCL.

Q9. What's your payment terms?
A9. 40% TT deposit before production, 60% TT balance before shipment.

Q10. What is your MOQ ?
A10. 1 set of any machine model.
