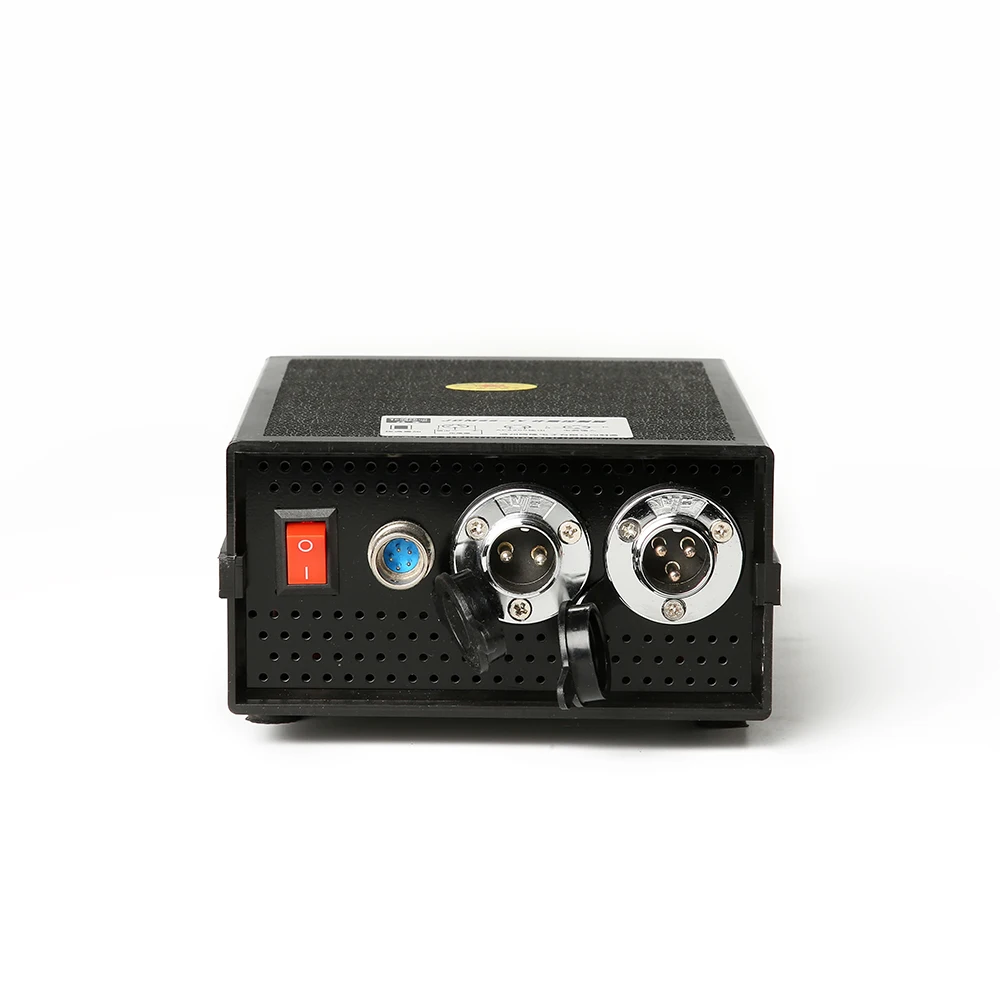

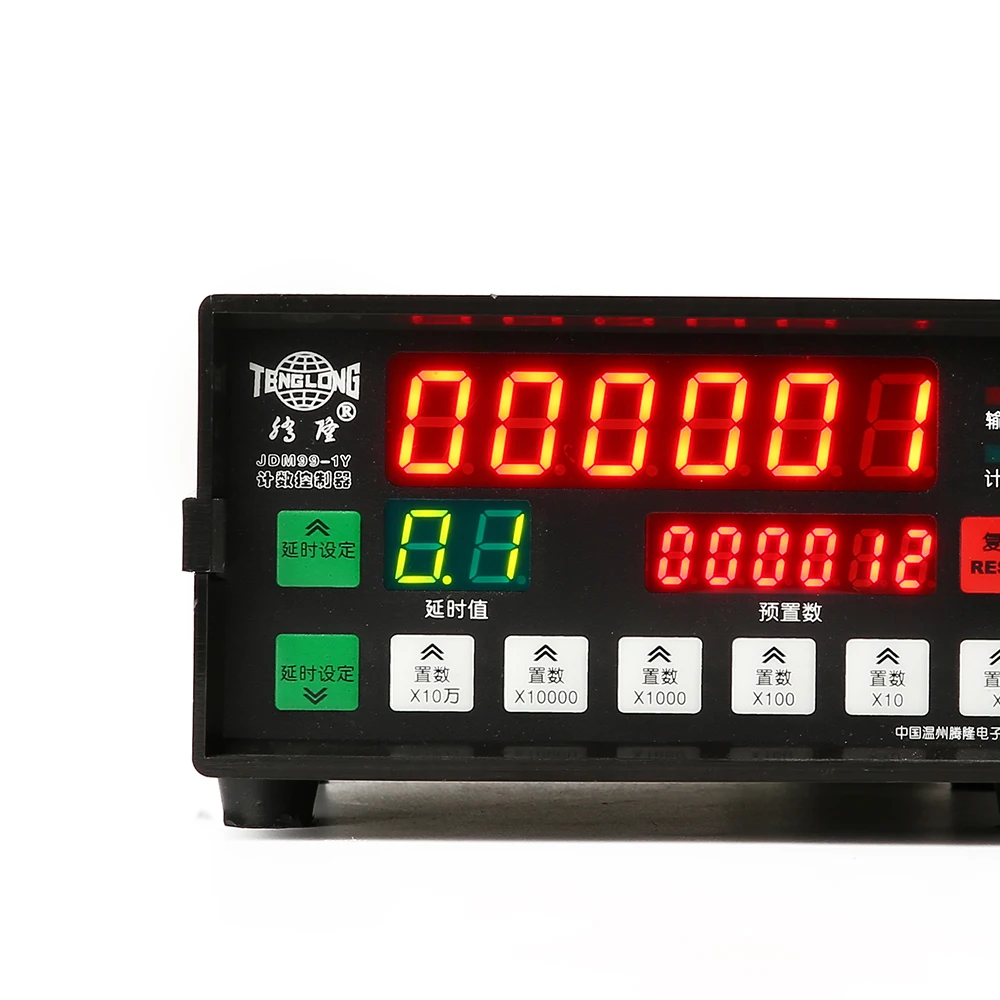

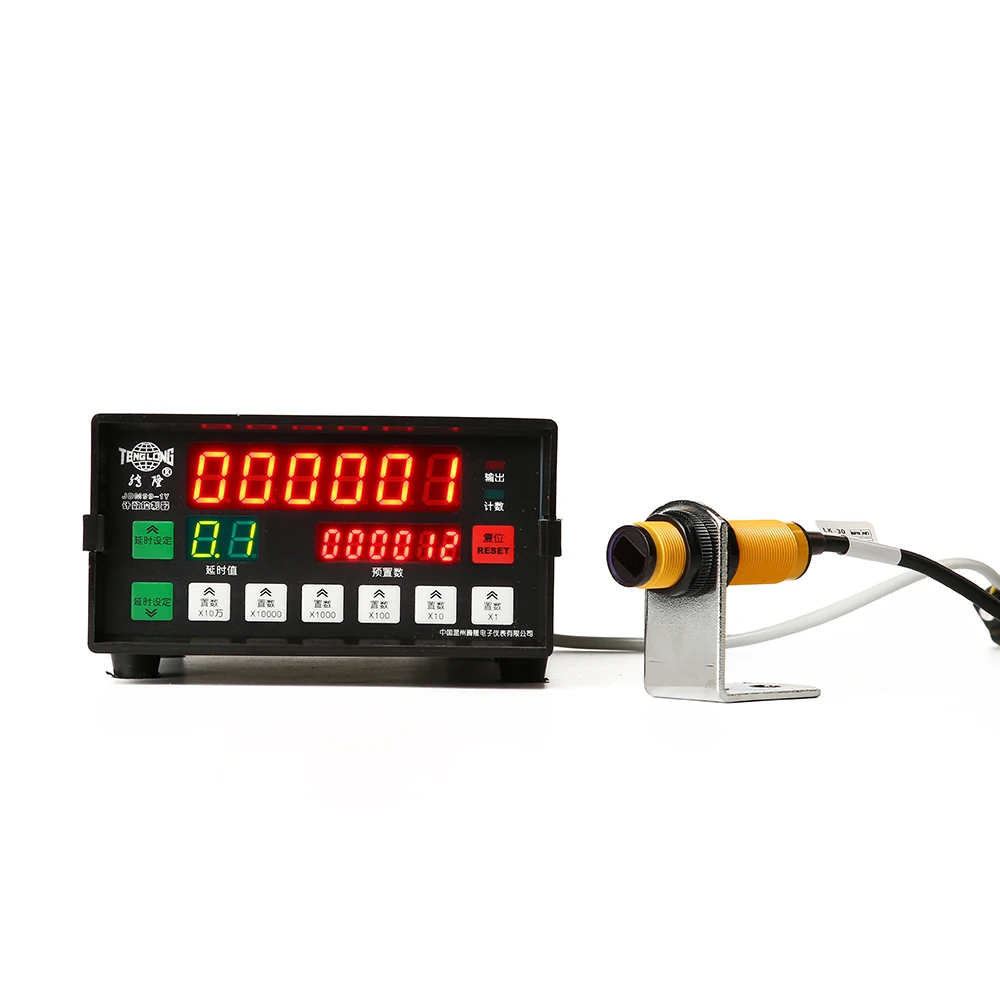

JDM99 1X Multifunction intelligent 6 digits count 1 999999 digital preset accumulative counter meter
JDM99-1X Multifunction intelligent 6 digits count 1-999999 digital preset accumulative counter meter
JDM99-1X Multifunction intelligent 6 digits count 1-999999 digital preset accumulative counter meter
JDM99-1X Multifunction intelligent 6 digits count 1-999999 digital preset accumulative counter meter
JDM99-1X Multifunction intelligent 6 digits count 1-999999 digital preset accumulative counter meter
JDM99-1X Multifunction intelligent 6 digits count 1-999999 digital preset accumulative counter meter
JDM99-1X Multifunction intelligent 6 digits count 1-999999 digital preset accumulative counter meter

JDM99 1X Multifunction intelligent 6 digits count 1 999999 digital preset accumulative counter meter

Share on (1600899233156):


Price:$75.00 - $98.00

Quantity:


Product Overview

Description





DMS-58,JDMS-98A,JDM991X series electronics counter controllers are multifunctional digital counter which composed of a preset counter, accumulative counter and a group of time relay. The JD99-1X has several functions like coefficient setting,decimal digits setting, output mode setting, also can be used as length meter.

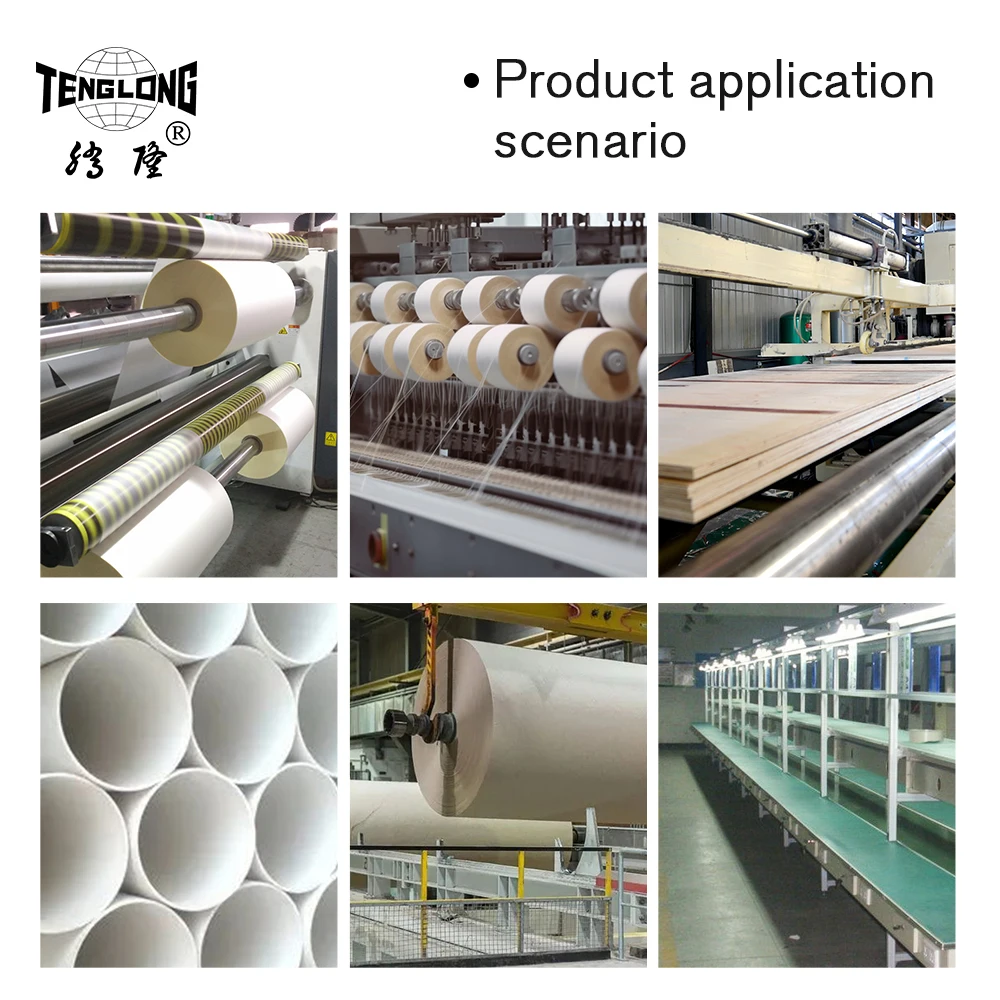

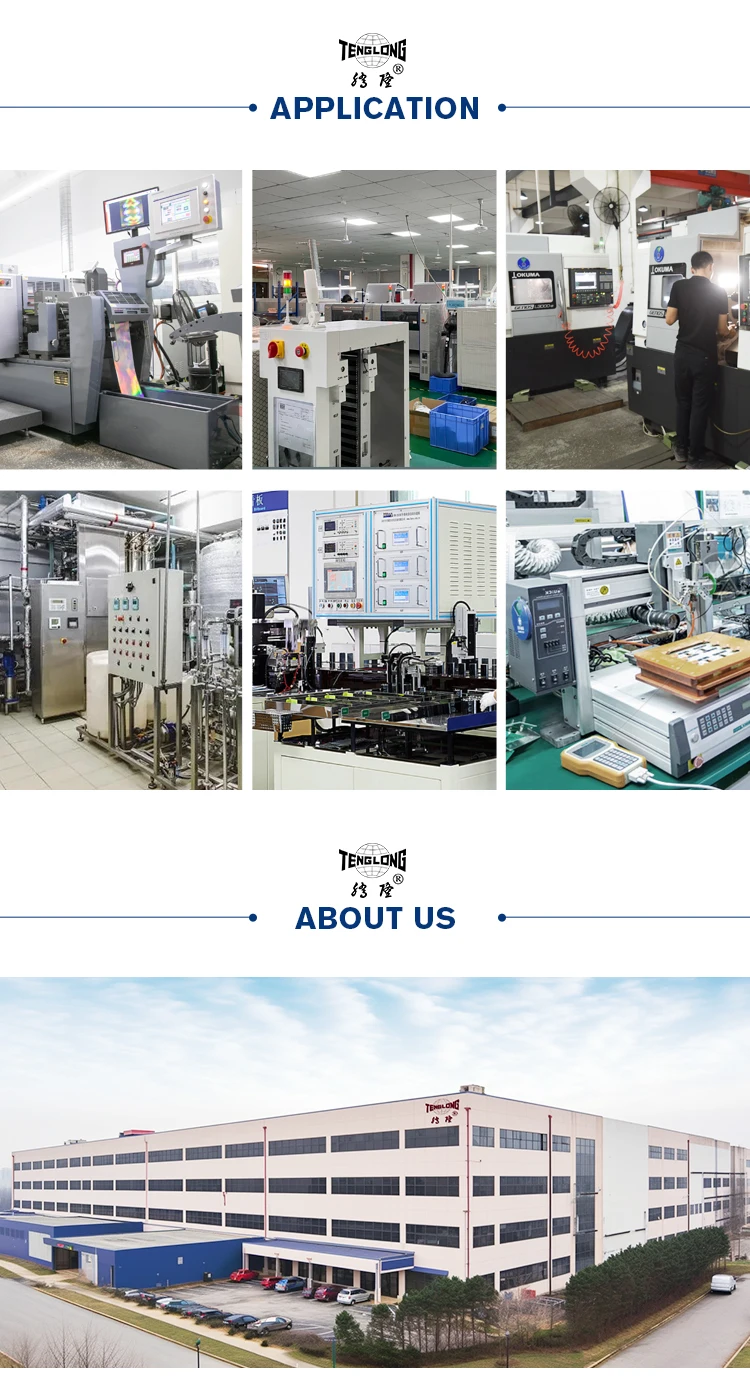

These counter controlers are applied to printing, food, chemica industry, packing, hardware, mechanism and all auto-matic production course as batch preset counting and total automatic accumulating count.

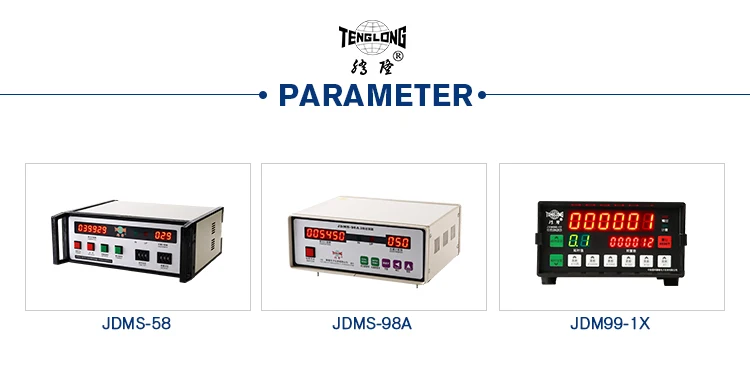

Item\\Model
JDMS-58
JDMS-98A
JDM99-1X
Rated voltage
AC 110~240V、AC24V，50/60HZ、DC24V,85~110% Rated voltage.
Environment temperature
-10~+45℃
Manifestation number
accumulation value :6 bit LED manifestation
initial value:3 bit LED manifestation
6 bit LED
Counting Mode
add count
add count(A),reversible count(B、C、D, 3 kind modes)
Set Manner
dial switch
touch switch
Count Frequency
60 times/second
5-3000 times/sec available
Count Input
without voltage input( the point of contact shuts or crystal tube switch);
voltage input H: 4.5- 30V,L:0~2V
Count Range
preset count:1-999,
accumulative counting:1-999999
 preset accumulative  count:1-99999
Control Output
A group normally- open/close contact AC240V 7A resistance load
Coefficient Set
0.0001-9.9999
Reset Mode
panel、auto
Output Delay Range
0.08-9.99s
0.1-9.9s
Output Power
AC 220V ± 10% DC12V
Power consumption
240V 50HZ≤5W
240V 50HZ≤3W
Power Off Memory
about 10 years(25℃)
Output Type
F、N、R、C、K1、K2、P、Q、A、D、H、L
Decimal Point Available
1~4 digit








Tenglong Electronics Meter Co., Ltd
We are a technology company who specializes in designing manufacturing and severing together. Having gained national patents more than 10 items. The products widely used in industry automation instruments and equipment field, include length measuring, counting, timing , current and voltage , temperature, lubricating time controller, LED tower light and LED alarm light.
