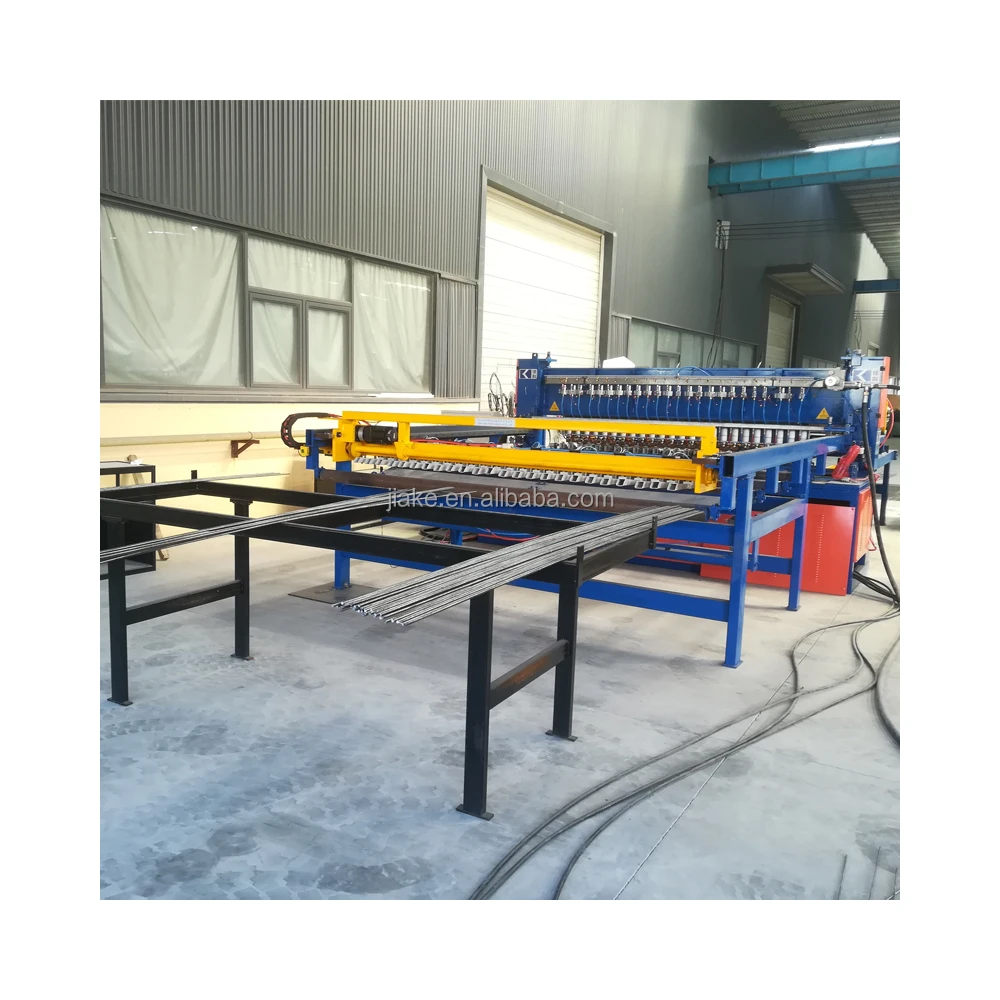

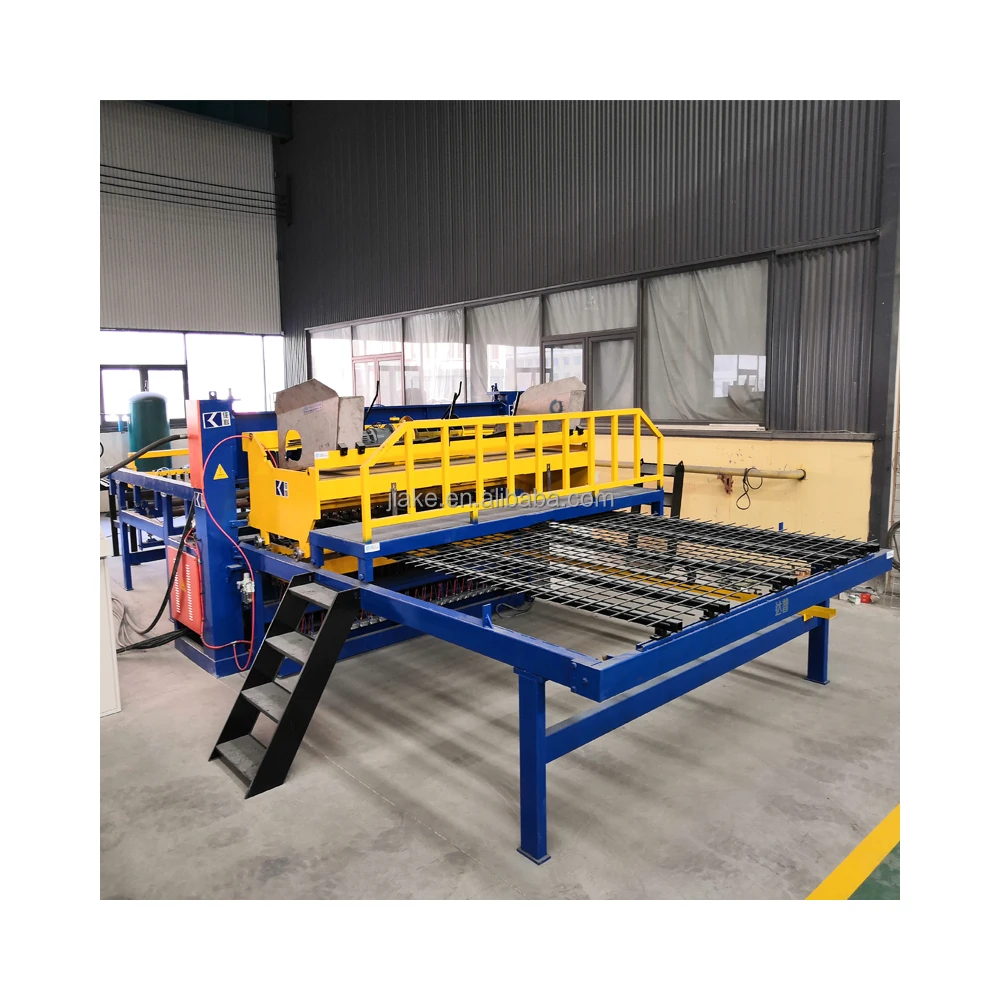

Factory Stainless Steel Mesh Welding Concrete Machine For Reinforcing Construction

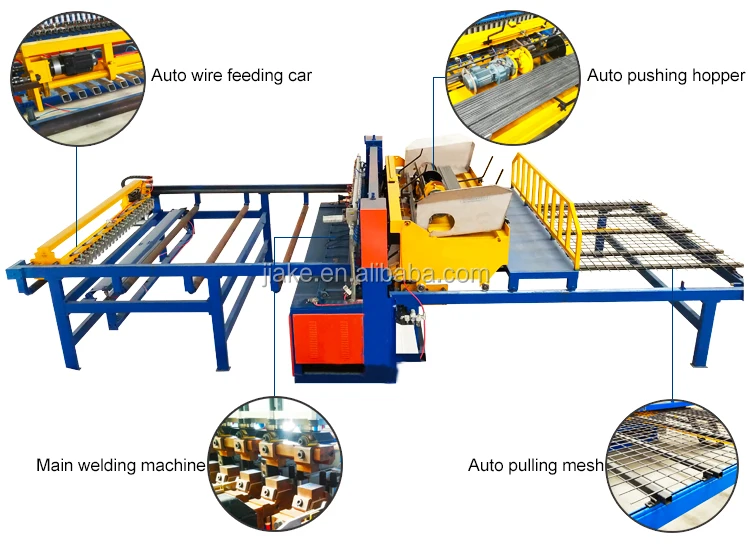

1. Special pneumatic electrode

Pneumatic electrodes for welding speed Max. 100 times/min, and adjustable welding pressure for the flat welded panel.

 2. Automatic wire feeding car

Line wire feeding car for Pre-straighten and pre-cut wires, working faster, and saving labor jobs.

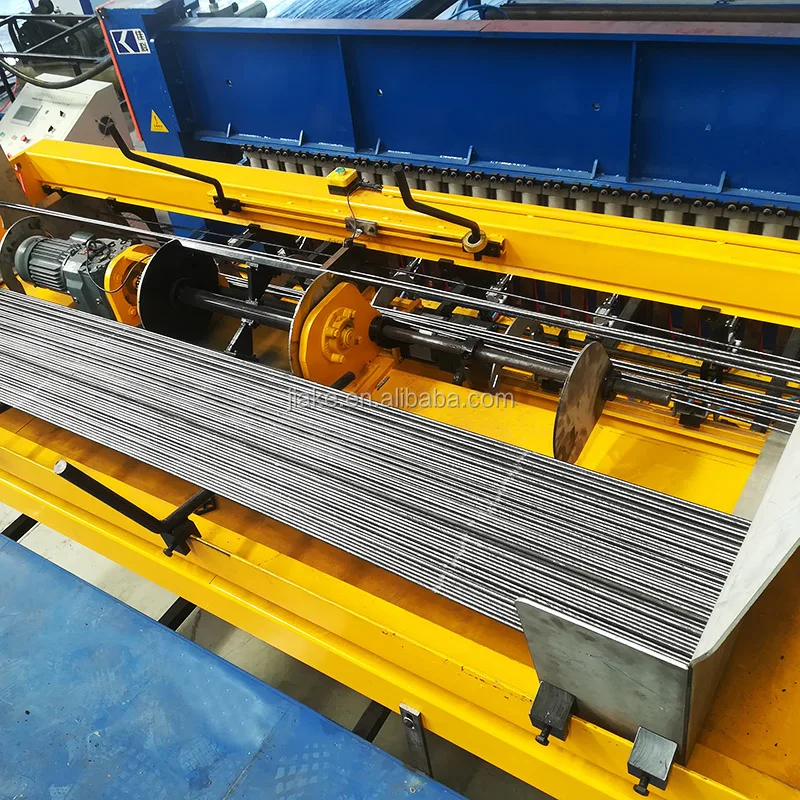

3. Automatic pushing hopper

Cross-wire pushing hopper with European technology, working faster and continuously.

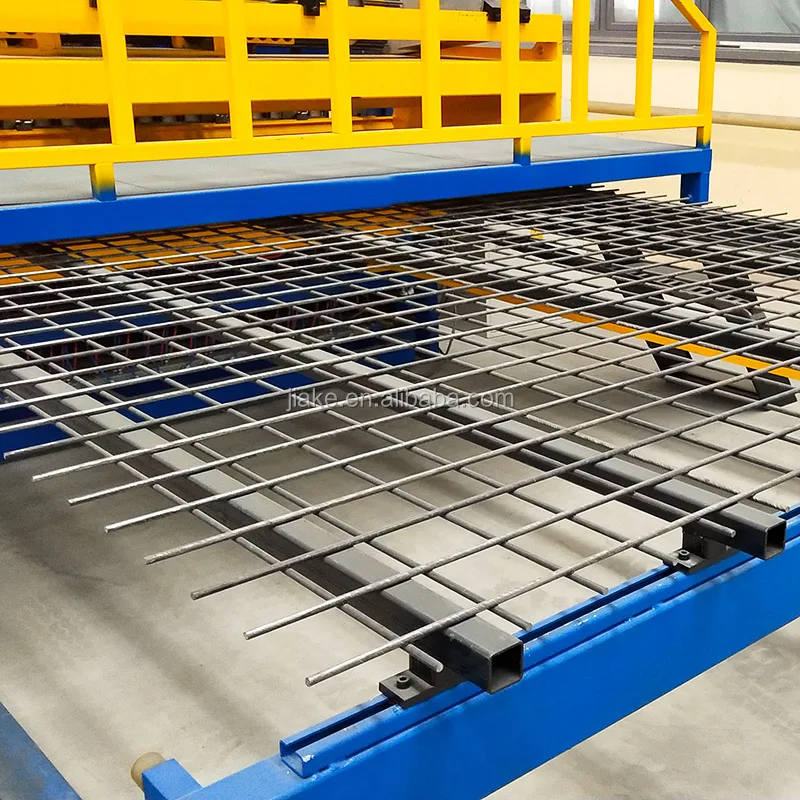

 4. Automatic pulling mesh

Servo motor for mesh pulling working with Taiwan Gear rack, cross wire space more precise.

5. Welding transformer cooling

Cast water-cooling welding transformer, efficient cooling method, welding current can be adjusted by PLC.

6. The electrical system

The electrical system from the international famous brand for precise control and smooth working.

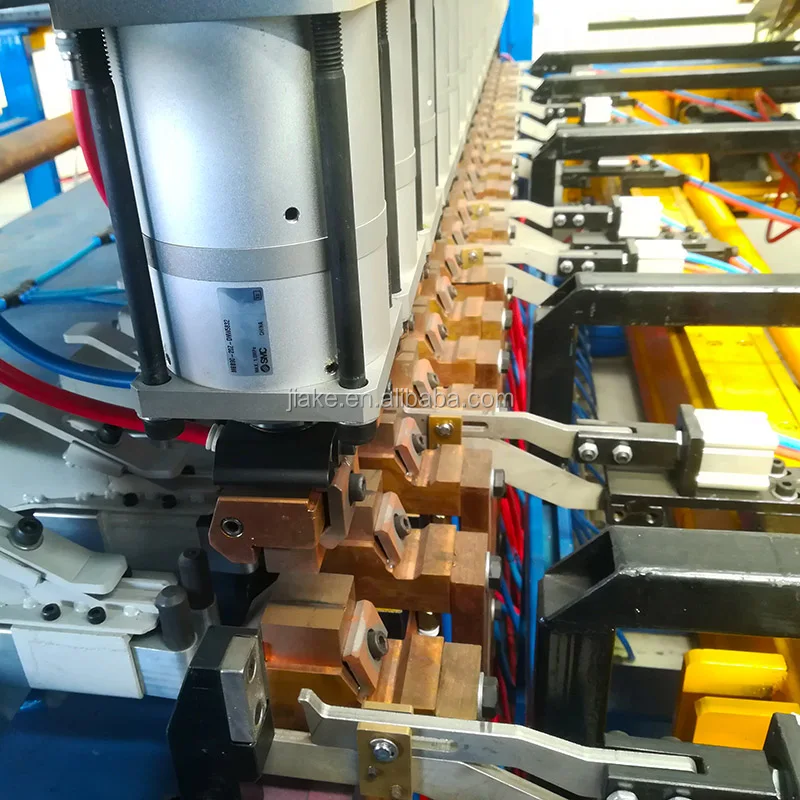

7. SMC (Japan) custom-made 90 bally air cylinders
1. Output power increases by 20%.
2. Air consumption saves 30%.
3. Air cylinder length reduces 60%, short stroke.
4. Welding pressure: 570KG.
5. Piston rod doesn't rotate.
6. Single-acting cylinder, connect with the electromagnetic valve by one air pipe.
7. Compared with the old type machine, total power consumption saves 50%.
8. The welding speed can be up to max.80-100 times/min.

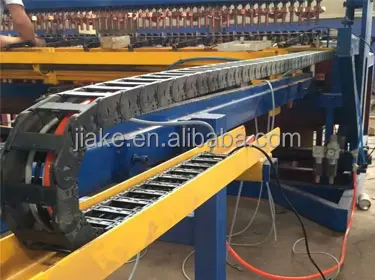

 8.The cable carrier

 Cable carrier is lgus brand, imported from   Germany, the best one, not easily hung   down.
