Africa type Single phase Digital Meter KHLSM
US $6.83-$7.10
Acrel AGF AE D/200 solar grid system ANSI approved Revenue Meter single phase three wire din rail digital solar dc energy meter
- Category: >>>
- Supplier: Acrel E-Business (shanghai) Co. ltd.Acrel ltd.
Share on (1601009213512):
Product Overview
Description
Product Overview

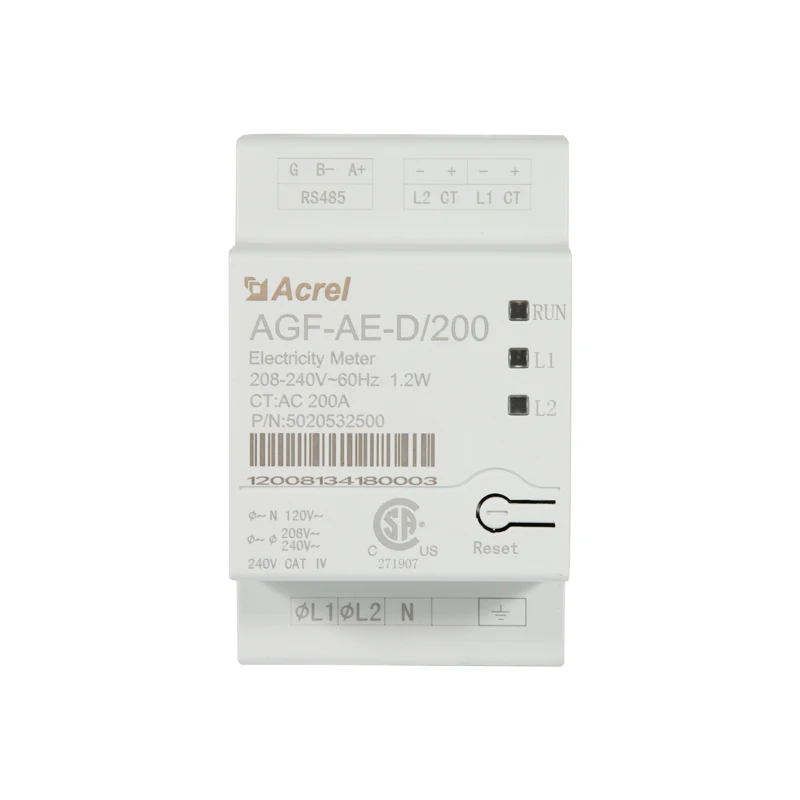

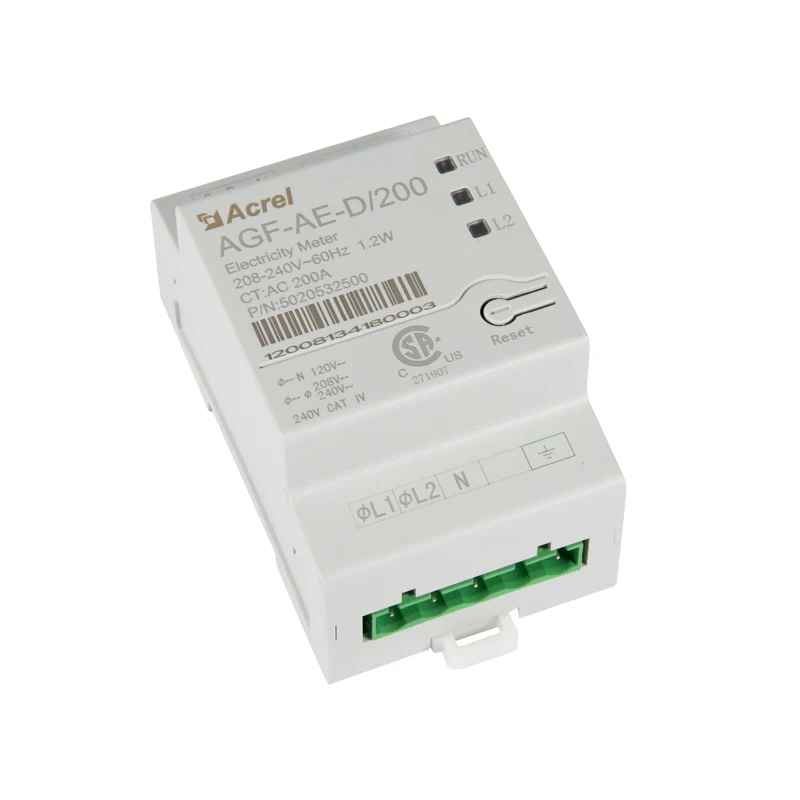

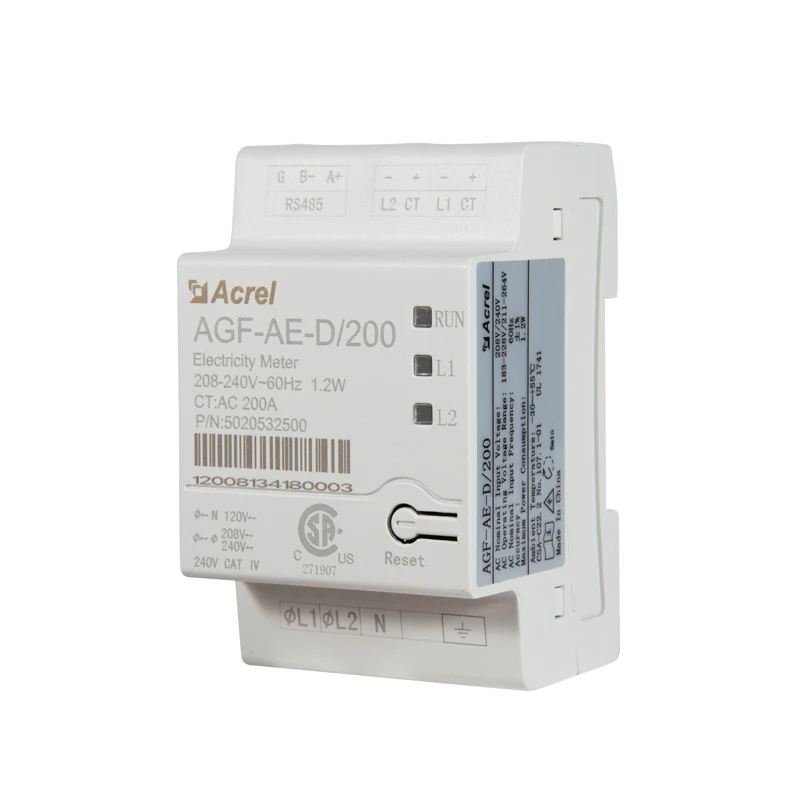

AGF-AE-D Electricity Meter

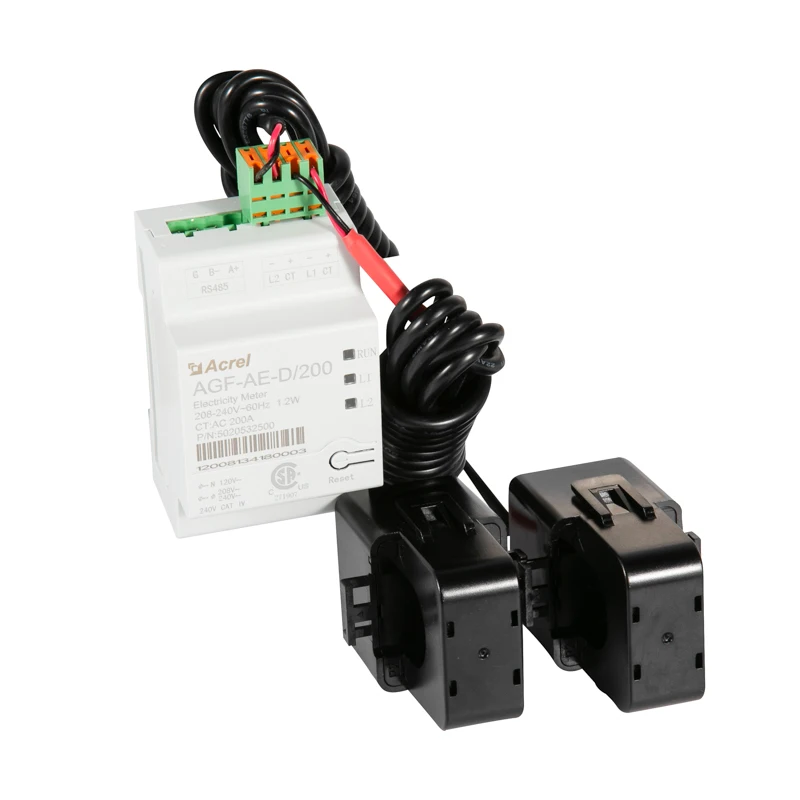

This meter is supplied with 2 current transformers for use in monitoring the energy from the inverter output and/or from the utility grid. This meter is recommended for use with the Tigo TSI inverters and required for use when installing a Tigo TSB storage system.
The application of this meter will provide accurate data to the Tigo Energy Intelligence monitoring platform showing the energy usage throughout the PV system.
The application of this meter will provide accurate data to the Tigo Energy Intelligence monitoring platform showing the energy usage throughout the PV system.

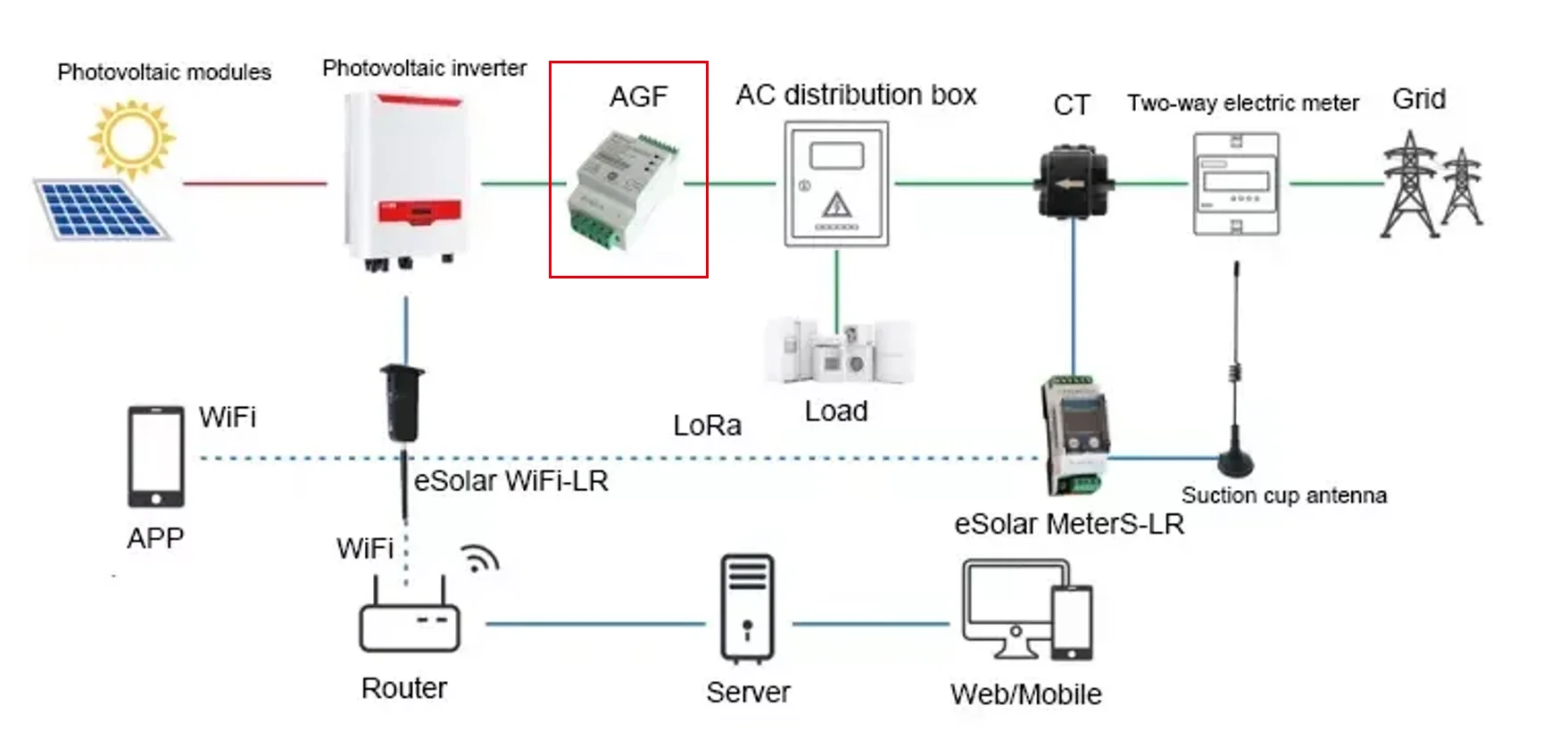

In a single inverter system, the meter is connected directly to the inverter. If your inverter has a built-in revenue grade meter (RGM; the inverter is referred to a revenue grade inverter), you can connect an external meter on the same bus as the RGM.
The meter is connected to the inverter using RS485. AC wire specifications: 1.3 to 2.0 mm diameter / 22-18 AWG stranded wire, 600 V, type THHN, MTW, or THWN. RS485 wiring
●Single phase three wire
●Rated voltage: AC 120V/208V，240V(88%~110%)
●Rated current: AC 200A
●Application: inverters in Australia, Europe,
●DIN 35 mm
●Rated voltage: AC 120V/208V，240V(88%~110%)
●Rated current: AC 200A
●Application: inverters in Australia, Europe,
North America and other areas
●DIN 35 mm
Specification
Item | Data |
Rated Voltage-Line to N | 120 V |
Rated Voltage-Line to Line | 208/240 V |
Extended Voltage Range | 88%~110% |
AC Frequrency | 60 Hz |
Grids Supported | L1/L2/N/PE |
Power Consumption | 1.2 W |
Communication interfaces | RS485 |
Response Time | s1 |
Rated RMS current | 100/200 A |
Number of Supplied Current Transformers | 2 |
Dimensions | I.D:15 0.D:35 |
Standard Compliance Safety | UL1741 |
Installation Specifications Dimensions | (HxWxD) 54.1x87.8x52 mm |
Weight | 0.2 kg |
Operating Temperature Range | -30~55 |

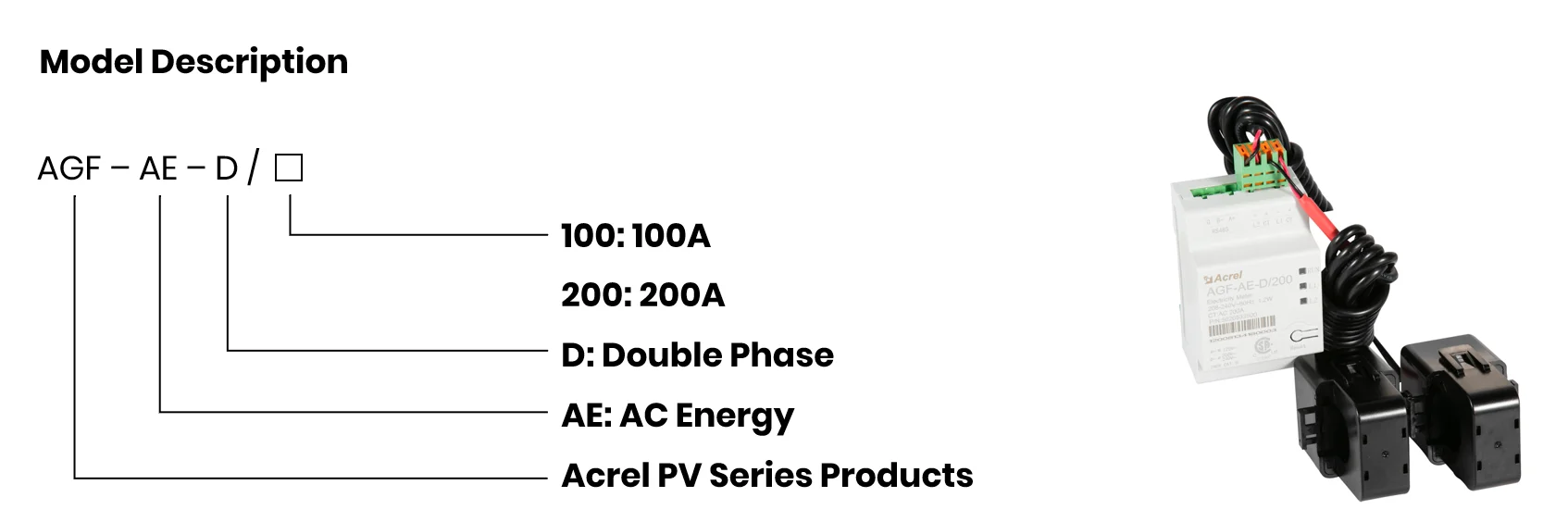

Model Description

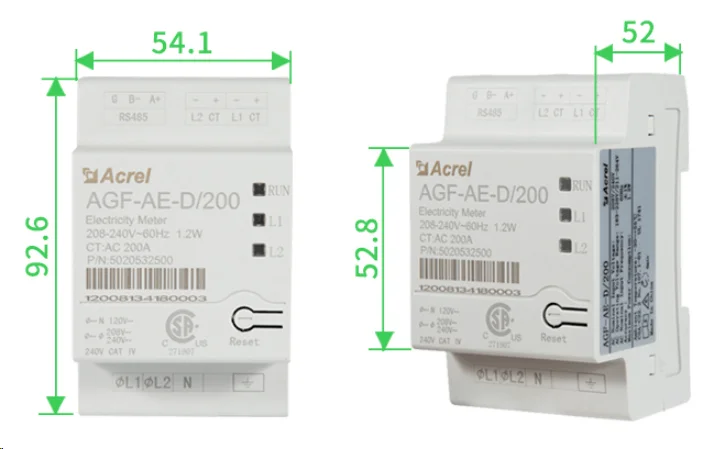

Dimension

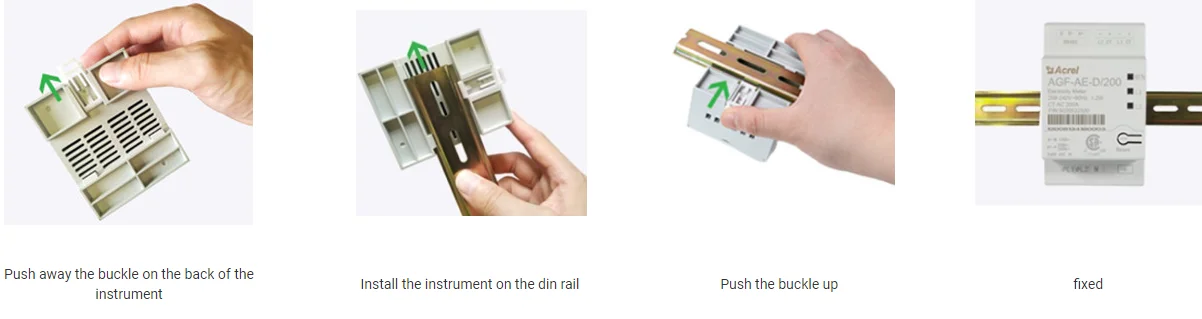

Installation
Certification
